  • Page 1 QUICK START GUIDE...
  • Page 2 YOU’LL BE GLAD YOU WENT This Quick Start Guide is a handy tool for basic information about your new Tiffin GH1. For more thorough information, check out the complete Owner’s Manual provided with the vehicle.

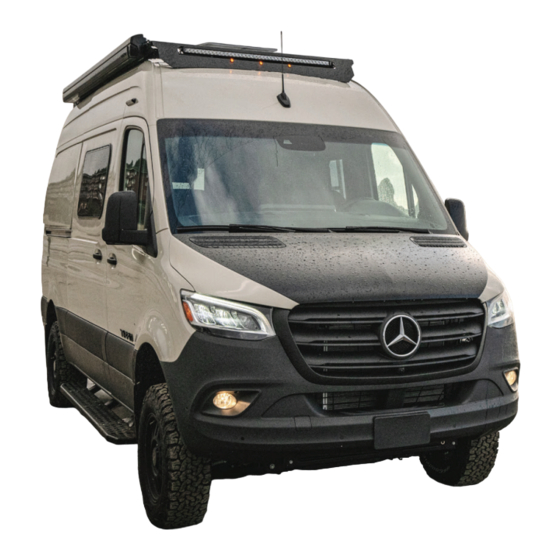

  • Page 3 LEARN ABOUT YOUR NEW TIFFIN GH1 • Mercedes Benz Sprinter 2500 ® • Fully Insulated + Moisture Resistant Lonseal ® Composite Flooring • Starlink Pro Wiring Prep ® • Girard Premium ® Awning + LED Lighting • Fox Shock System by Agile Offroad •...

  • Page 4: General Information

    GENERAL INFORMATION Shore Power The Tiffin GH1 utilizes the SmartPlug for shore power located at the rear of the van on the driver’s size. The 30 AMP Shore Power cord can be used to charge the house battery or power the van directly.
  • Page 5 GENERAL INFORMATION Master Battery Disconnect Switch If the master battery disconnect switch is off, your batteries will not charge from the 30A shore power cord. The master battery disconnect switch will turn off all power to and from the battery, excluding the auxiliary alternator charge while the vehicle is running.
  • Page 6 GENERAL INFORMATION Battery Merge Located to the left of the steering wheel, the battery merge feature allows connection between the house battery and the chassis battery to jump start your van.

  • Page 7: Master Battery Disconnect Switch

    GENERAL INFORMATION Master Battery Disconnect Switch Switch 1: Tank Heat Switch 2: Battery Heat Turns off power to the thermostat that Turns off power to the thermostat that regulates the holding tank heat pads so regulates the battery heaters so that the that the pads will not turn on when the tank heaters will not turn on when the battery heat pad reaches freezing temperatures.
  • Page 8 GENERAL INFORMATION Grey Water Tank Disposal While using the van, it is important to keep the grey water holding-tank gate valve closed at all times, with the exception of dumping. This allows an ample amount of liquid to remain in the tank to provide a smooth flow through the gate and drain valves when dumping.
  • Page 9 GENERAL INFORMATION Black Water Holding Tank & Waste Water Disposal The Black Water Holding Tank is located on the drivers side of the vehicle. To dispose of wastewater from the black water tank you must remove the tank from it’s holding position in the van, as shown, and dispose of it in a certified black water reservoir.

  • Page 10: City Water Connections

    PLUMBING City Water Connections The city water connection is located in the Nautilus P4 Panel on the rear passenger side of the unit (inside the van). There is an additional inlet on the exterior just be- hind the passenger side rear wheel. Both of these inlets will also be used to fill the fresh tank.
  • Page 11 APPLIANCES Outdoor Table Your van is equipped with a magnetic, fold-down table for use when the sliding door is open.

  • Page 12: Induction Cooktop

    APPLIANCES Induction Cooktop Your van is equipped with a single-burner induction cooktop that is located in the drawer next to sink. Use only with the outlet located above the galley overhead cabinet. This outlet has its own designated 20 AMP breaker.
  • Page 13 Hot Water Fresh Water Flow Mode Reclamation Mode The Tiffin GH1 features a wet bath; a house for both the shower and the toilet. In this space there is a magnetic and removable shower Temperature curtain, plus a retractable clothesline.

  • Page 14: Solar Controller

    GP-SB-PWM-30BT Nominal Charge Current Nominal System Voltage GP-SB-PWM-30BT Nominal Charge Current SINGLE BANK Battery Voltage Range 6V -- 16Vdc Scan for SINGLE BANK full Battery Voltage Range 6V -- 16Vdc ® Scan for BLUETOOTH Max Battery Charge Current 37.5A manual full ®...

  • Page 15: Climate Control

    CLIMATE CONTROL LCD Touch Screen Controller The Aqua-Hot hydronic heating system supplies heat ® and hot water only via a diesel burner with an option on the screen to swap to 120V electric. For air conditioning, the roof-mounted A/C with ceiling distribution shroud must be used.
  • Page 16 When using the system from a cold start, the monitor needs to be set to “Interior Heat Priority” and the water lines cannot be dry. The system needs to run in this temperature state for 8-10 minutes. Once the system finishes warming, the user can swap the monitor to “Hot Water Priority”.
  • Page 17 EUROLOFT BED LIFT The EuroLoft Bed Lift utilizes a unique nylon strap-based system that has a weight capacity of 800 pounds. To lower or raise the bed, place the key in the horizontal position. When the key is in vertical position, the bed is locked.

  • Page 18: Air Supply

    AIR SUPPLY Your van is equipped with an air compressor and 2 air supply locations. Running on the chassis battery, the air compressor receives power when the van ignition is on. The air compressor can be used to infl ate items such as tires, sporting equipment, etc.
  • Page 19 DOWNLOAD THESE APPS TO GET STARTED Go-Power Victron Inverter Solar Controller Apple and the Apple Logo are trademarks of Apple Inc. Gree Eco-Flow VersiControl 15K A/C...
  • Page 20 DOWNLOAD THESE APPS TO GET STARTED Google Play and the Google Play logo are trademarks of Google LLC. Victron Inverter Alternator Regulator Gree Eco-Flow Go-Power VersiControl 15K A/C Solar Controller...

  • Page 21: Technical Support

    TECHNICAL SUPPORT Should I contact Tiffi n Motorhomes or the chassis manufacturer? For help with For help with Tiffi n Motorhomes Support Mercedes-Benz Support 256-356-0261 877-762-8267 Tiffi n Motorhomes is committed to our customers well after the purchase of the vehicle. If you are needing service or technical assistance, please call 256-356-0261.
