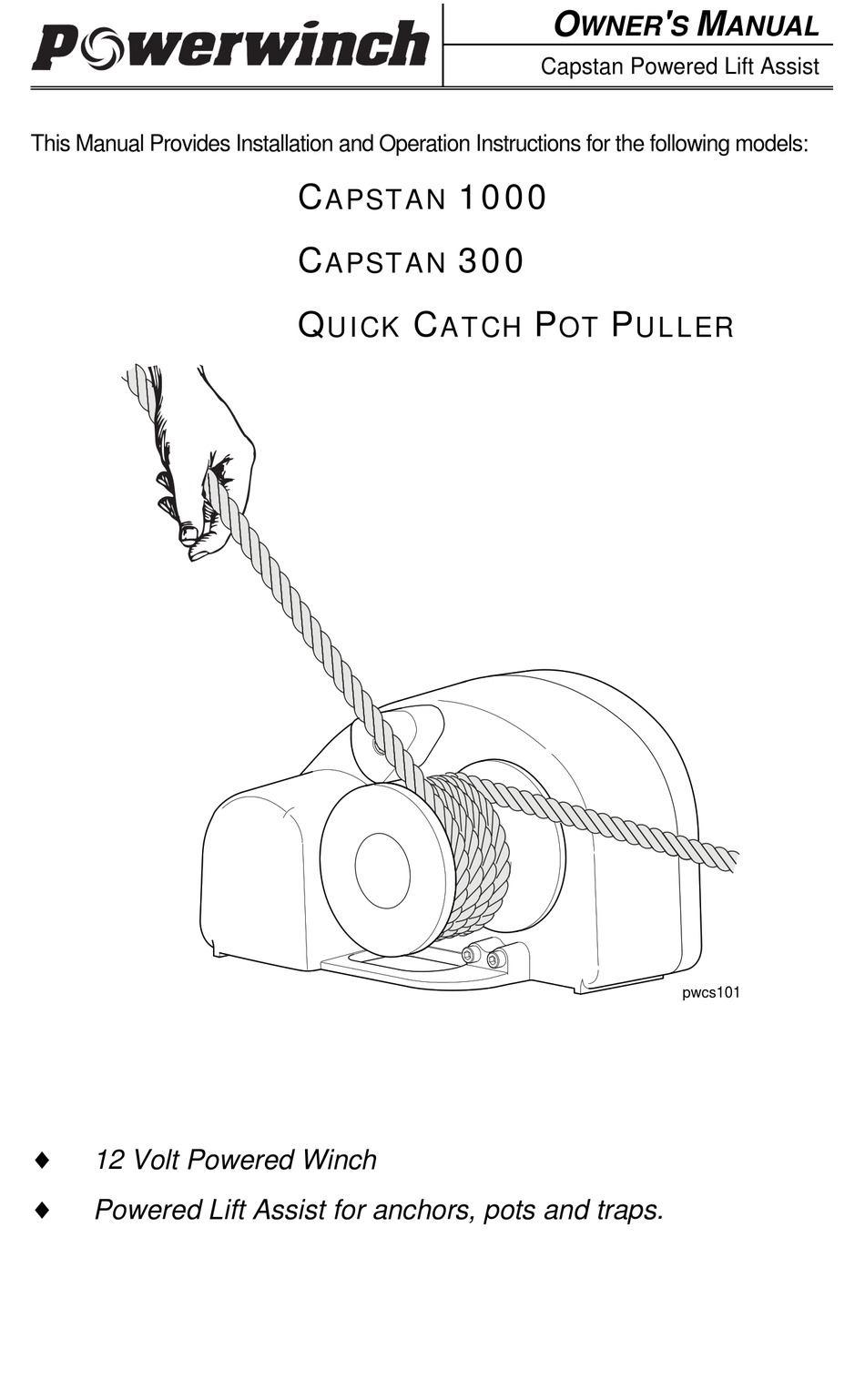

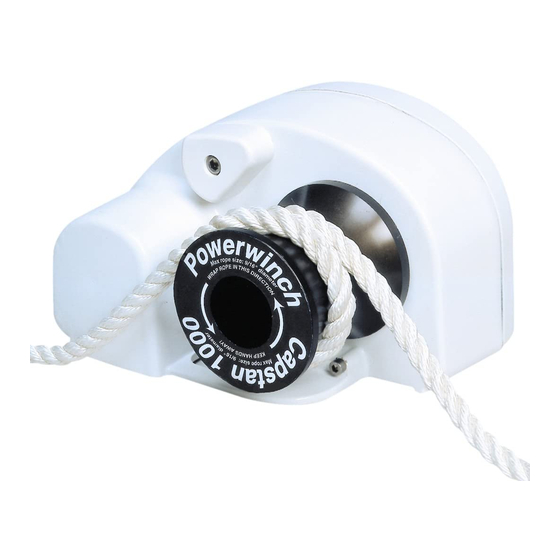

- Page 1 WNER ANUAL Capstan Powered Lift Assist This Manual Provides Installation and Operation Instructions for the following models: 1000 APSTAN APSTAN UICK ATCH ULLER pwcs101 12 Volt Powered Winch Powered Lift Assist for anchors, pots and traps.
-
Page 2: Table Of Contents
ROPRIETARY TATEMENT The Powerwinch Capstan is a product of Carefree of Colorado, located in Broomfield, Colorado, USA. The information contained in or disclosed in this document is conside proprietary to Carefree of Colorado. Every effort has been made to ensure that the information presented in the document is accurate and complete. -
Page 3: Safety Information
OWERWINCH APSTAN OWERED SSIST AFETY NFORMATION WARNING WARNING INDICATES A POTENTIALLY HAZARDOUS SITUATION WHICH IF NOT AVOIDED COULD RESULT IN DEATH OR SERIOUS INJURY AND OR MAJOR PROPERTY DAMAGE CAUTION CAUTION INDICATES A POTENTIALLY HAZARDOUS SITUATION THAT MAY CAUSE MINOR TO MODERATE PERSONAL INJURY AND OR PROPERTY DAMAGE T MAY ALSO BE USED TO ALERT AGAINST UNSAFE PRACTICES... -
Page 4: Specifications
7 1/8" 10 5/8" 8 5/16" pwcs004 Maximum Circuit Unit Model Pull Rope Size* Voltage Breaker Weight Capstan 1000 1000 lbs. 1/2-3/4" 12VDC 80 amps 23 lbs. Capstan 300 300 lbs. 1/2-5/8" 12VDC 25 amps 20 lbs. Quick Catch Pot Puller 200 lbs. -
Page 5: Furnished Materials
OWERWINCH APSTAN OWERED SSIST URNISHED ATERIALS Capstan 1000 Capstan 300 Quick Catch Pot Puller Description Description Description Winch Winch Winch 5/16-18 x 3.5 Stud 5/16-18 x 3.5 Stud 5/16-18 x 3.5 Stud 5/16 Lock Washer 5/16 Lock Washer 5/16 Lock Washer... -
Page 6: Mounting The Unit
APSTAN OWERED SSIST OWERWINCH OUNTING THE P1053700AV Mounting Template 3/8" Hole Thru Winch Mounting Hole Center Of Rope (3 Plcs) Anchor Winch To Davit 3 1/2" 3 1/4" (88.9mm] [82.6mm] 5/16" [7.9mm] 1/2" Hole Thru Wire Harness 5 1/2" [139.7mm] 6 7/8"... -
Page 7: Wiring The Unit
OWERWINCH APSTAN OWERED SSIST IRING THE WARNINGS disconnect the battery before working on electrical equipment. LWAYS use the recommended wire size and rated circuit breakers. Failure LWAYS to use the furnished and recommended sizes can cause a fire hazard and void warranty. -
Page 8: Testing The Unit
To Battery (+12VDC) Ring Terminal Wire * Use 8awg wire for Capstan 300 Use 6awg wire for Capstan 1000 Use 6awg wire for Quick Catch Pot Puller 80A Circuit Breaker (used w/ Capstan 1000 & Quick Catch Pot Puller) pwcs005 ESTING THE Ensure that all connections are secure and correct. -
Page 9: Operating The Winch
Every 6 months inspect capstan for wear. Replace any worn components. Check rope periodically for abrasion or deep cuts. Never splice an old rope with a new rope. If replacement is necessary, use only Powerwinch recommended rope. Check electrical connections every 6 months for corrosion. -
Page 10: Replacement Parts List
APSTAN OWERED SSIST OWERWINCH EPLACEMENT ARTS 12,13 CAPSTAN 1000 CAPSTAN 300 & QUICK CATCH POT PULLER... - Page 11 OWERWINCH APSTAN OWERED SSIST Item Description Capstan Capstan Quick Catch Notes 1000 Pot Puller Seal & Gasket Kit P10346 P10346 P10346 Mounting Kit P10349 P10349 P10349 Capstan Kit R001461 R001461 R001461 Foot Switch P7817600AJ P7817600AJ P7817600AJ Circuit Breaker, 25A P1027600AJ Circuit Breaker, 80A P1066800AJ P1066800AJ Bearing Kit...
