DAB Digital/FM Radio
DR 80-D
Instruction Manual
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DR 80-D and is the answer not in the manual?

Questions and answers

Summary of Contents for Albrecht DR 80-D

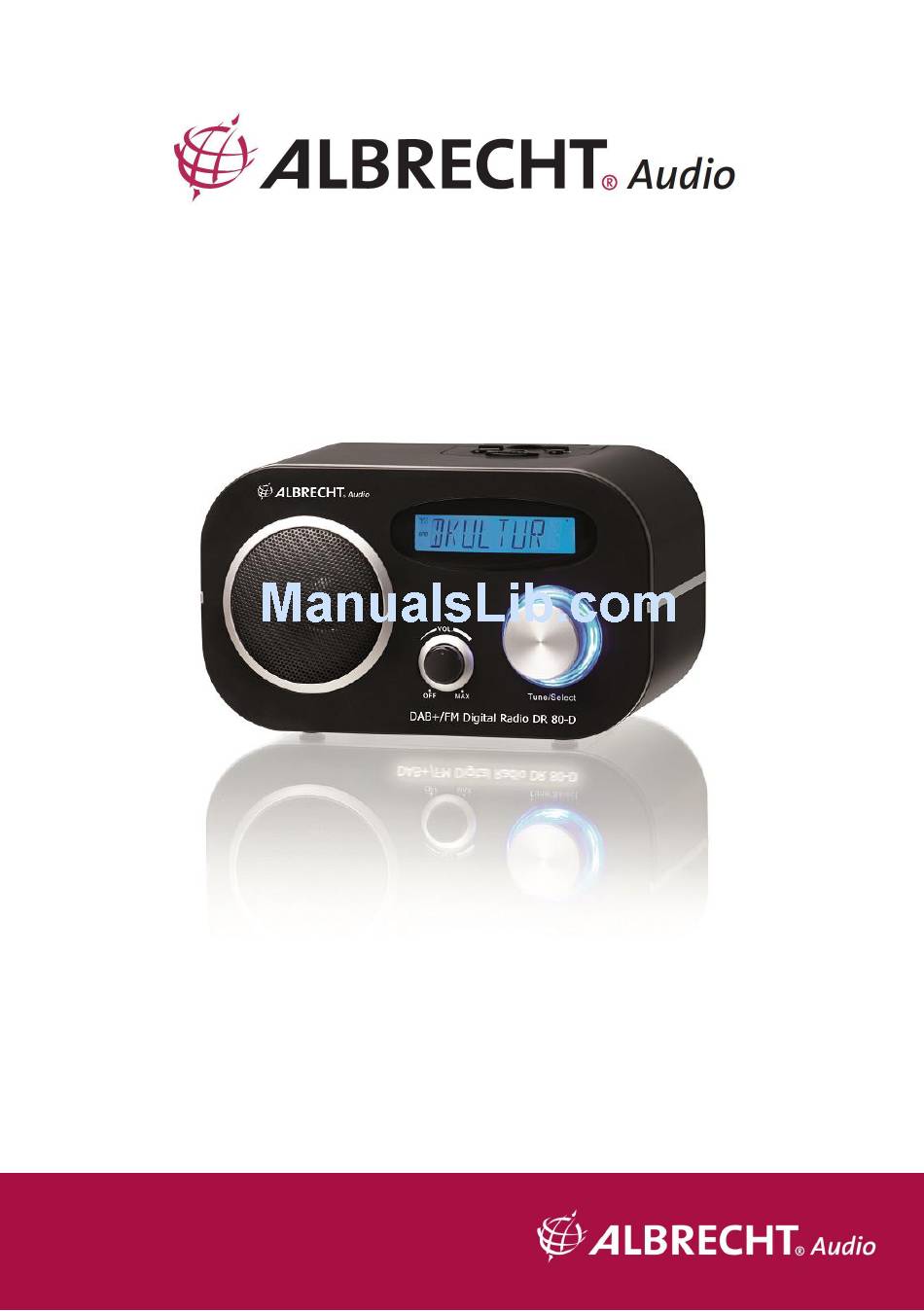

  • Page 1 DAB Digital/FM Radio DR 80-D Instruction Manual English...
  • Page 2: Table Of Contents

    Table of Contents 1 Table of Contents ....................14 2 Controls and Functions ..................16 3 First Step/Radio Configuration ................17 Power Supply ......................17 Turning the Radio On: .................... 17 Volume Control ....................... 17 Station Search ......................17 Station Selection ....................18 Save Station ......................
  • Page 3 6 Reset........................22 7 Troubleshooting ....................22 8 CE Declaration of Conformity - Standards and Regulations ......23 9 Service address for devices sold in Germany: ..........24 Please read the instruction manual thoroughly before operating the device! English...
  • Page 4: Controls And Functions

    1 Controls and Functions Key Panel Station Buttons 1-4, 4+ (Shift) Stations 5-8 are accessed after pressing 4+ DAB/FM Switch Automatic Broadcaster Search (Auto Scan) Stand by: Switch to stand by Info/Menu Alarm Button Snooze button Front View LC Display Loudspeaker On/Off and Volume (Vol.) Tune/Select...
  • Page 5: First Step/Radio Configuration

    2 First Step/Radio Configuration 2.1 Power Supply You may operate the device either with batteries (6 AA alkaline units) or with the included AC adapter. For battery operation, open the battery compartment on the rear and insert 6 standard alkaline batteries. Please note the polarity (+/-) and the indications in the battery compartment.
  • Page 6: Station Selection

     If you are currently not in DAB mode, press the “DAB/FM” button to activate DAB mode.  Press “Auto Scan” to initiate the station search. The display will now show Full scan...and afterwards, the number of stations found.  Press “Auto Scan” in FM mode to initiate the automatic station scan. 2.5 Station Selection If you are currently not in DAB mode, press the “DAB/FM”...
  • Page 7: Call Up Preset Station

    2.7 Call Up Preset Station Briefly press one of the “1-4” buttons. The radio will instantly switch to the selected station. Please Note: If you wish to invoke one of the stations saved under the “5-8” station preset buttons, then first press “4+” to switch from the 1-4 station preset buttons to 5-8 and then press “1-4”.
  • Page 8: Menu

    Radio Text – This is marquee text which is transmitted by the station. The information may include the name of the artists of the song title, the name of the DJ, the station’s contact information etc. Programme Type (PTY) – “Rock”, “Pop”, “Talk” or “News” are just a few examples. Time Date Weekday...
  • Page 9: Time/Clock

    3.2.1 Time/Clock In this menu, you can choose whether the time will be automatically synchronised or you may manually set the time. The default setting is automatic synchronisation. 3.2.2 Dimmer The dimmer menu contains settings for automatic display light dimming. 2 options are available.
  • Page 10: Reset

    5 Reset You can reset your radio to factory settings. Please Note: All DAB and FM stations in the station preset buttons will be erased when performing a reset. Hold down the DAB+/FM button for 2 seconds. The display will show: RESET Confirm the reset by pressing Tune/Select.
  • Page 11: Ce Declaration Of Conformity - Standards And Regulations

    7 CE Declaration of Conformity - Standards and Regulations This device complies with European directives and standards for DAB and FM receiver devices and bears the CE symbol. The newest version of the original declaration of conformity as well as all device documents is available for download on our download server www.service.alan-electronics.de under the Digital Radio/DAB category.
  • Page 12: Service Address For Devices Sold In Germany

    (see Troubleshooting Chapter), or seek help from our hotline. Print errors excepted. The information in this handbook may change without previous notice. © 2015 Alan Electronics GmbH Daimlerstr. 1 k – D -63303 Dreieich www.albrecht-audio.de English...
