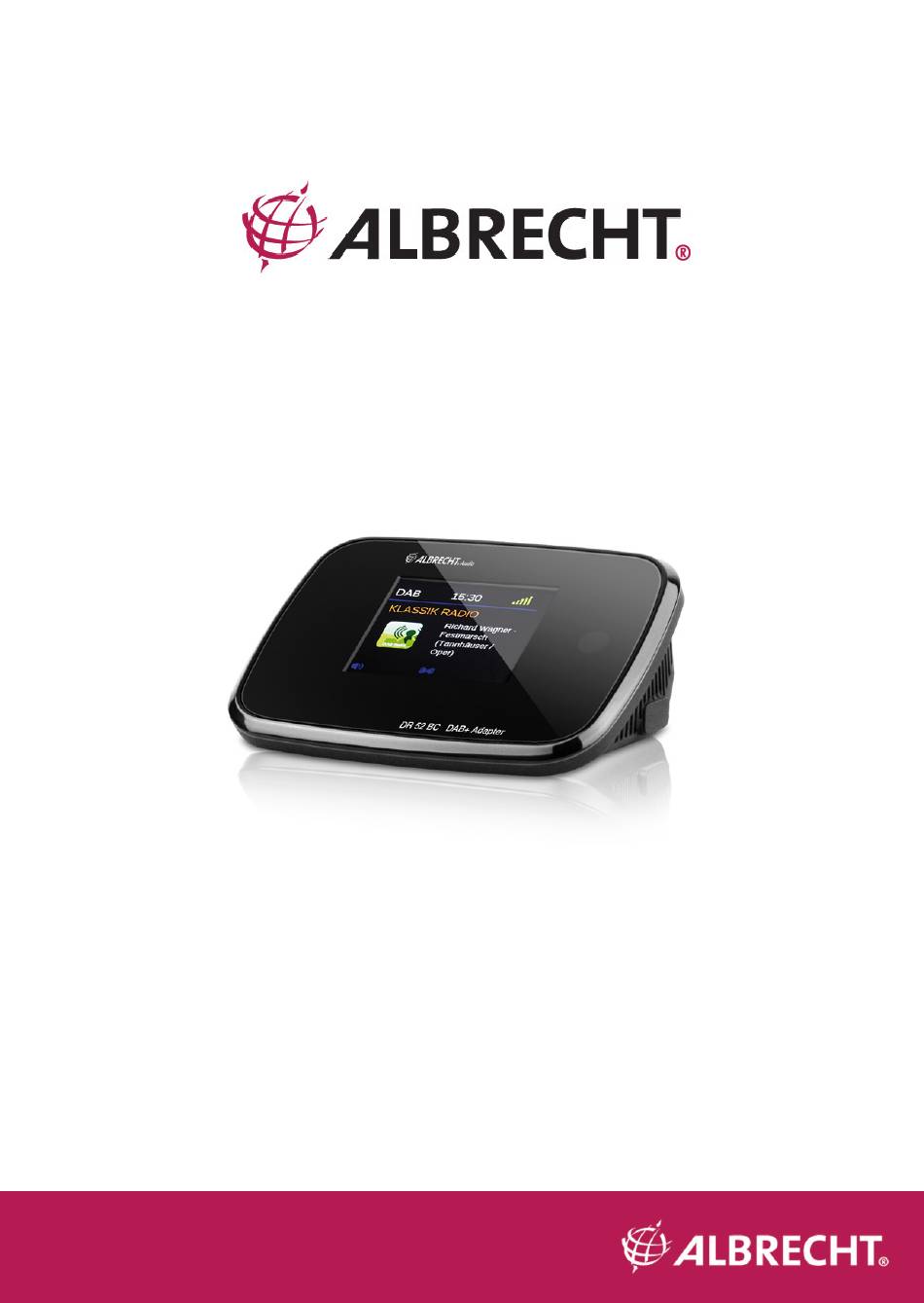

- Page 1 DR 52 BC Manual English...
-
Page 2: Table Of Contents
1. Content 1. Safety Precautions ............. 25 2. Appearance and Key Descriptions ........26 3. Getting Started ..............27 4. DAB ..................29 4.1. Scanning for DAB+ stations ..........29 4.2. Station List ............... 29 4.3. Manual Tune ..............29 4.4. -
Page 3: Safety Precautions
2. Safety Precautions • Do not drop the DR 52 BC and do not expose it to liquid, mois- ture or humidity. These might lead to damage to the device. • If the DR 52 BC is moved from a cold environment into a warm- er one, do let it adapt to the new temperature before operating the device. -
Page 4: Appearance And Key Descriptions
3. Appearance and Key Descriptions Desription Functions TFT screen Display Standby button Standby on/off Antenna Enhance DAB/FM reception DC In Power supply Audio Out RCA L/R jack for audio out English... -
Page 5: Getting Started
4. Getting Started The packaging box contains the following items: DR 52 BC RCA to RCA audio cable RCA to 3.5mm audio adaptor Remote control Power adaptor... - Page 6 • Connect the power adaptor to the back of the DR 52 BC and plug it into a power socket. • The time, date and any active alarm icon are then displayed on the screen. The time and date are also updated automatically from radio (DAB or FM) by default.
-
Page 7: Dab
• Press „Mode“ to go to the main menu, press „Tuning p/q“ to select different operation modes (DAB, FM or Bluetooth). • At any operation mode, press „back“ to go to the previous screen. • When music is playing, press „+ / -“ to adjust the volume. Press „Mute“... -
Page 8: Prune Invaild
will be put on the station list. 5.4. Prune Invaild Enter to remove the stations that are listed but not available. Press „Menu“ to go to system menu. Press „Tuning p/q“ to „Prune Invalid“ and then choose „Yes“. Press „ok“ to confirm. 5.5. -
Page 9: Dab+ Information Display
to choose the number and then press „ok“ to recall the station. A preset can also be recalled by pressing its corresponding „1“ to „10“ key. 5.9. DAB+ information Display You can view the DAB+ service information. Press „Info“ to view the programme information, the programme type of the station, the frequency, signal strength, bit rate, codec, audio type, chan- nels, the date. -
Page 10: Audio Setting
6.3. Audio setting Set to receive the FM signal in mono or stereo. 6.4. Preset the FM stations When listening to a FM station, press „Menu“ to enter the menu, then select „Preset Store“ to save the current station. Press „Tuning p/q“... -
Page 11: Main Menu And Settings
7. Main Menu and Settings At any operation mode, press „Menu“ to enter the system menu in order to change the device configurations. Press „Tuning p/q“ to select the submenu and then press „ok“ to confirm. 7.1. Equalizer Press „Tuning p/q“ to choose EQ: Normal, Classic, Pop, Jazz, Rock, Flat, Movie or News. -
Page 12: Backlight
7.2. Backlight Select illuminated level of backlight (High/ Medium/ Low) and the duration of timeout (Always On/ 10/ 20/ 30/ 45/ 60/ 90/ 120/ 180 sec). With setting the timeout, the backlight will automatically change to dim if the device is not operated for the set amount of time. -
Page 13: Alarms
Set Format: Change the display of time to 12-hour mode or 24- hour mode. Press „Tuning p/q“ to adjust and press „ok“ to confirm. Auto update: Select to update time and date automatically from Radio (DAB or FM). Press „Tuning p/q“ to adjust and press „ok“... - Page 14 Alarm Sound: Set the alarm sound (Buzzer/DAB/FM). Press „Tuning p/q“ to select the mode and press „ok“ to confirm. Volume: Press „Tuning p/q“ or „+ / -“ to adjust the volume and press „ok“ to confirm. Press „back“ to complete the setting. If the alarm sound is set to DAB/FM, the antenna should be ex- tended and positioned properly to ensure good reception of sta- tion signals.
-
Page 15: Sleep
75/ 90/ 105/ 120 minutes or set the sleep time to „Off“. Press „ok“ to confirm. 7.6. Factory Reset Press „Tuning p/q“ to select „Yes/No“ to reset the DR 52 BC to the factory default settings. Press „ok“ to confirm. The system will then restart after reset. -
Page 16: Bluetooth
Once the adapter has connected to a Bluetooth device, it will au- tomatically search to reconnect this Bluetooth device next time when they are in operating range. Note: The DR 52 BC supports to receive Bluetooth signals within 8 metres. English... -
Page 17: Troubleshooting
9. Troubleshooting Error Solution The device does 1. Check if the power adaptor is connected not switch on. properly with the power supply. 2. The device may malfunction when used in areas with strong radio interference. The device will work properly again once interference ceases. -
Page 18: Specifications
10. Specifications Model name DR 52 BC Description DAB/DAB+ and FM adaptor with Bluetooth interface Display 2.4“ TFT Color Display 87.5 – 108.0 MHz, RDS sup- ported DAB/DAB+ Band III (174.928 – 239.200 MHz) Power adaptor 6V / 600mA Connections... -
Page 19: Warranty And Recycling Information
11. Warranty and Recycling Information We are legally obliged to include disposal and warranty infor- mation as well as EU declaration of conformity with the use in- structions in different countries for every unit. Please find this information on the following pages. 2-Year Warranty From Date Of Purchase The manufacturer/retailer guarantees this product for two years from date of purchase. -
Page 20: Service Address
12. Service Address And Technical Hotline (for units sold in Germany) Alan Service c/o Transerv2000 Repair Service GmbH & Co. KG Servicecenter Frankfurt Robert-Bosch-Str. 35 D-64625 Bensheim Contact our service hotline by phone +49 (0) 6251 9856 0 55 (regular costs for German fixed network) or e-mail at service.alan@transerv2000.com Before returning the product, check the chapter “Troubleshoo- ting”...
Need help?
Do you have a question about the DR 52 BC and is the answer not in the manual?
Questions and answers

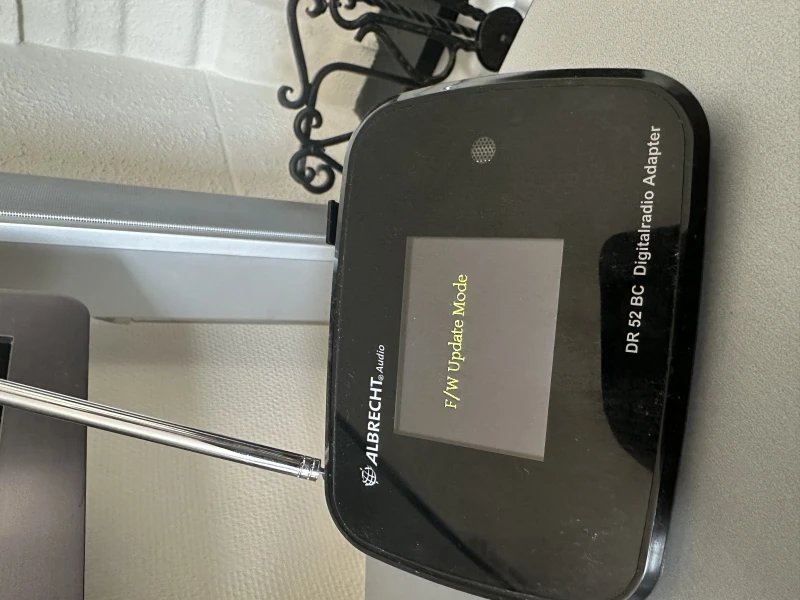

hi! it's like this on the screen, I can't turn it on. what can I do?
If your Albrecht DR 52 BC screen is not turning on, check the following:
1. Ensure you are using the correct power adaptor delivered with the device.
2. Verify that the power socket voltage matches the device's voltage specifications.
3. Make sure the power plug is properly connected and not damaged.
4. Press the "Light" button to adjust or activate the backlight.
5. If the device has not been used for a long time, ensure it is properly reconnected to the power supply.
If the screen still does not turn on, disconnect the device from power and reconnect it after a few moments.
This answer is automatically generated
