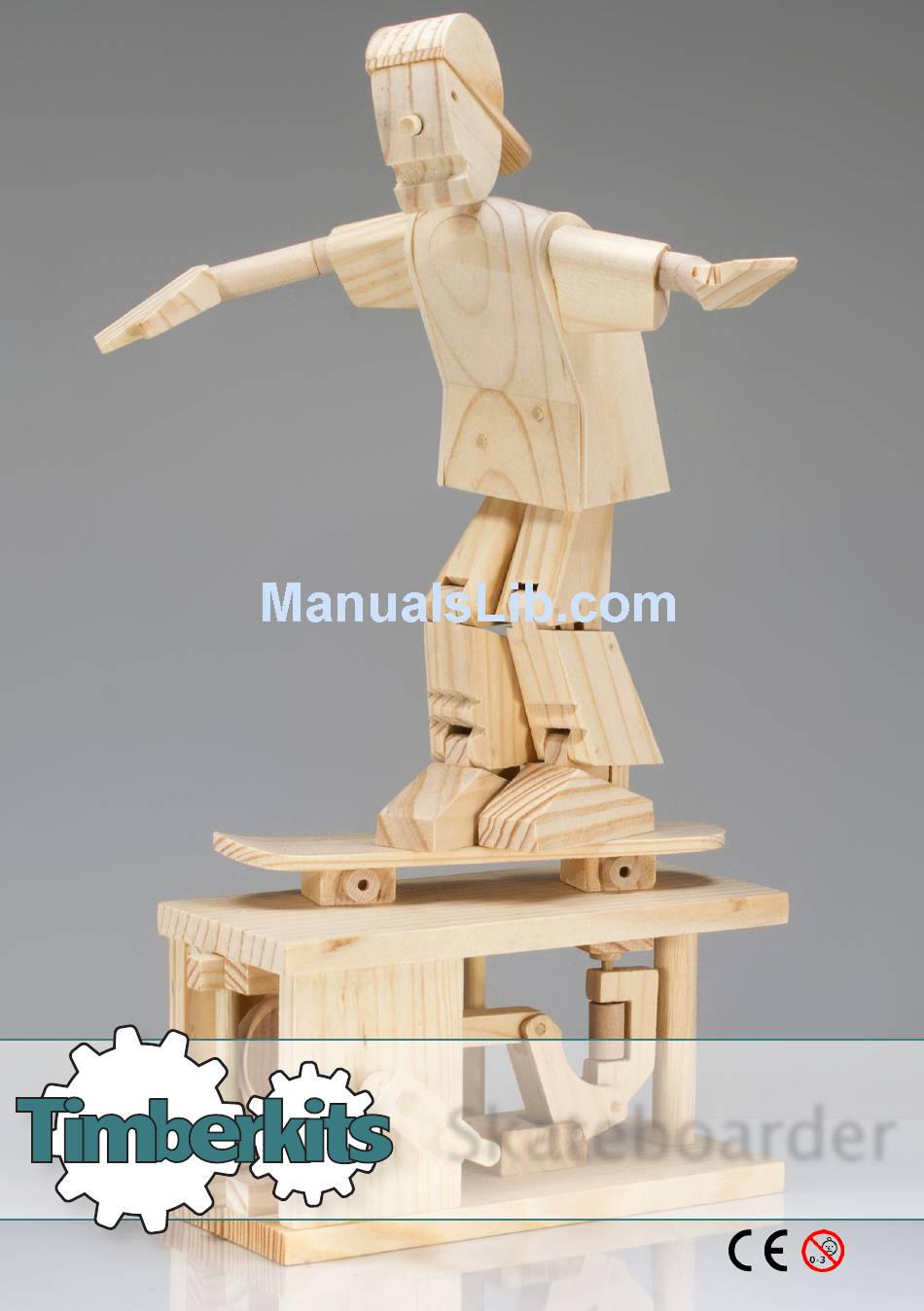

- Page 1 Skateboarder...
- Page 2 (IT) Leggere tutte le istruzioni e guardare i diagrammi instructional videos where you (DE) Lesen sie alle anweisungen und betrachten sie die schaubilder see this symbol. www.timberkits.com (UK) Check assembly before gluing (FR) Vérifier le montage avant collage (ESP) Controlar el montaje antes de empezar a pegar (IT) Controllare l’assemblaggio prima di incollare...
- Page 3 Or visit our website for tips, advice and our instructional videos.
- Page 5 17 x2 19 & 33 40 x2...
- Page 6 20 20 20...
- Page 7 2x46mm 2x8mm 2x20mm 2x20mm 2x8mm 3x66mm...
- Page 8 3x12mm 3x22mm 10mins 2x18mm 2x18mm 2x18mm...
- Page 9 2x18mm 2x20mm 10mins...
- Page 10 10mins...
- Page 11 3x12mm 3x12mm 3x12mm 3x12mm 3x12mm 3x12mm 20mins...
- Page 12 3x10mm 10mins 3x10mm 3x10mm 3x14mm 3x20mm...
- Page 13 3x12mm 3x14mm Do not glue the Spacer (29) too close to the Sliding Assembly. It must be held against the Side (17) but be able to move freely back and forth.
- Page 14 20mins 6x95mm 20mins 6x25mm...
- Page 15 With the Handle Shaft pulled out by about 1cm push the Cam (32) furthest away from the Handle against the Side (17), put some glue on the shaft in front of the Cam and then push the Handle Shaft back in place, turning it as you do so.
- Page 16 Do not apply too much glue on the Side (17), next to the Sliding Assembly as it might spill out and glue the Sliding Assembly to the Side.
- Page 17 Put glue inside the 9mm hole in part 34, then push onto part 14 as shown. Part 34 must not be loose against the Platform Top (33) but not be so tight that the part cannot swivel. When the glue is nearly dry, turn the Handle and the Skateboard should turn from left to right evenly.
- Page 18 With part 35 held between your finger and thumb, thread the 3mm x 66mm shaft (underneath the Left Foot) down through the Platform Top (33) and through into the hole in the top of part 35 (as shown). Turn the Handle so that the two Cams (32) are pointing one up and one down, then carefully lift up part 25 and put a dab of glue underneath it.
- Page 19 Turn the handle so that the Cam (32) nearest the centre is pointing away from the Vertical Column. Then carefully lift up the feet and put glue on the sole of each one and glue to the surface of the Skateboard. Whilst the glue is still wet turn the feet so that they are at an angle of about 30 degrees to the Skateboard and leave about 1mm gap in between each foot to allow the legs to move freely when the handle...
- Page 20 3x27mm Turn the handle to check 3x29mm the body tilts equally in each direction. Adjust the 2mm x 46mm peg glued into part 37 to alter the tilt whilst the glue is still wet. 20mins...
- Page 21 20mins 3x22mm 5x9mm Glue the cap on the head whichever direction you prefer!
- Page 22 20mins 30mins...
- Page 23 (UK) If you enjoyed building this model why not try our others. Available directly from Timberkits Ltd or from our UK, European or worldwide retail partners. Check our website to find your nearest stockist. (FR) Si vous avez apprecie construire ce modele, pourquoi ne pas en essayer d’autres. Ils sont disponibles chez Timberkits Ltd ou chez nos partenaires detaillants au Royaume Uni, en Europe et plus largement dans le monde.
- Page 24 Timberkits Limited Old Village Hall Llanbrynmair Powys, SY19 7AA 00 (44) (0) 1650 521635 timber_kits@btconnect.com www.timberkits.com Timberkits logo and all Timberkits designs are Copyright (©) 2012 all rights reserved.
