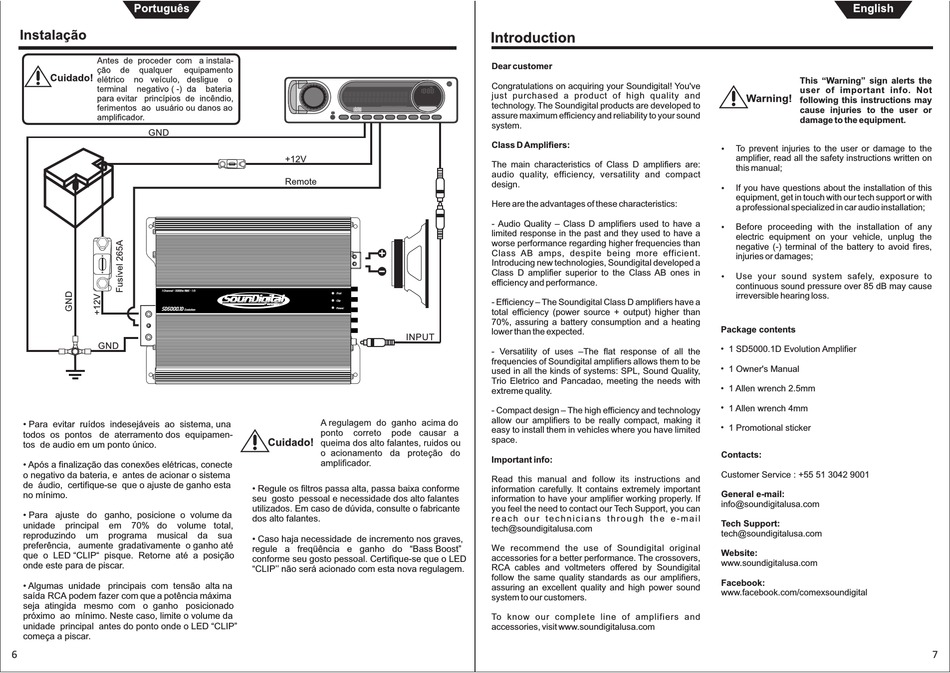

Soundigital LINHA EVOLUTION Owner's Manual page 7

• Para evitar ruídos indesejáveis ao sistema, una
todos os pontos de aterramento dos equipamen-
tos de audio em um ponto único.
• Após a finalização das conexões elétricas, conecte
o negativo da bateria, e antes de acionar o sistema
de áudio, certifique-se que o ajuste de ganho esta
no mínimo.
• Para ajuste do ganho, posicione o volume da
unidade principal em 70% do volume total,
reproduzindo um programa musical da
preferência, aumente gradativamente o ganho até
que o LED "CLIP" pisque. Retorne até a posição
onde este para de piscar.
• Algumas unidade principais com tensão alta na
saída RCA podem fazer com que a potência máxima
seja atingida mesmo com o ganho posicionado
próximo ao mínimo. Neste caso, limite o volume da
unidade principal antes do ponto onde o LED "CLIP"
começa a piscar.
• Regule os filtros passa alta, passa baixa conforme
seu gosto pessoal e necessidade dos alto falantes
utilizados. Em caso de dúvida, consulte o fabricante
dos alto falantes.
sua
• Caso haja necessidade de incremento nos graves,
regule a freqüência e ganho do "Bass Boost"
conforme seu gosto pessoal. Certifique-se que o LED
"CLIP'' não será acionado com esta nova regulagem.
Dear customer
Congratulations on acquiring your Soundigital! You've
just purchased a product of high quality and
technology. The Soundigital products are developed to
assure maximum efficiency and reliability to your sound
system.
Class D Amplifiers:
The main characteristics of Class D amplifiers are:
audio quality, efficiency, versatility and compact
design.
Here are the advantages of these characteristics:
- Audio Quality – Class D amplifiers used to have a
limited response in the past and they used to have a
worse performance regarding higher frequencies than
Class AB amps, despite being more efficient.
Introducing new technologies, Soundigital developed a
Class D amplifier superior to the Class AB ones in
efficiency and performance.
- Efficiency – The Soundigital Class D amplifiers have a
total efficiency (power source + output) higher than
70%, assuring a battery consumption and a heating
lower than the expected.
- Versatility of uses –The flat response of all the
frequencies of Soundigital amplifiers allows them to be
used in all the kinds of systems: SPL, Sound Quality,
Trio Eletrico and Pancadao, meeting the needs with
extreme quality.
- Compact design – The high efficiency and technology
allow our amplifiers to be really compact, making it
easy to install them in vehicles where you have limited
space.
Important info:
Read this manual and follow its instructions and
information carefully. It contains extremely important
information to have your amplifier working properly. If
you feel the need to contact our Tech Support, you can
r e a c h o u r t e c h n i c i a n s t h r o u g h t h e e - m a i l
tech@soundigitalusa.com
We recommend the use of Soundigital original
accessories for a better performance. The crossovers,
RCA cables and voltmeters offered by Soundigital
follow the same quality standards as our amplifiers,
assuring an excellent quality and high power sound
system to our customers.
To know our complete line of amplifiers and
accessories, visit www.soundigitalusa.com
This "Warning" sign alerts the
user of important info. Not
following this instructions may
cause injuries to the user or
damage to the equipment.
To prevent injuries to the user or damage to the
Ÿ
amplifier, read all the safety instructions written on
this manual;
If you have questions about the installation of this
Ÿ
equipment, get in touch with our tech support or with
a professional specialized in car audio installation;
Ÿ Before proceeding with the installation of any
electric equipment on your vehicle, unplug the
negative (-) terminal of the battery to avoid fires,
injuries or damages;
Ÿ Use your sound system safely, exposure to
continuous sound pressure over 85 dB may cause
irreversible hearing loss.
Package contents
· 1 SD5000.1D Evolution Amplifier
· 1 Owner's Manual
· 1 Allen wrench 2.5mm
· 1 Allen wrench 4mm
· 1 Promotional sticker
Contacts:
Customer Service : +55 51 3042 9001
General e-mail:
info@soundigitalusa.com
Tech Support:
tech@soundigitalusa.com
Website:
www.soundigitalusa.com
Facebook:
www.facebook.com/comexsoundigital
