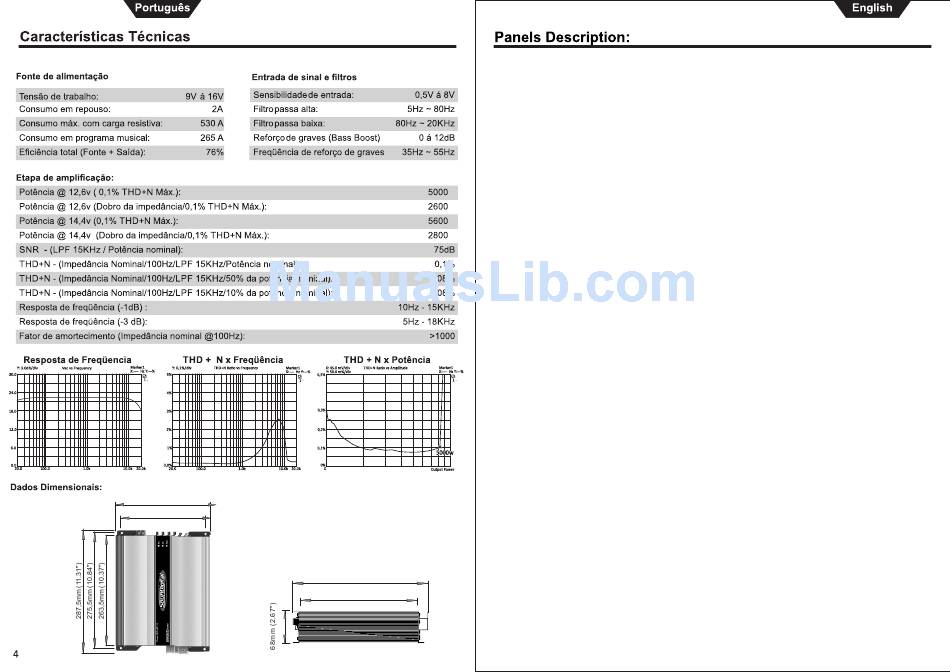

Soundigital LINHA EVOLUTION Owner's Manual page 5

223mm (8.77")
200mm (7.87")
1.
2.
3.
4.
5.
W
W
6.
W
W
7.
8.
9.
10. Positive power supply connector (+12v)
11. Remote power supply connector (REM);
12. Negative power supply connector (GND);
13. "Protection" LED indicator;
14. "Clip" LED indicator;
15. "Power on" LED indicator.
Peso: 3,5kg (7.8lb)
297mm (11.69")
264mm (10.39")
Audio Input RCA connector;
Audio Output RCA connector;
Variable high pass filter control (5Hz ~80Hz);
Variable low pass filter control (80Hz ~20KHz);
Variable signal gain control;
Variable bass boost control (0dB - +12dB);
Variable bass reinforcement frequency control (35Hz ~ 55Hz);
Negative audio output connector (-);
Positive audio output connector (+);
