Summary of Contents for Helo HSX M 34

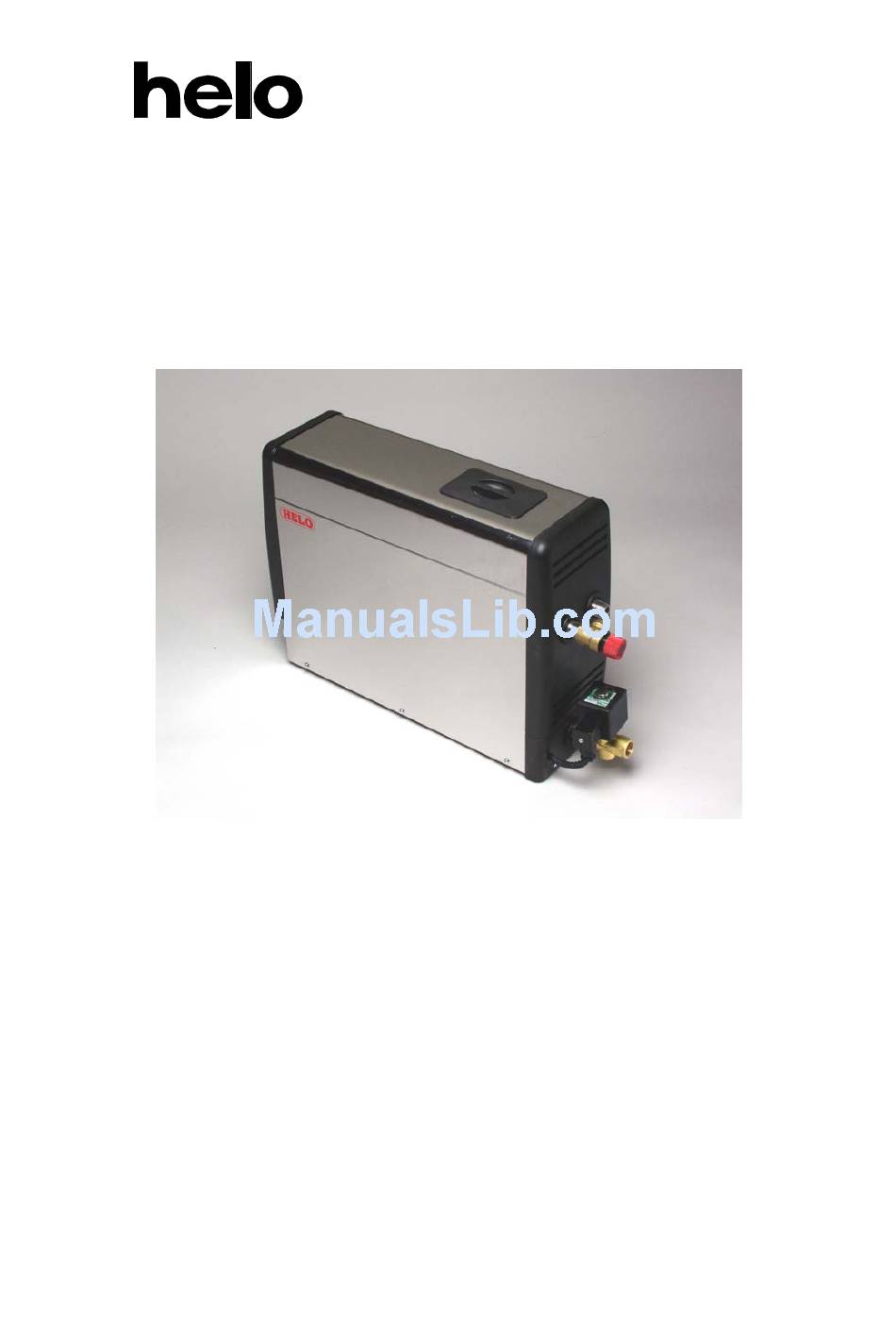

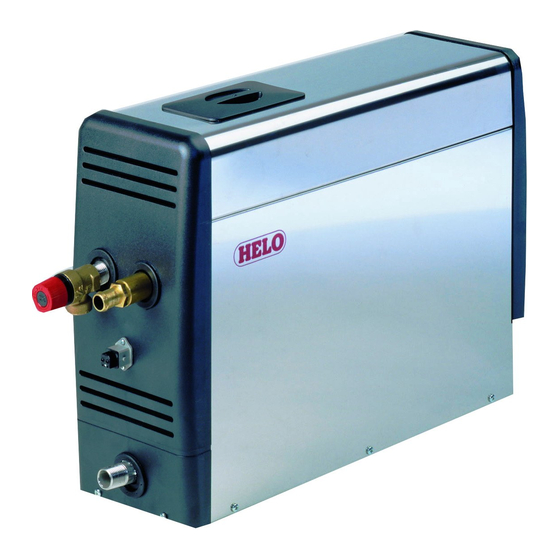

- Page 1 GENUINE SAUNA & STEAM HELO- HSX M steam generator for home and professional use. - Operating instructions - Installation instructions Operating and installation instructions for models: HELO HSX M 34, 47, 60, 77, 95, 120, 140. 7014121 314 SHS 56 E...
- Page 2 Technical specifications: • Voltage: 400V – 415V 3N~ 50Hz (230V – 240V 1N~ 3.4 – 7.7 kW). • Power alternatives: 3.4kW-14kW. • Enclosure rating: IP 20. • Installation mounting: Floor/Wall. • Water tank material: Aisi 316, acid-resistant steel. • 2-phase control for thermal resistance. (Not in the special Belgian version) •...
-
Page 3: Operation And Installation
OPERATION AND INSTALLATION: The HSX steam generator is only intended for use in the heating of steambaths. Use of the steam generator in any space other than intended can result in structural damage. The manufacturer is not liable for any damages caused by installation in a space not inlended for steambath use, or misure of the generator. -
Page 4: Equipment Connections
EQUIPMENT CONNECTIONS Overpressure valve Steam outlet Control panel cable Water fill Automatic Main switch Electrical feed magnetic Water discharge valve valve (manual or electrically-operated) connector Water and steam line connection Connect the ¾” flexible water line hose (included in package) from the water connector on the steam generator installation panel (see figure) to the household cold water line. -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS: The steam generator is connected (semi-fixed connection) to the mains power, in accordance with local installation regulations. Steamer Power 400V/415V 3N 230V/240V 1N 230V3~ Room size m³ *) HSX 34 15/14 1.5-2.5 HSX 47 7/6,5 20/19 12/11 2.5-5 HSX 60 26/25 15/14... -
Page 6: Connection Schematics
CONNECTION SCHEMATICS: HSX M 3,4 kW - 7,7 kW 3 N~ 400 V - 415 V or 1 N~ 230 V - 240 V 3 N~ 1 N~ Resistors Contactor Thermo fuse Main switch Top cover Upper limit Lower limit White Levelprobe Serieal traffic... - Page 7 HSX MIDI 9,5 - 14 kW 3 N~ 400 V - 415 V 3 N~ Resistors Contactor Thermo fuse Main switch Top cover Upper limit Lower limit White Levelprobe Serieal traffic in Tank Green MIDI controller Yellow White Yellow Button Green Brown White...
- Page 8 HSX-M 3,4 - 14 kW Special Belgian version Resistors Contactors 3,4 - 7,7 kW 230 V 1N~ / 2~ L1 / N 3,4 - 14 kW 230 V 3~ Thermo Fuse 167 C Main L2 L3 switch Top cover 3,4 - 14 kW 400 V 3N~ L1 L2 L3 High level Low level...
- Page 9 TEAM GENERATOR AND AUXILIARY PARTS INSTALLATION: Temperature sensor Control panel Water connection 400V 3N~ Buttom Steam nozzle Discharge The control panel can also be installed inside the steamroom. If the control panel is installed outside the steamroom or so low that its own thermostat will not display the proper temperature, a separate thermostat must be used, which is connected directly to the circuit board and installed 170 cm above floor level, preferably on the wall opposite the steamroom door.
- Page 10 CONTROL PANEL HSX M Light control Temperature display Time display Temperature control 25 - 50 °C Time setting (0 - 4 hours) Temperature sensor Steam generator on / off Digital control panel -ON/OFF button for steam generator -OK button Bathing temperature selector button (temperature display flashes) Bathing time selector button (time display flashes) + button increases both time setting and temperature value button decreases both time setting and temperature value...
- Page 11 Control panel function: The steam generator is turned on by pressing the ON-OFF button on the control panel. After this, the temperature display will begin to flash. The temperature can be set to the degree (ranging between 25 °C – 50 °C) by pressing the + or – buttons. If the temperature value on the display is correct, press the OK button and move on to the time display.
- Page 12 CONTROL PANEL, BUTTON AND THERMOSTAT INSTALLATION: The control panel is filled with mass, which makes it moisture-resistant. The 55 mm control panel can be 5 mm Mounting hole installed directly in the wall. The installation hole in the steamroom should be sealed to prevent moisture from Locking Locking...
-
Page 13: Discharge Valve
DISCHARGING AND FLUSHING: A separate electrically-operated valve with a separate automatic drain and rinsing operation is available for the steamer (Accessory). The electrically-operated drain valve opens once 15 minutes has passed since the steamer shuts down. This function is available in both control panel and button operation versions. In the button version the LED will flash in one-second intervals during the 15-minute discharge and flushing wait period after the steam generator has shut off. - Page 14 HSX STEAM GENERATOR SERVICING PROCEDURES: The HSX steam generator has a programmed automatic function which drains and rinses the tank after each use. (The electrically-operated drain valve is an accessory.) A long service life is also achieved by emptying the steam generator tank immediately after use in areas where the water is perhaps not of the best possible quality.
- Page 15 LIME REMOVAL INSTRUCTIONS: Lime removal on the HSX steam generator is very easy. Recommended by Saunatec, the citric acid is completely safe to use. The HSX steam generator is equipped with a lime remover fill pipe, which facilitates adding remover to the water tank. How to remove lime: 1.
