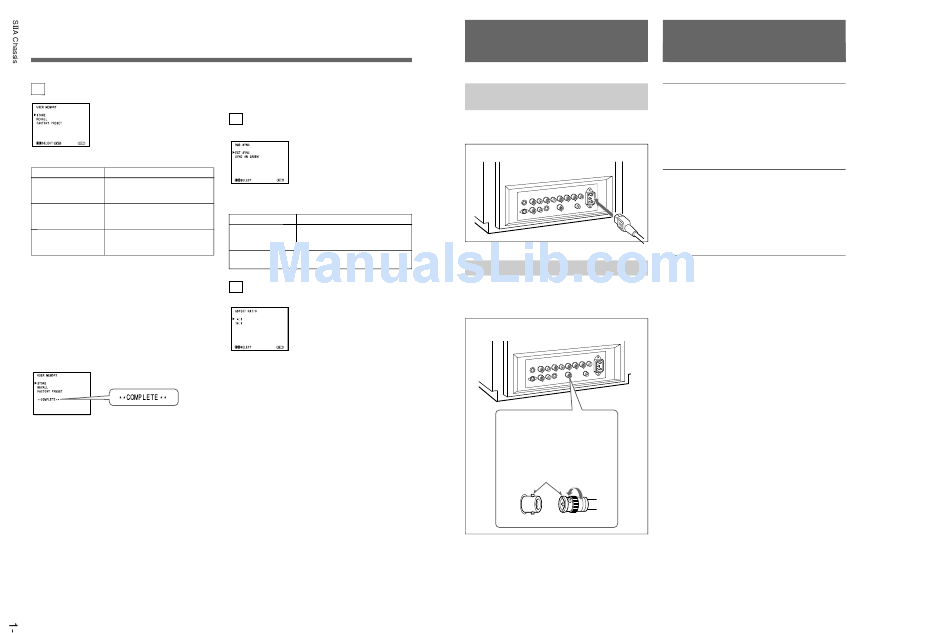

Using On-Screen Menus
2d USER MEMORY menu
The items have the following functions.
Item
Function
STORE
To store all adjustments and
settings currently set on each
menu into the internal memory.
RECALL
To recall all adjustments and
settings currently stored in the
internal memory.
FACTORY PRESET
To reset the adjustments and
settings currently set on each
menu to the factory settings.
a)
a) The current settings and adjusted values are reset to the
factory settings. The values and settings adjusted and
stored in the internal memory by using the STORE
menu, however, are not changed. To reset internally
stored adjusted values and settings to the factory setting,
select FACTORY PRESET, first, then select STORE.
When you press the ENTER (4) button, the following
message is displayed for about two seconds. The
currently selected item becomes active when pressing
the ENTER (4) button.
12
The following menus are provided with the PVM-
14N6A/14N6E/14N6U /20N6A/20N6E/20N6U only.
3a RGB SYNC menu
(Factory setting: EXT SYNC)
Select the sync signal when the RGB signals are input.
The items have the following functions.
Item
Function
EXT SYNC
To operate the monitor on an
external sync signal fed through the
RGB SYNC connector.
SYNC ON GREEN
To operate the monitor on the sync
signal from the G channel.
3b ASPECT RATIO menu
(Factory setting: 4:3)
Select the aspect ratio of the screen.

Connections

How to Connect the AC Power
Cord
Connect the AC power cord (supplied) to the ⁄AC IN
connector and to a wall outlet.

How to Connect a Cable to a BNC Connector

Connect the coaxial cable with the BNC connectors to
the BNC connectors on the rear panel as illustrated
below.
Insert the connector into the BNC
connector on the rear panel,
matching the slit and pin, and turn
the cable BNC connector clockwise
to secure the BNC connector of a
coaxial cable.

Specifications

Video signal
Color system
NTSC, PAL, SECAM, NTSC
4.43
Resolution
500 TV lines
Frequency response
LINE
6 MHz±3dB (Y signal)
RGB
6 MHz±3dB
Picture performance
Normal scan
7 % over scan of CRT effective
screen area
H. linearity
Less than 8.0 % (typical)
V. linearity
Less than 7.0 % (typical)
Color temperature D65
Inputs
LINE A/B
Y/C IN
4-pin mini-DIN(×2)
See the pin assignment on the next page.
VIDEO IN
BNC connector (×2), 1Vp-p +3 dB,
–6 dB, sync negative
a)
AUDIO IN
Phono jack (×2), –5 dBu
, more
than 47 kilo-ohms
RGB (PVM-14N6A/14N6E/14N6U/20N6A/20N6E/
20N6U only)
R/G/B
BNC connector (×3)
0.7 Vp-p +3 dB, –6 dB
Sync on green: 0.3 Vp-p, negative
AUDIO IN
Phono jack (×1), –5 dBu
a)
, more
than 47 kilo-ohms
EXT SYNC BNC connector (×1)
4 Vp-p +3 dB, –6 dB, sync
negative
REMOTE (PVM-14N6A/14N6E/14N6U/20N6A/
20N6E/20N6U only)
Phono jack (×1)
Open: currently selected input
signal
Low state (GND): input signal
selected prior to the current input
signal
a) 0 dBu = 0.775 Vr.m.s.
13
