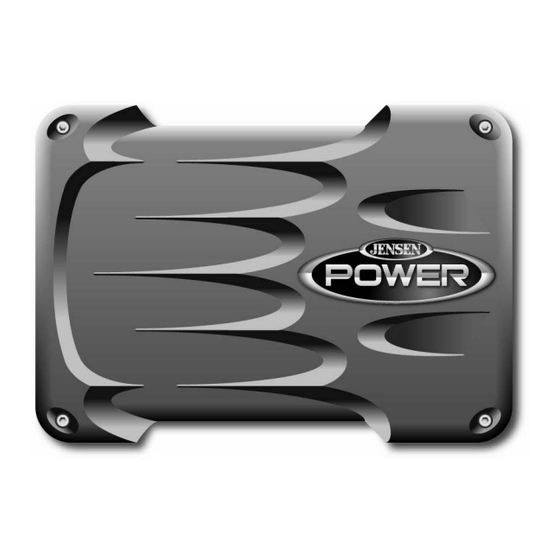

JPA260/JPA285
Amplifier Installation
& Operation Manual
JPA260/JPA285
Manual de Instalación y Operación
JPA260/JPA285
Manual de Installation et Operation
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Indicators and Controls . . . . . . . . . . . . . . . . . . 10
Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 13
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Contenido
Introducción . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Características . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Instalación. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Cableado . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Indicadores y Controles . . . . . . . . . . . . . . . . . .10
Pruebas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Localización de Problemas . . . . . . . . . . . . . . . .13
Especificaciones . . . . . . . . . . . . . . . . . . . . . . . .14
Garantía. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Table des matières
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Dispositifs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Câblage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Indicateurs et contrôles . . . . . . . . . . . . . . . . . . 10
Preuves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Localisations de problèmes . . . . . . . . . . . . . . . 13
Spécifications . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Advertisement
Table of Contents
Related Manuals for Audiovox Jensen Power JPA260
Summary of Contents for Audiovox Jensen Power JPA260
-
Page 1: Table Of Contents
JPA260/JPA285 Amplifier Installation & Operation Manual JPA260/JPA285 Manual de Instalación y Operación JPA260/JPA285 Manual de Installation et Operation Contents Introduction ......2 Features . -
Page 2: Introduction
Si alguna vez necesita devolver la unidad por cualquier motivo, siempre envíe el recibo con el producto. JPA260/JPA285 Introduction Nous apprécions votre achat récent d'un amplificateur Jensen. Merci. C'est votre engagement continu envers nous qui nous permet de vous apporter des produits nouveaux et innovateurs, pendant des années. -
Page 3: Features
JPA260/JPA285 Features • Designed and engineered in the U.S.A. • Unregulated MOSFET Pulse Width Modulated (PWM) power supply for extended dynamic range with soft-start circuitry • Main B+ Input filtering (Pi type filter) • High current driver and output stage transistors •... -
Page 4: Installation
Cepillo de alambre, papel de lija o herramienta para raspar (la conexión a tierra al vehículo debe ser una superficie metálica sin pintar y limpia) JPA260/JPA285 Installation Avant que vous ne commenciez l'installation de votre amplificateur de série POWER rappelez-vous qu'il y a deux façons de faire les choses - la bonne façon et deux fois ! - Page 5 JPA260/JPA285 Disconnect Battery Disconnect the negative (-) battery cable before starting the installation. Check the battery ground (there should be two (2) ground wires coming from the battery - one going to the starter mounting bolt or engine block and another going to the vehicle chassis) and make sure the battery is grounded to the chassis with at least a #8 gauge wire.
-
Page 6: Wiring
Wiring Charging System The installation of just one (1) JPA260/JPA285 amplifier could be enough to overload your factory electrical system. You may need to upgrade your alternator and battery. Once the battery is used to start your vehicle, the alternator is... - Page 7 JPA260/JPA285 Power Terminal (+12V) Connect the main power wire to the battery, within 18 inches from the positive (+) battery post, using an adequate size fuse or circuit breaker capable of handling the current of the selected power wire. A fuse or circuit breaker must be installed to prevent a possible electrical fire should the main power wire short to ground.
- Page 8 A NOTER : Ne manquez pas d'utiliser un fil de haut parleurs de bon calibre. Le JPA260 et 285 exigent un fil de calibre 16. Câblage de rendement RCA (OUTPUT) Le signal de sortie le permet à...
- Page 9 JPA260/JPA285 Input Wiring Low Level RCA Input (INPUT) Low level (RCA) input is preferred for best performance. Most trunk/hatchback installations will require a 15-20 foot RCA cable, while pickup trucks and under-seat mounting will require a 6-12 foot RCA cable. Connect an RCA cable from your receiver to the RCA input on your amplifier.
-
Page 10: Indicators And Controls
+18dB de la poussée, au besoin. Le plein +18dB de la poussée devrait être réservé pour des applications spéciales parce que l'abus de la poussée basse pourrait endommager vos subwoofers aux volumes élevés.! OUTPUT STAND-BY 40Hz 250Hz FULL JPA260/JPA285... - Page 11 JPA260/JPA285 Low Pass Filter (LPF) The Low Pass Filter controls adjust the crossover point from 40Hz to 250Hz. Typical crossover is between 60Hz and 80Hz for ported and sealed enclosures. Bandpass boxes will typically use a higher crossover setting between 125Hz and 175Hz. Depending on your sub-woofer/box combination, the crossover may be set anywhere between 40Hz and 250Hz.
-
Page 12: Testing
Si los altavoces no suenan, uno o ambos cables de los altavoces pueden estar desconectados. JPA260/JPA285 Indicateur de la protection (STAND-BY) S'allume en cas de problème et pour signaler que le circuit de protection a coupé l'alimentation à l'amplificateur pour le protéger. -
Page 13: Troubleshooting
JPA260/JPA285 Troubleshooting Problem Possible Cause Corrective Action Amplifier does not No power to +12V Check fuse(s) turn on terminal No power to REM Check head unit fuse(s) and terminal wiring Blown main fuse at Replace fuse and identify battery cause of failure... -
Page 14: Specifications
Specifications CEA Power Ratings JPA260 Power Output: 60 watts RMS X 2 channels into 4-ohms @ < 1% THD+N Frequency Response: 10Hz to 100Hz (-3dB) Signal to Noise Ratio: 100dBA below reference (Reference: 1 watt) Additional Power Output: 90 watts RMS X 2 channels into 2-ohms @ <... -
Page 15: Warranty
La presente Garantía le otorga derechos especiales y usted puede gozar de otros derechos que varían de un estado a otro. U.S.A : Audiovox Corporation, 150 Marcus Blvd., Hauppauge, NY 11788, 1- 800-323-4815 CANADA: Llamar a 1-800-323-4815 para la ubicación de la estación de garantía a su area. - Page 16 All channels driven. 30kHz filter. Sweep Trace Color Line Style Thick Cyan Solid Power output - Rated power @ 4-ohm load. All channels driven. 30kHz filter. JPA260 Data Axis Comment Anlr.Level A Left Data Axis Comment Anlr.Level A Left JPA260/JPA285...
- Page 17 JPA260/JPA285 Sweep Trace Power output - Rated power @ 4-ohm load. All channels driven. 30kHz filter. Mono. Audio Precision Regulated 1% THD/Power vs. Frequency CEA Standard Test Sweep Trace Power output - Rated power @ 2-ohm load. All channels driven.
- Page 18 All channels driven. 30kHz filter. Sweep Trace Color Line Style Thick Cyan Solid Power output - Rated power @ 4-ohm load. All channels driven. 30kHz filter. Mono. Data Axis Comment Anlr.Level A Left Data Axis Comment Anlr.Level A Left JPA260/JPA285...
- Page 19 Audiovox Electronics Corporation 150 Marcus Boulevard Hauppauge, NY 11788 1-800-323-4815 www.jensen.com © 2005 Audiovox v. 020405...
