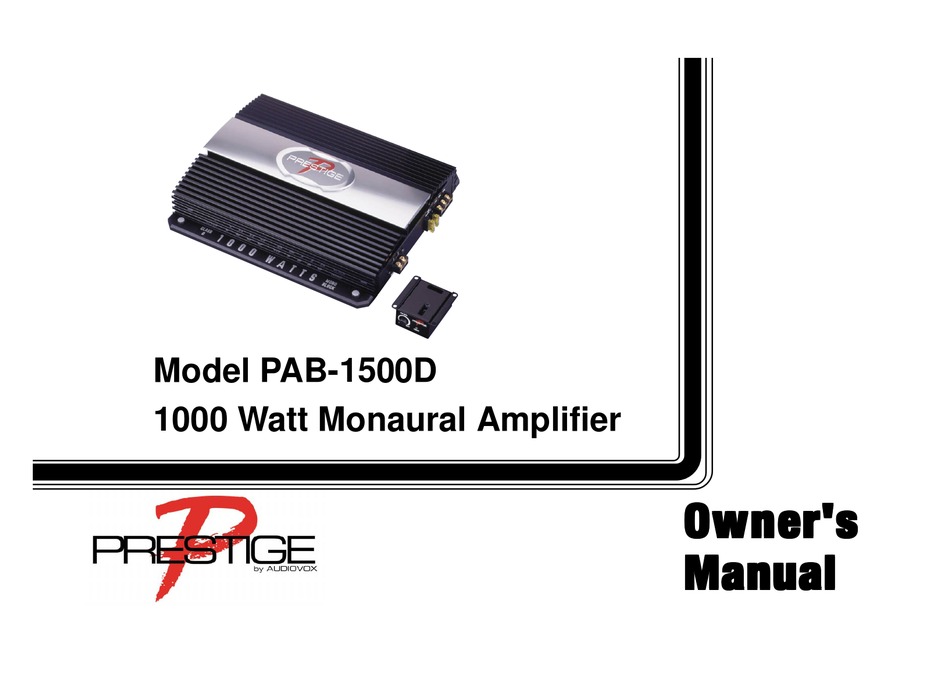

- Page 1 Model PAB-1500D 1000 Watt Monaural Amplifier Ow ne ne ne ne ne r's Manual Manual Manual Manual Manual...
-
Page 2: Table Of Contents
INDEX Specifications ... 1 Precautions ... 2 Installation Instructions ... 3 Wiring Instructions ... 4 - 5 Mono Input Wiring Diagram ... 6 Mono Output Wiring Diagram... 7 Operation ... 8 - 9 Warranty ... Back Cover... -
Page 3: Specifications
Damping Factor: >20 Input Impedance: Low-Level 10K ohms Input Sensitivity: 200mV-4V. * Due to continuing improvement, Audiovox reserves the right to change features and design without notice. HELP! 1-800-645-4994 Monday - Friday Saturday Filter Types: Variable Low Pass 50Hz to 250Hz,... -
Page 4: Precautions
6. Make certain that the speaker(s) to be used with this amplifier is capable of handling the output power (wattage) of the unit. Use of a speaker(s) not rated for the output of this amplifier may cause damage to, or failure of, the speaker(s) for which Audiovox will not be liable. -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS 1. Select a mounting area where the amplifier will have sufficient air circulation for proper cooling. Inadequate air circulation will cause the temperature of the amplifier to rise and will trigger the thermal protection mode. 2. Place the amplifier on the mounting surface and mark the locations of the four mounting holes as shown in the illustration at the right. -
Page 6: Wiring Instructions
WIRING INSTRUCTIONS Wiring your amplifier will depend on the system and speakers you are using. The amplifier is compatible only with a radio having a low-level stereo output, thereby instituting a mixed stereo-mono application. The following pages illustrate the input and output wiring for this type of installation, and any other setup at the user's option. Please refer to the appropriate diagrams for the system configuration. - Page 7 WIRING INSTRUCTIONS to an "Accessory" or "Radio" terminal in the car's fuse block. This will turn the amplifier on and off with the ignition key, regardless of whether the car stereo is on or off. The remote turn-on lead does not carry large currents, so #20 wire may be used for this application.
-
Page 8: Mono Input Wiring Diagram
USE THIS INPUT WIRING WITH MONO INPUT WIRING DIAGRAM OUTPUT WIRING ON PAGE 7 LOW-LEVEL RCA OUTPUTS CAR STEREO LEFT RCA TYPE RIGHT SHIELDED CABLE (NOT SUPPLIED) RCA TYPE SHIELDED CABLE (NOT SUPPLIED) LOW LEVEL RCA OUTPUTS TO 2ND AMPLIFIER REMOTE SUB-WOOFER CONTROL UNIT PAB-RC STANDARD TELEPHONE... -
Page 9: Mono Output Wiring Diagram
USE THIS OUTPUT WIRING WITH INPUT WIRING ON PAGE 6 MONO SPEAKER(S) SUB-WOOFER(S) 2 - 4 OHMS MONO OUTPUT WIRING DIAGRAM CONNECT THIS WIRE LAST USE #10 GAUGE WIRE (SEE TEXT) AUTO-ANTENNA LEAD 12 VOLT VEHICLE CHASSIS BATTERY GROUND EXISTING SCREW OR BOLT CLEAN PAINT, RUST, DIRT OR GREASE FROM AREA FOR GOOD CONNECTION... -
Page 10: Operation
OPERATION After initial set-up, the amplifier should not require any further adjustment unless there is a change in the car stereo or speaker system with which it is used. Power Indicator The POWER LED functions as both a power and a warning indicator. - Page 11 Once the correct setting is found, this control should not require any further adjustment. Sub-sonic Filter Selector Switch This switch enables On/Off selection of the sub-sonic frequency filter, thereby allowing the operator to initially set the amplifier high pass frequency for a sub-woofer between 20Hz and 50Hz.
-
Page 12: Warranty
AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.
