2014 XV Crosstrek Hybrid

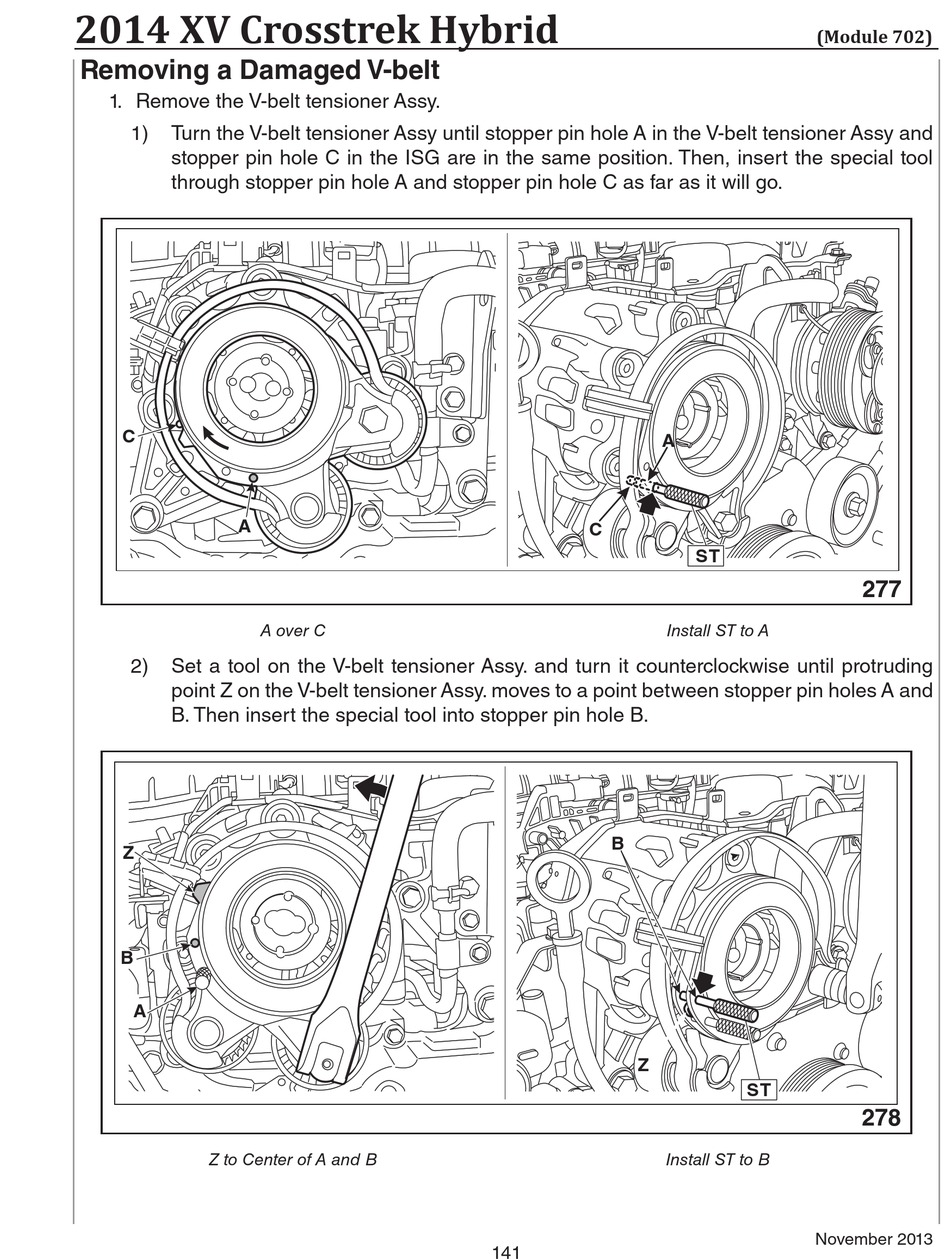

Removing a Damaged V-belt

1. Remove the V-belt tensioner Assy.
1) Turn the V-belt tensioner Assy until stopper pin hole A in the V-belt tensioner Assy and
stopper pin hole C in the ISG are in the same position. Then, insert the special tool
through stopper pin hole A and stopper pin hole C as far as it will go.
C
A
2) Set a tool on the V-belt tensioner Assy. and turn it counterclockwise until protruding
point Z on the V-belt tensioner Assy. moves to a point between stopper pin holes A and
B. Then insert the special tool into stopper pin hole B.
Z
B
A
Z to Center of A and B
A over C
A
C
Install ST to A
B
Z
Install ST to B
141
(Module 702)
ST
277
ST
278
