Summary of Contents for Rupes LH16EN
-
Page 3: Technical Data

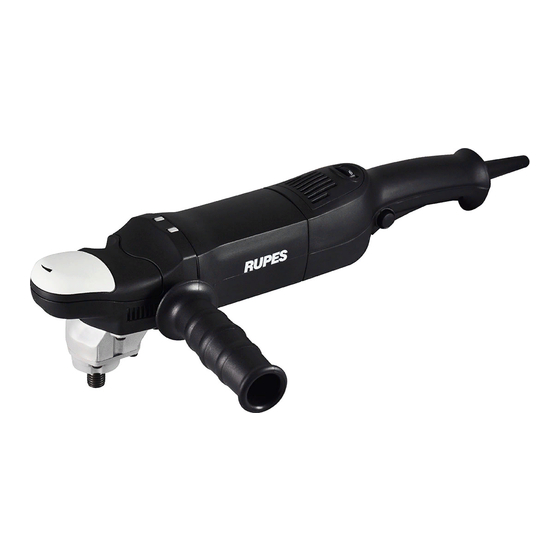

TECHNICAL DATA ENGLISH TYPE LH16EN LH18EN PROTECTION CLASS OPERATING VOLTAGE 230 V - 50 Hz 230 V - 50 Hz ABSORBED CURRENT 4,3 A 5,3 A ABSORBED POWER 900 W 1100 W ELECTRONIC OVERLOAD PROTECTION ELECTRONIC SPEED CONTROL ROTATION RPM 700 ÷... - Page 4 PARTS OF THE TOOL MOUNTING THE BUFFER PAD 1 - Identification plate - Insert the buffer pad (8) on the spindle (4); - screw on the tapered ring nut (7) and tighten it using the pin 2 - ON/OFF switch spanner, preventing the spindle from moving using the 17 mm 3 - Electronic rpm regulation spanner.
-
Page 5: Maintenance
- corrugated velcro sponge Ø mm 150. defects. All tools must be used only with RUPES original accessories and MAINTENANCE spare parts: we refuse all responsibility for damages or accidents... - Page 6 CONFORMITY DECLARATION TOOL IDENTIFICATION PLATE POSITION AND MEANING OF INFORMATION We declare on our responsability that the hand-held motor operated tool, 1. Type of tool. which is mentioned in the present operating manual, is in comformity with 2. Nominal working voltage in Volts (V). the Essential Requirements of Safety of the following Directives: 3.
