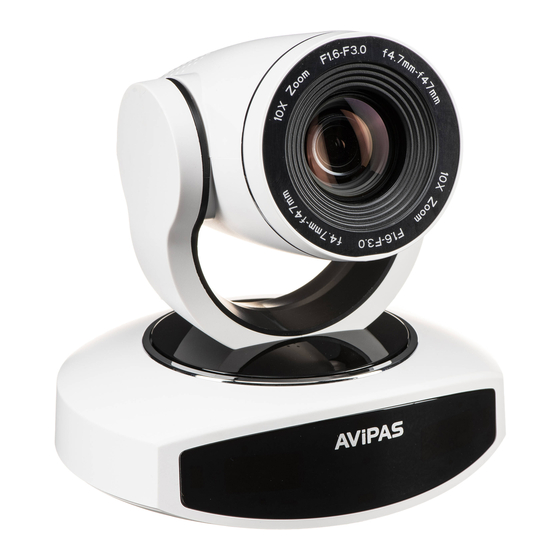

  • Page 1 Model: AV-1082W HD Video Conferencing Camera (USB 3.0) Model: AV-1082G HD Video Conferencing Camera (USB 2.0) User Manual V1.0 Please read this user manual thoroughly before using. www.avipas.com...
  • Page 2 Preface Thanks for using this HD Video Conferencing Camera. This manual introduces the functions, installation process and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product should only be used under the specified conditions in order to avoid any damage to the camera: ◼...

  • Page 3: Table Of Contents

    Contents Attentions ......................4 Supplied Accessories ..................4 Quick Start ......................5 Features ......................8 Product Specifications ..................9 Main Units ....................... 11 Dimensions ...................... 11 IR Remote Control Menu ................. 12 RS-232 Interface ....................13 Serial Communication Control ................ 14 Menu Settings ....................

  • Page 4: Attentions

    Attentions ⚫ Electric Safety Installation and operation must accord with electric safety standard. ⚫ Use caution to transport Avoid stress, vibration or soakage in transport, storage and installation. ⚫ Polarity of power supply The power supply of this product is +12V, the max electrical current is 2A. Polarity of the power supply plug is shown in the drawing below.

  • Page 5: Quick Start

    Quick Start 1. Camera Interface Illustration Fig 1.1 Interface of AV-1082 Interface of USB Model： 1. Camera Lens 4. Locating Hole 7. USB Interface 2. Remote Controller Receiver Light 5. RS232 Control Interface (input) 8. DC12V Power Supply Socket 3. Tripod Screw Hole 6.
  • Page 6 Ceiling mount...

  • Page 8: Features

    Features AV-1080 series camera features advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution and fantastic color rendition. It supports H.265/H.264 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions. •...

  • Page 9: Product Specifications

    Product Specifications Name AV-1082 HD PTZ Camera (USB 2.0/3.0) Camera USB2.0: 1080P30/25, 1080I60/50, 720P60/50; Video Format USB3.0: Self-adaptive, up to 1920*1080 Sensor 1/2.8'', CMOS, 16:9, Effective Pixel: 2.07MP Scanning Mode Progressive Lens 10x, f＝4.7～47mm, F1.6 ~ F3.0 Digital Zoom Minimal Illumination 0.5 Lux @ (F1.8, AGC ON) Focus Auto/Manual/ One Push...
  • Page 10 • Main Stream: 1920x1080, 1280x720 • Sub stream: 640x360, 320x180, 320x240, 1280x720 USB 3.0: • Main stream: 1920x1080, 1280x720, 640x480 • Sub stream: 640x360, 640x480, 320x180, 320x240, 1280x720, 1920x1080 Frame Rate 5fps ~ 30fps Sampling Rate 16000/ 32000/ 44100/ 48000 Network Protocols RTMP/RTSP, ONVIF, GBT28181 Input/Output Interface...

  • Page 11: Main Units

    Main Units External interface of USB model: USB Output, RS232, LAN, DC12V Power Interface. Dimensions...

  • Page 12: Ir Remote Control Menu

    IR Remote Control Menu 1. Standby Button Press this button and hold it for 3 secs to enter standby mode. The camera will do self-testing and return back to 【HOME】position. (Note: If Preset 0 is set, and with no operation for 12s, the camera will automatically turn to Preset position 0.

  • Page 13: Rs-232 Interface

    10. Menu Settings 【MENU】: to open/ close the OSD menu; to enter/ exit the OSD menu, or to return to the previous submenu. 11. Key Combination Functions 1) 【#】+【#】+【#】: Clear all presets 2) 【*】+【#】+【6】: Restore factory defaults 3) 【*】+【#】+【9】: Flip switch 4) 【*】+【#】+【AUTO】: Enter the auto mode 5) 【*】+【#】+【3】: Set language to Chinese 6) 【*】+【#】+【4】: Set language to English...

  • Page 14: Serial Communication Control

    Serial Communication Control Under normal working condition, the camera could be controlled through RS232 interface. RS232 serial parameters are as below: • Baud rate: 2400/4800/9600/115200bps; • Start bit: 1; data bits: 8; Stop bit: 1; Parity: None. Pan-Tilt function rotates the camera to its maximum position of top left upon startup, then it returns to the center, and the process of initialization is finished.

  • Page 15: Menu Settings

    Menu Settings 2. SETUP- System Settings 1. Maun Menu Move the cursor to [SETUP] in the main Press [MENU] to display the main menu on menu and press [HOME], [SETUP] menu is the screen. Use the arrow buttons to move the shown below.
  • Page 16 EV: On/ Off (only available in auto mode) CAMERA Compensation Level: -7~7 (only available in ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ auto mode & when EV is ON) (Exposure) BLC: On/ Off (only available in auto mode) (Color) Flicker: anti-flicker: OFF/ 50Hz/ 60Hz (only (Image) available in Auto/ Iris priority/ Brightness priority (Focus) modes)
  • Page 17 IMAGE: Enter image settings Move the cursor to [IMAGE] and press [HOME], COLOR ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ [IMAGE] menu is shown below. WB Mode Auto IMAGE RG Tuning ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ BG Tuning Brightness Saturation 100% Contrast Sharpness AWB Sensitivity High Flip-H Flip-V B&W-Mode Color Gamma Default DZoom...
  • Page 18 [FOCUS] menu is shown below. 4. P/T/Z FOCUS Move the cursor to [P/T/Z] in the main menu ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ and press [HOME], [P/T/Z] menu is shown below. Focus Mode Auto AF-Zone Center P/T/Z ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ AF-Sensitivity Speed by Zoom Zoom speed Image Freezing Acc Curve Slow Focus Mode: Auto/ manual/ one-push...
  • Page 19 2/ 3/ 4, the corresponding camera address will be VERSION restored to 1 when all parameters or system ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ parameters are restored. MCU Version 2.0.0.15 2015-12-18 Camera Version 2.0.0.13 2015-12-18 AF Version 2.0.0.6 2015-12-11 Lens 5X(10X) MCU Version: Display MCU version Camera Version: Display camera version AF Version: Display the focus version Lens: Display the lens zoom...

  • Page 20: Network Connection

    Network Connection Connecting Mode Direct connection: Connect the camera and computer directly via Ethernet cable. IP connection mode: Connect the camera to a Router or Switcher. The user can log in to access the device using browser. Note: Please do not put the power cable and Ethernet cable in places where can be easily touched to prevent video quality loss caused by unstable signal transmission.
  • Page 21 Note: The IP address to be added cannot be same as that of other computers or devices. The existence of this IP address needs to be verified before adding. Confirm Access Click “Start” and select “Operation”. Input “cmd” as shown in the picture below to verify whether the network segment has been successfully added.
  • Page 22 User can also verify network connection as steps above mentioned after the finish of camera self-check. If IP is default, open DOS command window and input 192.168.5.163, then press Enter key. It will show message as below: which means network connection is normal.
  • Page 23 IE Log In Web client Log In Input the default IP address 192.168.5.163 of the camera in the address bar of browser and click “Enter” to enter Web Client login page as shown in the picture below. User can login as administrator and normal user.
  • Page 24 Playback • Playback video files Before Playback, please make sure that you have recorded, snapshot and saved the file. Click “Playback” tag to enter the page, then select “Video File” and click “Search”. Choose the video file you want to play. •...
  • Page 25 Recording/Snapshot file type: To set the recording file type (default MP4, other option: TS). Recording/Snapshot file storage route: To set local recording video/snapshot file storage route (default D:\MyIPCam\). Click “Save” to save the settings, and reboot to make settings effective. 4.2.5 Video configuration 1) Video Encode Stream: To choose from Main/Sub video stream output.
  • Page 26 Protocol Type: RTMP Host Address: To set the server IP address (Default 192.168.5.11). Host Port: To set the server port number (Default 1935, ranges from 0~65535). Stream Name: To set the stream name (Default: live/av0, live/av1). User Name: To set the user name. Password: To set the password.
  • Page 27 G.Limit: To set the gain limit, active when under aperture or brightness priority (Default 4, ranges from 0~15). DRC: To set the dynamic range (Default 4, ranges from 0~8). c. Color: WB Mode: To set the white balance mode (Default: Auto, other options: 3000K, 3500K, 4000K, 4500K, 5000K, 5500K, 6000K, 6500K, 7000K, Manual, OnePush).
  • Page 28 f. Style: To set the image style. (Default, Normal, Clarity, Bright, Soft) 5) Video OSD Show Time: Check to display date and time. Show Title: Check to display the title. Time Font Color: To set the font color of time and date display (Default: white, other options: black, yellow, red, blue).
  • Page 29 To access RTMP: RTMP://equipment IP address: 1935 / live/av0 (av0 main stream; av1 sub stream) 2) Ethernet DHCP: Check to enable obtaining IP automatically. IP Address: To set the IP address (Default 192.168.5.163). Note: This IP address is the same with the one used to login Web page.
  • Page 30 Server SIP Port: Default 5060, ranges from 0-65535. Server ID: 34020000002000000001 4.2.7 System configuration 1) SystAttr: Device Properties Device Name: To set the device name (Default Camera1, user can add their own). Device ID: To set the device ID (Default 1, Read-Only). Language: To set the system language (Default English, other option: Simplified Chinese).
  • Page 31 If login as common user with user1/user2, then one does not have configuration privileges and can only operate on preview, playback and logoff. 4) Update: Release Upgrade MCU version V2.3.2 2017-5-25 Camera version V2.4.0 2017-4-20 AF(Focus) version V2.4.8 2017-4-21 Note: Version information above is read-only by users. Update File: Click "Browse”...

  • Page 32: Maintenance And Troubleshooting

    Maintenance and Troubleshooting Camera Maintenance ⚫ If camera will be idle for a long time, please turn off the power switch and disconnect AC power cord from the outlet. ⚫ Use soft cloth or tissue to clean the camera (lens cleaning not recommended). ⚫...
  • Page 33 ⚫ Unable to access IP Camera by IE browser. 1. Access network with PC, check if network works. In this way, the user can get rid of any cable failure or network failure. 2. Disconnect IP Camera from network. Connect IP Camera to PC, and re-set the IP address following the proper operations.

  • Page 34: Appendix

    Appendix VISCA protocol list • Camera return command Ack/Completion Message Command packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. * z = camera address + 8 Error Messages Command packet Note...
  • Page 35 Command Function Command packet Note Near (Variable) 8x 01 04 08 3p FF 8x 01 04 48 0p 0q 0r 0s Direct pqrs: Focus Position Auto Focus 8x 01 04 38 02 FF Manual Focus 8x 01 04 38 03 FF 8x 01 04 47 0p 0q 0r 0s pqrs: Zoom Position CAM _Zoom Focus...
  • Page 36 Command Function Command packet Note 8x 01 04 0B 02 FF Down 8x 01 04 0B 03 FF 8x 01 04 4B 00 00 0p 0q Direct pq: Iris Position CAM_Gain Limit Gain Limit 8x 01 04 2C 0p FF p: Gain Positon Reset 8x 01 04 0D 00 FF...
  • Page 37 Command Function Command packet Note Reset 8x 01 04 3F 00 pq FF pq: Memory Number(=0 to 254) CAM_Memory 8x 01 04 3F 01 pq FF Corresponds to 0 to 9 on the Remote Commander Recall 8x 01 04 3F 02 pq FF 8x 01 04 61 02 FF Image Flip Horizontal CAM_LR_Reverse...
  • Page 38 Command Function Command packet Note 3:1080i50 B：1080i59.94 4:720P60 C：720P59.94 5:720P50 D：1080P29.97 6:1080P30 E：720P29.97 7:1080P25 8x 01 06 01 VV WW 03 01 FF 8x 01 06 01 VV WW 03 Down 02 FF 8x 01 06 01 VV WW 01 Left 03 FF 8x 01 06 01 VV WW 02...
  • Page 39 CAM_FocusPosInq 8x 09 04 48 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Position y0 50 00 FF Auto y0 50 01 FF 3000K y0 50 02 FF 4000K CAM_WBModeInq 8x 09 04 35 FF y0 50 03 FF One Push Mode y0 50 04 FF 5000K...
  • Page 40 y0 07 7D 01 04 3F FF Camera _Memery y0 07 7D 01 06 01 FF Pan_titleDriver CAM_BrightnessInq 8x 09 04 A1 FF y0 50 00 00 0p 0q FF pq: Brightness Position CAM_ContrastInq 8x 09 04 A2 FF y0 50 00 00 0p 0q FF pq: Contrast Position y0 50 00 FF y0 50 01 FF...
  • Page 41 Upright 0xFF Address 0x00 0x0A Pan Speed Tilt Speed DownLeft 0xFF Address 0x00 0x14 Pan Speed Tilt Speed DownRight 0xFF Address 0x00 0x12 Pan Speed Tilt Speed Zoom In 0xFF Address 0x00 0x20 0x00 0x00 Zoom Out 0xFF Address 0x00 0x40 0x00 0x00...
  • Page 42 Pelco-P protocol command list Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right 0xA0...
  • Page 43 This Limited Warranty covers any defect in material and workmanship under normal use within the Warranty Period. AVIPAS Inc. will repair or replace the qualified products at no charge. AVIPAS Inc. provides a one (1)-year warranty (from the date of purchase) for this HD Conference Camera.
