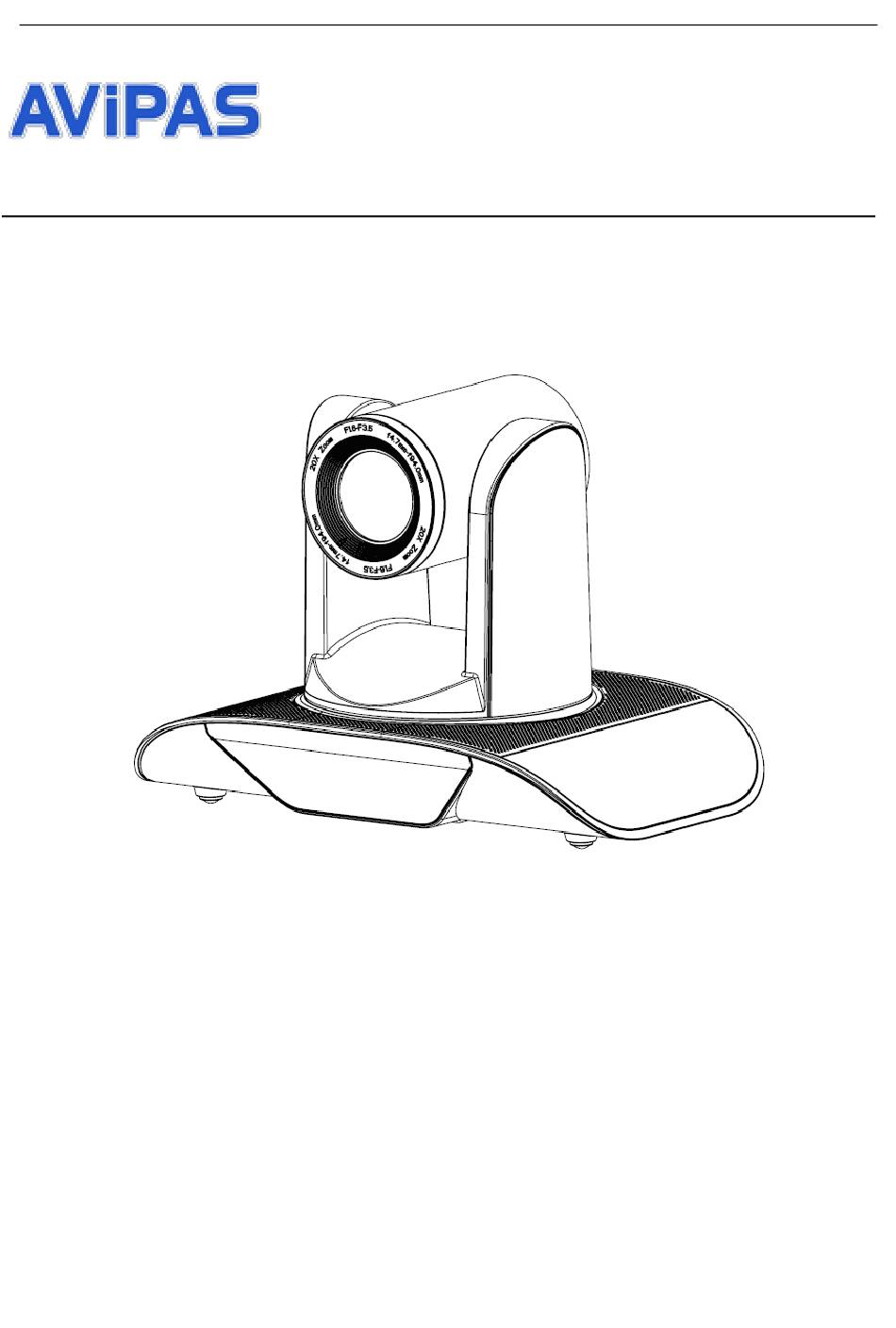

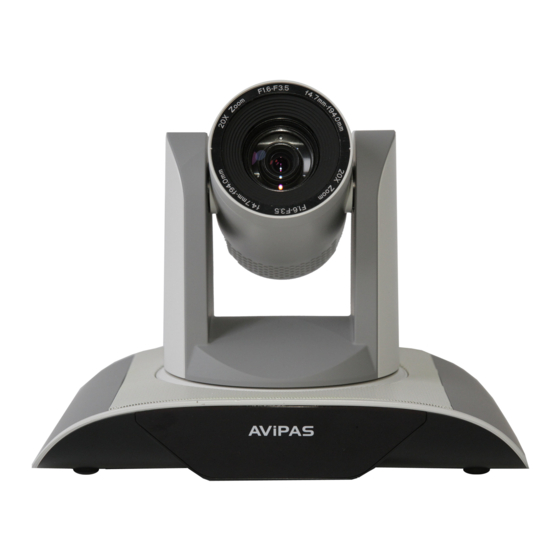

  • Page 1 [Type here] Model: AV-1362U DVI, USB3.0 HD Video Conferencing Camera User Manual V1.2 (English) Please read this user manual thoroughly before using. www.avipas.com...
  • Page 2 [Type here] Preface Thank you for using this HD Video Conferencing Camera. This manual introduces the functions, installation process and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product should only be used under the specified conditions in order to avoid any damage to the camera: ◼...
  • Page 3 [Type here] Attentions • Electric Safety Installation and operation must be in accord with electric safety standard. • Caution to transport Avoid stress, vibration or soakage during transport, storage and installation. • Polarity of power supply The power supply of the product is ±12V, the max electrical current is 2A. Polarity of the power supply plug is shown in the drawing below.

  • Page 4: Table Of Contents

    [Type here] Contents 1. Fast Installation ................................. 1 1.1 Camera Interface Illustration .......................... 1 1.2 Power On ................................ 1 1.3 Video Output ..............................1 1.4 Bracket Mounting ............................2 2. Product Overview ..............................4 2.1 Product Introduction ............................4 2.2 Main Features ..............................5 2.3 Technical Specifications ..........................

  • Page 5: Fast Installation

    3)Note: If preset 0 is set, the camera automatically moves to the preset 0 position upon powering on. 1.3 Video output AV-1362U has 3 options for video output: LAN, DVI, and USB3.0. 1) Video output from LAN. Network cable connection port: AV-1362U- No.8 in Figure1.1.

  • Page 6: Bracket Mounting

    Connect the camera and the monitor via DVI (HDMI) cable; video output is available after camera initialization. 3) USB3.0 video output a. USB3.0 cable connection: AV-1362U- No.10 in Figure1.1. b. Connect the camera and the PC via USB cable; video output is available after camera initialization. Note: using USB2.0 or USB3.0 port on the PC has different video format options.
  • Page 7 2) Upside-down installation steps...

  • Page 8: Product Overview

    2.1 Product introduction 2.1.1 Dimensions Figure 2.2 AV 1362U camera dimensions 2.1.2 Accessories When unpack, check if all the supplied accessories are included: Model NO. AV-1362U Power adapter 1pc RS232 cable 1pc USB3.0 cable 1pc Standard Accessory User manual 1pc...

  • Page 9: Main Features

    2.2 Main Features 2.2.1 Camera performance This series camera offers multiple functions, high performance and various interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution and fantastic color rendition. It supports H.264/H.264+ encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions.
  • Page 10 U3 video 1080P60/50/30/25; 720P60/50/30/25; 960*540P30; 640*360P30; 640*480P30; 352*288P30; 960*540P30 U3 compatible with U2 1280*720P10/15; 720*576P50; 720*480P60; 960*540P30; 640*480P30; 640*360P30; 352*288P30. View Angle 2.9°(tele)--55.4°(wide) Digital Zoom Minimum Illumination 0.5Lux (F1.8, AGC ON) 2D & 3D DNR White Balance Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K Focus Auto/Manual Aperture...
  • Page 11 Working Temperature -10ºC～+50ºC Dimension 258mmX172mmX168mm Weight 1.54KG Remote Operation (IP) Remote Upgrade, Reboot and Reset Accessory Power supply, RS232 control cable, USB cable, Remoter, Manual, Warranty card...

  • Page 12: Interface Instructions

    2.4 Interface instruction 2.4.1 External Interface External interface of AV-1362U: RS232 input, LAN, DVI （ HDMI） output, USB3.0 output, DC12V power interface. To RS232 VISCA Cable VISCA IN USB3.0 Interface USB2.0 Interface 3.5mm Audio Input HDMI Interface AC Adapter To AC Socket...
  • Page 13 Sixteen rotary DIP (0-F) interface diagram shows as below in Figure 2.5. Sixteen video formats corresponding to the rotary DIP (0-F) shows as below in Table 2.3. Note: AV-1362U does NOT have rotary DIP. Table 2.3 Rotary dial corresponding to the video formats...
  • Page 14 2) RS-232 mini-DIN 8-pin port definition Port Definition Data Terminal Ready Data Set Ready Transmit Data System Ground Receive Data System Ground IR OUT IR Commander Signal No Connection 3) RS232 (DB9) port definition Port Definition Data Carrier Detect Receive Data Transmit Data Data Terminal Ready System Ground...

  • Page 15: Application Instructions

    Connect the video output cable: the user can select output mode accordingly. 1) Network output: connect AV-1362U to a computer via Ethernet cable. Open the browser, and enter the camera IP address (factory default 192.168.5.163) in the address bar. On the login page, input user name and password (factory defaults are “admin”).

  • Page 16: Remote Control

    3.2 Remote Control 3.2.1 Key Illustrations 1. Standby key After 3-sec long press, the camera will enter the standby mode. Long press the key again for 3 sec, the camera will initialize again and return back to HOME position (Note: when power-on mode is turned on and Preset 0 is set, if there is no operation after 12 sec, the camera will automatically rotate to the specified preset position).
  • Page 17 13) 【#】 + 【#】 + 【5】 : Switch the video format to 720P50 14) 【#】+【#】+【6】: Switch the video format to 1080P30 15) 【#】 + 【#】 + 【7】 : Switch the video format to 1080P25 16) 【#】 + 【#】 + 【8】 : Switch the video format to 720P30 17) 【#】...
  • Page 18 4) Focus Control Focus (near): press “【focus+】” key (valid only in manual focus mode) Focus (far): press “【focus-】key (valid only in manual focus mode) Auto focus: support Manual focus: support Press and hold the key, the action of focus will keep adjusting.

  • Page 19: Menu Settings

    3.3 Menu Settings 3.3.1 Main menu In normal working mode, press “【MENU】” key to display the menu. The user can scroll the arrow to point at or highlight the selected item. MENU ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Language English (Setup) (Camera) (P/T/Z) (Video Format) (Version) (Restore Default) [←...
  • Page 20 SETUP ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Protocol Auto Visca Address Visca Address Fix PELCO-P Address PELCO-D Address Baud rate 9600 [← →]Change Value [↑↓]Select [Menu]Back [← →]修改 [↑↓]选择 [菜单]返回 PROTOCOL: VISCA/Pelco-P/Pelco-D/Auto Visca ADDR: VISCA=1~7; Pelco-P=1~255; Pelco-D =1~255 Baud rate: 2400/4800/9600/115200 Visca Address Fix: On/Off 3.3.3 Camera settings Move the pointer to the (CAMERA) in the Main Menu, click 【HOME】to enter the CAMERA menu as shown below.
  • Page 21 COLOR: enter color setting Image: enter image setting Focus: enter focus setting Noise Reduction: enter noise reduction Style: default, standard, clear, bright and soft 1) EXPOSURE SETTINGS Move the pointer to the (EXPOSURE) in the Main Menu, click 【HOME】and enter the EXPOSURE menu as shown below.
  • Page 22 COLOR ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ WB Mode Auto RG Tuning BG Tuning Saturation 100% AWB Sensitivity [← →]Change Value [↑↓]Select [Menu]Back MODE: Auto, Manual, Shutter priority, Iris priority and Brightness priority RG Tuning: red gain tuning, -10~10 (only available when white balance mode is AUTO) BG Tuning: blue gain tuning, -10~10 (only available when white balance mode is AUTO) RG: red gain, 0~255 (only available when white balance mode is MANUAL) BG: blue gain,0~255 (only available when white balance mode is MANUAL)
  • Page 23 IMAGE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Brightness Contrast Sharpness Flip-H Flip-V B&W-Mode Color Gamma Default DZoom Close [← →]Change Value [↑↓]Select [Menu]Back 4) FOCUS Move the pointer to the (FOCUS) in the Menu, click 【HOME】and enter the FOCUS menu as shown below. FOCUS ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Focus Mode Auto AF-Zone...
  • Page 24 NOISE REDUCTION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ NR-2D NR-3D Dynamic Hot Pixel [← →]Change Value [↑↓]Select [Menu]Back 2D NOISE REDUCTION: auto, close, 1~7 3D NOISE REDUCTION: close, 1~8 Dynamic Hot Pixel: close, 1~5 3.3.4 P/T/Z Move the pointer to the (P/T/Z) in the Main Menu, click 【HOME】and enter the P/T/Z menu as shown below. P/T/Z ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...
  • Page 25 VIDEO FORMAT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ 1080P60 1080P50 1080I60 1080I50 1080P30 1080P25 720P60 720P50 720P30 720P25 1080P59.94 1080I59.94 1080P29.97 720P59.94 720P29.97 [↑↓]Select [Menu]Back [Home]OK 3.3.6 VERSION Move the pointer to the (VERSION) in the Main Menu, click 【HOME】and enter the VERSION menu as shown below.
  • Page 26 RESTORE DEFAULT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Restore Default? [← →]Change Value [↑↓]Select [Menu]Back [Home]OK Restore Default: YES/NO (color style and video format cannot be restored to default settings) Note: if the address of former remoter is not 1 but another one among 2, 3, or 4, the corresponding camera address will be restored to 1 when all parameters or system parameters are restored.

  • Page 27: Network Connection

    4. Network Connection 4.1 Connecting Mode Direct connection: Connect the camera and computer directly via Ethernet cable. IP connection mode: Connect the camera to a Router or Switcher. The user can log in to access the device using browser. Note: Please do not put the power cable and Ethernet cable in places where can be easily touched to prevent video quality loss caused by unstable signal transmission.
  • Page 28 Note: The IP address to be added cannot be same as that of other computers or devices. The existence of this IP address needs to be verified before adding. 2. Confirm Access Click “Start” and select “Operation”. Input “cmd” as shown in the picture below to verify whether the network segment has been successfully added.
  • Page 29 User can also verify network connection as steps above mentioned after the finish of camera self-check. If IP is default, open DOS command window and input 192.168.5.163, then press Enter key. It will show message as below: which means network connection is normal.

  • Page 30: Ie Log In

    4.2 IE Log In 4.2.1 Web client 1) Web Client Log In Input the IP address 192.168.5.163 of the device in the address filed of browser, and click Enter to enter Web Client Login page as shown in the picture below. The user can login as administrator or normal user. If login as administrator (Default User Name/ Password: admin), users can preview, playback, cancel and modify configuration on the web page.
  • Page 31 4.2.4 Configuration Click Configuration to enter the device parameter setting page. There are options as listed below: local configuration, audio configuration, video configuration, network configuration, PTZ configuration, internet access configuration, system configuration. For detailed description, see the following table. Menu Explanation Including video preview mode, record video packing time, record video storage route Local configure...
  • Page 32 Video Size: set video image resolution, save and reboot to take effect (main stream default 1920 * 1080, other options: 1280 * 720; secondary stream default 640*320, other options: 320*180, 1280*720). Stream Rate Control: set rate control mode, save and reboot to take effect (main/secondary stream default: variable bit rate, other options: fixed rate).
  • Page 33 Aperture Value: set the aperture value. Active when it is under manual or aperture-priority mode (default: F1.8, other options: closed, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4, F2.0, F1.8). Brightness: set the brightness value. Active when it is under brightness priority mode (default: 7, other options: 0-23).
  • Page 34 Font Color of Title: set font color of title (default: white, other options: black, yellow, red and blue). Moving Characters: set the display position of moving date, time and title. Click "up, down, left, right" buttons to move to the proper character position. Title Content: set title content (default: CAMERA1).
  • Page 35 Click "Save". Settings will take effect after the message "saved successfully" shows. Note: need to prevent IP conflicts when modify. 3) DNS Parameters Preferred DNS Server: set the preferred DNS server (default: 0.0.0.0). Alternate DNS Server: alternate DNS server settings (default 0.0.0.0). Click "Save".
  • Page 36 Click "Save". Settings will take effect after the message "saved successfully" shows. Time Setting: set time mode (options: computer time synchronization, NTP server time synchronization, set manually). Computer Time: set the computer synchronization. Set the Time Manually: click “Calendar” on the right to set time manually (only effective when time setting is MANUAL).

  • Page 37: Serial Communication Control

    current page and return to the user login interface. 4.2.9 Wireless Network If user's equipment has a wireless network module, then "Network Configuration" page will have "Wireless Network" configuration option. Specific configuration is shown as below: 1) Network Settings Wireless network configuration: Network Interface Enable: check to set the following items.

  • Page 38: Visca Protocol List

    5.1 VISCA Protocol List 5.1.1 Camera return commands Ack/Completion Message Command packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. z = camera address + 8 Error Messages Command packet Note Returned when the command format is different or when a...
  • Page 39 6500k 8x 01 04 35 06 FF Reset 8x 01 04 03 00 FF 8x 01 04 03 02 FF Manual Control of R Gain CAM _RGain Down 8x 01 04 03 03 FF Direct 8x 01 04 43 00 00 0p 0q FF pq: R Gain Reset 8x 01 04 04 00 FF...
  • Page 40 Direct 8x 01 04 42 00 00 0p 0q FF pq: Aperture Gain Reset 8x 01 04 3F 00 pq FF pq: Memory Number(=0~254) CAM_Memory 8x 01 04 3F 01 pq FF Corresponds to 0 to 9 on the Remote Commander Recall 8x 01 04 3F 02 pq FF...
  • Page 41 A：1080P59.94 B：1080i59.94 C：720P59.94 D：1080P29.97 E：720P29.97 8x 01 06 01 VV WW 03 01 FF Down 8x 01 06 01 VV WW 03 02 FF Left 8x 01 06 01 VV WW 01 03 FF Right 8x 01 06 01 VV WW 02 03 FF Upleft 8x 01 06 01 VV WW 01 01 FF VV: Pan speed 0x01 (low speed) to...
  • Page 42 deInq y0 50 03 FF CAM_ExpCompPos 8x 09 04 4E FF y0 50 00 00 0p 0q FF pq: ExpComp Position CAM_BacklightMo y0 50 02 FF 8x 09 04 33 FF deInq y0 50 03 FF CAM_WDRStrengt 8x 09 04 51 FF y0 50 00 00 00 0p FF p: WDR Strength hInq...

  • Page 43: Pelco-D Protocol Command List

    B：1080i59.94 C：720P59.94 D：1080P29.97 E：720P29.97 Pan-tiltMaxSpeedIn ww: Pan Max Speed zz: Tilt Max 8x 09 06 11 FF y0 50 ww zz FF Speed y0 50 0w 0w 0w 0w wwww: Pan Position zzzz: Tilt Pan-tiltPosInq 8x 09 06 12 FF 0z 0z 0z 0z FF Position Note: [X] in the above table indicates the camera address to be operated, 【y】=【x + 8】.
  • Page 44 Right 0xA0 Address 0x00 0x02 Pan Speed Tilt Speed 0xAF Upleft 0xA0 Address 0x00 0x0C Pan Speed Tilt Speed 0xAF Upright 0xA0 Address 0x00 0x0A Pan Speed Tilt Speed 0xAF DownLeft 0xA0 Address 0x00 0x14 Pan Speed Tilt Speed 0xAF DownRight 0xA0 Address...
  • Page 45 This Limited Warranty does not cover problems including but not limited to: improper handling, malfunction or damage not resulting from defects in material. To receive warranty service, please contact AVIPAS Inc. first. We will decide whether a repair or replacement is needed and will advise you of the cost of such repair or replacement.
