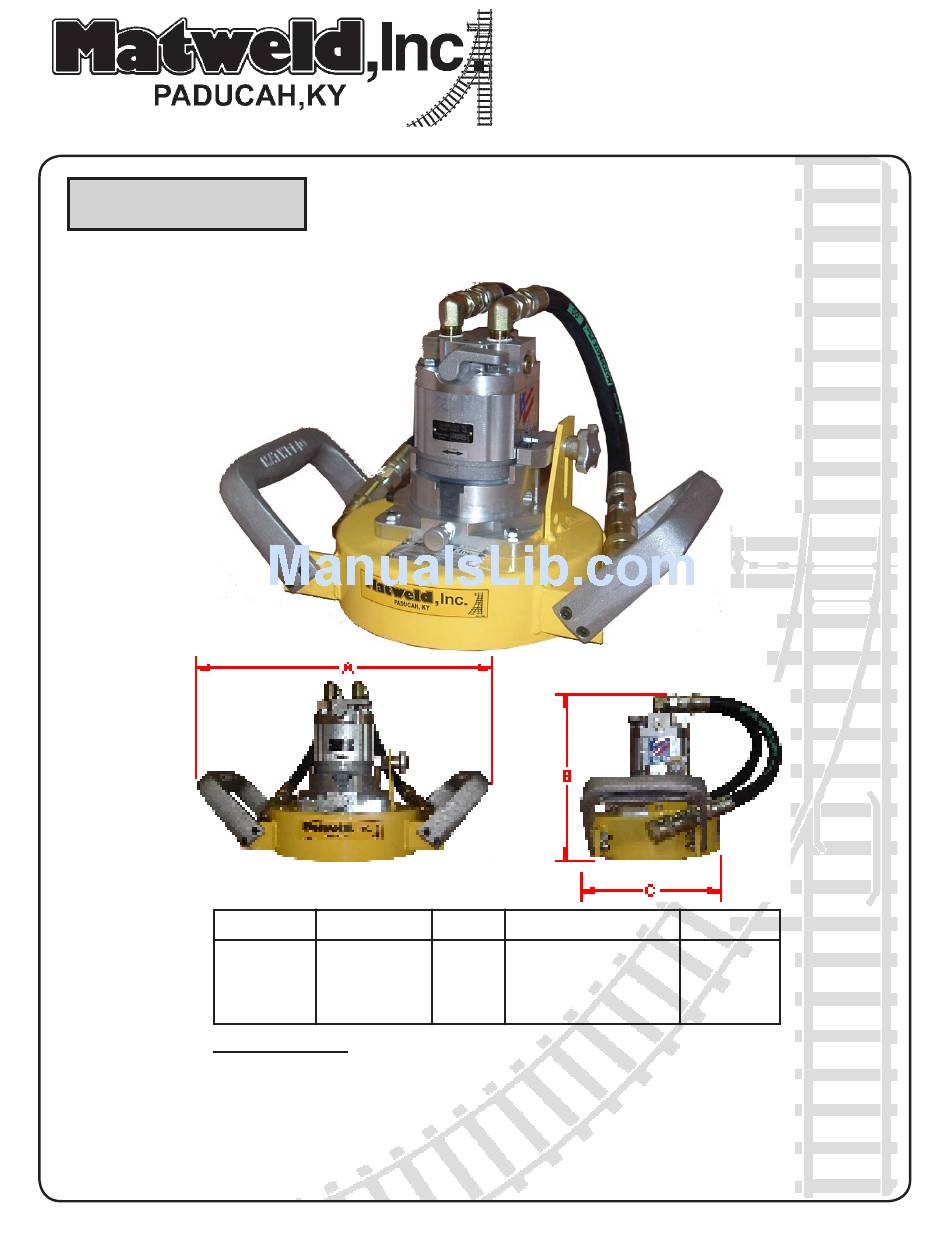

00600 & 00600C
CUP STONE GRINDER
The Matweld 8" Cup Stone Grinder is
designed for use in grinding the tops
of frogs and rail. The unique stone
adjustment feature allows the operator
to easily adjust the guard as the stone
wears without the need for wrenches.
The double handles give the operator
complete control of the tool.
FLOW
10 gpm
(38 lpm)
ACCESSORIES:
00799
00733-KIT
00797
MATWELD, INC.
Matweld reserves the right to change parts, features, or specifications without notice.
PRESSURE
RPM
2000 psi
4000
(140 bar)
8" x 2" x 4" PLATE MOUNTED CUP STONE
TYPE 6 STONE ADAPTER KIT
8" x 2" x 1 1/2" TYPE 6 CUP STONE
PHONE:(270) 444-0085
P.O. Box 2816 • Paducah, KY 42002
Website: www.matweld.com
Email: customerservice@matweld.com
DIMENSIONS
A - 16 1/2" (419mm)
B - 10" (254mm)
C - 9" (229mm)
FAX:(270) 443-6180
632 South 3rd Street
270-444-0085
Fax: 270-443-6180
WEIGHT
28 lbs
(12.7 kg)
12/09
Advertisement
Table of Contents
Related Manuals for Matweld 00600
Summary of Contents for Matweld 00600
- Page 1 8” x 2” x 4” PLATE MOUNTED CUP STONE 00733-KIT TYPE 6 STONE ADAPTER KIT 00797 8” x 2” x 1 1/2” TYPE 6 CUP STONE MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 12/09...
- Page 2 MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 12/09...
-
Page 3: General Safety Precautions
THIS TOOL. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN PERSONAL INJURY OR EQUIPMENT DAMAGE. MATWELD HAS NO CONTROL OVER TOOL USE OR OPERATION ONCE IT LEAVES THE MATWELD PLANT. MATWELD HAS NO CONTROL OVER OPERATOR OR MAINTAINER SELECTION. THE CUS- TOMER MUST ASSUME RESPONSIBILITY FOR THE TOOL’S SUITABILITY FOR A PARTICULAR FUNC-... - Page 4 SIONS. FAILURE TO DO SO MAY RESULT IN EQUIPMENT DAMAGE AND / OR PERSONAL INJU- RY OR DEATH. • CLEAN UP ANY OIL OR FLUID SPILLS IMMEDIATELY. MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 12/09...
- Page 5 HAVE SUPERVISOR ADD ADDITIONAL PRECAUTIONS RELATING TO THE SPECIFIC WORK AREA AND LOCAL SAFETY REGULATIONS BELOW: MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 12/09...
-
Page 6: Safety Precautions
SURE HOSES ARE COMPLETELY CLEAR OF SPARKS AND HOT DEBRIS. HAVE ANOTHER PER- SON STAND CLOSE TO HYDRAULIC POWER SOURCE CONTROLS TO OBSERVE OPERATION AND FOR EMERGENCY SHUTDOWN IF NECESSARY. MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 12/09... - Page 7 3. GRASP THE TOOL FIRMLY BEFORE TURNING ON THE VALVE. THERE WILL BE A SLIGHT TORQUE WHEN THE STON IS ACTIVATED. MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 12/09...
- Page 8 OTHER FLUIDS THAT MEET OR EXCEED THIS SPECIFICATION CAN BE USED. *SEE COLD WEATHER OPERATION HYDRAULIC OIL NOTE. 5. HAVE TOOL INSPECTED, AT LEAST ANNUALLY, BY MATWELD OR A MATWELD QUALIFIED SER- VICE REPRESENTATIVE TO DETERMINE IF TOOL IS IN NEED OF SAFETY CHANGES OR WORN PART REPLACEMENT.
- Page 9 STONE. INSTALL NEW GRINDING STONE AND TIGHTEN RETAINER NUT. DO NOT OVER TIGHT- EN RETAINER NUT. • REFER TO MANUFACTURER’S SPECIFICATIONS FOR TORQUE SETTINGS ON STONE MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 12/09...
- Page 10 00600 CUP STONE GRINDER MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 12/09...
- Page 11 3/8-16 x 1 1/4 DOG POINT SET SCREW A6551 #10-24 x 3/4 SHCS A6910 DIA. 1/4 x 1 SHOULDER BOLT 02598 SHAFT SEAL KIT 02599 INTERNAL SEAL KIT MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 12/09...
-
Page 12: Tool Circuit
BLOW. THIS IS WHY IT IS VERY IMPORTANT TO DIRECT THE FLOW INTO THE TOOL CORRECTLY. REVERSING THE HOSES TO TEST MAY RESULT IN BLOWN SEALS, DAMAGE TO THE TOOL, AND PERSONAL INJURY. MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 12/09... -
Page 13: Decal Legend
00600 CUP STONE GRINDER DECAL LEGEND: MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 12/09... -
Page 14: General Notes
00600 CUP STONE GRINDER GENERAL NOTES: MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 12/09... - Page 15 HOSES, COUPLERS, BITS, SOCKETS, AUGERS, AND BATTERIES. LIMITATION OF LIABILITY EXCEPT AS PROVIDED ABOVE, MATWELD SHALL IN NO EVENT BE LIABLE OR RESPONSIBLE FOR ANY INJURY, LOSS OR DAMAGE, DIRECT, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE USE OR MISUSE OR INABILITY TO USE THE PRODUCT, HOWEVER CAUSED AND ON ANY THEORY...
-
Page 16: Customer Information
Name _____________________________________________________ Company___________________________________________________ Serial # of your Matweld tool___________________________________ (Upon receiving your Matweld tool, make sure to list serial number above so that a good record is kept for order information.) MATWELD HYDRAULIC TOOL LIST All Matweld Hydraulic Tools operate at 5 or 10 GPM @ 2000 PSI POWER UNITS: 00100K –...
