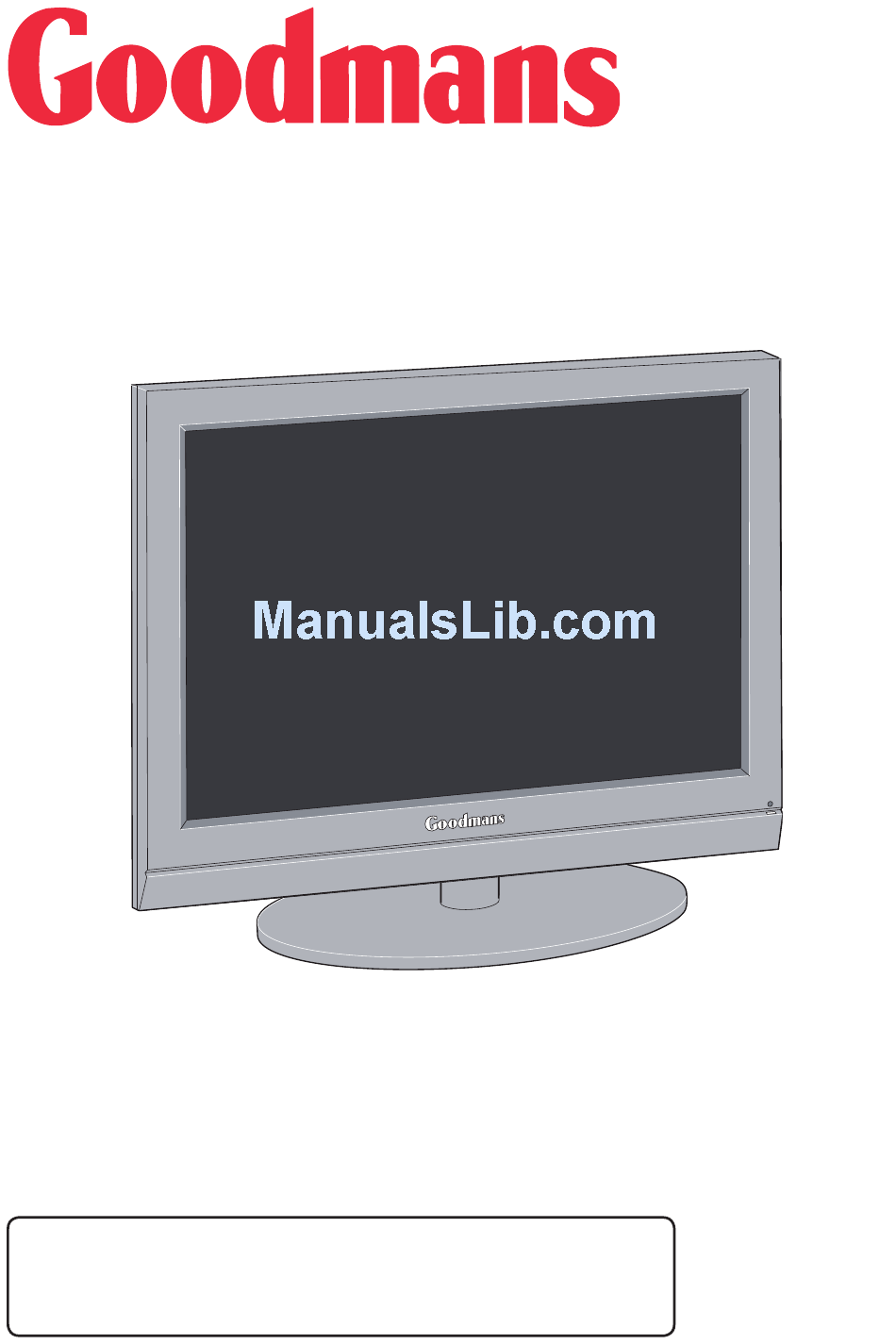

Page 1: Instruction Manual
GML26W37HDF Digital TV Instruction Manual IMPORTANT: Please read all instructions carefully before use and keep for future reference... -
Page 2: Table Of Contents
TABLE OF CONTENTS 1-Important Information ................1 1.1-Cleaning the screen and cabinet................1 1.2-Disposing of your TV at the end of service life............1 1.3-Superior features of your integrated digital television ..........1 1.4-Receiving digital broadcasting channels .............1 2-Features of your new television ............2 2.1-Special Features ....................2 3-Important Safety Instructions ............. -
Page 3: 1-Important Information
Important Information LCD panels are produced with state-of-the-art technology. However, there may be missing or lit spots on the screen under certain circumstances. That does not mean that the product is faulty. 1.1-Cleaning the screen and cabinet... After powering off, wipe the screen and the cabinet clean with a soft and dry cloth. We recommend that you do not use patented polishes or solvents on the screen or cabinet since they may cause damage. -
Page 4: 2-Features Of Your New Television
Features of your new television This product, has been manufactured in modern facilities in accordance with total quality principles, to ensure best performance. Please take time out to read this manual carefully before you use your TV and keep safe for future reference. 2.1-Special Features • HD-Ready feature. -
Page 5: 3-Important Safety Instructions
Important Safety Instructions This symbol is used to warn the user about the “dangerous voltage” contained inside the housing of the product that may create a risk of electrical shock. This symbol is used to remind the user important usage and service instructions supplied with the TV. - Page 6 10) Never operate • Do not use defective sockets. Make electrical TV close to sure that the plug is firmly inserted water. Operating such into the socket. If the plug remains TV, for example, near loose, then it can cause fire due to a bathtub, washbasin, arching. Refer to an electrician to kitchen washbasin, have your socket replaced. washing basin, wet basement and 13) Make sure that the power swimming pool can cause fire or electric cable is not stepped on and...
-
Page 7: Electrical Information
18) Wipe the TV cabinet 20) Disposing of the exhausted clean with a soft and dry batteries: cloth. Wipe dust from the • Dispose of the exhausted screen gently with a soft batteries in accordance with cloth. Stubborn stains the local laws and regulations in order to can be cleaned with a protect our environment. -
Page 8: Stand Assembly Guide
3.2-Stand Assembly Guide Locate and fit / push the base (2) to the stand (1) ensuring that all 4 securing tabs (4) are fully locked in place on the base. Note: Make sure that the slot (3) on top of the base faces to the rear of the TV To remove the stand piece (2), press in the tabs (5) and pull to remove the stand. -
Page 9: 4-Your Digital Tv
Your digital TV 4.1-Power indicator and TV Control panel Remote control sensor TV control panel Power on / Standby indicator MENU V+ volume up V- volume down Power on / Standby Remote control button sensor Power on / Standby indicator... -
Page 10: Rear View
4.2-Rear view Audio L input S-VHS Video input Stereo headphones Audio R input AC mains power HDMI 2 CI slot HDMI 1 TUNER (UHF aerial) Component inputs Audio input L Audio input R SPDIF Digital audio output PC Audio input Scart (PC input) -
Page 11: Remote Control
4.3-Remote control STANDBY Power On/Off AV To select video source MUTE To turn sound On/Off STANDBY SUBT Subtitle On/Off selection (D) and This button has no function SUB teletext sub page selection 16:9 SUBT AUDIO ZOOM This button has no function 16:9 Picture format selection FAV Favourite channel selection (D) / Teletext page stop button (Stop) EPG Electronic Program Guide (D) / Teletext Question/Answer button (Reveal) NUMBER PAD For entering channel number directly INFO INFO Digital Information and Index in Teletext BACK EXIT MENU MENU To display the menu BACK Returns to previous menu... -
Page 12: 5-Start
Start 3. To power on your television, press any Remove your television carefully from its box. numerical key or P+ or P- keys on the remote You can keep the packaging of your television control. to use in future. Note: If you are not going to use your Contents of the box television for a long time, unplug its power Power cable... -
Page 13: Performing Digital Channel Settings
The TV is factory set for UK / English use. If no pressing the Right/Left navigation buttons. language settings are reqired simply Press the Press OK button to confirm your selections. OK button twice to start TV channel tuning. Digital channels are searched and stored Press Right/Left navigation / arrow buttons automatically. The progress of auto tuning to select the desired menu language from and the channels stored in the memory are the Language tab. -
Page 14: 6-Performing The Initial Power-On Settings
Performing the initial power-on settings 6.1-TV controls 6.1.4-Temporary sound mute (MUTE) To temporarily mute the sound of your 6.1.1-Temporary on/off (STAND-BY) television, press the MUTE button Press the red STANDBY button on your remote control. In that case, located on your remote control while MUTE symbol will appear on the your television is switched on, the screen. -
Page 15: Performing Analogue Channel Settings
6.2-Performing Analogue 6.2.2-Manual tuning of analogue channels and storing in the memory channel settings 6.2.2.1-If you already know the 6.2.1-Automatic tuning of analogue channel number channels and storing in the memory Select Analogue Manual Tuning Press the MENU button on your by pressing the Up/Down navigation remote control. -
Page 16: Electronic Tv Guide (Epg)
6.3-Electronic TV Guide (EPG) Analogue Manual Tuning Electronic TV Guide is for Digital System broadcasts only. The Electronic TV Current Channel Guide gives general information about Fine Tuning all of the programmes of the next Search 8 days. To display the Electronic TV Guide, Programme No press EPG button on the remote control and Skip EPG will be displayed. -
Page 17: Program Table
automatically switch to the channel that you News 13 Nov 2008 22:00 22:40 set the reminder for. 7. You may delete the reminder that you 22:00 News ALL CHANNELS 22:40 Film have added directly by using BLUE button 4 Channel 2 of your remote control in the EPG menu or 6 Channel 3 delete from Reminder List menu by pressing 10 Channel 4... -
Page 18: Favourites List
6.4.1-Selecting the Service Type 6.4.3- Relocating a stored channel You may select the service type by Select the channel you want to pressing the “BLUE” button on your relocate from the Program Table remote control in the Program table menu with Up/Down buttons and menu. -
Page 19: Signal Information
channels using the P+/P- buttons, then you can use this function. Select CHANNEL LİST the program that will be hidden by pressing the Up/Down or Right/ Channel 1 Left navigation buttons, scroll to the Channel 2 Skip option ( ) and press OK button Channel 3 Channel 4 to confirm. -
Page 20: 7-The Settings On Your New Television
The settings on your new television 7.1.2-Sound Mode 7.1-Performing the Sound settings If you would like to add some depth to the sound of the program you are watching, You may perform Volume settings by using press Right/Left navigation buttons to select the V+ or V- buttons on your television or the Normal or Spatial. -
Page 21: Changing The Picture Settings
7.1.4-Headphone changes you have made in the PICTURE menu will be stored in the memory without By connecting headphones to your television requiring any other operation. you can listen to the program sounds Note: That the ADVANCED settings are independently from your television. To turn up not shown on the Picture menu. -
Page 22: Dynamic Contrast
7.2.5.5-Dynamic Contrast This feature allows making brightness settings according to the picture. A brighter or dimmer picture can be sent to the screen according to the brightness level of the picture. Thus, a wider effect is obtained in terms of contrast. Select Dynamic Contrast tab with the Up/ PICTURE Down navigation buttons to activate this... -
Page 23: Performing The Timer Settings
7.2.6.2-16:9 Please use this setting for watching wide screen DVDs, wide screen video cassette or 16:9 formatted broadcasts. Since various screen formats such as 16:9, 14:9 and etc. are used, black stripes might be formed on 7.2.6.7-Panorama the lower and upper parts of the screen. This setting will enlarge the image to fit the screen by stretching the image horizontally while holding the correct proportions at the centre of the image. -
Page 24: Options Menu Settings
7.3.2-Off Time Select the Off Time tab by pressing the Up/ Down navigation button in TIMER menu and confirm your selection with the Right navigation button or OK button. In this menu, you can set the off time for your television OPTIONS with weekly or daily periods. -
Page 25: Parental Control
7.5-Parental Control 7.4.4- PC/HDMI Game Mode In the Options menu, you can set the Game In the Parental Control menu, you can Mode tab to On/Off by pressing the Right/ preclude channels that are not appropriate for Left buttons. When the Game Mode is set to children and set age restriction for programs On, display settings will return to the default being broadcasted. -
Page 26: Other Picture Features
buttons and confirm your selection with 7.5.5-Panel Lock OK button. Block Programme menu will be displayed. Select the channel you want If this feature is turned On, the control buttons to block from the Block Programme menu on your LCD Television will be locked and with Up/Down buttons and confirm with the will not function. - Page 27 8.4-Page enlarge button (DOUBLE) 8.9-Clock You can view the upper half of the Press the SIZE button when you teletext page in an enlarged format by want to learn the time while watching pressing the DOUBLE button on your any television channel. In that case, remote control. To be able to view a clock will appear on the lower right the bottom half of the enlarged page, press corner of the screen.
-
Page 28: 9-External Equipment Connections
External Equipment Connections Output Input The headphones must have an impedance Your TV is equipped with 9 inputs including between 8 and 32 ohms and must be fitted aerial input, which allows for the external with a 3.5 mm stereo jack plug. device connection. These inputs are: The stereo headphones should be connected 1-Aerial input to the headphone output on the TV side 2-SCART input... - Page 29 9.2-Connecting via the audio and video (AV) connectors on the TV Connect the video and audio from the external device using the yellow, white and red (V, L and R) RCA inputs on the TV side panel. Select the AV option in the SOURCE menu and press the OK button to confirm. Your TV will display the the video from the external device. CAMERA TV SIDE PANEL DVD PLAYER 9.3-Connecting via the S-Video...
- Page 30 9.5-Connecting via an HDMI connection Connect an HDMI connector cable between the HDMI connector on the external equipment to the HDMI connector on the TV side panel. You can connect to either HDMI1 or HDMI2. DVD PLAYER SATELLITE RECEIVER HDMI CONNECTOR TV SIDE PANEL Press the AV button and select the HDMI channel you have connected the equipment and press the OK button to display the picture.
-
Page 31: Connecting To A Pc
9.7-Connecting to a PC Connect a monitor cable (15-way D-type) the PC AUDIO-IN on the main connections cable between the PC and the PC-IN socket panel on your TV. This cable is only required on the main connections panel on the back if you want to listen to sounds from your PC. of your TV This cable isnot supplied. Also You can adjust the volume level using VOL+/ connect a stereo cable (3.5mm plug at each VOL- buttons. - Page 32 9.8- How To Connect CI (Common Interface) Card 1- To view the scrambled (pay) services in digital TV mode. 9.8.1-TO INSERT A CI CARD (NOTE: The card on its own cannot be used on this tv. A cam must be purchased and a the card is inserted into the cam. The cam / card holder is then inserted into the ci slot on the tv.) Insert the Cam / card holder card into the slot in the direction of the arrow until it fully located. Side view of the TV 9.8.2-TO REMOVE A CI CARD When removing the CI card, make sure you pull out the Cam complete with the card fitted. This function enables you to watch the scrambled services (pay services) in some channels.
-
Page 33: 10-Help And Tips
Help and tips Failure Possible cause Solution Is the power cord connected to the The television does not function Check the power cord. mains supply? Is the aerial cable attached? Check the aerial cable. Aerial may be affected by two Try disconnecting one of the devices. -
Page 34: 11-Technical Specifications Chart
Technical Specifications Chart SCREEN SIZE 26” Panel type 26”, 16:9 Active matrix TFT Sound output 2x7 W Power consumption 110 W Stand by power value <1 W SCART input Standard Audio/Video PHONO input Standard S-Video socket Standard HDMI input 1 Standard HDMI input 2 Standard YPBPR input Standard VGA input Standard PC Audio input... - Page 35 Y3B.801...
