Goodmans GTVL20W7HD User Manual

Hd ready
Hide thumbs
Table of Contents

Advertisement

Quick Links

Model GTVL20W7HD
HD READY
0870 873 0080
www.goodmans.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTVL20W7HD and is the answer not in the manual?

Questions and answers

Related Manuals for Goodmans GTVL20W7HD

Summary of Contents for Goodmans GTVL20W7HD

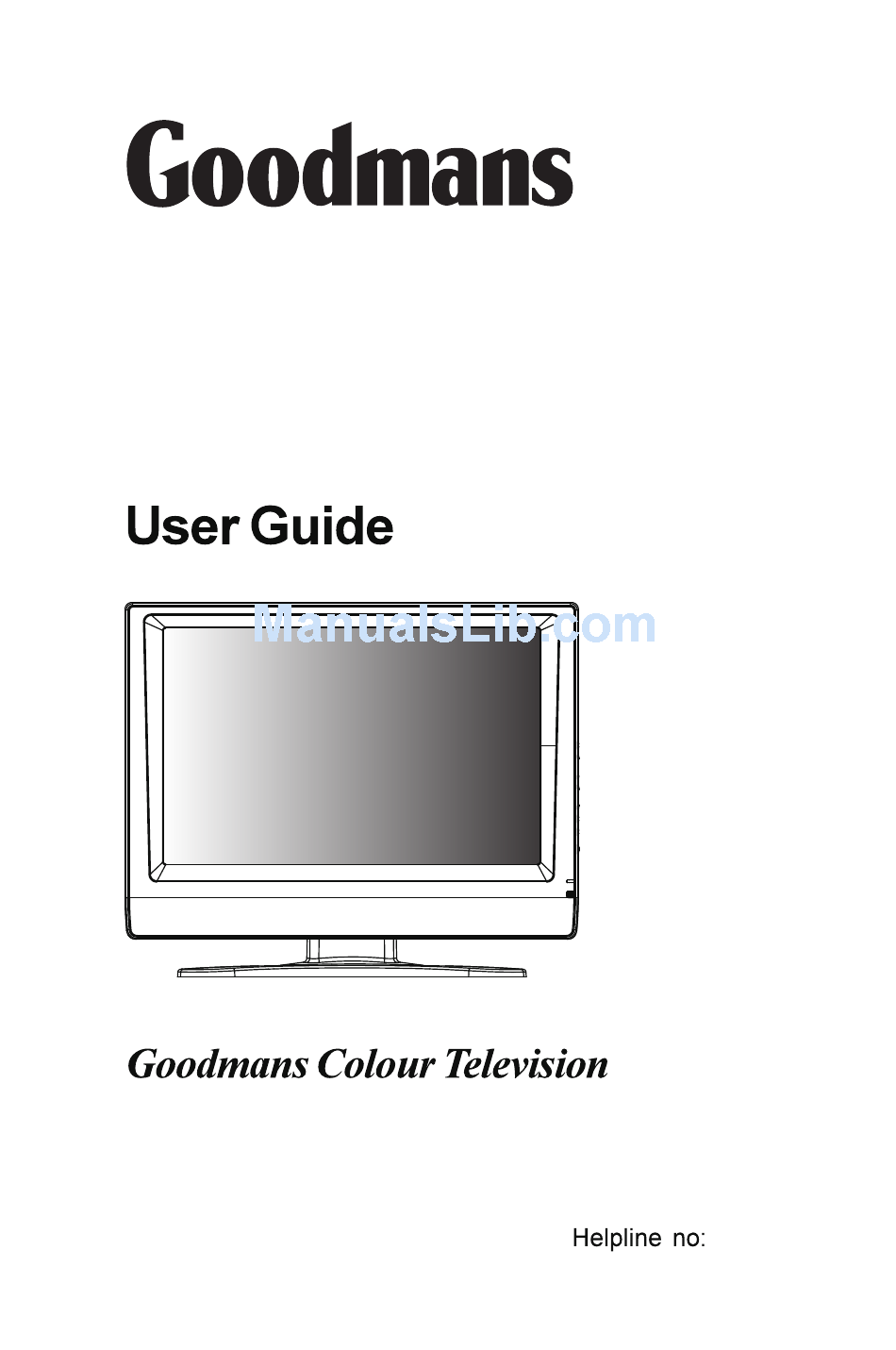

  • Page 1 Model GTVL20W7HD HD READY 0870 873 0080 www.goodmans.co.uk...
  • Page 2 20”...

  • Page 3: Table Of Contents

    Contents: CONTENTS: ....................I 1.SAFETY AND PRECAUTIONS ..............2 Operating Safety ..................2 Repair..................... 3 Point of use ..............4 Environmental conditions ............. 4 Connecting..............5 Precautions .................... 6 Important Additional Safety Instructions ..........6 2.INTRODUCTION..................7 Service ....................7 Performance Characteristics..............
  • Page 4 PC menu ....................31 NICAM/IGR Broadcast Selection ............34 9.TELETEXT ....................35 10.OTHER FUNCTIONS................37 11.TROUBLESHOOTING................38 12.PC INPUT PRESET TIMING TABLE ........... 40 13.SPECIFICATIONS ................41...
  • Page 5 IMPORTANT INSTRUCTION: MAINS (AC) OPERATION BLUE-NEUTRAL BROWN-LIVE IMPORTANT CAUTION SAFETY PRECAUTION...

  • Page 6: Safety And Precautions

    Please read through this section carefully and follow the instructions to maximize the reliable operation and lifetime of your LCD display. Always keep these instructions handy and close by your LCD display. Keep the instructions and the packaging so that if you sell or give away your LCD display you can give them to the new owner.

  • Page 7: Repair

    Contact your dealer immediately in any of the following situations. Do NOT plug in or turn on your display: if the power cable/power supply overheats or is damaged ♦ if liquid has got into the monitor ♦ if the LCD display is dropped or the housing damaged ♦...

  • Page 8: Point Of Use

    OINT OF USE • Keep your LCD display and all units connected to it away from moisture and avoid dust, heat and direct sunlight. Failure to observe these instructions can lead to malfunctions or damage to the LCD display. • Place and operate all units on a stable, level and vibration-free surface in order to avoid the LCD display from falling.

  • Page 9: Connecting

    ONNECTING Observe the following instructions to connect your LCD display properly: OWER UPPLY • Do not open the power supply housing. An open housing presents a lethal hazard from electrical shock. There are no parts inside to be cleaned or serviced. •...

  • Page 10: Precautions

    RECAUTIONS Caution! There are no parts which can be serviced or cleaned inside of the TV display housing. You can increase the life of your LCD display by taking the following precautions: • Before cleaning always disconnect the power line and all connection cables.

  • Page 11: Introduction

    Thank you for purchasing our HD ready TV. We thank you for your confidence in our products and are pleased to greet you as a new customer. ERVICE Your display comes with a one-year warranty, this is in addition to your statutory rights.
  • Page 12 Further features The LCD unit is a plug-and-play device which is automatically recognised by your plug-and-play computer operating system. (When connected to a computer) The connection terminals include RF IN, D-SUB, DVI, SCART (CVBS, SVHS, RGB), COMPONENT, and VIDEO, S-VIDEO Input. Easy-to-use remote control, and OSD (on-screen display) menu.

  • Page 13: Accessories

    CCESSORIES Please check that you have received the following items with your LCD TV. LCD - TV USER’S MANUAL User’s Manual Remote Control & Batteries(AAA X2) Power Cord HDMI-DVI Cable Audio Cable...

  • Page 14: Connecting External Devices

    D-SUB AUDIO IN HEAD PHONE AC POWER SOCKET AUDIO AUDIO SCART S-VIDEO VIDEO COMPONENT IN COMPOSITE IN SCART IN TV AERIAL IN...

  • Page 15: Controls And Location

    Function Key These buttons control your TV’s basic features, including the on-screen mean. To use advanced features, you must use the remote control. POWER: turn the LCD-TV on or off. SOURCE: select the input source ( PC, DVI, AV, SV, YPBPR TV, SCART, SCART S).

  • Page 16: Remote Control

    SLEEP TIMER POWER SELECT CHANNEL RETURN TO PREVIOUS SOUND- Stereo/Mono PROGRAM (RTN) EXIT MENU / PICTURE CONTROL SHOW TV INFORMATION MENU SELECTION / CHANNEL / / VOLUME / MUTE WIDE CONTROL TELETEXT FUNCTION TELETEXT FUNCTION/ SOURCE SELECTION...

  • Page 17: Summary Of Remote Control Buttons

    POWER button Turn the TV on or off Selecting the primary signal source TV button Switch to TV mode PC / HD / SCART button Switch to PC / DVI / SCART/ SCART S and YPBPR mode AV / SV button Switch to AV and S-VIDEO mode Menu Settings MENU button...

  • Page 18: Connections & Applications

    & & D-SUB AUDIO IN...
  • Page 19 This can be done only if there is the DVI Output connector on the external device. VIDEO DEVICE (ex. DVD Player or Set-top Box…) Interface DVI to DVI Cable VIDEO DVI / HDCP D-SUB Audio Cable AUDIO RCA to Head phone Connect a DVI-to-DVI cable or DVI-DVI adapter between the DVI connector on the TV and the DVI connector on the DVD player/ Set-top box.
  • Page 20 COMPONENT COMPOSITE IN AUDIO S-VIDEO VIDEO AUDIO SCART TV AERIAL IN D-SUB Subwoofer S/P DIF AUDIO This TV accept different Video Input, if video device has a connector with better quality, please connect the better one. The sequence of video quality is Component, Scart, S-video, Video from the best quality to the normal one.

  • Page 21: General Controls & Adjustment

    & & URNING THE DISPLAY N AND 1. Press the POWER button on the Remote Control. 2.The power status light found in the lower right corner of the TV indicates the following: Power On Green light Power off Red light Power Saving (PC mode) Amber light OLUME...

  • Page 22: Switching Pc / Dvi / Video / Tv / Scart Modes

    PC / DVI / VIDEO / TV / SCART M WITCHING ODES 1. Turn on the power. 2. Select an input source as described below: switch to TV mode. TV button switch to PC, DVI ,YPBPR,SCART,SCART S mode PC/HD/SCART button switch to AV / SV mode AV/SV button IEWING THE...

  • Page 23: Picture Setting

    ICTURE ETTING You may need to perform separate adjustments for brightness and contrast for the different video modes. Typically, PC mode will be best viewed with lower brightness and contrast settings than are appropriate for the other modes. 1. Press the MENU button to display PICTURE from the main menu. button to select the desired item.
  • Page 24 PICTURE SETTINGS: CONTRAST: Increase and decrease picture contrast BRIGHTNESS: Darker and brighter picture brightness BACKLIGHT: Adjust the back light level of screen COLOR: Deeper and lighter picture color SHARPNESS: Softer and sharper image COLOR MODE : 1. Press the P buttons to select COLOR MODE option, and then press the VOL button to enter the COLOR TEMP.

  • Page 25: Sound Adjustment

    3. Press P buttons to move USER-R/G/B and then press the button to enter the desired setting. USER-R: adjust color of red rate. USER-G: adjust color of green rate. USER-B: adjust color of blue rate. OUND DJUSTMENT 1. Press the MENU button to display SOUND from the main menu. 2.
  • Page 26 MODE: select the audio mode to [OFF],[EQ]. BASS: Adjust low tone of sound. TREBLE: Adjust high tone of sound. BALANCE: Adjust the volume balance between the left and right speakers. EQUALIZER: 1. Press the VOL button to enter the EQUALIZER menu. SOURCE TV 2.
  • Page 27 3. There are 6 Equalizer modes available: [MANUAL] , [VOICE] , [POP], [ROCK] , [JAZZ] , [CLASSIC]. 4. Settings for VOICE , POP, ROCK , JAZZ and CLASSICAL are pre-configured. You cannot change these settings. The frequency responses are as below: VOICE: SOURCE TV POP:...
  • Page 28 ROCK: SOURCE TV JAZZ: SOURCE TV CLASSICAL: SOURCE TV...
  • Page 29 5. In MANUAL mode, use P buttons to move a band and VOL / VOL buttons to select the desired frequency settings. MANUAL: SOURCE TV...

  • Page 30: Tv Channel

    TV C HANNEL 1. Press the MENU button to display TV CHANNEL from the main menu. 2. Press the P button to move one of the sub-menu options. 3. Press the VOL / VOL button to select the settings. 4. Press the EXIT/INFO button to return to the previous screen. SOURCE TV COUNTRY:[UK],[EIRE],[DENMARK],[FINLAND],[ITALY],[NORWAY], [SPAIN],[SWEDEN],[LUXEMBURG],[FRANCE],[CZECH],...
  • Page 31 Programming Manual MANUAL: 1. Press P button to select MANUAL option, and then press number or VOL / VOL button to select the program that the user wants the tuned channels to store . 2. Press P button to select the items, and then press VOL / VOL button to select the setting.
  • Page 32 SOUND SYSTEM: choose [AUTO], [B/G], [D/K], [L], [I], [L’] by pressing / VOL SEARCH: press VOL to search receivable channels by pressing / VOL FINE TUNING: indicate searching programs by pressing VOL / VOL STORE: store the found channel by pressing VOL / VOL 3.
  • Page 33 6. Press P to select a program you would like to switch with the highlighted program. 7. Press the green button to store. 8. Choose a program, then press the yellow button (DELETE). The program is highlighted by a red bar, and then press yellow button again to erase.

  • Page 34: Function

    UNCTION 1. Press the MENU button to display FUNCTION from the main menu. 2. Press the P button to move to one of the sub-menu options. 3. Press the VOL / VOL button to select the settings. 4. Press the EXIT/INFO button to return to the previous screen. SOURCE TV LANGUAGE: 1.

  • Page 35: Pc Menu

    MENU 1. Press the MENU button to display PC from the main menu. 2. Press the P button to move to one of the sub-menu options. 3. Press the VOL / VOL button to select the settings. 4. Press the EXIT/INFO button to return to the previous screen. SOURCE PC CONTRAST: Increase and decrease picture contrast BRIGHTNESS: Darker and brighter picture brightness...
  • Page 36 COLOR MODE : 1. Press the P buttons to select COLOR MODE option, and then press the VOL button to enter the COLOR TEMP. sub-menu. SOURCE PC 2. Press the VOL button to choose the color of picture mode. [NORMAL], [WARM], [COOL], [MANUAL].
  • Page 37 SOURCE PC AUTO: Automatically adjust picture. Press the VOL button to adjust picture position automatically. Screen will disappear until it has completed adjustment. SOURCE PC...

  • Page 38: Nicam/Igr Broadcast Selection

    NICAM/IGR B ROADCAST ELECTION Depending on the particular program being broadcast, you can press the SOUND button to listen to different language sources. Under different systems, broadcast function will show differently. : sends the primary broadcast language to the loudspeakers. : sends the secondary broadcast language to the loudspeakers.

  • Page 39: Teletext

    Teletext is a free service broadcast by some TV stations which gives up-to-the-minute information, news, weather, television programs, share prices, subtitles, and many other topics. Note : No OSD adjustment apart from volume control will be available in teletext mode . In teletext mode, NUMBER buttons, VOL / VOL and RTN...
  • Page 40 Useful features for Teletext INDEX * Press this button to select the index page that displays the list of Teletext contents. HOLD The teletext page you have selected may contain more information than what is on the screen ; the rest of the information will be displayed after a period of time on a sub-page.

  • Page 41: Other Functions

    - WIDE - Modes available are dependant upon the current source being played TV /DVD etc. * FULL: This mode expands the width of 4:3 video sources evenly to fill the 16:9 screen. There will be distortion at the centre of the screen as well as the edges. * NORMAL: This sets the aspect ratio to 4:3 for traditional TV programs.

  • Page 42: Troubleshooting

    Many times, problems have simple causes. We would like to give you some tips to solve some common problems. Should these tips not help, please contact your dealer. There is no picture and sound. Make sure the power cord is properly connected. Make sure the input mode is set correctly.

  • Page 43: Remote Control Does Not Work

    Remote control does not work. Check the batteries in the remote control are not flat. Make sure the sensor window of TV set is not under strong lighting. The picture is not sharp. Check the colour adjustment. Check the Sharpness adjustment. The picture is jittery.

  • Page 44: Pc Input Preset Timing Table

    Analog Input Mode H-Resolution H.Freq. V.Freq. Pixel CLK Name V-Resolution (KHz) (Hz) Polarity Polarity (MHz) 640 * 480 31.469 59.940 25.175 640 * 480 37.500 75.000 31.500 SVGA 800 * 600 37.879 60.300 40.000 SVGA 800 * 600 46.875 75.000 49.500 1024 * 768 48.363 60.000...

  • Page 45: Specifications

    ITEMS SPECIFICATIONS Screen Size 20.1 TFT-LCD Panel Aspect Ratio 16:10 Resolution 1680 x 1050 Display Area (Opening) 433.44 mm x270.9 mm Pixel Pitch 0.258 mm x 0.258 mm Panel Display colors 16,777,216 colors Contrast Ratio 600 : 1 (typ.) Brightness (center) 300 cd / m (typ.) Viewing Angle(CR>10) 140...

  • Page 46: Specifications

    ITEMS SPECIFICATIONS Audio 1 Scart x 1 Audio 2 Composite & S-Video x 1 Audio Input Audio 3 Component x 1 Audio 4 PC x 1 Video SCART 1 TV x 1 UTPUT 2.5W + 2.5W @ THD < 10 % Speaker ( build-in) Audio Output...
  • Page 48 E030057224...
