Maestro E206XT Manual

E200 series multimode lan/wan/wi-fi router
Hide thumbs Also See for E206XT:
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Enlarged version

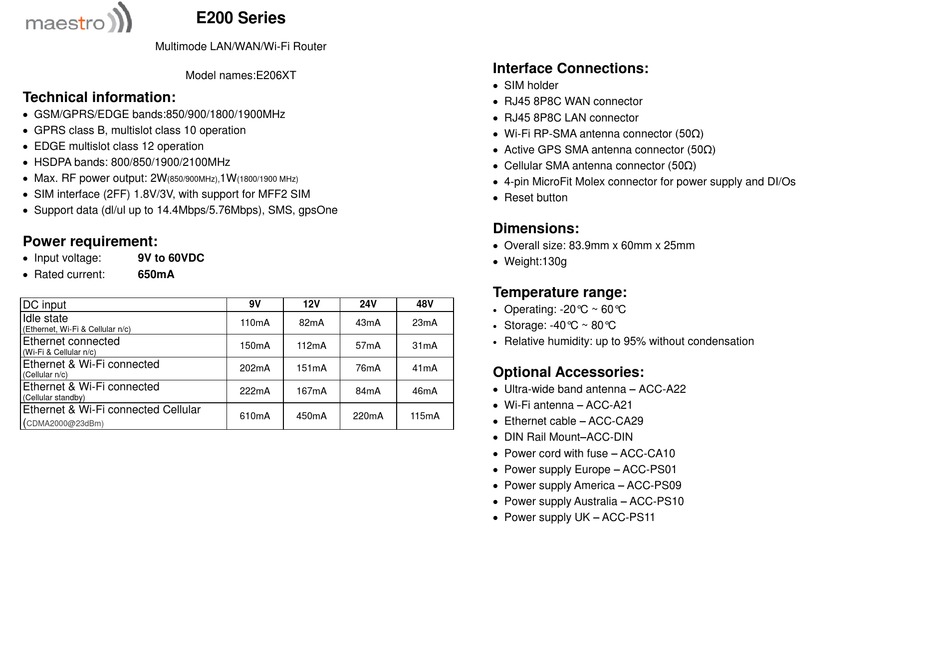

Multimode LAN/WAN/Wi-Fi Router
Model names:E206XT

Technical information:

 GSM/GPRS/EDGE bands:850/900/1800/1900MHz
 GPRS class B, multislot class 10 operation
 EDGE multislot class 12 operation
 HSDPA bands: 800/850/1900/2100MHz
 Max. RF power output: 2W
(850/900MHz),
 SIM interface (2FF) 1.8V/3V, with support for MFF2 SIM
 Support data (dl/ul up to 14.4Mbps/5.76Mbps), SMS, gpsOne

Power requirement:

 Input voltage:
9V to 60VDC
 Rated current:
650mA
DC input
Idle state
(Ethernet, Wi-Fi & Cellular n/c)
Ethernet connected
(Wi-Fi & Cellular n/c)
Ethernet & Wi-Fi connected
(Cellular n/c)
Ethernet & Wi-Fi connected
(Cellular standby)
Ethernet & Wi-Fi connected Cellular
(
CDMA2000@23dBm)
E200 Series
1W
(1800/1900 MHz)
9V
12V
24V
110mA
82mA
43mA
150mA
112mA
57mA
202mA
151mA
76mA
222mA
167mA
84mA
610mA
450mA
220mA

Interface Connections:

 SIM holder
 RJ45 8P8C WAN connector
 RJ45 8P8C LAN connector
 Wi-Fi RP-SMA antenna connector (50Ω)
 Active GPS SMA antenna connector (50Ω)
 Cellular SMA antenna connector (50Ω)
 4-pin MicroFit Molex connector for power supply and DI/Os
 Reset button

Dimensions:

 Overall size: 83.9mm x 60mm x 25mm
 Weight:130g

Temperature range:

48V
Operating: -20° C ~ 60° C
23mA
Storage: -40° C ~ 80° C
Relative humidity: up to 95% without condensation
31mA
41mA

Optional Accessories:

 Ultra-wide band antenna – ACC-A22
46mA
 Wi-Fi antenna – ACC-A21
115mA
 Ethernet cable – ACC-CA29
 DIN Rail Mount–ACC-DIN
 Power cord with fuse – ACC-CA10
 Power supply Europe – ACC-PS01
 Power supply America – ACC-PS09
 Power supply Australia – ACC-PS10
 Power supply UK – ACC-PS11
