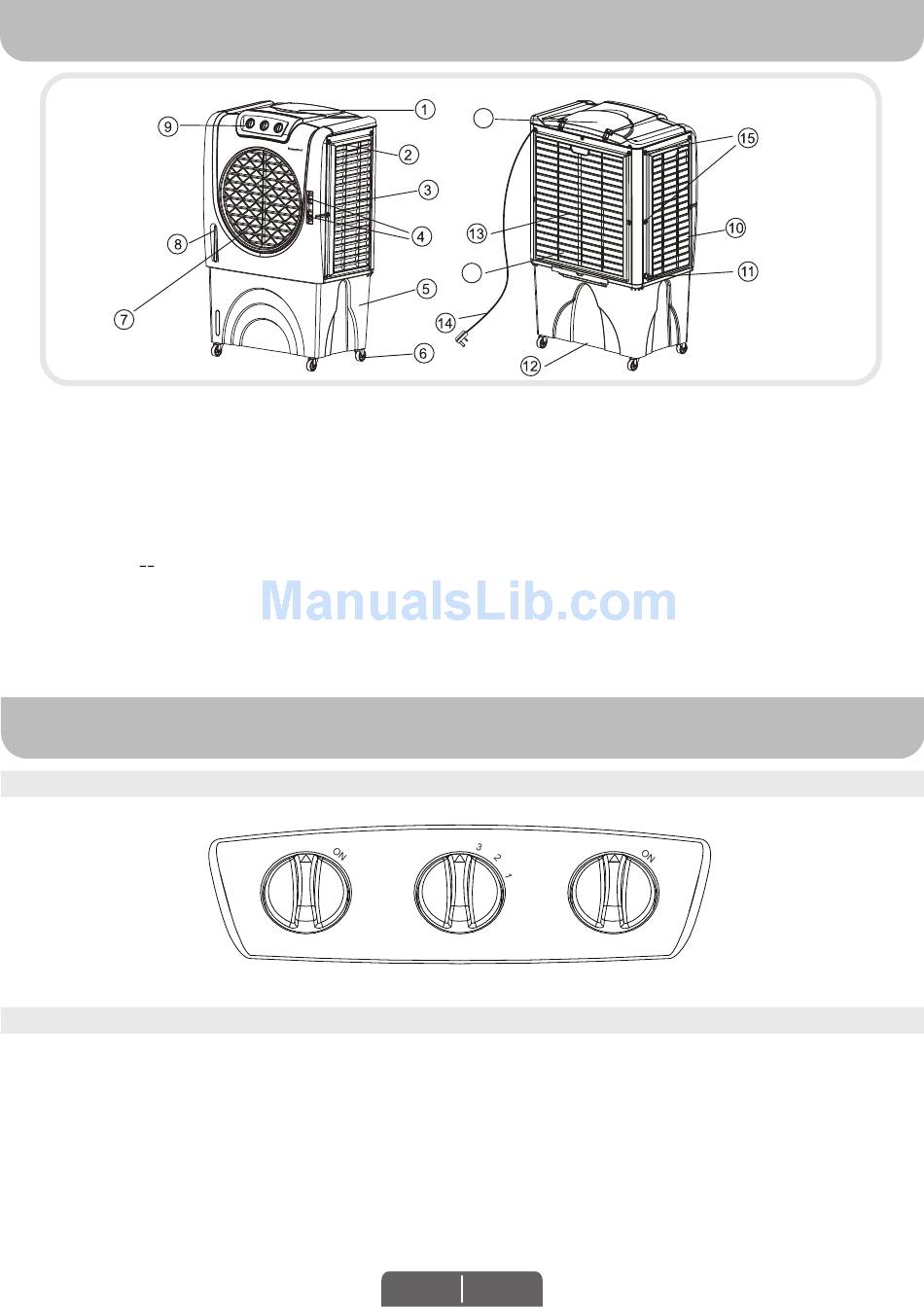

PARTS DESCRIPTION

1) Water Inlet Hole
2) Handle
Left Side Grill
3)
4) Lever for Horizontal Louvers
5) Water Tank
6) Casters
WARNING READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER
MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY
DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY. IN CASE THERE IS
ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER
LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL
PREVAIL.
USE & OPERATION
CONTROL PANEL
FUNCTION BUTTONS
SPEED / ON - OFF
Connect to the power supply and turn the SPEED knob. The fan will start. Change the speed from
3 to 1 (1 for Low, 2 for Medium and 3 for High fan speed). To switch OFF the unit, turn the SPEED
knob to 0.
COOL
You must add water before operating the unit on Cool mode. Turn the COOL knob to the ON
position to activate evaporative cooling. The water pump will operate and you will feel the cooler
air after the Honeycomb Cooling Media is completely wet.
17
7) Horizontal Louvers
8) Water Level Indicator
Control Panel
9)
10) Right Side Grill
11) Water Inlet Valve
Drain Plug
12)
OFF
0
COOL SPEED
EN
16
13) Rear Grill
14) Power Cord & Plug
Rear Grill Screws
15)
16) Water Fill Door
17) Honeycomb Cooling Media
(Media is on 3 sides)
OFF
SWING
1
