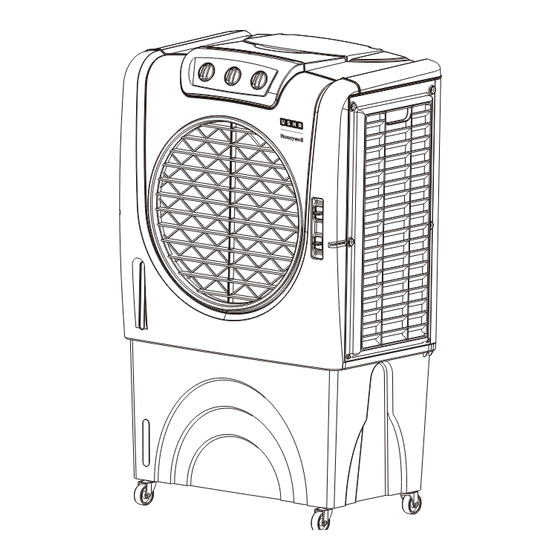

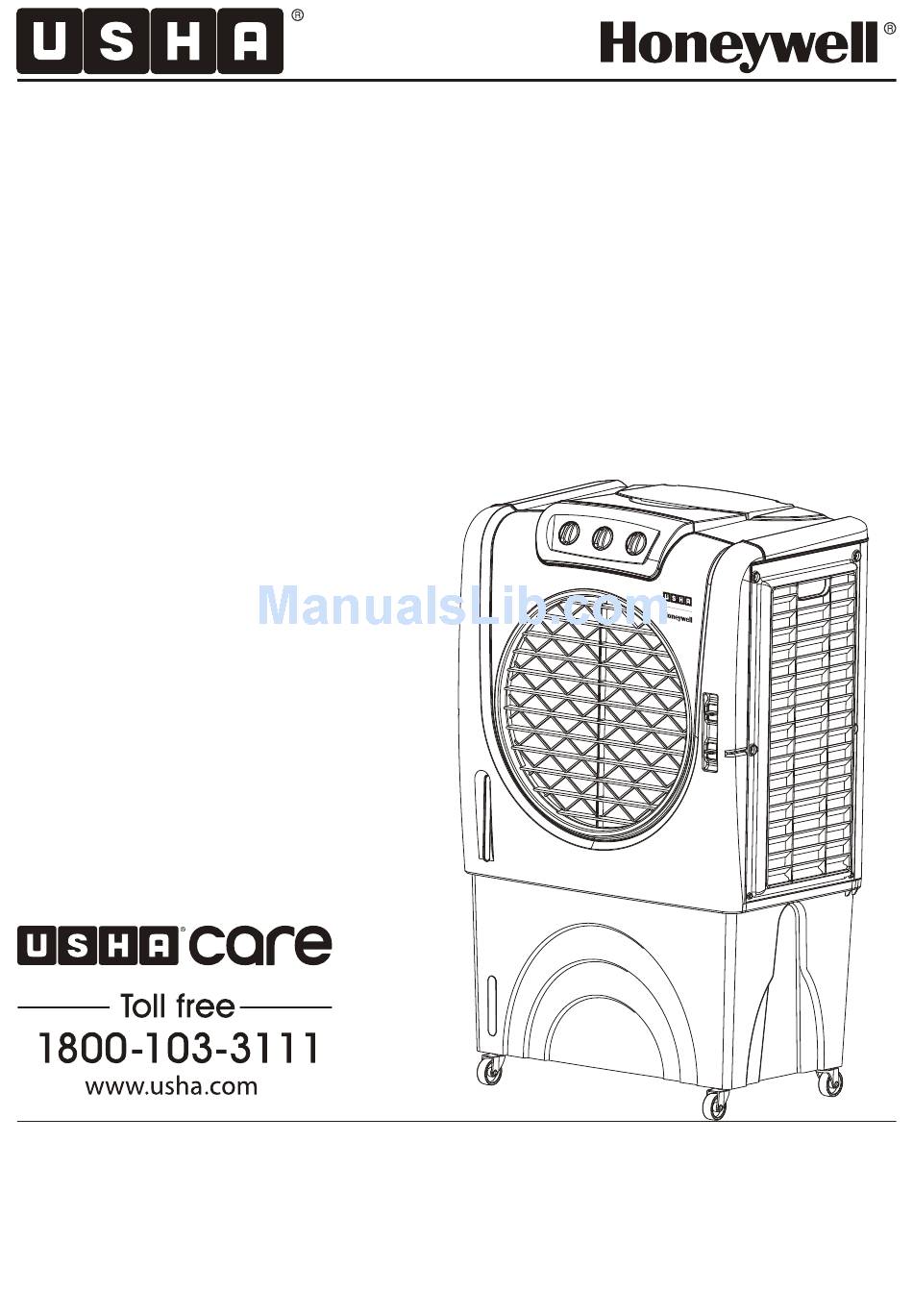

- Page 1 Portable Evaporative Air Cooler User Manual Read and save these instructions before use Model: CL75PM...
-
Page 2: Parts Description
PARTS DESCRIPTION Water Inlet Hole Horizontal Louvers Rear Grill Handle Water Level Indicator Power Cord & Plug Left Side Grill Control Panel Rear Grill Screws Lever for Horizontal Louvers Right Side Grill Water Fill Door Water Tank Water Inlet Valve Honeycomb Cooling Media Drain Plug (Media is on 3 sides) - Page 3 USE & OPERATION (CONTINUED) FUNCTION BUTTONS (CONTINUED) SWING Turn the SWING knob to the ON position to activate the movement of the louvers. The louvers will begin to move left to right automatically. Vertical Air Flow - You can manually adjust the lever located at the front of the unit to change vertical air flow.
- Page 4 USE & OPERATION (CONTINUED) FILLING WITH WATER (CONTINUED) WARNING: Always ensure the water in the water tank is above the minimum (Min.) water level mark for both Continuous & Manual Water Refill. Running the unit in Cool mode with inadequate water may cause pump failure. NOTE: The water capacity refers to the total volume of water that can be contained within the air cooler water tank and water distribution system.
- Page 5 USE & OPERATION (CONTINUED) CLEANING THE HONEYCOMB COOLING MEDIA • The appliance is supplied with three Honeycomb Cooling Media pads. • The Honeycomb Cooling Media are located inside the Rear and Side Grills. Follow Steps 1 to 5 for instructions on how to remove them from the unit for cleaning and maintenance. •...
-
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS Model CL75PM Voltage 230V Frequency 50Hz Wattage 165 Watts Full Water Tank Capacity 74 Litres Cooling Media Honeycomb 700(L) x 466(W) x 1140(H) mm Product Dimension 27.6(W) x 18.3 (D) x 44.9 (H) in Net Weight 19.2 Kg... -
Page 7: Service And Warranty
SERVICE AND WARRANTY This appliance is warranted for 1 year against all manufacturing defects from the date of sale. In the event of any complaint, please contact Usha Care at Toll Free No. 1800 1033 111. The warranty is valid only when: The appliance has been installed, used and maintained in accordance with the instruction manual. - Page 8 Manufactured by Dynamic Industries: 40th KM, Delhi – Jaipur Highway,Vill. Narsinghpur, P.O. Box Kherki Daula,Gurgaon – 122 004, Haryana, India. Manufactured under supervision of JMATEK India Private Ltd. © 2016 JMATEK Limited. All rights reserved. The Honeywell Trademark is used under license from Honeywell International Inc. Honeywell International Inc.
