Alpine IVA-D310R Service Manual page 4

Packing Assembly Parts List
Symbol Part No. Description Symbol
No.
101-1 01T95334W02 ASSY,ANT WIRE MAIN
101-2 01T95205W16 ASSY,WIRE PWR D300J0
101-3 01T75479Y01 ASSY,REMOTE D300
101-4 01T65556Y03 ASSY,PWR WIRE-F 310J
101-5 01T65563Y03 ASSY,DIN-CABL6M D310
101-6 07B50413W05 BKT,SIDE(L)
101-7 07B50413W06 BKT,SIDE(R)
101-8 01T15087Y03 ASSY,IVA-D310R ISO
102-1 75T58346F16 PAD,MAGIC TAPE
102-2 14S70565Y64 INS,CVR 13X2.4XT1.0
103-1 03S60820Y15 SCR,MCH 4X8 ZN A

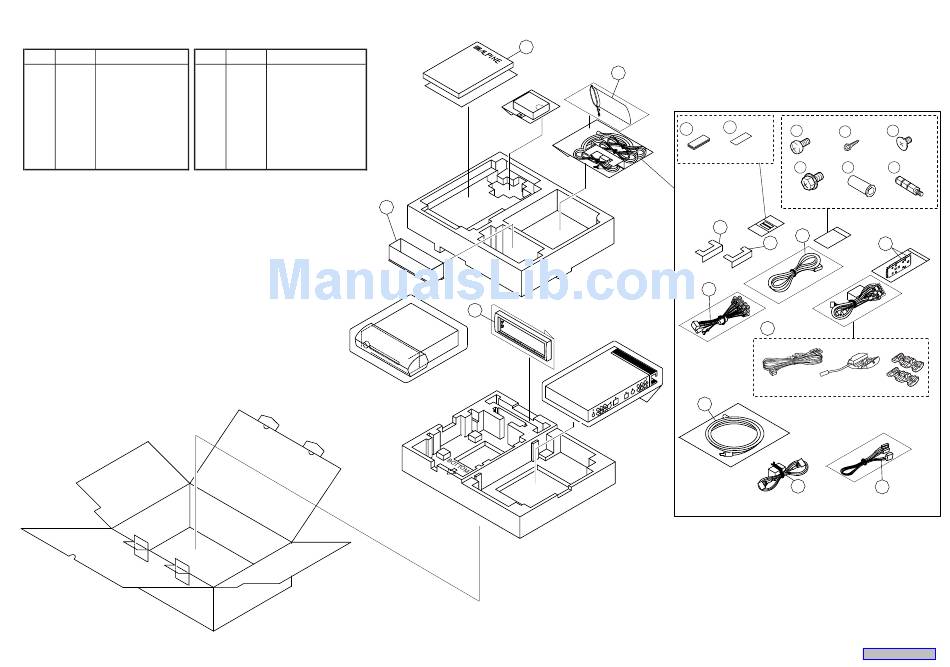

Packing Method View
Part No. Description
No.
103-2 03S60828Y03 SCR,TPG 4X14 ZN A
103-3 03A31982Y01 SCR,M4X5 FLAT A
103-4 03B44963F07 SCR,MCH M4X6 A
103-5 36A11113W01 CAP,RUBBER(A)
103-6 03A60836Y01 SCR,CUS 5X7 ZN A
104 07T75070W01 BKT,STOPPER ASSY
105 15D61379Y01 CASE,INNER
106 33C70776Y01 FACE,PLATE D300
107 15B41543Y01 CARRING,BAG
108 68-02278Z24 O/M AOEU AODL
105
108
(DC/DC
Converter Unit)
106
(Monitor Unit)
- 4 -
107
102 -2
102 -1
X1
X2
101 -6
101 -7
101 -8
101 -2
101 -1
(Tuner Unit)
IVA-D310R/IVA-D310RB
103 -1 103 -3
103 -2
X6
X8
X4
103 -4 103 -5 103 -6
X4
X1
X1
101 -5
104
101 -4 101 -3
