Summary of Contents for Bona Scorpion DCS

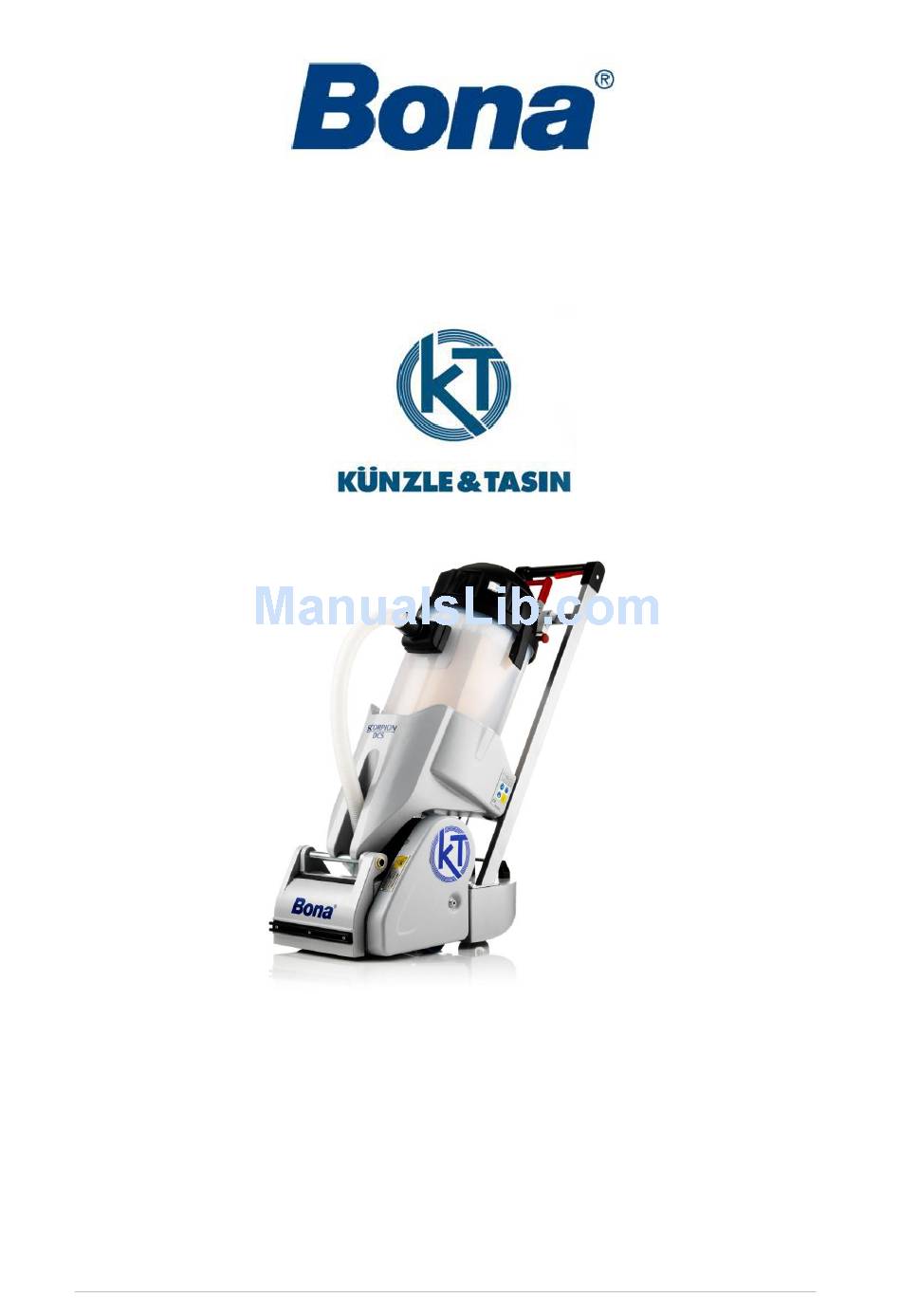

- Page 1 Scorpion DCS Owner & Operation Manual Manual is compatible with Kunzle & Tasin Qx45...
- Page 2 SCORPION DCS QX45 User Manual_ January 2014 Edition Foreword This manual contains important information on the safe use and operation of this machine. Failure to read this manual before operating, adjusting or servicing this machine could cause injury or damage to persons or objects.
-
Page 3: Table Of Contents
Wheel adjustment (on a surface parallel to the axis of the drum) Abrasive assembly procedures SCORPION DCS QX45 Expansion (centrifugal drum) SCORPION DCS QX45 EasyFit (with bubble mat surface) Routine maintenance to be performed Sawdust chamber (for the user) Drums (for the user) -
Page 4: Key For Machine Symbols
HAZARD: Failure to read the SCORPION DCS QX45 machine manual before operating, adjusting or performing maintenance operations on the machine could cause injury or damage to persons or objects. Anyone operating the machine should understand how to use and operate it before starting it up. -
Page 5: Storage
SCORPION DCS QX45 User Manual_ January 2014 Edition Storage It is advisable to store the machine in its original packaging. Doing so makes it possible to form a column of two packages maximum, with one on top of the other. - Page 6 SCORPION DCS QX45 User Manual_ January 2014 Edition Transporting and handling the machine Transport with one person 1. Remove the flexible hose from the outlet on the 2. Loosen the screw knob. extractor trunk (1). Lift the extractor and remove it from its housing (2).
-
Page 7: Transport With Two People
Introduction Information on the safe use of the machine This instruction manual should be read carefully before using the SCORPION DCS QX45 wood flooring sander for the first time. The instruction manual contains important information on safety and preventing improper use of the machine and will resolve any doubts or questions, making it possible to operate the machine safely and with ease. -
Page 8: Correct Use
January 2014 Edition Introduction Correct use The SCORPION DCS QX45 wood flooring sander is suitable for the dry sanding of wood floors. Any other use without the consent of the manufacturer is prohibited. Do not use on wet floors. See also Prohibited Use on page 13. -
Page 9: Instructions For Electrical Connection
SCORPION DCS QX45 User Manual_ January 2014 Edition Commencing operation Instructions for assembly following transportation Insert the basket holder in its housing on the handle Insert the extractor into the basket holder. and secure it with the screw knob. Connect the motor plug to the socket on the head of Raise the drum with the drum lifting lever the extractor. -
Page 10: Cables, Extensions And Plugs
SCORPION DCS QX45 User Manual_ January 2014 Edition Commencing operation Instructions for electrical connection HAZARD If the machine is used with a damaged plug or power supply cable death may occur from electrocution. If cables or plugs are worn or damaged in any way, have them replaced by the manufacturer or the K&T technical support service or similarly qualified... -
Page 11: Recommendations On Prevention Measures For Users
SCORPION DCS QX45 User Manual_ January 2014 Edition Recommendations on prevention measures for users Personal safety measures WARNING Sawdust can spread through the air and be inhaled when using the sander. Always wear a dust mask when using the sanding equipment. -
Page 12: Instructions On Correct Machine Use
SCORPION DCS QX45 User Manual_ January 2014 Edition Recommendations on prevention measures for users Compliance with safety measures and warnings HAZARD The use of this machine with a damaged power supply cable may cause electric shock. Check the power supply cable regularly for damage such as splitting or wear and tear. -
Page 13: Machine Specifications
SCORPION DCS QX45 User Manual_ January 2014 Edition Machine specifications Abrasive dimensions per drum: Expansion 200 x 480 mm (ring) EasyFit 200 x 470 mm (sheet) Drum width 200 mm Expansion 203 mm EasyFit Drum diameter 150.5 mm Expansion 147.5 mm... -
Page 14: Machine Warnings
SCORPION DCS QX45 User Manual_ January 2014 Edition Machine warnings Prohibited use WARNING This equipment is not to be used by anyone (children included) with physical or mental disabilities, or anyone without the relevant experience and knowledge, unless they have received instructions on using the equipment and are supervised by a responsible person to ensure their safety. - Page 15 SCORPION DCS QX45 User Manual_ January 2014 Edition Starting the machine Sander operation 6. Keep the cable away from the pathway of the machine. 7. Turn the belt guard upwards. abrasive according ABRASIVE ASSEMBLY PROCEDURES (pg. 17) depending on the type of drum installed on the machine.
- Page 16 SCORPION DCS QX45 User Manual_ January 2014 Edition Starting the machine Sander operation 16. To sand: 17. To stop the machine: keep the red lever pressed (1). - engage the drum lifting lever (1). move the drum nearer the floor gradually, - release the start button (2) by moving the drum control lever forwards.
-
Page 17: Extractor Operation
SCORPION DCS QX45 User Manual_ January 2014 Edition Starting the machine Extractor operation 7. Switch on the vacuum cleaner by pressing the Start up the connected tool and commence use. switch on the head. Machine adjustment procedures Adjusting sanding pressure To vary drum pressure on the floor using the pressure adjustment screw proceed as follows: 1. -
Page 19: Wheel Adjustment (On A Surface Parallel To The Axis Of The Drum)
SCORPION DCS QX45 User Manual_ January 2014 Edition Machine adjustment procedures Wheel adjustment (on a surface parallel to the axis of the drum) To adjust wheel position proceed as follows: 1. Open the belt safety guard by loosening the screws illustrated with the arrow. -
Page 20: Abrasive Assembly Procedures
Using a damaged abrasive which could then tear while sanding may damage the HAZARD machine or floor. SCORPION DCS QX45 EasyFit (with bubble mat surface) Loosen the paper press screws on the drum with the correct screwdriver, being careful not to remove the screws and paper press from the drum. -
Page 21: Routine Maintenance To Be Performed
SCORPION DCS QX45 User Manual_ January 2014 Edition Routine maintenance to be performed To keep the machine in good working condition the following items must be checked and serviced regularly: Sawdust chamber (for the user) Hoover the sawdust chamber regularly. -
Page 22: Dust Bag (For The User)
SCORPION DCS QX45 User Manual_ January 2014 Edition Routine maintenance to be performed Dust bag (for the user) Replace the bag when it is 1/3 full and/or when the machine is not to be used again. Do not re-use dust bags, use a new replacement each time. -
Page 23: Bearings (Only For Technical Support Service)
SCORPION DCS QX45 User Manual_ January 2014 Edition Routine maintenance to be performed Bearings (only for Technical Support Service) Check bearings regularly for wear or damage according to the following timescales: WHEELS: after the first 2500 hours FAN SHAFT: after the first 2500 hours... -
Page 24: Emergency Situations (For The User)
SCORPION DCS QX45 User Manual_ January 2014 Edition Emergency situations (for the user) FAULTS CAUSES SOLUTIONS Insufficient cutting Unsuitable or worn abrasive Replace the abrasive Insufficient drum pressure Increase drum pressure Insufficient belt tension Increase belt tension Worn belt Replace the belt... -
Page 25: Declaration Of Conformity
SCORPION DCS QX45 User Manual_ January 2014 Edition DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY 95/2006 EC, 42/2006 EC 108/2004 EC, 95/2002 EC 96/2002 EC KUNZLE & TASIN S.r.l. Manufacturer and entity authorised to compile and maintain the technical file Registered headquarters Business Management and Production Site Via Circonvallazione Est. -
Page 26: Disposal
SCORPION DCS QX45 User Manual_ January 2014 Edition Disposal Smaltimento di apparecchiature da rottamare da parte di privati nell’Unione Europea. Questo simbolo che appare sul prodotto o sulla confezione indica che il prodotto non deve essere smaltito assieme ad altri rifiuti domestici. - Page 27 SCORPION DCS QX45 User Manual_ January 2014 Edition NOTES _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________...
- Page 28 SCORPION DCS QX45 User Manual_ January 2014 Edition NOTES _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________...
- Page 29 January 2014 Edition...
