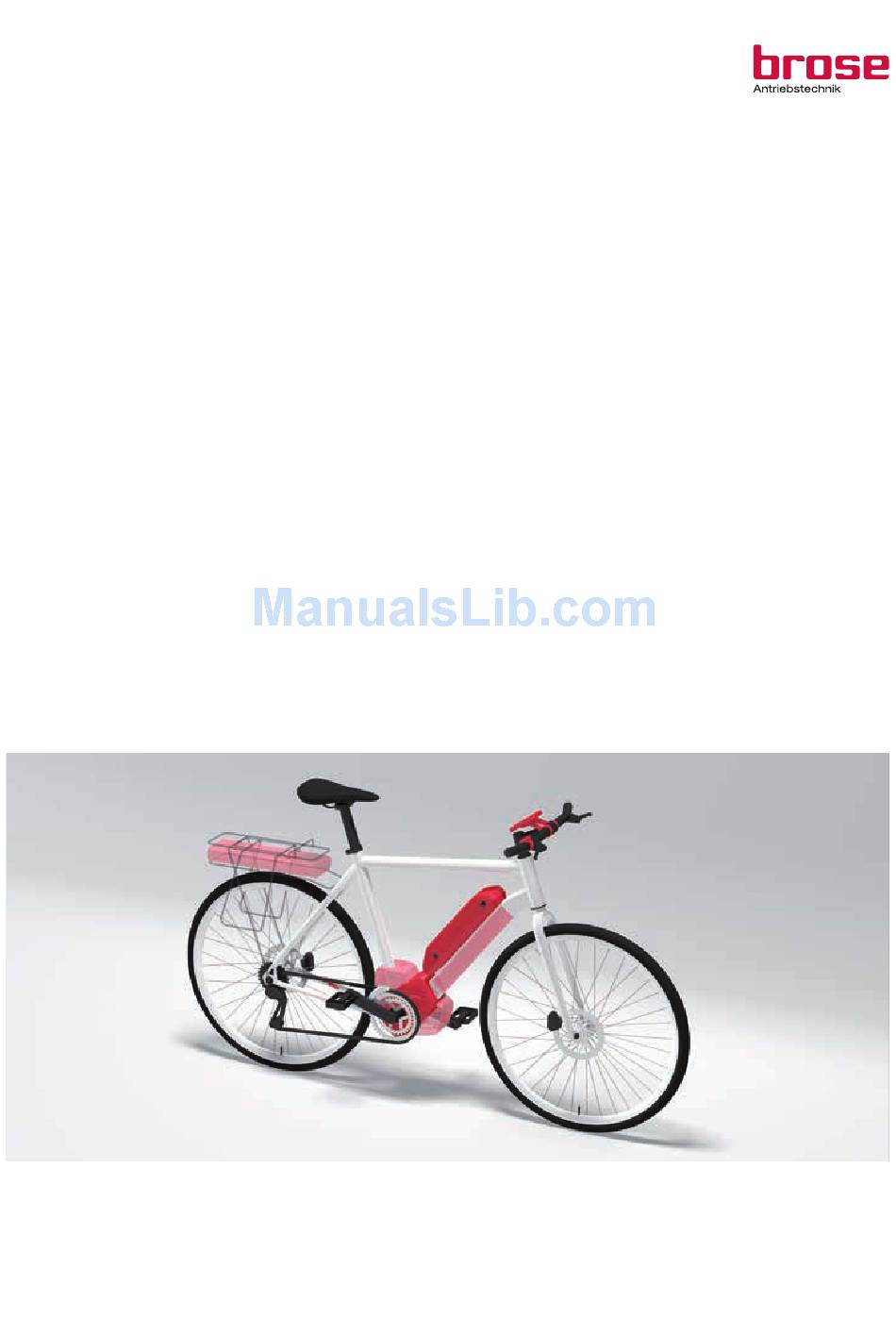

- Page 1 The Brose e-Bike System Instructions for Use...
- Page 2 Instructions for Use of Brose e-Bike System Reference number: BDA_BeBS_MY2014_en_v1.0...
-
Page 3: Table Of Contents
Table of contents Figures ......................... 4 Quick Start Instructions ..................6 Drive unit ......................7 Display and control unit ..................10 Battery pack .......................14 Battery charger ....................18 Troubleshooting ....................21 Your notes ......................23... -
Page 4: Figures
A001-0 A002-0 A003-0 A004-0 A005-0 A006-0 Figures... - Page 5 A007-0 A008-0 A009-0 A010-0 A011-0 A012-0...
-
Page 6: Quick Start Instructions
Insert the display unit (1) (see „[Fig. 2] Inserting the display unit“ on page 10) − Activate the Brose e-Bike System using the LED but- ton (28) on the battery pack (26) (see Fig. 9 and also „Switching on the Brose e-Bike System“ on page 11) -
Page 7: Drive Unit
→ There is a risk of injury if the e-Bike System is acti- When does the e-Bike drive operate? vated by mistake. The Brose e-Bike System permits electric motor assis- −... - Page 8 Familiarization − Payload. Take the time to get used to your Brose e-Bike System Careful handling of the Brose e-Bike System before venturing into normal traffic conditions. Test the various assist levels until you feel confident in handling Take care with the temperatures at which the e-Bike the system.
- Page 9 Please hand in battery packs (26) and display units (1) which are no longer serviceable to an authorized bicyc- le dealer. Specifi cations Drive unit Brose Material number C16162 Dimensions 213 x 150 x 128 mm Weight 3.400 g 36 V "...
-
Page 10: Display And Control Unit
− Insert the display unit (1) with the guide groove on the → There is a risk of injury if the e-Bike System is acti- rear face into the guide opening of the mounting (2). vated by mistake. − Slide the display unit (1) all the way down until you −... - Page 11 (26) goes into the “Deep Sleep Mode” (see „Operating modes of battery pack“ on page 16). Complete switch-off There are two ways to switch off the Brose e-Bike Sys- tem completely: − Press the On/Off button (8) for a long time (< 2 se-...
- Page 12 The multifunctional panel (15) presents the following Basic functions information: → Clock time Your Brose e-Bike System has three assist levels (9). → Trip distance Their characteristics are set out in the following table: → Trip calories Description → Trip time →...
- Page 13 An “A” inside the light symbol (14) comes on or Specifi cations goes out. Display and control unit [Fig. 7] Power supply via USB interface Brose Material No. Display unit C54764 External devices can be supplied with power and char- Brose Material No. Control unit C54760 ged using the Type A USB interface (22) integrated into...
-
Page 14: Battery Pack
→ There is a risk of injury if the e-Bike System is acti- − Keep the battery pack (26) away from children. vated by mistake. - Page 15 (33) (see also „Battery charger“ on [Fig. 10] Inserting/removing the battery pack page 18). The Brose e-Bike System can be combined with a large The battery pack (26) can be charged at any time, either number of different battery pack variants. Fitting and separately or on the e-Bike, without shortening its ser- removal of the battery pack (26) depend on the battery...
- Page 16 The service life of the battery pack (26) can be extended → The LEDs of the charge level display (27) go out. if it is looked after well and above all stored in the right → The e-Bike System too is also switched off. conditions: Temperature 18-23°C Humidity 0-80 %...
- Page 17 As the battery pack (26) gets older, its capacity will di- minish even when it is looked after well. A considerably shorter operating time after charging indicates that the battery pack (26) is used up. You should then replace it. Recharging the battery pack during storage Check the charge level of the battery pack (26) after it has been in storage for around 3 months, and recharge it to about 60-79 % if necessary.
-
Page 18: Battery Charger
N.B.: All illustrations are diagrammatical and serve as → Otherwise there is a risk of fire and explosion. examples. They may differ in some details from your e- Bike, since the Brose e-Bike System can be combined − Always keep the battery charger (33) clean. →... - Page 19 Operation − Disconnect the battery charger (33) from the mains. − Disconnect the battery pack (26) from the battery Charging the battery pack charger (33). → − Charge the battery pack (26) only when all safety di- This switches off the battery pack (26) automati- rections are followed.
-
Page 20: Specifications
Specifications The Brose e-Bike System can be combined with a large number of battery chargers (33). Detailed information on your model can be obtained from your bicycle dealer and the bicycle manufacturer. Battery charger 2 A Dimensions 140,0 x 70,0 x 40,0 mm Weight 475 g... -
Page 21: Troubleshooting
Troubleshooting If any problems occur during use of your Brose e-Bike System, first of all check them off against those listed in the table. This will enable you to solve the problem yourself in many cases. Symptom Possible cause Solution approach Display unit (1) and/or Brose e-Bike System... - Page 22 Error code Description Solution approach Error in push-assist Switch off the system completely and then back on using the LED button (28) on the battery pack (26). If the problem persists, contact your e-Bike dealer. Over-current detected in motor Reduce the load on the motor by pedaling less or by reducing the assist level. Over-current detected in motor Reduce the load on the motor by pedaling less.
-
Page 23: Your Notes
Your notes... - Page 24 Brose Antriebstechnik GmbH & Co. KG, Berlin Sickingenstr. 29-38 10553 Berlin +49 30 343498 100 +49 30 343498 122 ebike.berlin@brose.com www.brose-ebike.com...
