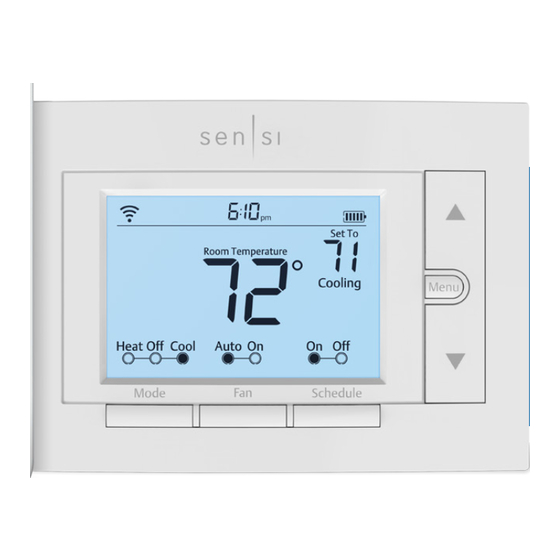

Sensi
Wi-Fi Thermostat
TM
Models: 1F86U-42WF, UP500W
Version: May 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UP500W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sensi UP500W

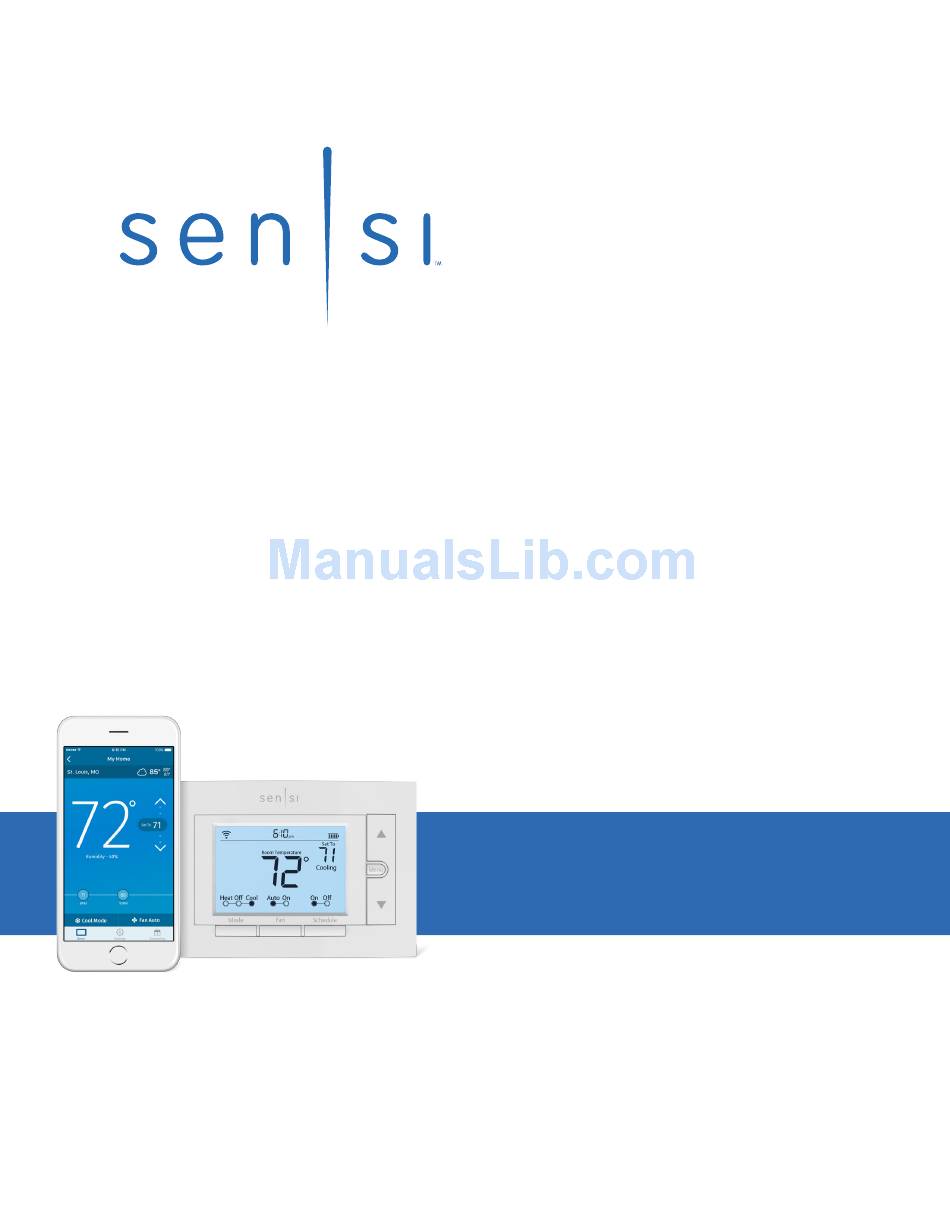

  • Page 1 Sensi Wi-Fi Thermostat INSTALLATION GUIDE Models: 1F86U-42WF, UP500W Version: May 2017...
  • Page 2 CONTENTS Installation guide Downloading the Sensi app Creating a Sensi account Installing the Sensi thermostat Connecting the Sensi thermostat Notes Sensi Wi-Fi Programmable Thermostat | INSTALLATION GUIDE...
  • Page 3 • Android (Google Play) version 4.2 or later • iOS (Apple) version 10.0 or later *Note that in the iOS store, the Sensi App will ONLY appear on an “iPhone only” search. On an iPad, change the search criteria in the App Store.
  • Page 4 Once you have downloaded the Sensi app, and have created an account, you are ready to install the thermostat to your wall and connect it to Wi-Fi. If no thermostats are registered yet, the Sensi app will prompt you to add a thermostat.
  • Page 5 Photograph Your Wiring THIS IS IMPORTANT. The Sensi app will prompt you to take a picture of your existing thermostat and old wiring in case you need it later. This can be helpful for troubleshooting with our technical support team if necessary.
  • Page 6: System Type

    INSTALLING THE SENSI THERMOSTAT Throw Away Any Jumper Wires Sensi has a jumper wire built into it, and you will not need any jumper wires from your old unit. Choose Wire Terminals Choose the terminal labels that have wires attached to them on your old thermostat here.
  • Page 7 Use the provided mounting screws and secure the Sensi base to the wall. Connect the Wires Once the Sensi base is mounted and secured on the wall, insert the wires into the terminals. Simply push the wires into the terminal slots. Use a screwdriver to secure each...
  • Page 8 A. SENSI PASSWORD Input the Sensi password that came in the packaging as the Sensi PIN. If you lost the card, this code can be found on the back of the thermostat face plate. Press “Next” to continue. Skip to step 4.
  • Page 9 CONNECTING THE SENSI THERMOSTAT 4. CONNECTING USING AN ANDROID DEVICE Tap on the blue “Connect my Sensi to Wi-Fi” button in the app. This takes you to your phone’s Wi-Fi network list. You will see a Sensi network in the list of available networks. Tap the Sensi network, and connect to it.
  • Page 10 CONNECTING THE SENSI THERMOSTAT Contractor Information If a contractor professionally installed your thermostat, and registered as a Sensi partner, they have the option to input their phone number here. If there is not a registered number available, simply hit “Next” to continue.
  • Page 11 Sensi account. If you give someone else your email address and password to your Sensi account, they will be able to log in and control any thermostats registered to that account. You can change your email address and password from inside the app or when you are logged into your thermostat via the Sensi website.
  • Page 12: Technical Support

    Technical Support to Wi-Fi network Fahrenheit or Celsius For problems connecting your Sensi thermostat, call or email the Sensi Technical Support team, and they will be happy to Outdoor Equipment AC1 – Conventional Configuration Cooling 1 help you or your contractor walk through any steps needed...
  • Page 13: Heat Pump Systems

    *Internal jumper between RC and RH, located on back of thermostat above battery compartment. **Common connection required on Heat only, Cool - only or Heat Pump systems. ***Thermostat wiring does not follow a standardized color code. Label thermostat wires before removing old thermostat from the wall. Sensi Wi-Fi Programmable Thermostat | INSTALLATION GUIDE...
  • Page 14 *Two transformer systems (separate RC and RH wires), clip interna, RC/RH jumper , located on back of thermostat above battery compartment. **Thermostat wiring does not follow a standardized color code. Label thermostat wires before removing old thermostat from the wall. Sensi Wi-Fi Programmable Thermostat | INSTALLATION GUIDE...
