SR770
For Machine Code:
G060 / G080/ G082/ G106

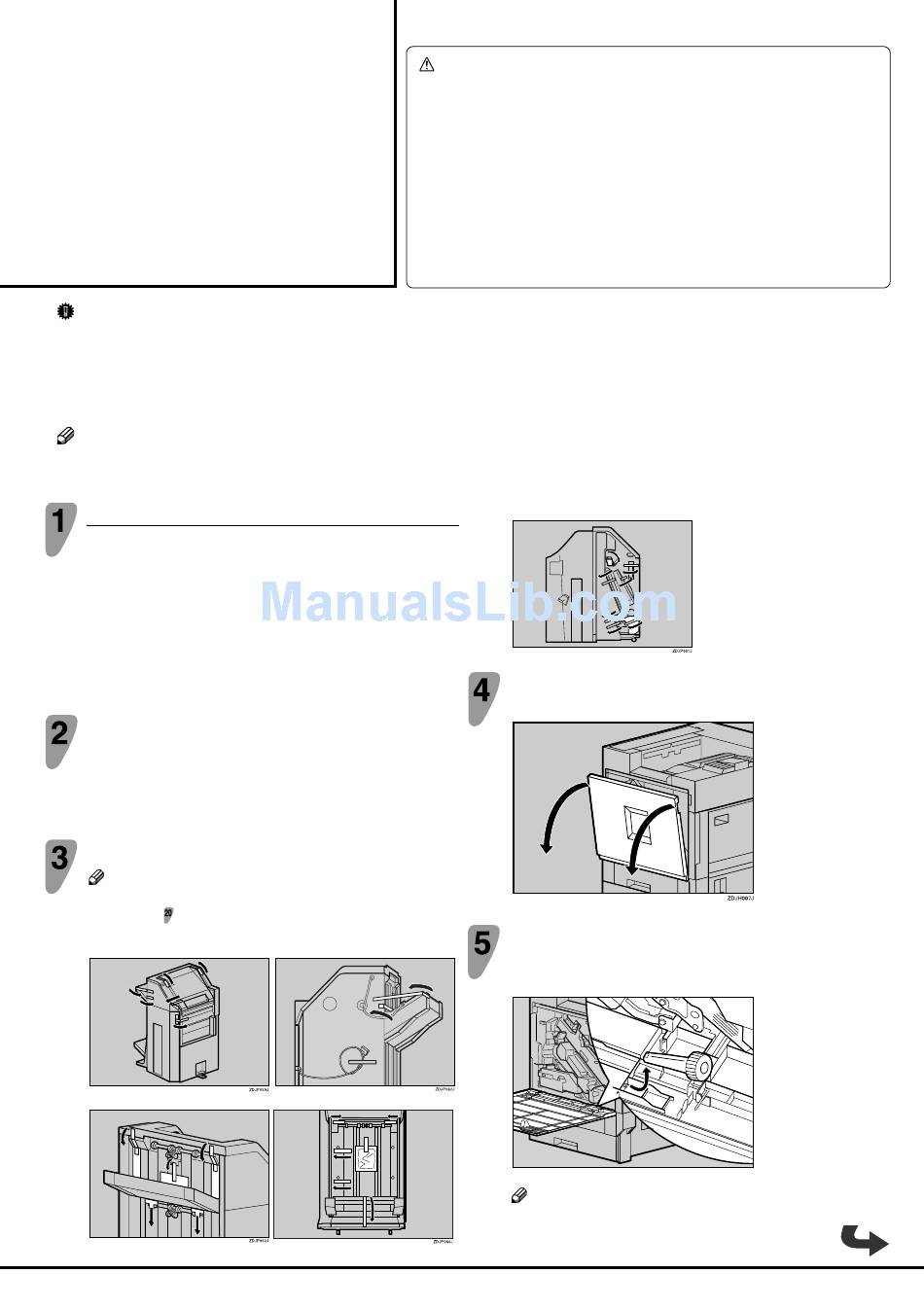

INSTALLATION GUIDE
Important
❒ Check the printer nameplate to confirm the model code.
❒ Install the paper feed unit before installing the 2 tray finisher.
❒ Install the memory unit options before attaching the 2 tray finisher.
❒ You cannot install the 2 tray finisher unless both the paper feed unit and duplex unit with options are installed.
❒ The 2 tray finisher requires the optional printer hard disk or optional memory unit of total 128 MB.
❒ You cannot install the 4-bin mailbox and 2 tray finisher at the same time.
Note
❒ The 2 tray finisher weighs approximately 53kg (116.9 lbs).
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Check the contents of the box:
Description
Finisher
Short Screws
Long Screws
Connecting Bracket
Mounting Bracket
Rail
2 Tray Finisher Trays
Installation Guide(This sheet)
Be sure to check the following points:
•The power is turned off.
•The power cord is unplugged from the wall outlet.
•The interface cable is unplugged from the printer.
Remove the adhesive tape and packing materials.
Note
❒ Do not remove the adhesive tape holding the cable yet. Remove
it in step
.
Front and Side
Back
Caution
• Before installing options, the machine should be turned off and unplugged for at
least thirty minutes. Components inside the machine become very hot, and could
result in a burn if touched.
• When lifting the machine, use the grips on both sides. The machine could break
(Code: G565)
or cause injury if dropped.
• It is dangerous to handle the plug with wet hands. Doing this may result in receiving
an electric shock.
• Before moving the machine, unplug the power cord from the outlet. If the cord is
unplugged abruptly, it could become damaged. Damaged plugs or cords can
cause an electrical or fire hazard.
• When moving the 2 tray finisher, hold the center of both sides, and lift slowly.
Lifting carelessly or dropping it may cause injury.
Q'ty
1
2
6
1
1
1
2
1
Interior
Slowly open the front cover by pulling on the two areas on
the left and right.
Remove the green screwdriver, and then close the front
cover.
Use this screwdriver for all attachment and detachment of screws.
Note
❒ After using the screwdriver, return it to its original position on
the inside of the front cover.
ZHXH171J
G565-8600C
Advertisement
Related Manuals for Ricoh G565
Summary of Contents for Ricoh G565
-
Page 1: Installation Guide
• When lifting the machine, use the grips on both sides. The machine could break (Code: G565) or cause injury if dropped. • It is dangerous to handle the plug with wet hands. Doing this may result in receiving For Machine Code: an electric shock. - Page 2 Stand the external tray of the printer. Hook the hole of the mounting bracket on the screw temporarily fastened in step . ³ Stand it vertically. ZHXH330J · Fold it over the top of the printer. Holding the mounting bracket using both hands, move it in the direction of up ( ) to the right ( ).
- Page 3 Hook the connecting bracket onto the screws temporarily Place the printer’s trail on the 2 tray finisher, and then slide until it stops. tightened in step . Fasten the right side of the connecting bracket using a Fasten the rails using a long screw provided screwdriver. long screw and the provided screwdriver.
- Page 4 » Fasten the finisher tray using a short screw and the provided screwdriver. ¿ Use the same steps (· and ») to install the other 2 tray finisher trays. Printed in Japan Copyright © 2001-2003 G565-8600C...
