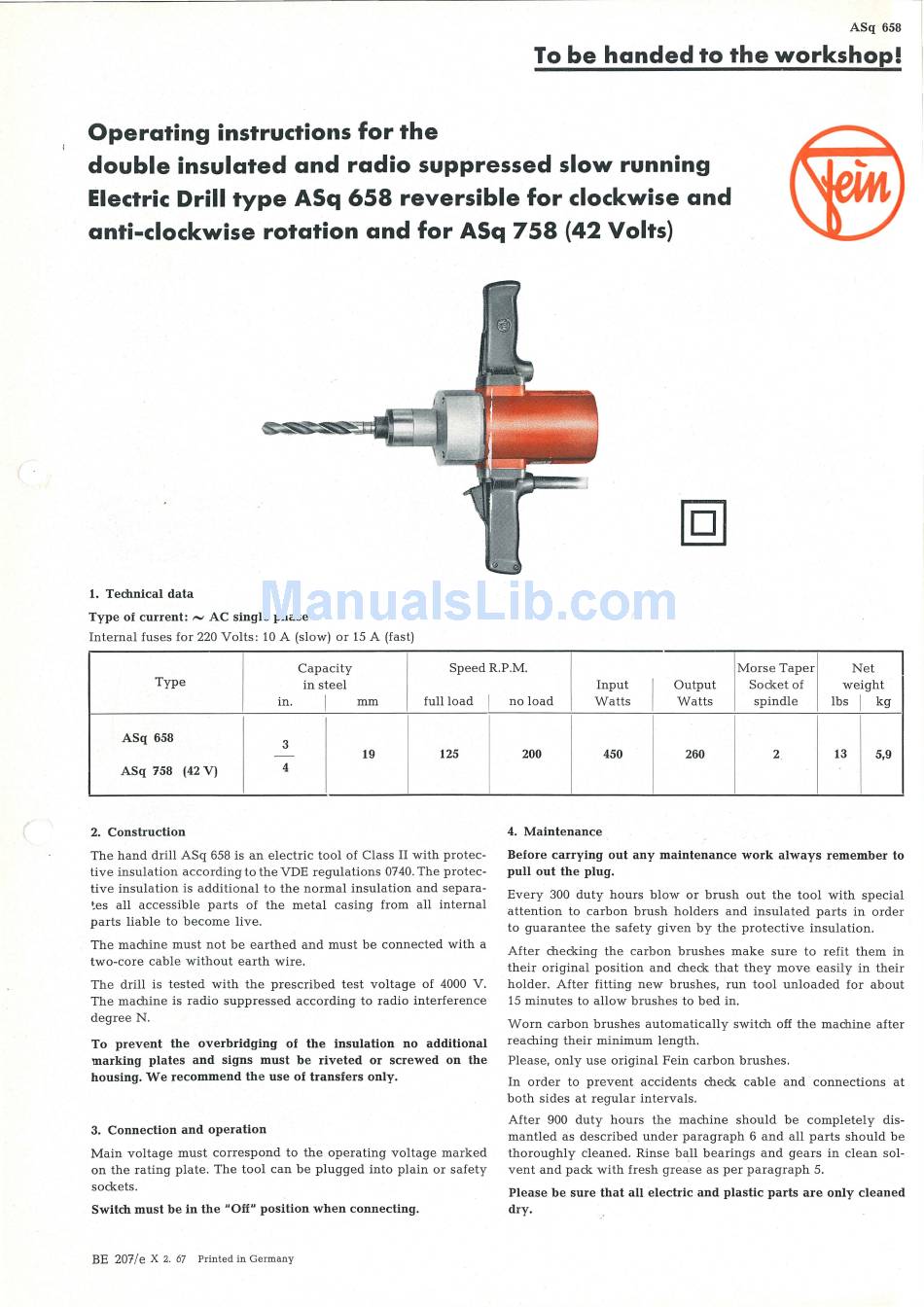

Fein ASq 658 Operating Instructions

ASq 658
To be handed to the workshop!

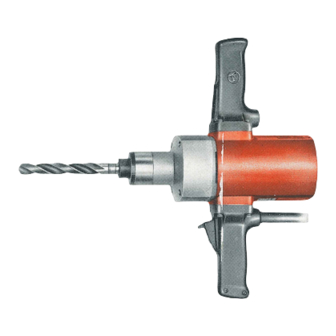

Operating instructions for the
double insulated and radio suppressed slow running
Electric Drill type ASq 658 reversible for clockwise and
anti-clockwise rotation and for ASq 758 (42 Volts)
1. Technical data
Type of current: ,.., AC single phase
Internal fuses for 220 Volts: 10 A (slow) or 15 A (fast)
Capacity Speed R.P.M . Morse Taper Net
Type
in steel
in.
I
mm full load
ASq 658
3
-
19 125
ASq 758 (42V)
4
2. Construction
The hand drill ASq 658 is an electric tool of Class II with protec-
tive insulation according to the VDE regulations 0740. The protec-
tive insulation is additional to the normal insulation and separa-
~es
all accessible parts of the metal casing from all internal
parts liable to become live.
The machine must not be earthed and must be connected with a
two-core cable without earth wire.
The drill is tested with the prescribed test voltage of 4000 V.
The machine is radio suppressed according to radio interference
degree N .
To prevent the overbridging of the insulation no additional
marking plates and signs must be riveted or screwed on the
housing. We recommend the use of transfers only.
3. Connection and operation
Main voltage must correspond to the operating voltage marked
on the rating plate. The tool can be plugged into plain or safety
sockets.
Switch must be in the "Off" position when connecting.
BE 207/e X
2.
67
Printed in Ge rmany
I
Input
I
Output Socket of weight
no load
Watts Watts spindle lbs
I
kg
200 450 260 2 13 5,9
4. Maintenance
Before carrying out any maintenance work always remember to
pull out the plug.
Every 300 duty hours blow or brush out the tool with special
attention to carbon brush holders and insulated parts in order
to guarantee the safety given by the protective insulation.
After checking the carbon brushes make sure to refit them in
their original position and check that they move easily in their
holder. After fitting new brushes, run tool unloaded for about
15 minutes to allow brushes to bed in.
Worn carbon brushes automatically switch off the machine after
reaching their minimum length.
Please, only use original Fein carbon brushes.
In order to prevent accidents check cable and connections at
both sides at regular intervals.
After 900 duty hours the machine should be completely dis-
mantled as described under paragraph 6 and all parts should be
thoroughly cleaned. Rinse ball bearings and gears in clean sol-
vent and pack with fresh grease as per paragraph 5.
Please be sure that all electric and plastic parts are only cleaned
dry.
