QuickSpecs

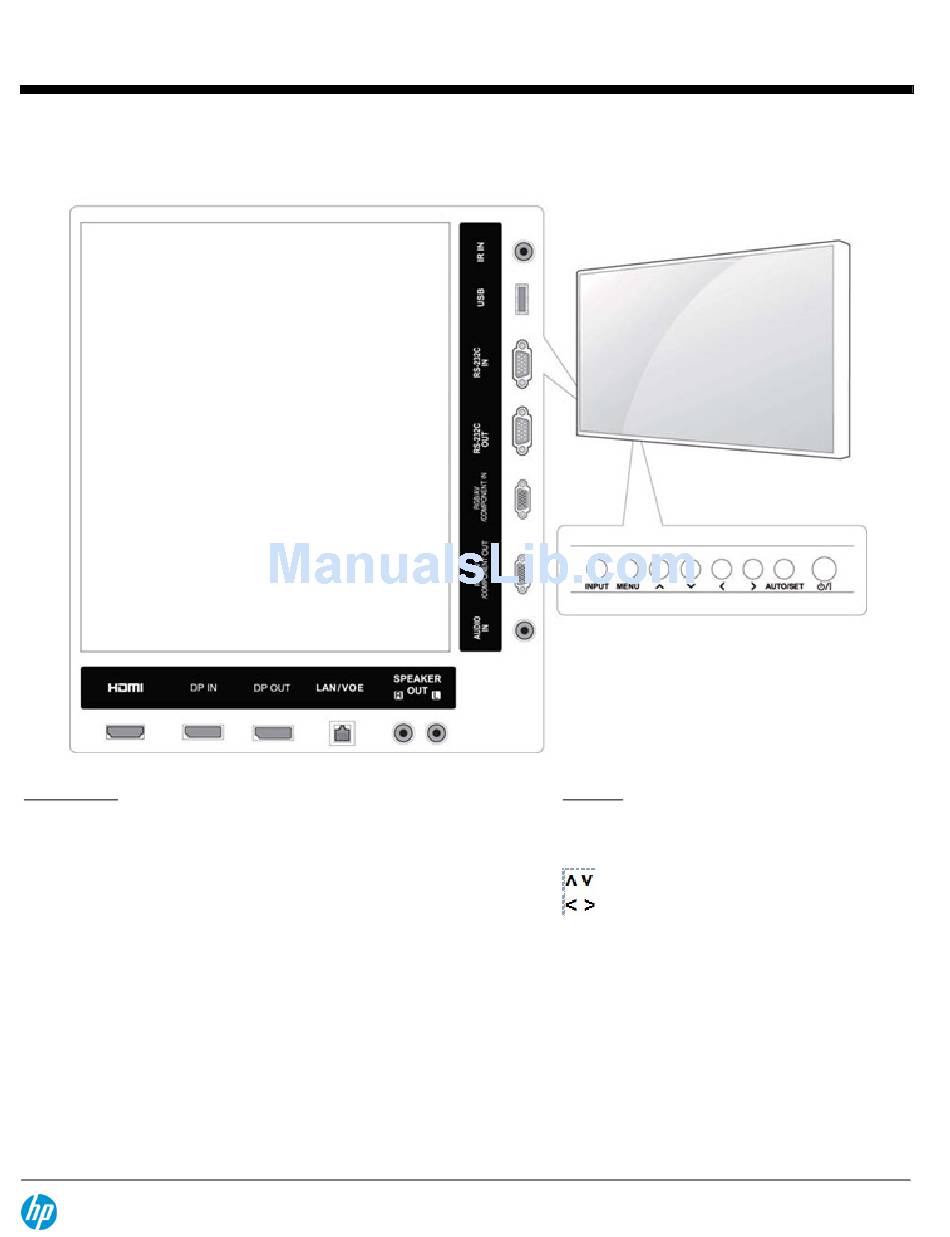

Overview
Input/Output
HDMI
DP IN
DP OUT
LAN/VOE
SPEAKER OUT
AUDIO IN
RGB/VGA COMPONENT
OUT
RGB/VGA COMPONENT IN Connects an RGB/VGA component in cable to the
RS-232C OUT
RS-232C IN
USB
Connects voice or audio input cable.
Connects DisplayPort in cable to the display.
Connects DisplayPort out cable to the display.
Connects a local area network cable.
Connects optional external speakers to the display. AUTO/SET
Connects an audio cable to the display.
Connects an RGB/VGA component out cable to the
display.
display.
Connects an RS-232C out cable to the display.
Connects an RS-232C in cable to the display.
USB Connects a USB cable to the display.
DA - 14894 North America — Version 4 — May 9, 2014
HP LD4745tm 46.96-inch Interactive LED Digital Signage
Controls
INPUT
MENU
%/I
Display
Changes the input source.
Accesses the main menus, or saves
your input and exits the menus.
Moves the selection up and down.
Adjusts the volume level.
Displays the current signal and
mode. Press this button to adjust the
screen automatically (RGB mode
only).
Turns the power on or off.
Page 1
Advertisement
Related Manuals for HP LD4745tm
Summary of Contents for HP LD4745tm
- Page 1 HP LD4745tm 46.96-inch Interactive LED Digital Signage QuickSpecs Display Overview Input/Output Controls HDMI Connects voice or audio input cable. INPUT Changes the input source. DP IN Connects DisplayPort in cable to the display. MENU Accesses the main menus, or saves your input and exits the menus.
- Page 2 HP LD4745tm 46.96-inch Interactive LED Digital Signage QuickSpecs Display Overview IR IN Connects an IR cable to the display. Model F1M95AA, F1M95AC DA - 14894 North America — Version 4 — May 9, 2014 Page 2...
-
Page 3: Technical Specifications
Color Gamut Color Support** Can display up to 16.7 million colors *All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower. ** With the use of FRC technology. Touch Frame Touch Module Type IR Spread Technology;... - Page 4 RGB/VGA, DisplayPort 1.1a, HDMI (HDCP support on DisplayPort and HDMI) Output RGB/VGA, DisplayPort 1.1a out for tiling (1) USB 2.0 input for use with HP Media Sign Player, Type A port (1) USB 2.0 port for powering touch module, Type B port LAN (RJ45)
-
Page 5: Additional Information
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive - 2002/95/EC. This HP product is designed to comply with the Waste Electrical and DA - 14894 North America — Version 4 — May 9, 2014 Page 5... - Page 6 RoHS Directive on a worldwide basis. By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).
- Page 7 This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment. Hewlett-Packard...
- Page 8 EliteDesk Mini & USDT PC's, directly behind the display, away from view, for WB975AA a quick and easy comprehensive solution.. Includes a Quick Release for easy mounting and removal of a compatible HP Thin Client or HP USDT PC. Supports 40" to 60" display sizes. Weight restrictions may apply.
- Page 9 4. Mounting hardware sold separately. 5. HP Care Pack Services are sold separately. Service levels and response times for HP Care Pack Services may vary depending on your geographic location. Service starts from date of hardware purchase. Restrictions and limitations apply. See www.hp.com/go/cpc for details.
