Parts Lists And Diagrams - Central Machinery 43389 Owner's Manual

parts Lists and Diagrams

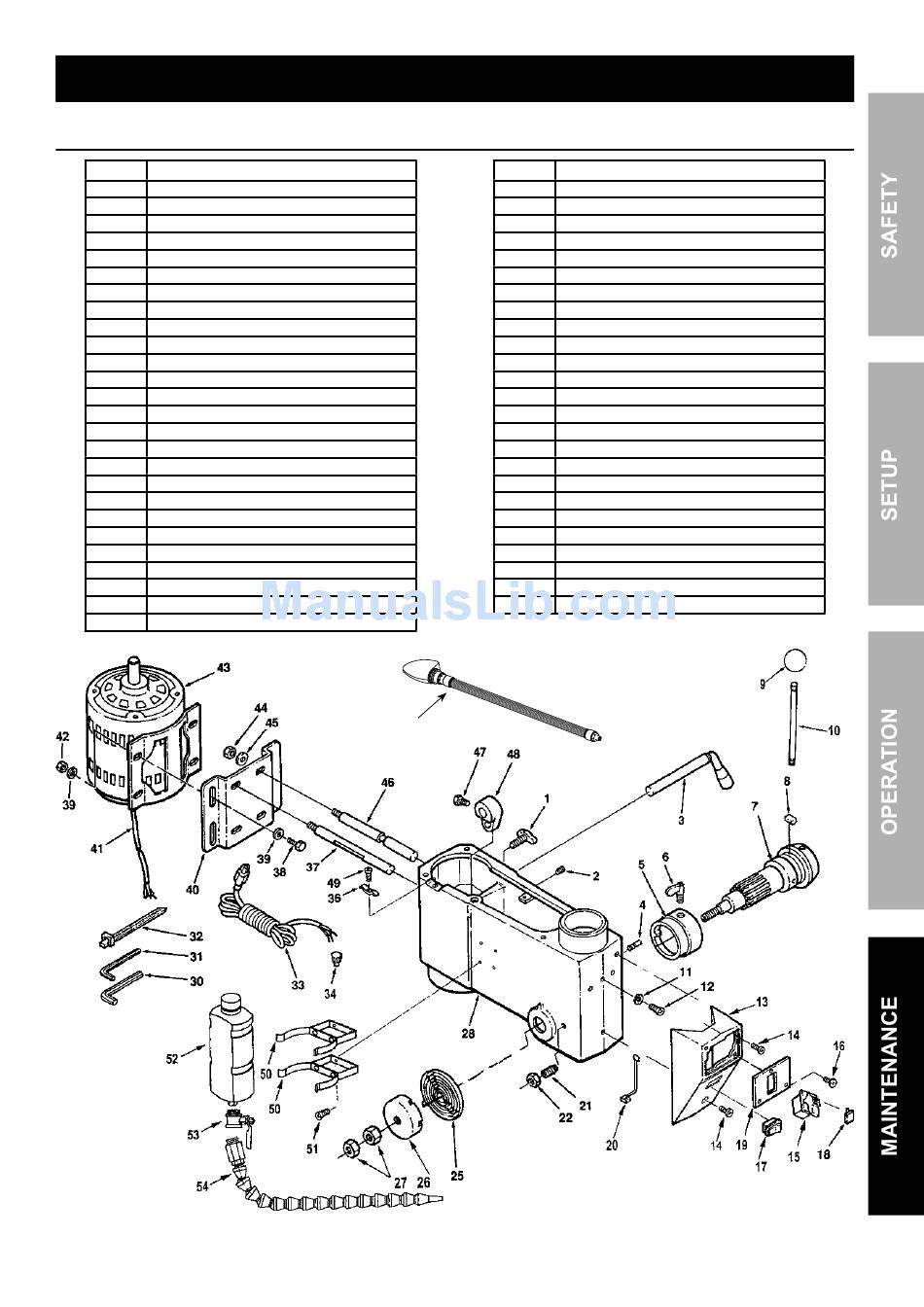

Head parts List and Diagram
part Description
1 Motor Adjusting Knob
2 Socket Set Screw
3 Belt Tension Handle
4 Stop Pin
5 Ring Depth Stop w/ Scale
6 Depth Screw Lock
7 Hub
8 Guide Scale
9 Feed Handle Knob
10 Feed Handle Rod
11 Lock Washer, Ext M5
12 Pan Head Screw, M5x0.8-8
13 Switch Box
14 Pan Head Screw, M5x0.8-16
15 Locking Switch
16 Pan Head Screw, M4.2x1.4-9.5
17 Rocker Switch
18 Switch Key
19 Switch Plate Cover
20 Lead Assembly, 3"
21 Screw, SL Special, 10x1.5-27
22 Nut, M10x1.5
25 Torsion Spring
26 Spring Cap
27 Nut, M12x1.5-8
28 Head w/ Pointer and Trim
Item 43389
29b
For technical questions, please call 1-888-866-5797.
part Description
29b Lamp
30 Hex Key, L, M5
31 Hex Key, L, M3
32 Wire Tie
33 Power Cord w/ Plug
34 Wire Connector
36 Cord Clamp
37 Support Motor Bracket
38 Bolt, M8x1.25-20
39 Washer, 8x16x1.6
40 Motor Mount
41 Motor Cord
42 Nut, M8x1.25
43 Motor
44 Nut, M12x1.75
45 Lock Washer, 1/2
46 Motor Bracket Support
47 Screw, M8x1.25-16
48 Adjusting Lever
49 Pan Head Screw, M5x0.8-12
50 Oiler Bracket
51 Screw, 5mm x 8mm
52 Oil Bottle
53 Spigot Assembly
54 Tubing
Page 13
