Front View; Rear View - Asus SDRW-S1 Quick Start Manual

External usb dvd / blu-ray writer with sound card
Hide thumbs

Advertisement

Table of Contents
Hardware

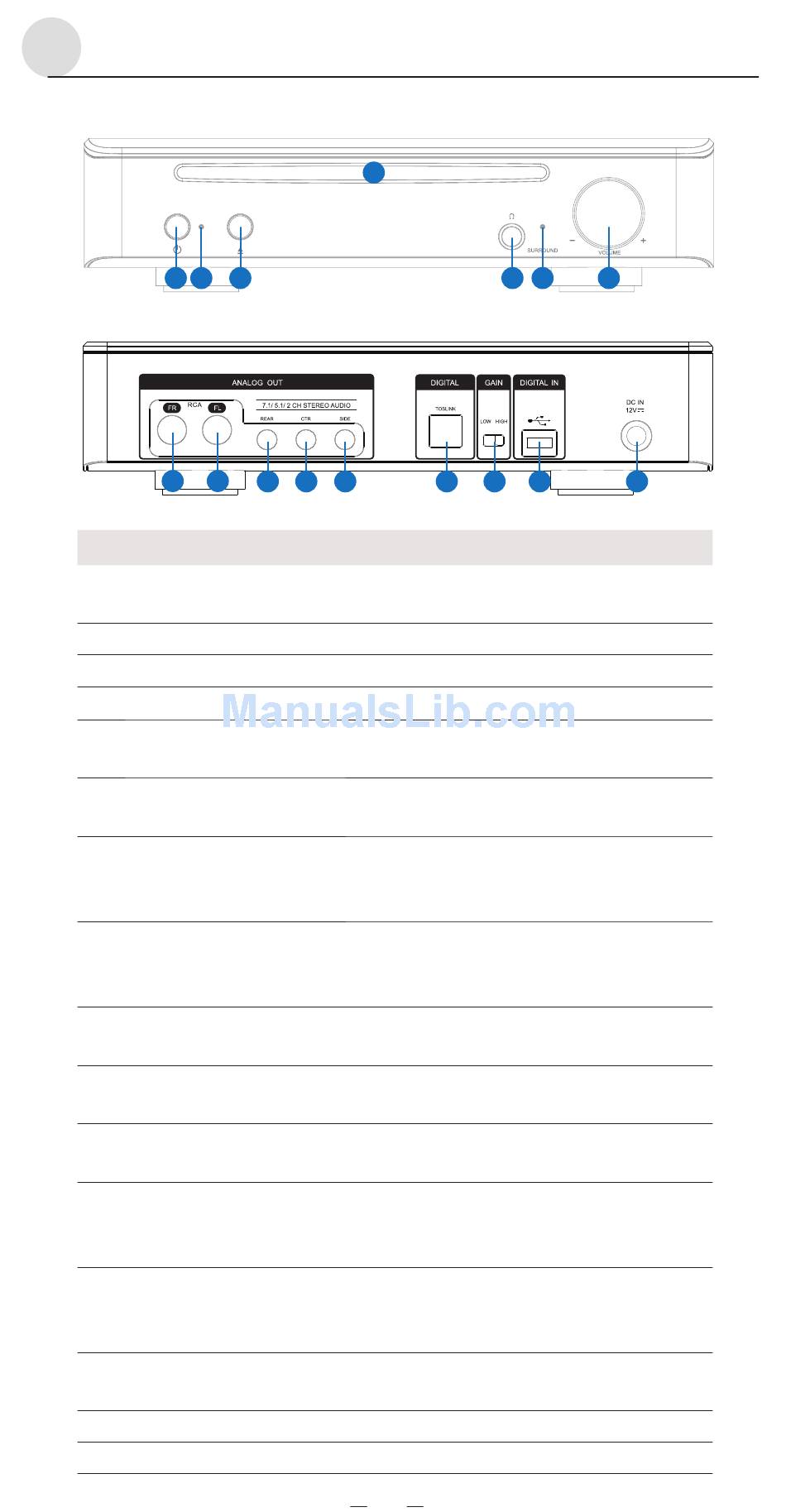

Front view

1
2

Rear view

7
No. Items
1
Power on/off button
2
Power indicator
3
Tray out button
4
Headphone out port
5
Virtual surround
indicator
6
Volume and virtual
surround control
7
Front (R) out port
8
Front (L) out port
9
Rear out port
10
Center/ subwoofer
out port
11
Side surround out port Connects to the side surround channel
12
Toslink out port
13
Gain switch
14
USB port
15
DC in
16
Optical drive bezel
3
8
9
10
11
Description
Press the button to switch on/off the
device.
The LED will light up when powered on.
Press the button to tray out the disc.
Connect your headphone to this port.
The LED will light up when virtual
surround is on.
Rotate to adjust the playback volume.
Press to switch on/off virtual surround.
For 2/5.1/7.1 channel speaker systems,
connects to the front right input on the
powered speakers.
For 2/5.1/7.1 channel speaker systems,
connects to the front left input on the
powered speakers.
Connects to the rear surround input on
4/5.1/7.1 powered analog speakers.
Connects to the center/subwoofer input
on 5.1/7.1 powered analog speakers.
input on 7.1 powered analog speakers.
Connects to an external digital decoder
or digital speaker systems, Home
Theater systems, AV receivers.
Pre-set low gain, you can switch to
high gain when using high impedance
headphone.
Connects to your computer using a
USB 2.0 cable.
Connects to the adapter.
Insert optical disc here.
16
4
12
13
2
5
6
14
15
