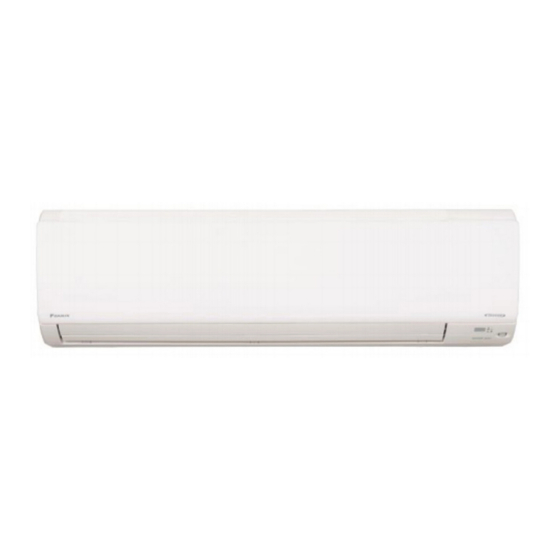

Daikin FTX30NVJU Operation Manual
Hide thumbs
Also See for FTX30NVJU:
- Installation manual (12 pages) ,
- Service manual (132 pages) ,
- Engineering data (132 pages)
Subscribe to Our Youtube Channel
Related Manuals for Daikin FTX30NVJU
Summary of Contents for Daikin FTX30NVJU
-
Page 1: Operation Manual
DAIKIN ROOM AIR CONDITIONER OPERATION MANUAL Enjoy year-round comfort. Enjoy year-round comfort. Enjoy year-round comfort. Enjoy year-round comfort. Enjoy year-round comfort. MODELS FTX30NVJU FTX36NVJU... - Page 2 Features Enhanced comfort and energy savings INTELLIGENT EYE The INTELLIGENT EYE sensor detects human movement in a room. If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving operation. Page 15 WEEKLY TIMER Up to 4 timer settings can be saved for each day of the week according to your family’s life style.
-
Page 3: Table Of Contents
Contents „ Read Before Operation Safety Considerations ........Names of Parts ..........Preparation Before Operation ......„ Basic Operation AUTO · DRY · COOL · HEAT · FAN Operation ........... Adjusting the Airflow Rate ....Adjusting the Airflow Direction ... „... -
Page 4: Safety Considerations
Instruct the user on how to operate and maintain leakage, electric shock, and fire. Only use accessories the unit. made by Daikin that are specifically designed for use with Inform users that they should store this operation manual the equipment and have them installed by a professional. - Page 5 Read Before Operation • Do not place items under the indoor unit as they may be • Do not wipe the controller operation panel with benzene, damaged by condensates that may form if the humidity is thinner, chemical dust cloth, etc. The panel may get above 80% or if the drain outlet gets blocked.
-
Page 6: Names Of Parts
Read Before Operation Names of Parts Indoor Unit Front panel Air inlet Panel tab INTELLIGENT EYE sensor • Detects the movements of people and automatically switches between normal Model name Air outlet operation and energy saving operation. Page 15,16 Louvers (vertical blades) Indoor temperature sensor •... - Page 7 Read Before Operation „ Open the front panel Air fi lter Titanium apatite photocatalytic air-purifying fi lter Outdoor Unit Outdoor temperature Air inlet (back and side) sensor (back) Inter-unit wire Ground terminals (inside) Air outlet Refrigerant pipes Drain hose Model name...
-
Page 8: Front Cover
Read Before Operation Names of Parts Remote Controller Signal transmitter Display (LCD) Receiver • Displays the current settings. (In this illustration, each section is • To use the remote controller, aim the shown with all its displays on for the transmitter at the indoor unit. -
Page 9: Clock Button
Read Before Operation „ Open the front cover MODE selector button • Selects the operation mode. (AUTO/DRY/COOL/HEAT/ FAN) Page 11 ECONO/QUIET button • ECONO/OUTDOOR UNIT COMFORT/SENSOR QUIET operation. Page 18 button • COMFORT AIRFLOW / INTELLIGENT EYE SWING button operation. Page 15 •... -
Page 10: Preparation Before Operation
Read Before Operation Preparation Before Operation CAUTION Incorrect handling of batteries can result in injury from battery leakage, rupturing or heating, or lead to equipment failure� Please observe the following precautions and use safely� • If the alkaline solution from the batteries should get in the eyes, do not rub the eyes. Instead, immediately fl ush the eyes with tap water and seek the attention of a medical professional. - Page 11 Read Before Operation Turn on the circuit breaker • After the power is turned on, the fl aps of the indoor unit open and close once to set the reference position. To set the clock Press � “ ” is displayed on the LCD. “ ...
-
Page 12: Basic Operation
Basic Operation AUTO · DRY · COOL · HEAT · FAN Operation The air conditioner operates with the operation mode of your choice. From the next time on, the air conditioner will operate with the same operation mode. To start operation Press and select an operation mode�... - Page 13 Basic Operation To change the temperature setting Press � • Press to raise the temperature and press to lower the temperature. COOL operation HEAT operation AUTO operation DRY or FAN operation 64-90°F 50-86°F 64-86°F The temperature setting cannot be (18-32°C) (10-30°C) (18-30°C) changed.
-
Page 14: Adjusting The Airflow Rate
Basic Operation Adjusting the Airfl ow Rate You can adjust the airfl ow rate to increase your comfort. To adjust the airfl ow rate setting Press � • Each pressing of changes the airfl ow rate setting in sequence. AUTO Indoor unit quiet Airflow rate 1-5 (Low to High) •... -
Page 15: Adjusting The Airflow Direction
Basic Operation Adjusting the Airfl ow Direction You can adjust the airfl ow direction to increase your comfort. CAUTION • Always use a remote controller to adjust the angles of the fl aps and louvers. − If you attempt to move the fl aps and louvers forcibly by hand when they are swinging, the mechanism may be damaged. -
Page 16: Useful Functions
Useful Functions COMFORT AIRFLOW / INTELLIGENT EYE Operation COMFORT AIRFLOW operation: The airfl ow direction is upward while in COOL and DRY operation, and downward while in HEAT operation. This function prevents cold or warm air from blowing directly on the occupants in the room. INTELLIGENT EYE operation: The INTELLIGENT EYE sensor detects human movement. - Page 17 Useful Functions INTELLIGENT EYE operation is useful for energy saving „ People are detected in the sensing area� „ No people are detected in the sensing area� The air conditioner is in normal operation while the The air conditioner will switch to energy-saving mode after sensor is detecting human movement.
-
Page 18: Powerful Operation
Useful Functions POWERFUL Operation POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity. To start POWERFUL operation Press during operation� • “ ” is displayed on the LCD. •... -
Page 19: Econo / Outdoor Unit Quiet
Useful Functions ECONO / OUTDOOR UNIT QUIET Operation ECONO operation enables effi cient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit. OUTDOOR UNIT QUIET operation lowers the noise level of the outdoor unit by changing the frequency and fan speed of the outdoor unit. -
Page 20: Timer Operation
TIMER Operation ON/OFF TIMER Operation Timer functions are useful for automatically switching the air conditioner on or off in the morning or at night. You can also use the ON TIMER and OFF TIMER together. To use ON TIMER operation •... - Page 21 TIMER Operation To use OFF TIMER operation • Check that the clock is correct. If not, set the clock to the present time. Page 10 Press � “ ” is displayed on the LCD. “ ” blinks. • “ ” and day of the week disappear from the LCD. Press until the time setting reaches the point you like�...
-
Page 22: Weekly Timer Operation
TIMER Operation WEEKLY TIMER Operation Up to 4 timer settings can be saved for each day of the week. This is convenient to adapt the WEEKLY TIMER to your family’s life style. Setting example of the WEEKLY TIMER The same timer settings are used from Monday through Friday, while different timer settings are used for the weekend. [Monday] Make timer settings for programs 1-4. - Page 23 TIMER Operation To use WEEKLY TIMER operation Setting mode • Make sure the day of the week and time are set. If not, set the day of the week and time. Page 10 program 1 program 2 program 3 program 4 [Monday] 77°F (25°C) 81°F (27°C)
- Page 24 TIMER Operation WEEKLY TIMER Operation Press to select the desired time� • The time can be set between 0:00 and 23:50 in 10-minute intervals. • To return to the ON/OFF TIMER mode setting, press • Proceed to STEP when setting the OFF TIMER. Press �...
- Page 25 TIMER Operation Copy mode • A reservation made once can be copied to another day of the week. The whole reservation of the selected day of the week will be copied. program 1 program 2 program 3 program 4 [Monday] 77°F (25°C) 81°F (27°C) 6:00...
- Page 26 TIMER Operation WEEKLY TIMER Operation Confi rming a reservation • The reservation can be confi rmed. Setting Displays Normal Confi rmation Press � • The day of the week and the reservation number of the current day will be displayed. Press to select the day of the week and the reservation number to be confi rmed.
- Page 27 TIMER Operation To delete reservations An individual reservation Press � • The day of the week and the reservation number will be displayed. Press to select the day of the week and the reservation number to be deleted� Press � •...
-
Page 28: Care
Care Care and Cleaning CAUTION • Before cleaning, be sure to stop the operation and turn off the circuit breaker. • Do not touch the aluminum fi ns of the indoor unit. If you touch those parts, this may cause an injury. „... - Page 29 Care CAUTION • When removing or attaching the front panel, stand on a solid, stable base and take care not to fall. • When removing or attaching the front panel, support the panel securely with your hand to prevent it from falling. „...
- Page 30 Care Care and Cleaning „ Air fi lter If the dust does not come off easily Open the front panel� Page 28 • Wash the air fi lters with neutral detergent thinned with lukewarm water, then let them dry in the shade. •...
- Page 31 Care „ Titanium apatite photocatalytic air-purifying fi lter [Replacement] Open the front panel and Remove the fi lter from the fi lter pull out the air fi lters. Page 28,29 frame and attach a new one� • Do not throw away the fi lter frame. Reuse the fi lter Take off the titanium apatite frame when replacing the titanium apatite photocatalytic air-purifying fi lter.
-
Page 32: Air Conditioner
Care Care and Cleaning „ Prior to a long period of non-use Operate the FAN mode for several hours to dry out the inside� 1) Press and select “ ” . 2) Press and start the operation. After operation stops, turn off the circuit breaker for the room air conditioner�... -
Page 33: Faq
When the Need Arises Indoor unit The flaps do not start swinging immediately� • The air conditioner is adjusting the position of the flaps. The flaps will start moving soon. The air conditioner stops generating Different sounds are heard� airflow during HEAT operation. „... -
Page 34: Troubleshooting
When the Need Arises Troubleshooting Before making an inquiry or a request for repair, please check the following. If the problem persists, consult your dealer. Not a problem Check This case is not a problem. Please check again before requesting repairs. - Page 35 When the Need Arises Mist comes out Case Description / what to check • This happens when the air in the room is cooled into mist by the cold airfl ow during COOL Mist comes out of the indoor unit� or other operation.
- Page 36 When the Need Arises Troubleshooting „ Call your dealer immediately WARNING When an abnormality (such as a burning smell) occurs, stop operation and turn off the circuit breaker� • Continued operation in an abnormal condition may result in problems, electric shock or fire. •...
- Page 37 When the Need Arises „ Fault diagnosis by remote controller • The remote controller can receive relevant error codes from the indoor unit. When is held down for about 5 seconds, “ ” blinks in the temperature display section. Press repeatedly until a long beep is produced�...
- Page 38 Quick Reference The two-dimensional bar code is a manufacturing code. 3P457796-1 M16B116 (1611) HT...
