Summary of Contents for SmartPay Pax D210

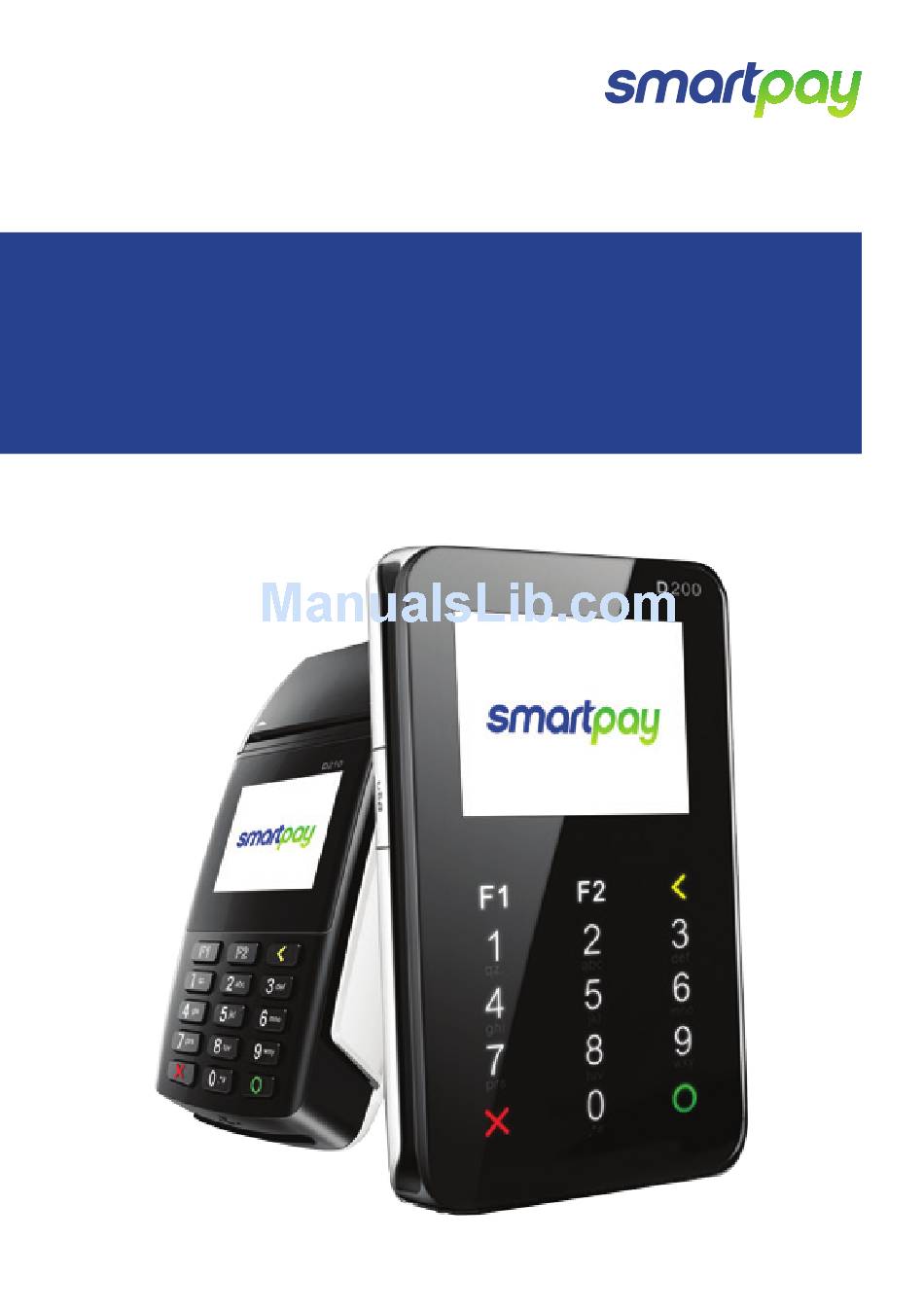

  • Page 1 Paymark EFTPOS (LEGACY) Pax D210 and D200 Wi-Fi...
  • Page 2: Table Of Contents

    CONTENTS TERMINAL HARDWARE D210 D200 Function Keys Other Accessories Paper Rolls SETTING UP YOUR EFTPOS EQUIMENT TRANSACTIONS OVERVIEW Contactless Transactions Electronic Offline Vouchers (D210 Only) Smartlink Lite EFTPOS (D210 & D200) Manual (standalone) EFTPOS (D210 Only) Transaction Types Purchase Purchase with Signature Cash Out Purchase + Cash Out MOTO Purchase...
  • Page 3: Terminal Hardware

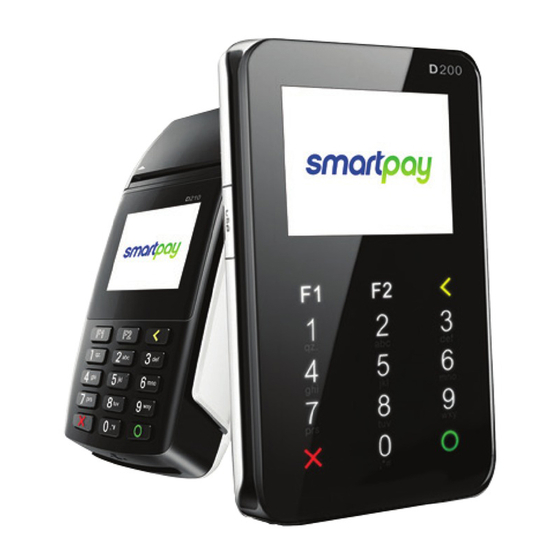

    0800 476 278 or email customer.service@smartpay.co.nz TERMINAL HARDWARE Smartpay Pax D210 EFTPOS provides a smart, secure and robust payment terminal. The D210 connects to the Internet to process either manual or Smartlink Lite integrated POS transactions via your 2.4GHz Wi-Fi network connection.
  • Page 4: D200

    D200 CAN ONLY BE USED WHEN PAIRED WITH A COMPATIBLE SMARTLINK LITE POS OTHER ACCESSORIES • Swivel counter stand • Spare battery • Wetcovers (D210) • Car charger • Cleaning cards To order paper rolls or other accessories please contact Smartpay on 0800 476 278 or visit our website smartpay.co.nz...
  • Page 5: Paper Rolls

    3. Pull out tongue of paper so it is coming out of feeder and close the printer cover. To order paper rolls or other accessories please contact Smartpay on 0800 476 278 or visit our website smartpay.co.nz SETTING UP YOUR EFTPOS EQUIPMENT Please read the Getting Started Letter that is provided with your Smartpay EFTPOS equipment.
  • Page 6: Contactless Transactions

    CONTACTLESS TRANSACTIONS Smartpay EFTPOS terminals can accept contactless payment cards and smart devices. Merchants can have contactless acceptance enabled or disabled through their Merchant bank. If contactless payment functionality is enabled, then once the transaction value is entered the Paywave/Paypass/tap-and-go card PRESENT option will be offered automatically for valid transaction types.
  • Page 7: Smartlink Lite Eftpos (D210 & D200)

    Your POS provider should supply any instructions required to assist you with adding integrated EFTPOS acceptance. For some systems, a Smartpay EFTPOS option may need to be enabled before we can pair the terminal. Please check with your POS provider or read your POS setup instructions to perform these steps.
  • Page 8: Purchase

    PURCHASE Operator selects 1.PURCHASE on base unit and types in PURCHASE amount 2. Press ENTER and terminal prompts customer to PRESENT INSERT or SWIPE CARD 3. Operator presents EFTPOS terminal to customer 4. Customer taps, inserts or swipes card a. Insert or swipe - customer follows screen prompts to select account and enter PIN b.
  • Page 9: Moto Purchase

    Merchant Refund Card. The amount being refunded should be credited back to the card used for the original purchase. Merchants should contact their bank to request this service and the card. Smartpay User Guide Pax D210 and D200 Wi-Fi...
  • Page 10: Administrative Functions

    ADMINISTRATIVE FUNCTIONS PAYMENT APPLICATION MENU Press MENU (pw 746723) MERCHANT FUNCTIONS To scroll through menu options - UP/DOWN ARROW keys • QUICK ACCESS MENU Press CLEAR or CANCEL to go back • ADMINISTRATIVE MENU UTILITY MENU CONFIGURATION MENU SECURITY MENU APP MANAGER MENU COMMON ADMIN FUNCTIONS MANUAL LOGON...
  • Page 11: Merchant And Communication Settings

    These are general known issues with smart device Wi-Fi hotspots and do not solely relate to Smartpay EFTPOS terminal connections. It is also recommended you do not have Bluetooth enabled while using your Wi-Fi hotspot as it can cause signal interference.
  • Page 12 MERCHANT & COMMUNICATION SETTINGS Screen displays Wi-Fi network settings Wi-Fi SETTING: Press CLEAR to change SSID : Networkname1234 • Sec mode: WPA2PSK ENTER = OK CLEAR = CHANGE Press ENTER to start automatic scan SCAN FOR AVAILABLE • Wi-Fi ACCESS POINTS? Press CLEAR if you want to configure manually •...
  • Page 13: Changing Network

    Static IP address for Smartlink Lite pairing. From idle screen • Press MENU > QUICK ACCESS MENU > PRINT CONFIG - see LOCAL IP SETTINGS section on receipt print-out for details Smartpay User Guide Pax D210 and D200 Wi-Fi...
  • Page 14: Setting Static Ip Address

    DHCP range* (this is to reduce likelihood of IP conflict issues). * Smartpay is not an IT provider and does not take any responsibility for managing your network configuration. • Press MENU > QUICK ACCESS MENU > COMMS Select WIFI •...
  • Page 15 ENTER IP ADDRESS Press CLEAR to change • • Type in DNS address CLEAR TO CHANGE REBOOT REQUIRED Terminal will power down. Press power key to reboot. TERMINAL WILL POWER DOWN NOW Smartpay User Guide Pax D210 and D200 Wi-Fi...
  • Page 16: Print Current Configuration

    We use this from time to time to ensure our customers have the most up-to-date, secure and bug free software on their units. Please contact Smartpay THD for assistance before you attempt to use this menu. • Press MENU → APP MANAGER MENU → TMS MENU → TMS START smartpay.co.nz...
