FishHunter 3D Manual

The most powerful, portable fish finder
Hide thumbs Also See for 3D:

Advertisement

Quick Links

Download this manual See also: User Manual
DIRECTIONAL
CASTING

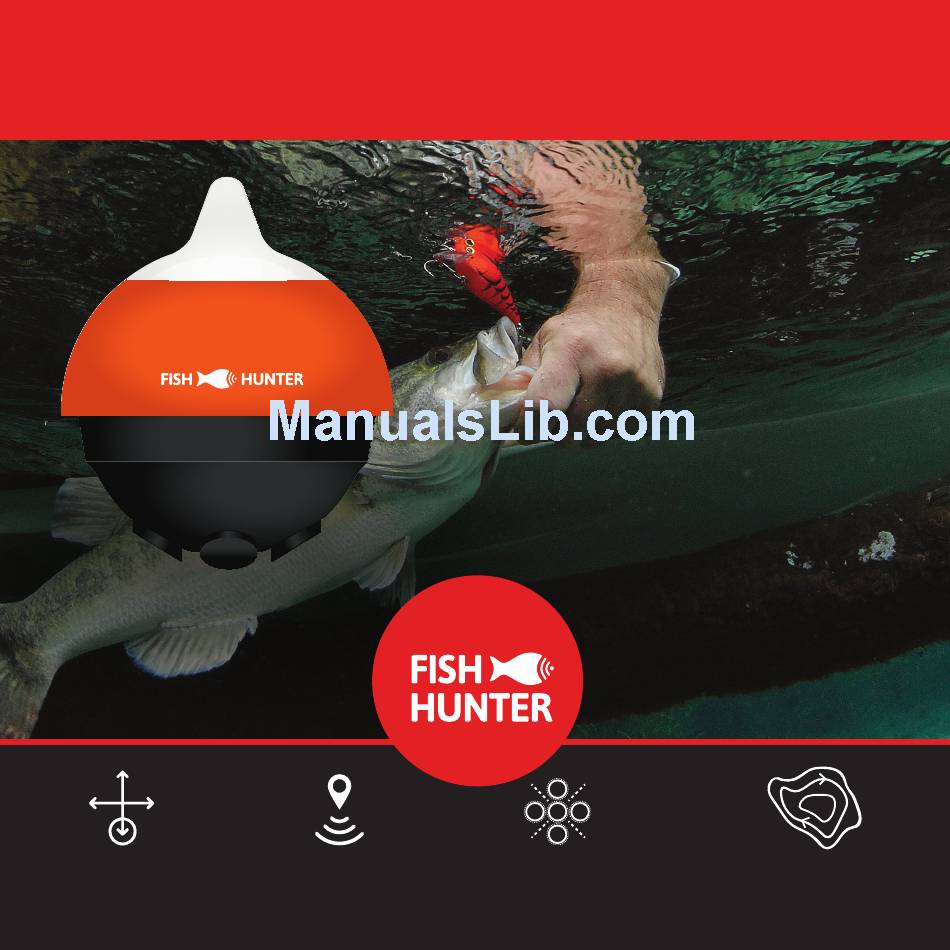

WELCOME TO
FISHHUNTER™ 3D
3D STRUCTURE
MAPPING
THE MOST POWERFUL,
PORTABLE FISH FINDER
5 Transducer, tri-frequency,
portable wireless fi sh fi nder
that hunts fi sh up to 160ft (50m)
and can be cast or trolled.
TM
3
2
1
4
5
5 TRI FREQUENCY
TRANSDUCERS
BATHYMETRIC
MAPPING

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3D and is the answer not in the manual?

Questions and answers

Related Manuals for FishHunter 3D

Summary of Contents for FishHunter 3D

  • Page 1 WELCOME TO FISHHUNTER™ 3D THE MOST POWERFUL, PORTABLE FISH FINDER 5 Transducer, tri-frequency, portable wireless fi sh fi nder that hunts fi sh up to 160ft (50m) and can be cast or trolled. DIRECTIONAL 3D STRUCTURE 5 TRI FREQUENCY BATHYMETRIC...
  • Page 2 We strive to improve our product each month and this means this manual is already outdated. Please go online and download the most recent version of our manual: www.fishhunter.com/support...
  • Page 3 IMPORTANT NOTE: We make updates monthly to improve your experience with FishHunter. Please check to see if there is a NEW manual available. WWW.FISHHUNTER.COM/SUPPORT...
  • Page 4 FISHHUNTER™ 3D Night-time Fish Attraction 5 Tri- Frequency Transducers Illumination ( 381KHz, 475 KHz, 695 KHz ) Towing Point USB Charging Port FRONT VIEW BOTTOM VIEW...
  • Page 5 Once you’ve identifi ed where the depth changes are using your bathymetric maps, then navigate back to those spots using your FishHunter app and create a 3D STRUCTURE MAP to see the bottom structure across those specifi c areas. STEP 3 : Check the area for fi sh using DIRECTIONAL CASTING...

  • Page 6: How To Charge

    HOW TO CHARGE Charging your FishHunter can be done in 4 easy steps: Step 1 Step 1: Take the USB charge cord from the box and hold the end that has 3 pins holes in it. Step 2: Locate the 3 pin charging port on the bottom of the sonar.
  • Page 7 KNOW WHERE TO CAST ™ 95% OF THE FISH ARE IN 5% OF THE WATER...

  • Page 8: How To Connect

    Ensure you have charged your FishHunter for minimum of 4 hours before first usage. Attach your FishHunter to the braided line on the end of your fishing line or tether it to the red leash that was provided in your...
  • Page 9 Once connected, open the FishHunter App and go to the “Sonar” section. If you are connected to your FishHunter correctly, you will see the following options: Directional Casting Bottom Mapping 3D Contour Bathymetirc Mapping Ice Fishing Flasher Switch Device The slow red flashing light on your sonar will start flashing quickly when connected and sending information to your phone or tablet.
  • Page 10 WI-FI CONNECTIVITY & FISHHUNTER In order for you to get the best possible signal and connection with your FishHunter, we recommend you follow the picture below. Your phone/tablet should be looking down towards the sonar and should be elevated above the fl oating sonar. Use the FREE armband provided in your box to ensure a minimum 3 foot elevation to your fl oating sonar.

  • Page 11: Best Practices

    BEST PRACTICES 1. Line of Sight 2. Good Elevation 3. No Obstructions...
  • Page 12 THE WORLD'S ONLY PORTABLE FISH FINDER WITH 72º COVERAGE 72º OF COVERAGE ANGLE...
  • Page 13 FishHunter 3D is the ONLY portable fi sh fi nder that has the power to give you 72 degrees of coverage of the bottom contour with incredible resolution. Within seconds you gain access to detailed information about your favourite spots or current location to help you catch more fi sh.
  • Page 14 SHALLOW WATER MODE FishHunter is the only wireless portable fi sh fi nder that comes with a shallow water mode that allows you to get into water that is only 1.4ft (0.4m) deep. This mode uses our patent pending tri-frequency technology to allow for the...
  • Page 15 On your Smartphone/Tablet open your Wi-Fi settings. Refresh the list and select "FishHunter Wi-Fi XXX" ( Note: this can take up to 1 minute ) Open the FishHunter app on your smartphone or tablet and go into the sonar section. Select your prefered view.
  • Page 16 DIRECTIONAL CASTING™...
  • Page 17 In this example, the right transducer is red, and the number 13 appears. This indicates fi sh are on the right side of your FishHunter, at a depth of 13 feet. Now cast in that direction and increase your chances of catching fi sh. Click on any of the 5 round icons and you get a split view screen with the left side showing the depth of any fi...
  • Page 18 DIRECTIONAL CASTING™ Depth to the bottom Red circle indicates fi sh Water under that transducer temperature and its depth (13ft) Each circle is one transducer Front transducer can be changed by pressing the rotating circle 5 Transducer View Fish detected with depth Weeds Go back to...
  • Page 19 Place FishHunter in water for it to turn on. Open your Wi-Fi settings and select FishHunter Wi-Fi XXX Open the FishHunter app and go into the sonar section Select DIRECTIONAL CASTING Set range to the depth you are fi shing in and click the arrow Now in “5 Transducer View”...

  • Page 20: Structure Mapping

    3D STRUCTURE MAPPING...
  • Page 21 You can create custom 3D Structure Maps of your favorite fi shing spots by placing the FishHunter in the water and then reeling/drifting/trolling it over the area you want to measure. Use the color coded scale to easily see drop offs or toggle on/off the grid overlay to know exactly where the drop offs are, their relative depth and distance.
  • Page 22 3D STRUCTURE MAPPING Color depth scale Distance away from you FRONT VIEW Distance across Side view bottom map (single color) Side menu LEFT SIDE VIEW Turn on/off each Distance Grid and Top Menu Depth Grid Color option of the map...
  • Page 23 Follow the steps to create and save a Map. You can screenshot your maps from the top menu. TOP MENU Note: All 3D Structure Maps are auto-saved and can be found in Maps section on main sonar screen.
  • Page 24 3D FISHING DEPTH TO FISH DEPTH TO 44 ft BOTTOM 47.6 ft...
  • Page 25 Used to determine bottom contour when in a stationary position on the surface of the water. 3D software and 5 Tri-Frequency transducers allows us to create “life like” images of the bottom, so you can quickly evaluate bottom contour. Knowing the bottom contour when fi shing is critical...
  • Page 26 3D FISHING Bottom depth shown by different colors Actual depth COMBINED VIEW - 3D Fish with depth...
  • Page 27 Open your Wi-Fi settings and select FishHunter XXXX. Open the FishHunter™ app and go into the sonar section. Select “3D FISHING”. Cast/drop FishHunter into the water in the area you would like to map. You will now start to receive 3D FISHING data to your device screen.

  • Page 29: Bathymetric Mapping

    BATHYMETRIC MAPPING The perfect tool to create a custom map of your entire lake or favourite fi shing spots. Just troll your FishHunter across the area that you are interested in mapping and FishHunter starts to track the depth and bottom contour as it travels around your lake.
  • Page 30 BATHYMETRIC MAPPING Depth range Area covered Color scale Water Temperature Depth SIDE MENU Continue current map Boat location TOP MENU Surface reverb (See p.42) Bottom contour SPLIT VIEW...
  • Page 31 (We recommend the sonar be directly behind your boat and less than 5ft from your smartphone/tablet.) Ensure you are connected to the FishHunter Wi-Fi in your settings. Open the FishHunter app and go into the Sonar section.
  • Page 32 (We recommend the sonar be directly behind your boat and less than 5ft from your smartphone/tablet) Ensure you are connected to the FishHunter Wi-Fi in your settings Open the FishHunter app and go into the Sonar section Select MY BATHYMETRIC MAPS...
  • Page 33 STEPS FOR SOLUTION: Navigate to missing spot (Note: you must be within 500m of the last recorded position) Place FishHunter Sonar in water Follow steps 1-9 of how to add to existing map Troll over area to retrieve missing data Visit our website for additional support videos: www.fi shhunter.com/support...

  • Page 34: Ice Fishing Flasher

    ICE FISHING FLASHER DEPTH TO BOTTOM 11 meters...
  • Page 35 Unlike traditional fl ashers that are required to be submerged beneath the ice, FishHunter fl oats in the ice hole on the surface of the water, withstanding weather conditions as cold as -22 ºF (-30 ºC). Ice Fishing Flasher View utilizes 2 powerful ultra high frequencies 475 kHz and 695 KHz, to enable you to see your jig in real time.
  • Page 36 ICE FISHING FLASHER Temperature Bait and jig line movement FULL FLASHER MODE Fish detected Depth SPLIT VIEW Bait and jig line movement Fish detected Change View RAW VIEW...
  • Page 37 ICE FISHING FLASHER STEPS Clear any snow debris from your ice hole. Place FishHunter in the ice hole to turn it on. Open your Wi-Fi settings and select FishHunter™ XXXX. Open the FishHunter™ app and go into the sonar section.
  • Page 38 "KNOW WHERE TO DRILL" The FishHunter is very powerful and you can actually fi nd the bottom depth in most cases, without having to drill a hole in through ice. Clear the snow from the surface of the ice, ensure ice surface is fl at/smooth.

  • Page 39: Menus And Settings

    Top Menu Side Menu There is one top menu and one side menu located within your FishHunter App. Each of these menus can be called by pressing on the small slider like icon on your screen. TOP MENU OPTIONS X: Clicking on this icon will take you back to the view options (for iOS only.
  • Page 40 Every time you cast the FishHunter into the water the screen will take a few seconds to “fi nd the bottom” depth for the area that you are fi shing in.
  • Page 41 In most cases leaving it in “Auto” is the best way to use your sonar. But, if you are taking your FishHunter in and out of the water repeatedly, like when casting, we suggest that you try manually setting the depth range to increase the speed of your FishHunter.
  • Page 42 In more extreme conditions where you have high wind, high waves or when you are trolling your FishHunter behind a boat motor, you will want to turn UP the Surface Filter. Try to set the Surface Filter to a number that matches where you see the surface noise stop in the RAW data view on your screen.
  • Page 43 FishHunter is at detecting fi sh in the water column/body. As you move the slider from left to right you can increase the sensitivity of your FishHunter from 0 to 5, with 5 being the most sensitive. The Fish Sensitivity Slider can be changed in real time,...
  • Page 44 The Power Slider allows you to adjust the gain and pulsewidth for your FishHunter. In Ice Fishing Flasher mode, the FishHunter does not know the thickness of the ice, giving you the ability to adjust the power you want to use when ice fi shing.
  • Page 45 ZOOM FEATURES This feature within the FishHunter app allows you to look more closely at the sonar display on your phone. This is useful when you want to look at the bottom area OR review the top area of the sonar data to look for fish or other specific artifacts.
  • Page 46 Casting and reeling from shore: The FishHunter 3D is 180 grams, so when casting from shore we recommend that you use a stiff rod and braided line. We have tested casting the unit with all types and styles of rods and lines and have had no issues, but better to be safe in your approach when casting from shore.
  • Page 47 Kayak Fishing Usage: With a range of over 150 ft, you can cast the FishHunter away from the kayak and fish the broadest possible area. We have tested casting the unit on all types of rods and lines but do suggest a braided line for casting.
  • Page 48 II. Allow enough line to ensure your FishHunter will be behind your seat. When you are moving along (in this case we have used about 4 ft of the tether) the FishHunter may bounce off the side of your kayak from time to time, but that will not im- pact its performance.
  • Page 49 With a range of over 150 ft, you can also attach the FishHunter to a fishing rod and then cast it into the area that you would like to drift it across. This will allow you to fish a much broader area and also allow you to cast directly at your FishHunter.
  • Page 50 Trolling- 15 ft Leash Mounting: The FishHunter has been designed to troll at under 2 miles per hour for Android and under 1.5 miles per hour for iOS devices. The difference in the two devices is due to the difference in the Wi-Fi chips in the different devices.
  • Page 51 If you are having trouble with the connection to your phone or tablet when trolling using your leash or you would like to try to troll the FishHunter at a faster rate, you can attach the unit to the back of the trailer mount of your fishing boat. Please follow...

  • Page 52: Warranty

    FishHunter™ Inc. warrants this product against defects in material or workmanship as follows: FishHunter™ Inc. will replace at no charge for parts only or, at its option, replace any product or part of the product that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance.
  • Page 53 When warranty service is completed, any repaired or replacement product or part will be returned to you postage prepaid. FishHunter Inc will provide warranty coverage with claims made in compliance with the terms of our warranty.
  • Page 54 FishHunter™ 3D Includes : • FishHunter 3D Sonar • Charger • USB Charging Cord • Waterproof Armband • 15ft leash FishHunter Inc. Worldwide Offices Toronto | Los Angeles | Seoul, Korea www.fishhunter.com/support...
