Clarion CZ209 Service Manual page 2

* WMA is the abbreviation of Windows Media Audio, an audio file
format developed by Microsoft Corporation.
* This product includes technology owned by Microsoft Corporation
and cannot be used or distributed without a license from MSLGP.
* This unit is compatible with USB 1.1/2.0 with maximum data tran-
sfer rates of 12 Mbps. USB memory devices that can be played by
connecting to the unit's USB cable are limited to those recognized
as "USB mass storage class devices"; operation is not guaranteed
ranteed with all USB memory devices.
* To prevent the accidental loss of data, always back up important
data on your computer.
* This unit does not support connections to a computer.In addition,
connections made through a USB hub device are also not supported.
* Insert and remove a USB memory device only when the device is
not being accessed. Connecting or disconnecting the device at the
following times may result in the loss of data:
- If the USB memory device is removed or power is disconnected
during writing to the device.
- When the device is subjected to static electricity or electric noise
COMPONENTS
PE-3157B-A/PE-3157K-A/B
1. Source unit
2. Mounting bracket(PE-3157B-A)
3. Mounting bracket(PE-3157K-A/B)
4. Mounting bracket(PE-3157K-A/B)
5. Escutcheon(OUT-ES)
6. Extension lead
7. Parts bag
7-1. Removal key
7-2. Stopper(PE-3157B-A)
7-3. Screw(M5x8)(PE-3157K-A/B)
8. Remote control unit(PE-3157B-A)
9. Battery(CR205)(PE-3157B-A)
To engineers in charge of repair or inspe-
ction of our products.
Before repair or inspection, make sure to follow the in-
structions so that customers and Engineers in charge
of repair or inspection can avoid suffering any risk or
injury.
1. Use specified parts.
The system uses parts with special safety features against fire
and voltage. Use only parts with equivalent characteristics when
replacing them.
The use of unspecified parts shall be regarded as remodeling for
which we shall not be liable. The onus of product liability (PL) sh-
all not be our responsibility in cases where an accident or failure
is as a result of unspecified parts being used.
2. Place the parts and wiring back in their original positions after re-
placement or re-wiring.
For proper circuit construction, use of insulation tubes, bonding,
gaps to PWB, etc, is involved. The wiring connection and routing
to the PWB are specially planned using clamps to keep away
from heated and high voltage parts. Ensure that they are placed
back in their original positions after repair or inspection.
If extended damage is caused due to negligence during repair,
the legal responsibility shall be with the repairing company.
3. Check for safety after repair.
Check that the screws, parts and wires are put back securely in
their original position after repair. Ensure for safety reasons there
is no possibility of secondary ploblems around the repaired spots.
If extended damage is caused due to negligence of repair, the
legal responsibility shall be with the repairing company.
CZ209/CZ209A
1
300-8088-00 1
300-4976-00 1
300-7742-00 1
370-6451-00 1
854-6433-50 1
1
331-2497-00 2
335-4899-20 1
716-0496-51 1
RCB-176-200 1
1
4. Caution in removal and making wiring connection to the parts for
the automobile.
Disconnect the battery terminal after turning the ignition key off.
If wrong wiring connections are made with the battery connected,
a short circuit and/or fire may occur.
If extensive damage is caused due to negligence of repair, the
legal responsibility shall be with the repairing company.
5. Cautions in soldering.
Please do not spread liquid flux in soldering.
Please do not wash the soldering point after soldering.
6. Cautions in soldering for chip capacitors
Please solder the chip capacitors after pre-heating for replacem-
ent because they are very weak to heat.
Please do not heat the chip capacitors with a soldering iron dire-
ctly.
7. Cautions in handling for chip parts.
Do not reuse removed chips even when no abnormality is obser-
ved in their appearance. Always replace them with new ones.
(The chip parts include resistors, capacitors, diodes, transistors,
etc).
Please make an operation test after replacement.
8. Cautions in handling flexible PWB
Before working with a soldering iron, make sure that the iron tip
temperature is around 270 C. Take care not to apply the iron tip
repeatedly(more than three times) to the same patterns. Also ta-
ke care not to apply the tip with force.
9. Turn the unit OFF during disassembly and parts replacement.
Recheck all work before you apply power to the unit.
10. Cautions in checking that the optical pickup lights up.
The laser is focused on the disc reflection surface through the
lens of the optical pickup. When checking that the laser optical
diode lights up, keep your eyes more than 30cms away from the
lens. Prolonged viewing of the laser within 30cms may damage
your eyesight.
11. Cautions in handling the optical pickup
The laser diode of the optical pickup can be damaged by elect-
rostatic charge caused by your clothes and body. Make sure to
avoid electrostatic charges on your clothes or body, or discharge
static electricity before handling the optical pickup.
11-1. Laser diode
The laser diode terminals are shorted for transportation in order
to prevent electrostatic damage. After replacement, open the
shorted circuit.
When removing the pickup from the mechanism, short the ter-
minals by soldering them to prevent this damage.
11-2. Actuator
The actuator has a powerful magnetic circuit. If a magnetic
material is put close to it. Its characteristics will change.
Ensure that not foreign substances enter through the ventila-
tion slots in the cover.
11-3. Cleaning the lens
Dust on the optical lens affects performance.
To clean the lens, apply a small amount of isopropyl alcohol
to lens paper and wipe the lens gently.
CAUTION
Use of controls, adjustments, or performance of procedures other
than those specified herein, may result in hazardous radiation ex-
posure. The compact disc player should not be adjusted or repaired
by anyone except properly qualified service personnel.
CZ209
PE-3157B
-2-

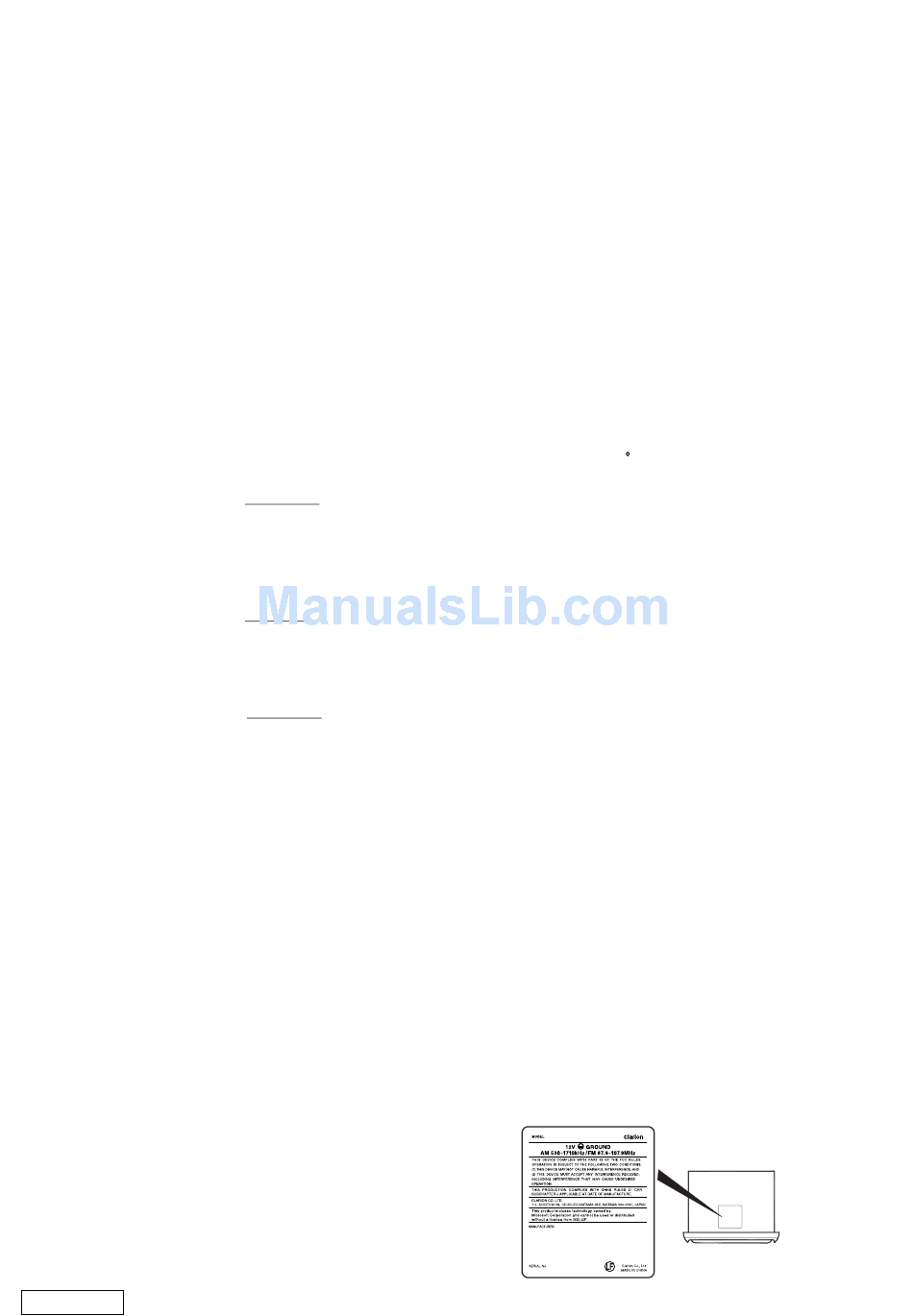

Bottom view of CZ209
276-0497-00
