Disassembly Instructions; To Remove Top & Bottom Cover; To Remove Front Panel - Realistic TRC-449 Service Manual

Figure 1

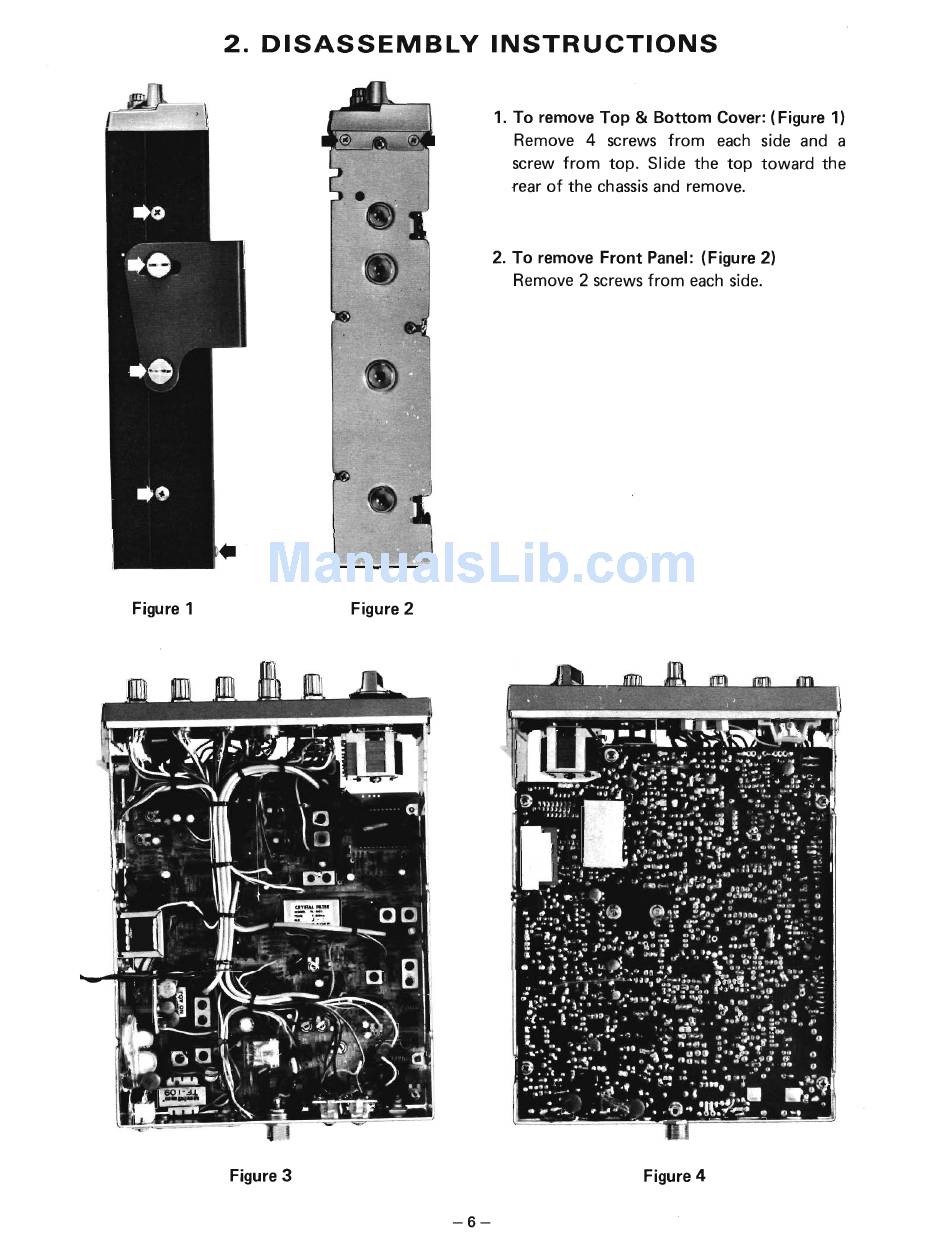

2. DISASSEMBLY INSTRUCTIONS
Figure 2
Figure 3
-6-
1. To remove Top & Bottom Cover: (Figure 1)
Remove 4 screws from each side and a
screw from top. SI ide the top toward the
rear of the chassis and remove.
2. To remove Front Panel: (Figure 2)
Remove 2 screws from each side.
Figure 4
