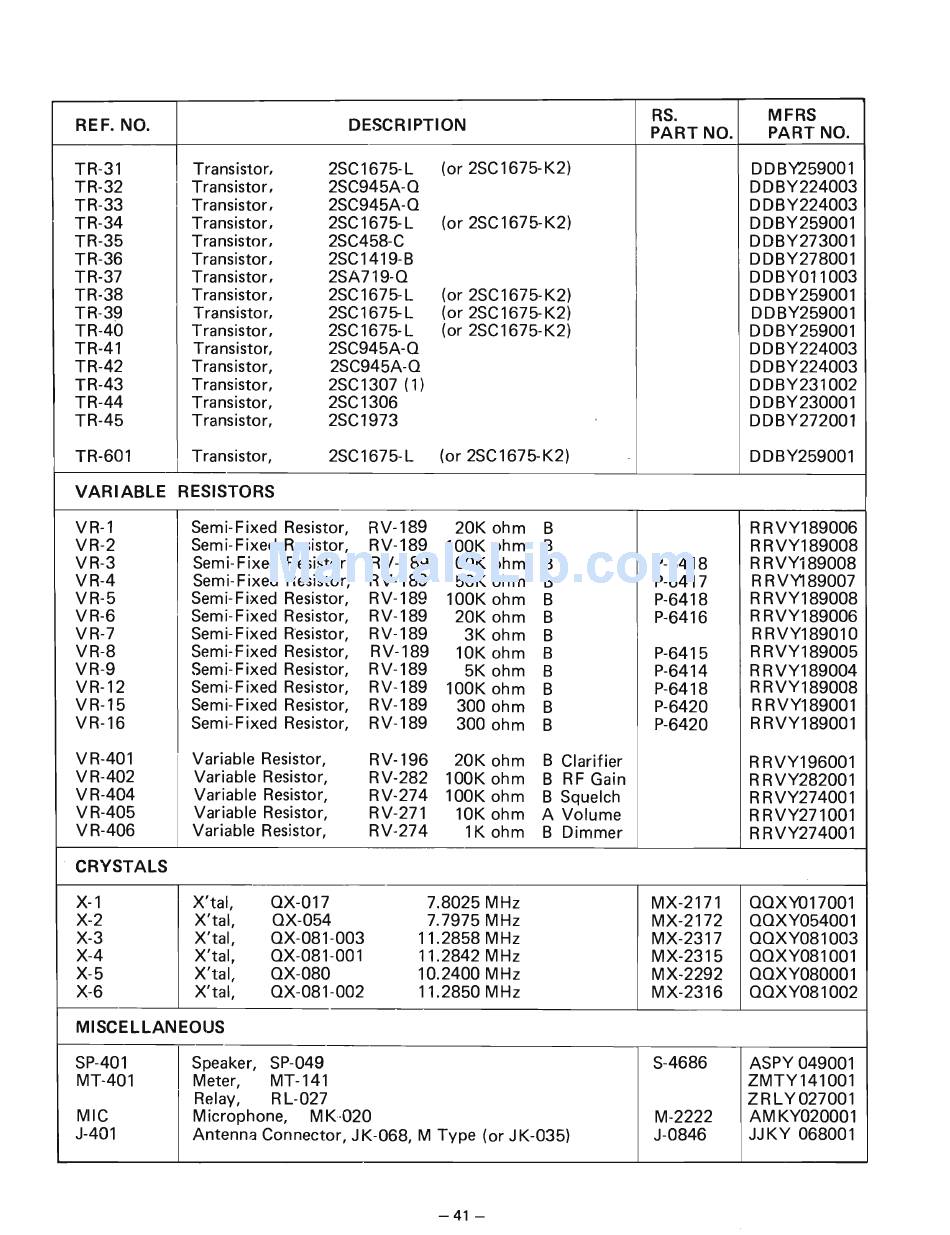

Realistic TRC-449 Service Manual page 41

REF. NO. DESCRIPTION
RS. MFRS
PART NO. PART NO.
TR-31 Transistor, 2SC1675-L
(or 2SC1675-K2) DDB'(259001
TR-32 Transistor, 2SC945A-O DDBY224003
TR-33 Transistor, 2SC945A-O DDBY224003
TR-34 Transistor, 2SC1675-L
(or 2SC 1675-K2)
DDBY259001
TR-35
Transistor,
2SC458-C DDBY273001
TR-36 Transistor, 2SC1419-B DDBY278001
TR-37
Transistor, 2SA719-0
DDBY011003
TR-38 Transistor, 2SC1675-L (or 2SC1675-K2) DDBY259001
TR-39
Transistor,
2SC1675-L (or 2SC1675-K2) DDBY259001
TR-40 Transistor, 2SC1675-L (or 2SC1675-K2)
DDBY259001
TR-41
Transistor,
2SC945A-O DDBY224003
TR-42 Transistor, 2SC945A-O DDBY224003
TR-43 Transistor, 2SC1307 (1) DDBY231002
TR-44 Transistor, 2SC1306 DDBY230001
TR-45 Transistor, 2SC1973 DDBY272001
TR-601 Transistor, 2SC1675-L (or 2SC 1675-K2)
DDBY259001
VARIABLE RESISTORS
VR-1 Semi-Fixed Resistor, RV-189 20K ohm
B
RRVY189006
VR-2
Semi-Fixed Resistor,
RV-189 100K ohm B RRVY189008
VR-3 Semi-Fixed Resistor, RV-189 100K ohm
B
P-6418 RRVY189008
VR-4 Semi-Fixed Resistor, RV-189
50K ohm
B
P-6417 R RVY189007
VR-5 Semi-Fixed Resistor, RV-189
100K ohm
B
P-6418
RRVY189008
VR-6 Semi-Fixed Resistor, RV-189
20K ohm B P-6416
RRVY189006
VR-7 Semi-Fixed Resistor, RV-189
3K ohm B
RRVY189010
VR-8 Semi-Fixed Resistor, RV-189
10K ohm
B P-6415
RRVY189005
VR-9 Semi-Fixed Resistor, RV-189
5K ohm
B P-6414 RRVY189004
VR-12 Semi-Fixed Resistor, RV-189
100K ohm
B
P-6418
RRVY189008
VR-15 Semi-Fixed Resistor, RV-189
300 ohm
B
P-6420
RRVY189001
VR-16 Semi-Fixed Resistor, RV-189
300 ohm
B
P-6420
RRVY189001
VR-401 Variable Resistor,
RV-196
20K ohm B Clarifier
RRVY196001
VR-402 Variable Resistor,
RV-282
100K ohm B RF Gain
RRVY282001
VR-404 Variable Resistor, RV-274
100K ohm
B Squelch RRVY274001
VR-405
Variable Resistor, RV-271
10K ohm
A Volume RRVY271001
VR-406
Variable Resistor, RV-274
1K ohm
B Dimmer RRVY274001
CRYSTALS
X-1
X'tal, OX-017 7.8025 MHz MX-2171 OOXY017001
X-2 X'tal, OX-054
7.7975 MHz MX-2172 OOXY054001
X-3 X'tal, OX-081-003 11.2858 MHz
MX-2317 OOXY081 003
X-4 X'tal, OX-081-001 11.2842 MHz
MX-2315 OOXY081 001
X-5 X'tal, OX-080 10.2400 MHz
MX-2292 OOXY080001
X-6 X'tal, OX-081-002 11.2850 MHz MX-2316 OOXY081 002
MISCELLANEOUS
SP-401
I
Speaker, SP-049 S-4686
ASPY 049001
MT-401 Meter, MT-141 ZMTY141001
Relay, RL-027
ZRLY027001
MIC Microphone, MK·020 M-2222 AM KY020001
J-401
Antenna Connector, JK-068, M Type (or JK-035) J-0846 JJKY 068001
-41 -
