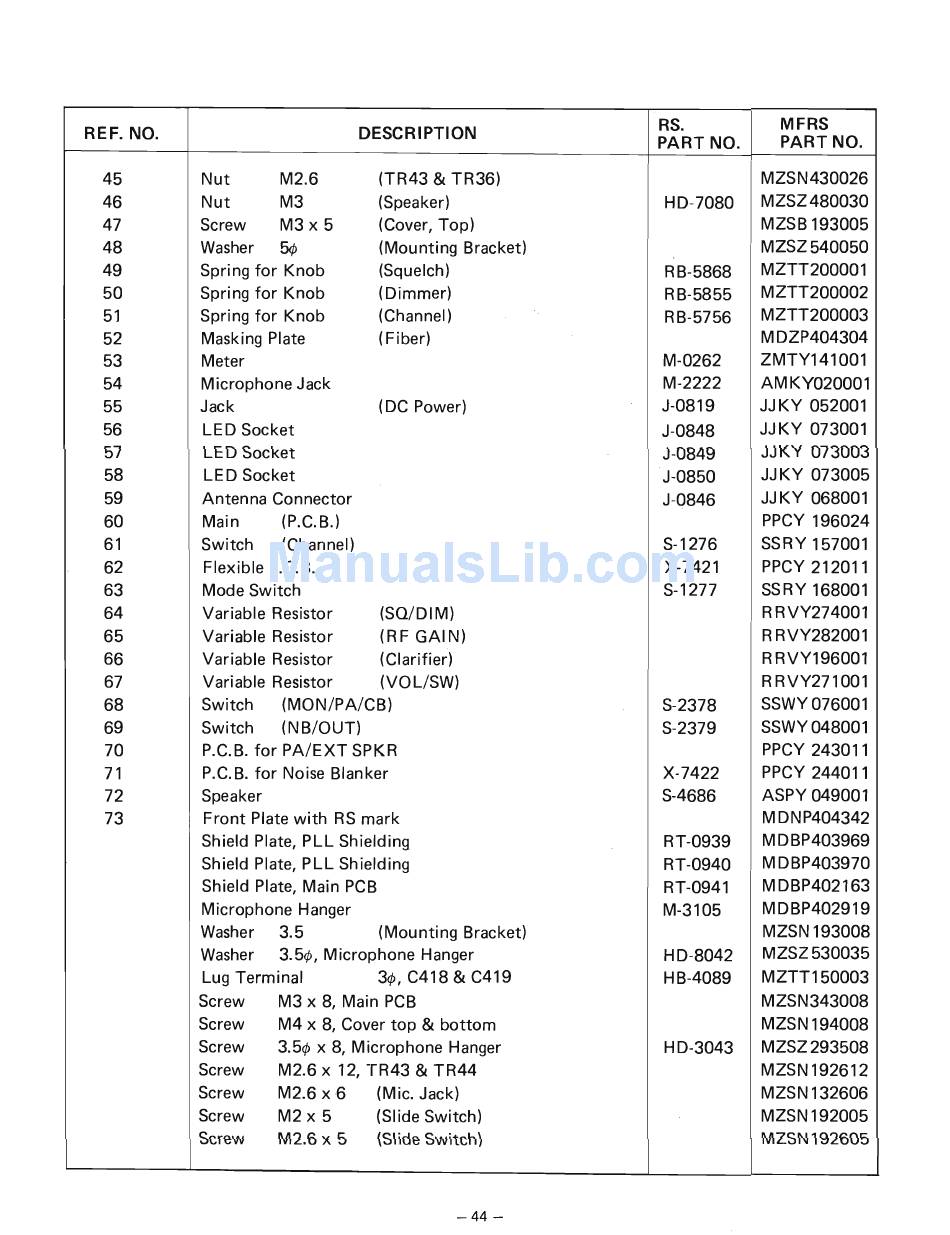

Realistic TRC-449 Service Manual page 44

REF. NO. DESCRIPTION
RS. MFRS
PART NO. PART NO.
45
Nut M2.6 (TR43 & TR36)
MZSN430026
46 Nut M3 (Speaker)
HD-7080 MZSZ480030
47 Screw M3x 5
(Cover, Top)
MZSB 193005
48 Washer 5¢ (Mounting Bracket)
MZSZ540050
49 Spri ng for Knob (Squelch)
RB-5868
MZTT200001
50 Spri ng for Knob (Dimmer)
RB-5855
MZTT200002
51 Spring for Knob
(Channel)
RB-5756
MZTT200003
52 Masking Plate
( Fiber) MDZP404304
53 Meter M-0262 ZMTY141001
54 Microphone Jack
M-2222
AM KY020001
55 Jack (DC Power)
J-0819
JJKY 052001
56 LED Socket
J-0848
JJKY 073001
57 LED Socket
J-0849
JJKY 073003
58 LED Socket
J-0850
JJKY 073005
59 Antenna Connector
J-0846 JJKY 068001
60 Main
(P.C.B.)
PPCY 196024
61 Switch
(Channel)
S-1276 SSRY 157001
62 Flexible P.C.B. X-7421
PPCY 212011
63 Mode Switch S-1277
SSRY 168001
64 Variable Resistor (SO/DIM) RRVY274001
65 Variable Resistor (RF GAIN) RRVY282001
66 Variable Resistor ( Clarifier) RRVY196001
67 Variable Resistor (VOL/SW) RRVY271001
68 Switch (MON/PA/CB) S-2378 SSWY076001
69 Switch
(NB/OUT)
S-2379 SSWY048001
70 P.C.B. for PA/EXT SPKR PPCY 243011
71
P.C. B. for Noise Blanker X-7422
PPCY 244011
72 Speaker S-4686 ASPY 049001
73 Front Plate with RS mark MDNP404342
Shield Plate, PLL Shielding
RT-0939 MDBP403969
Shield Plate, PLL Shielding
RT-0940 MDBP403970
Shield Plate, Main PCB
RT-0941
MDBP402163
Microphone Hanger M-3105 MDBP402919
Washer 3.5 (Mounting Bracket) MZSN 193008
Washer 3.5¢, Microphone Hanger
HD-8042
MZSZ530035
Lug Terminal
3<t>,
C4 18
&
C419
HB-4089 MZTT150003
Screw M3 x 8, Main PCB
MZSN343008
Screw
M4 x 8, Cover top
&
bottom
MZSN194008
Screw 3.5¢ x 8, Microphone Hanger HD-3043
MZSZ293508
Screw M2.6 x 12, TR43
&
TR44
MZSN192612
Screw M2.6 x - 6 (Mic. Jack)
MZSN132606
Screw M2 x 5 (Slide Switch)
MZSN192005
Screw
M2.6 x 5 (Slide Switch)
MZSN192605
-44 -
