Nolan NSRX3C2MTR User Manual

Bluetooth wireless microphone & receiver set
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

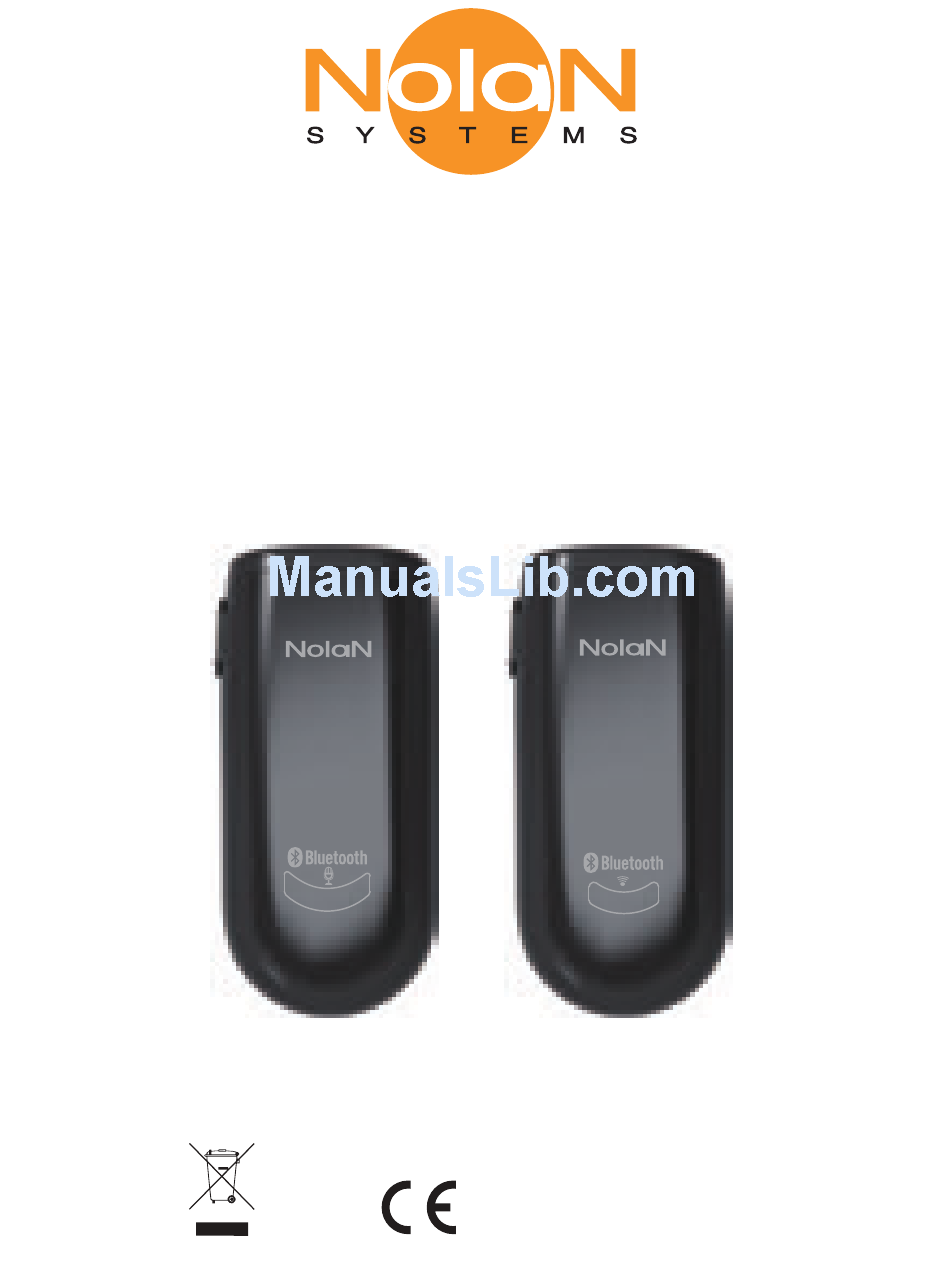

BLUETOOTH WIRELESS
Microphone & Receiver Set
Declaration
NSRXRM3C2MRS conforms to the R&TTE Directive 1999/5/RC.
P/N NSRX3C2MTR
USER GUIDE
M I C
R O PH O N E
of
Conformity:
FCC ID:TNZNSRX3C2XXX
R E C EIV E R
.
We
declare
0678
that
product

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NSRX3C2MTR and is the answer not in the manual?

Questions and answers

Related Manuals for Nolan NSRX3C2MTR

Summary of Contents for Nolan NSRX3C2MTR

  • Page 1 BLUETOOTH WIRELESS Microphone & Receiver Set P/N NSRX3C2MTR USER GUIDE M I C R O PH O N E R E C EIV E R Declaration Conformity: declare that product NSRXRM3C2MRS conforms to the R&TTE Directive 1999/5/RC. FCC ID:TNZNSRX3C2XXX 0678...

  • Page 2: Getting Started

    INTRODUCTION The Microphone & Receiver Set allows capturing the source of audio wirelessly and freely with BTMIC wireless microphone. This wireless Microphone & Receiver provides the unique low latency to allow receiver to have well listening or recording remote voice without delayed. GETTING STARTED Unpack the package carefully and confirm that you have all of parts as shown below.

  • Page 3: Product Overview

    Please check the contents carefully and contact your local dealer immediately if anything is missing or damaged. PRODUCT OVERVIEW See image below. Please note some models will differ slightly in style, colour and the functionality may vary according to their specifications. USB Charging Connector On/Off...
  • Page 4 CHARGING Before using the BTMIC and RX, you must charge it for approximately two hours. After fully charged, the battery provides up to 5 hours of vocie talk time and up to 100 hours of standby time . Plug USB charging cable into BT MIC and RX mini USB connector.
  • Page 5 TURN ON AND PARING You need to pair both BTMIC and RX when both first time to use together. 1. On RX, press and hold the ON/OFF button for 2 seconds until blue amber fast flashing alternatively. On BTMIC, press and hold the ON/OFF button for about 2 seconds until blue...
  • Page 6 The BTMIC supports two pairing modes. The type ※ A and type B pairing mode have different LED indication. Please ensure you are using type A pairing mode during pairing with RX. Using BTMIC desired Type A When you press and hold the ON/OFF button without released, the BTMIC will switch between the type A and B mode circularly with different LED indication.
  • Page 7 TURN OFF Press and hold the ON/OFF button for about 2 seconds, the amber LED on BTMIC and blue on RX will stay on for about 1 second and then device will be turn off，release the ON/OFF button. (BTMIC) (RX) Using for remote voice and commuicaiton 1.
  • Page 8 voice BTMIC “Speaker” “Listener” Put BTMIC microphone close to the sound source within 8 inches to captured the best sound quality. Too far away max. 20cm 8 inches...
  • Page 9 Using for listening or recording remote voice Connect to audio output of RX to speakers or iPad/iPhone to listen or record remote voice wirelessly. Tablet iPhone Speaker camcorder audio or voice BTMIC “Tansmitter” “Receiver”...
  • Page 10 Adjusting the RX Audio Volume To increase the audio volume While listening audio, click the ON/OFF button once to increase the volume by one step. Repeat this procedure until you reach the desired level. To decrease the audio volume While listening audio, quick click the ON/OFF button two times continuously to decrease the volume by one step.
  • Page 11 Adjusting the BTMIC Microphone Gain To increase the microphone gain While speaking, click the ON/OFF button once to increase the microphone gain by one step. Repeat this procedure until you reach the desired level. To decrease the microphone gain While speaking, quick click the ON/OFF button two times continuously to decrease the microphone gain by one step.

  • Page 12: Visual Indication

    VISUAL INDICATION The POWER/MODE/AUDIO LED can also indicate the status of BTMIC and RX working statues. Statues Indication Charging amber LED is on blue LED Low speed flash, approx. every Not Connected 5 seconds blue LED middle Connected speed flash amber blue blinking...

  • Page 13: Troubleshooting

    10m BTMIC will not pair distance range and with RX BTMIC using in type A mode. CUSTOMER SERVICE INFORMATION For other Nolan Bluetooth products or support, please view our website – www.nolan-sys.com or email info@nolan-sys.com or contact your local representative.
  • Page 14 DISCLAIMER Whilst every effort has been made to ensure that the information in this manual is accurate and complete, no liability will be accepted for any errors and/or omissions made. manufacturer reserves the right to make changes and improve- ments to the specifications and features of the hardware and firmware of the products described in this document without prior notice.
