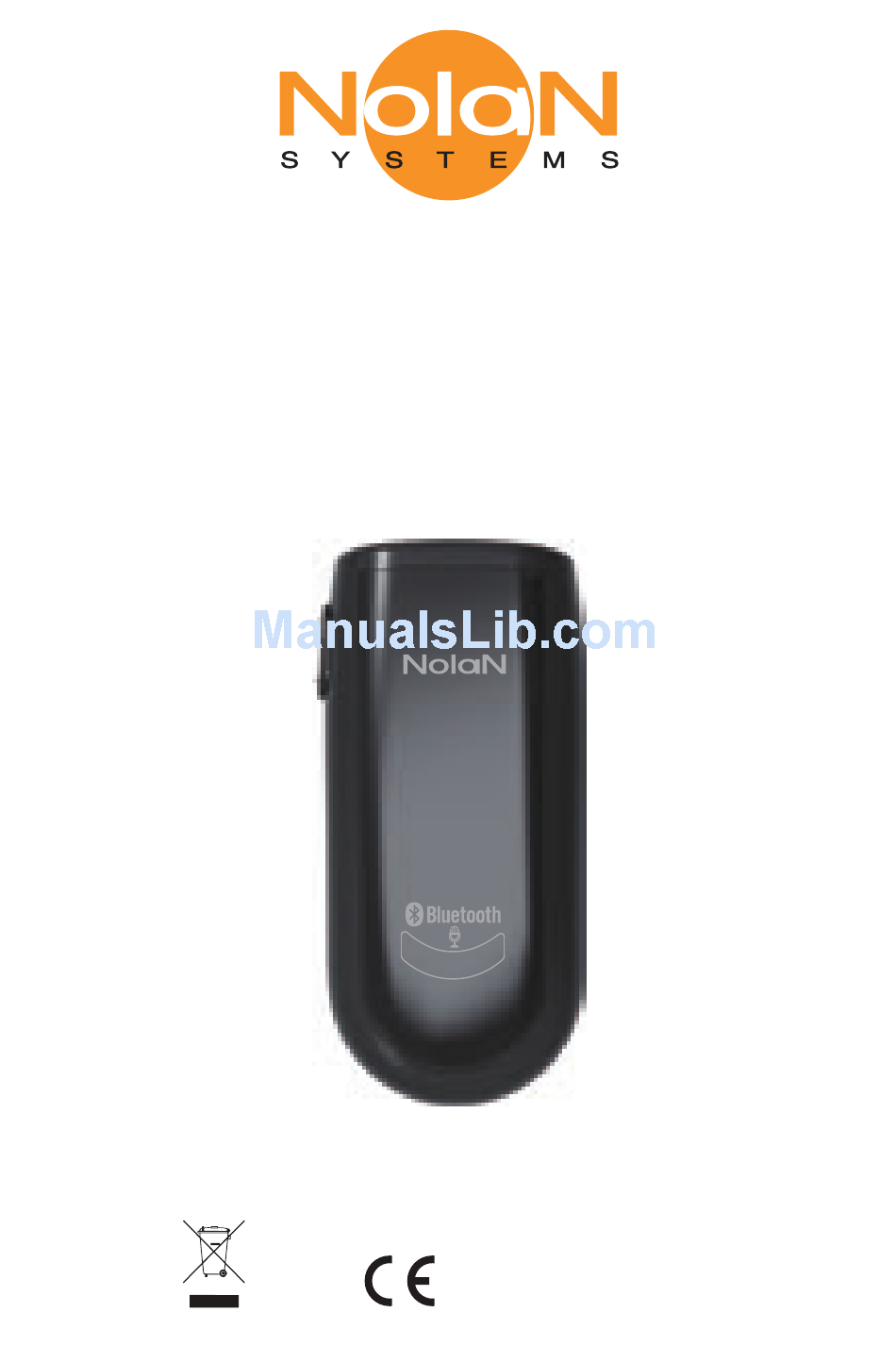

Page 1: User Guide
BLUETOOTH WIRELESS MICROPHONE P/N NSRX3C2MSX USER GUIDE M I C R O PH O N E Declaration Conformity. declare that product NSRXRM3C2MSX conforms to the R&TTE Directive 1999/5/RC. FCC ID:TNZNSRX3C2XXX 0678... -
Page 2: Getting Started
INTRODUCTION The Bluetooth Wireless Microphone allows capturing the source of audio wirelessly and freely. Users can listen, capture or record the audio/voice of subject with clarity sound from Bluetooth wireless microphone. Compatible stereo Bluetooth devices ※ must support the Bluetooth profile known as A2DP, Headset/Handfree profiles. -
Page 3: Product Overview
PRODUCT OVERVIEW See image below. Please note some models of microphone will differ slightly in style, colour and the functionality may vary according to their specifications. USB Charging Connector On/Off Clipper /Volume Button CHARGING Before using the microphone, you must charge it for approximately 2 hours. - Page 4 Plug charging cable into microphone mini USB connector. Plug the other side of the USB charging cable into a powered USB connector. When charging, the amber LED will be lighted. When charging is completed, the amber LED will be turn off.
- Page 5 TURN ON AND PARING Type A and Type B of pairing modes supporting: Microphone can work with 2 different types of devices. Type A: Audio receivers, speakers and headsets Type B: iPhones, iPads, android phones, smartphones, tablets, PCs, laptop, Mac. Those will indicate with different LED lighting during pairing.
- Page 6 Turn on your Microphone into pairing mode Press and hold the ON/OFF button about 2 seconds, the blue LED will solid light for about 1 second, then release the button. Microphone will be turned on and inter current type A or B pairing mode automatically.
- Page 7 Switch to desired Type A or Type B mode When you press and hold the ON/OFF button without released, the microphone will switch between the type A and B mode circularly with different LED indication. When the microphone is into desired pairing mode, release the button, the microphone will keep this pairing mode for using.
- Page 8 Type A: To pair with an A2DP enabled Bluetooth audio receivers, speakers or headsets 1. Turn on the Microphone and into type A pairing mode. 2. After the Microphone is in pairing mode, initiate pairing feature on the audio receiver. Refer to your audio receiver’s User Guide.
- Page 9 Type B: To pair with iPhones, iPads, tablets, android phones, smartphones, laptop, Mac and PCs…etc 1. Turn on the Microphone and into type B pairing mode. 2. Initiate Bluetooth search feature and find the device name “BTMIC”. If pin code requested during pairing, please submit the pin code 0000.
- Page 10 When pairing completed connected, the blue LED will begin to flash. In your laptop or pc, please ensure your ※ Bluetooth driver supported or included headset/handfree profile. The most of default Bluetooth drivers of Microsoft OS such as Win7 does not come with headset/handfree profile, you may need to upgrade or install 3rd party driver such as Microsoft, Broadcom's Widcom, Toshiba,...
- Page 11 Auto-reconnect to the Microphone When Microphone is paired with your Bluetooth device, you just need to turn on the Microphone and your Bluetooth device in the later using, and they will connect to each others automatically. Manually connect the Microphone When your turn on the Microphone or the Receiver, they will auto-reconnect to each other.
-
Page 12: Adjusting Audio Volume
At the type B mode, when connected with PC, please set the Microphone as the default audio input device from system audio setting in your PC. When connected with iPhone, iPad or android, you need to run the suitable audio or video recording apps which supports... -
Page 13: Visual Indication
VISUAL INDICATION The POWER/MODE/ LED can also indicate the status of microphone working statues. Statues Indication Charging amber LED is On Low speed flash, approx. every 5 Not Connected seconds Medium speed Connected flash, approx. every 2 seconds Pairing mode with blue LED flashes audio receiver... -
Page 14: Troubleshooting
TROUBLESHOOTING Please note that you should also be familiar with the operation of your audio receiver, mobile phone other connecting Bluetooth device. Please read the User Guide for your device carefully. For opera- tion with a PC or laptop please note that these devices should also be Bluetooth enabled with... -
Page 15: Customer Service Information
Cannot pair with Type B pairing mode iPhone, iPad, Mac, with blue and amber PC...etc light flashing CUSTOMER SERVICE INFORMATION For other Nolan Bluetooth products or support, please view website – www.nolan-sys.com or email info@nolan- sys.com or contact your local representative. - Page 16 DISCLAIMER Whilst every effort has been made to ensure that the information in this manual is accurate and complete, no liability will be accepted for any errors and/or omissions made. The manufacturer reserves the right to make changes and improvements to the specifications and features of the hardware and firmware of the products described in this document without prior notice.
