1. Manuals
  2. Brands
  3. Nolan Manuals
  4. Microphone
  5. NSRXRM3C2MRS
  6. User manual

Nolan NSRXRM3C2MRS User Manual

Bluetooth wireless livemicrophone & receiver set
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BLUETOOTH WIRELESS
LiveMicrophone & Receiver Set
Declaration
NSRXRM3C2MRS conforms to the R&TTE Directive 1999/5/RC.
0678
P/N NSRXRM3C2MRS
USER GUIDE
of
Conformity:
FCC ID:TNZNSRXRM3C2XXX
FCC ID:TNZNSRX3C3C2XXX
R E C EIV E R
.
We
declare
that
product

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NSRXRM3C2MRS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nolan NSRXRM3C2MRS

Summary of Contents for Nolan NSRXRM3C2MRS

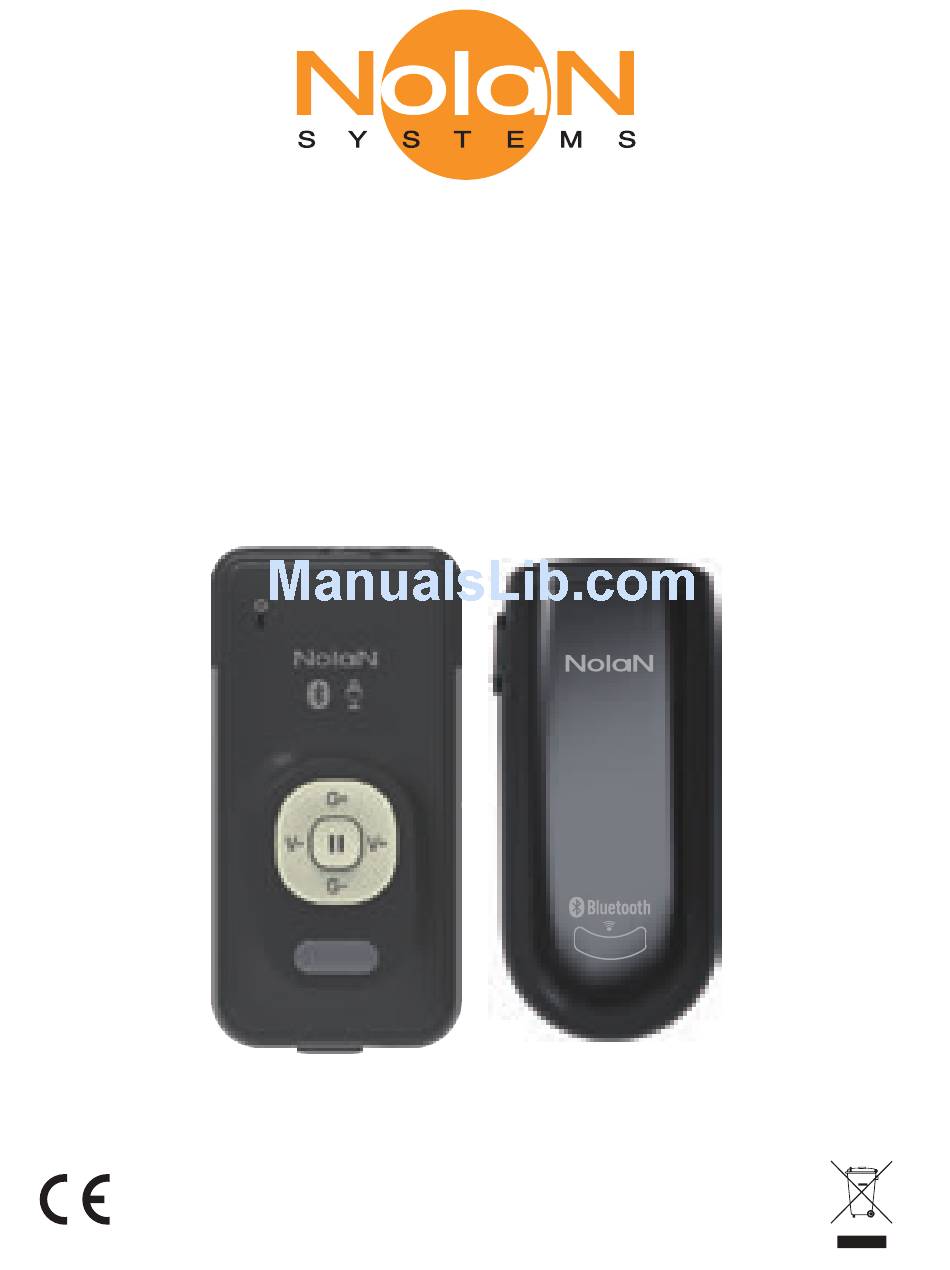

  • Page 1 BLUETOOTH WIRELESS LiveMicrophone & Receiver Set P/N NSRXRM3C2MRS USER GUIDE R E C EIV E R Declaration Conformity: declare that product NSRXRM3C2MRS conforms to the R&TTE Directive 1999/5/RC. FCC ID:TNZNSRXRM3C2XXX 0678 FCC ID:TNZNSRX3C3C2XXX...

  • Page 2: Getting Started

    INTRODUCTION The LiveMicrophone & Receiver Set allows captur- ing the source of audio wirelessly and freely with LiveMIC wireless microphone. This wireless microphone & receiver provides the unique low latency to allow receiver to have well listening or recording remote voice without delayed. GETTING STARTED Unpack the package carefully and confirm that you have all of parts as shown below.

  • Page 3: Product Overview

    3.5mm earphone 3.5mm TRRS Receiver(RX) stereo cable Please check the contents carefully and contact your local dealer immediately if anything is missing or damaged. PRODUCT OVERVIEW See image below. Please note some models will differ slightly in style, colour and the functionality may vary according to their specifications.
  • Page 4 Earphone and External Mic Jack USB Charging Connector Uni Mic Omni Mic Mic Gain Up Mute Headphone Headphone Volume Down Volume Up On/Off Mic Gain Down Omni /Uni Switch CHARGING Before using the LiveMIC and RX, you must charge it for approximately two hours. After fully charged, the battery provides up to 5 hours of vocie talk time and up to 100 hours of standby time .
  • Page 5 Plug USB charging cable into LiveMIC and RX mini USB connector. Plug the other side of USB charging cable into a powered USB connector. When charging, the amber LED will be lighted. When charging is completed, the amber LED will be turn off or dim.
  • Page 6 TURN ON AND PARING You need to pair both LiveMIC and RX when both first time to use together. 1. On RX, press and hold the ON/OFF button for 2 seconds until blue amber fast flashing alternatively. On LiveMIC, press and hold the ON/OFF button for about 2 seconds until blue...
  • Page 7 The LiveMIC supports two pairing modes. The ※ type A and type B pairing mode have different LED indication. Please ensure you are in type A pairing mode during the pairing. Using LiveMIC desired Type A When you press and hold the ON/OFF button without released, the LiveMIC will switch between the type A and B mode circularly with different LED indication.
  • Page 8 TURN OFF Press and hold the ON/OFF button for about 2 seconds, the amber LED on LiveMIC and blue on RX will stay on for about 1 second and then device will be turn off，release the ON/OFF button. Using for remote voice and commuicaiton 1.
  • Page 9 2. After the both devices connected, plug your earphone 3.5mm audio plug into the RX’s 3.5 mm audio jack, you can listen the voice on the RX from earphone. voice LiveMIC “Speaker” “Listener”...
  • Page 10 Using for listening or recording remote voice Connect to audio output of RX to speakers or iPad/iPhone to listen or record remote voice wirelessly. Tablet iPhone Speaker camcorder audio or voice LiveMIC “Tansmitter” “Receiver”...
  • Page 11 Adjusting the RX Audio Volume To increase the audio volume While listening audio, click the ON/OFF button once to increase the volume by one step. Repeat this procedure until you reach the desired level. To decrease the audio volume While listening audio, quick click the ON/OFF button two times continuously to decrease the volume by one step.
  • Page 12 USING MICROPHONE ON LIVEMIC The LiveMIC supports internal and external microphone Using internal Uni and Omni directional microphone Put LiveMIC microphone close to the sound source around 8 inches to captured the best sound quality. Too far away max. 20cm 8 inches Slide microphone...
  • Page 13 Both unidirectional and omnidirectional  microphones have their advantages and disadvan- tages. The important thing is to know the applica- tion of the microphone in use to know which would be better for the given situation around. Unidirectional  (Cardioid) microphone is used that the target sound source pick up directly in front of the...
  • Page 14 Good Weak Good Good Weak Good Omnidirectional Unidirectional Using external microphone LiveMIC external microphone – When plug the suitable 3.5mm audio plug of external microphone into the LiveMIC audio jack, LiveMIC will scan the external microphone and amber LED will flash once.
  • Page 15 This type of external microphone is suitable  for LiveMIC Signal retrun Left Microphone Right Groud 4 3 2 This type of external microphone needs a  reversed converter to plug into LiveMIC. Signal retrun reversed Left Microphone Right Groud converter 4 3 2 This type of external microphone needs a split...
  • Page 16 Adjust microphone gain, headphone volume or mute the LiveMIC LiveMIC provides 5 buttons to let you adjust the microphone gain, headphone monitoring volume and toggle the mute/un-mute state. Mute Mic Gain Up Headphone Headphone Volume Down Volume Up Mic Gain Down G+ and G- : Single press to increase and ...

  • Page 17: Visual Indication

    VISUAL INDICATION The POWER/MODE/AUDIO LED can also indicate the status of LiveMIC and RX working statues. Statues Indication Charging amber LED is on blue LED Low speed flash, approx. every Not Connected 5 seconds blue LED middle Connected speed flash amber blue blinking...

  • Page 18: Troubleshooting

    10m LiveMIC will not distance range and pair with RX LiveMIC using in type A mode. CUSTOMER SERVICE INFORMATION For other Nolan Bluetooth products or support, please view our website – www.nolan-sys.com or email info@nolan-sys.com or contact your local representative.
  • Page 19 DISCLAIMER Whilst every effort has been made to ensure that the information in this manual is accurate and complete, no liability will be accepted for any errors and/or omissions made. manufacturer reserves the right to make changes and improve- ments to the specifications and features of the hardware and firmware of the products described in this document without prior notice.

Table of Contents
