Summary of Contents for Bush DFTA13HD

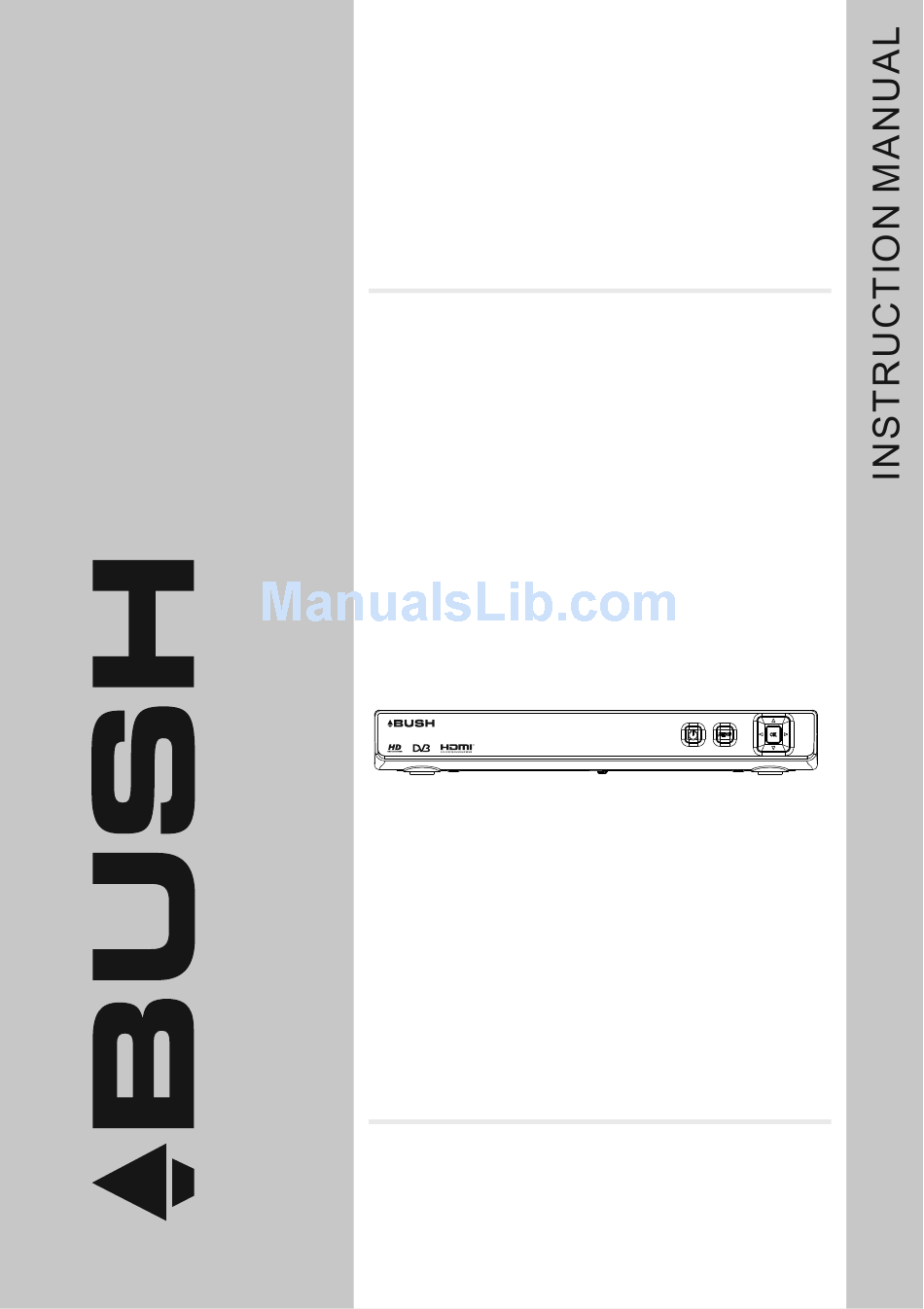

- Page 1 Digital Set Top Box DFTA13HD DFTA13HDSIL The Gold Technical Support Line: 1902 215 259 Personal Product Support (Charges will apply at $2.95 per minute)
-
Page 3: Introduction
Introduction Thank you for buying this Bush product, which is designed to give you many years of trouble-free service. You may already be familiar with using a similar unit, but please take time to read these instructions. They are designed to familiarise you with the units many features and to ensure you get the very best from your purchase. -
Page 4: Safety Instructions
Copyright Statement No part of this publication may be reproduced in any form by any means without prior written permission of BUSH Australia. Other trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective companies. Disclaimer Information in this document is subject to change without notice. -
Page 5: Table Of Contents
Table Of Contents Introduction......................... 2 Safety Instructions....................... 3 Table Of Contents......................... 4 About the Set Top Box......................5 Main Features............................5 Package Contents........................... 5 Front Panel and Rear Panel Illustration................6 Front Panel..............................6 Rear Panel..............................6 Remote Control........................7 Using the Remote Control........................7 Installing the Batteries...................... -
Page 6: About The Set Top Box
About the Set Top Box This DVB-T TV Receiver is a Free-T o-Air digital terrestrial receiver, allowing you to access free-to-air digital terrestrial TV channels and radio broadcasts on your TV set. Its digital reception covers VHF & UHF band. Compared with analog TV programs, digital TV programs eliminate the noise and interference by offering high quality video and audio. -
Page 7: Front Panel And Rear Panel Illustration
POWER CONSUMPTION: 10WATTS AC IN 240V~ MADE IN P.R.C VIDEO 50Hz 10W YYYY/MM BUSH WARRANTY: 1800 509 394 AUSTRALIA BUSH WARRANTY: 0800 450 259 NEW ZEALAND Serial No.: ANT IN RF OUT HDMI VIDEO L - AUDIO - R COAXIAL ANT IN Connect the antenna here. -
Page 8: Remote Control
Remote Control Remote key functions: POWER T o turn the standby mode ON/OFF. MUTE T o mute or recover the sound of the receiver. Numeric buttons (0-9) To control the numerical operation and to change programs directly. To display the Audio language, Audio LANG mode and Audio Type. -
Page 9: Installing The Batteries
Installing the Batteries Remove the battery cover from the remote control and put two AAA size batteries inside the compartment. The diagram inside the battery compartment shows the correct way to install the batteries. 3. Close the cover 1. Open the cover 2. -
Page 10: Setting Remote Control Learning Keys
Setting Remote Control Learning Keys Setting of Learning Keys There are seven keys on the remote control for TV set, VOL+/-, CH+/-, POWER and two customer design keys, F1/F2. All the other keys are for converter. Make sure that the TV sets remote control is working properly, and then set the learning keys according to the following steps: Step 1: Insert batteries as outlined previously. -
Page 11: Connecting To Equipments
POWER CONSUMPTION: 10WATTS AC IN 240V~ MADE IN P.R.C VIDEO 50Hz 10W BUSH WARRANTY: 1800 509 394 AUSTRALIA YYYY/MM BUSH WARRANTY: 0800 450 259 NEW ZEALAND Serial No.: ANT IN RF OUT HDMI VIDEO L - AUDIO - R COAXIAL... - Page 12 POWER CONSUMPTION: 10WATTS AC IN 240V~ MADE IN P.R.C VIDEO 50Hz 10W BUSH WARRANTY: 1800 509 394 AUSTRALIA YYYY/MM BUSH WARRANTY: 0800 450 259 NEW ZEALAND Serial No.: ANT IN RF OUT HDMI VIDEO L - AUDIO - R COAXIAL...
- Page 13 POWER CONSUMPTION: 10WATTS AC IN 240V~ MADE IN P.R.C VIDEO 50Hz 10W BUSH WARRANTY: 1800 509 394 AUSTRALIA YYYY/MM BUSH WARRANTY: 0800 450 259 NEW ZEALAND Serial No.: ANT IN RF OUT HDMI VIDEO L - AUDIO - R COAXIAL...
-
Page 14: First Time Installation
First Time Installation Note: Be sure to turn on the main power at the rear of your receiver before using the receiver. Before you press power button, the receiver is on standby mode. After all the connections have been made properly switch on your TV. Make sure the receiver is connected to the mains and press the POWER button to switch the receiver on. - Page 15 Basic Operations Switch program 1. Press the numeric buttons (0~9) on the remote control to select the channel number you want. 2. Press the ▲ ▼ key on the remote control or the front panel to change the available channels upward/downward.
-
Page 16: Basic Operations
Basic Operations Change TV/Radio mode Press the TV/RADIO button to change the program list mode between TV and Radio. Radio signal for example. View program INFO 1. Press the INFO button once and twice to view the detailed information of current program. 2. - Page 17 Basic Operations 3. Press the button to view the detailed information of the current broadcast. 4. Press the RED button to view the event information of the previous day, press the Green button to view the event information of the next day, press the YELLOW button to enter...
-
Page 18: Main Menu
Main Menu This section guides you to walk through of all options on the Menu screen. Navigation in the main menu 1. Press the MENU button to bring up the main menu. 2. Press the ▲ ▼ button to move upward/downward to the desired menu. ◄/►button to move to the sub menu and press ▲... -
Page 19: Menu Tree
Main Menu Menu Tree Channel Manager Channel Organiser Favorite List New Channel Edit Channel Delete All System Installation Auto Scan Manual Scan Delete Carrier System Configuration System Setup Language Time Wakeup Timer Parental Lock Factory Default Accessories Game Version Media Manager Playlist Manager Media Info Safe Remove... -
Page 20: Channel Manager
Channel Manager Channel Organiser 1. Go to Main Menu > Channel Manager > Channel Organiser 2. Press numeric 1 and the button to lock the channel, 2 and to skip, 3 and ▲ ▼ delete, 4 and to move the channel to the place you want, then press the button. -
Page 21: New Channel
Channel Manager New Channel 1. Go to Main Menu > Channel Manager > New Channel ▲ ▼ 2. Press to select the item and press and do the change according to the ◄/► menu showed on the below menu bar. 3. -
Page 22: Delete All
Channel Manager Delete All 1. Go to Main Menu > Channel Manager > Delete All There are three items you can choose: All Services, All Radio Services, All Carriers. ▲ ▼ Press to choose the item you want to delete. Then a menu will be showed to confirm with you if you want to do... -
Page 23: Auto Scan
System Installation Auto Scan 1. Go to Main Menu > System Installation> Auto Scan 2. Press to start scanning. 3. Press EXIT to exit the menu. Manual Scan 1. Go to Main Menu > System Installation > Manual Scan ▲ ▼ 2. -
Page 24: System Installation
System Installation Delete Carrier 1. Go to Main Menu > System Installation > Delete Carriers ▲ ▼ 2. Press to select one you want to delete and press There will be an info show up to remind you of confirming deleting YES or NO. Press to choose and ◄/►... -
Page 25: System Configuration
System Configuration System Setup Go to Main Menu > System Configuration > System Setup. There will be the following items, such as: Language, OSD, TV, Time, Wakeup Timer, Parental Lock. Language 1. Select Language, and press to enter into it. ▲... -
Page 26: Osd
System Configuration 1. Select OSD, and press to enter into it. ▲ ▼ 2. Press to choose the item you want to set. Press to select what ◄/► you would like. 3. Press to choose LPM (Low Power Mode ) in standby mode. When you choose ◄/►... -
Page 27: Time
System Configuration Time 1. Select Time, and press to enter into it. ▲ ▼ 2. Press to choose the item, and press to choose timer mode, if you select ◄/► Manual, you can set the date and time with the numeric keys 0~9. 3. -
Page 28: Parental Lock
System Configuration Parental Lock 1. Select Parental Lock, Press to enter into it. 2. Select Parental Rating to set the rating you want. There are nine kinds of ratings: None, P, C, G, PG, M, MA, AV, R. Select old Password to change the password to a password that you can easily remember. -
Page 29: Accessories
System Configuration Accessories Go to Main Menu > System Configuration > Accessories In the menu, there are two submenus: Game and Version. Game 1. Select Game and Press to enter it. ▲ ▼ 2. Press to choose the game you want, then Press to enter. -
Page 30: Media Manager
Media Manager Note: Before you play the Media Manager, make sure the USB has been connected to the receiver. Playlist Manager 1. Go to Main Menu > Media Manager > Playlist Manager. 2. You will have the OSD picture displayed as below, press the colour button to add the playlist. - Page 31 Media Manager ▲ ▼ 3. Press arrow buttons or arrow buttons until the highlight bar is on the ◄/► JPG file. 4. Select the JPG file, then press the RECALL button, wait a second, and the blank black pane will display the selected picture. 5.
- Page 32 Media Manager 6. If you select more than one picture file in the Playlist, when you press RECALL display the picture on full screen, the unit will display all pictures from the one you select one by one. (Please note: If the selected one is not first in playlist, the picture above it will not display.) For one-by-one displaying, you can press the Blue...
-
Page 33: Media Info
Media Manager 8. Press EXIT to see the Playlist Manager with the playlist you set. Press RECALL to display on full screen Press the Green coloured button to enter into its Media browser. In the media browser menu, press the coloured button to remove the picture you want to delete. -
Page 34: Safe Remove
Media Manager Safe Remove 1. Go to Main Menu > Media Manager > Safe Remove 2. Press , it will shows an OSD to confirm with you if remove media. 3. Select YES to remove the USB, NO to cancel remove. Note: Please remove the USB from the receiver as per the above instructions. -
Page 35: Trouble Shooting
Trouble Shooting If you experience problems with this receiver or its installation, in the first instance please read carefully the relevant sections of this User Manual and this Troubleshooting section. Problem Possible cause What to do LED light on front panel not lit Main lead unplugged Check mains lead Main fuse blown... -
Page 36: Technical Specifications
Technical Specifications Item Specification RF IN IEC female connector RF Loop Through IEC male connector YPbPr RCA for component video output L/R x 2 RCA, Analog audio output Connectors S-Video RCA for Y/C Video output Coaxial RCA, for SPDIF digital audio output HDMI 1.2 Version For software upgrade and viewing JPG file... -
Page 37: Warranty
6. The manufacturer disclaims any liability for incidental or consequential damaged. This guarantee is in addition to, and does not diminish, your statutory or legal rights. PO BOX 6287 Silverwater NSW 1811 www.bushaustralia.com.au Bush Helpline: 1800 509 394 Australia Bush Helpline: 0800 450 259 New Zealand... - Page 38 www.bushaustralia.com.au...
