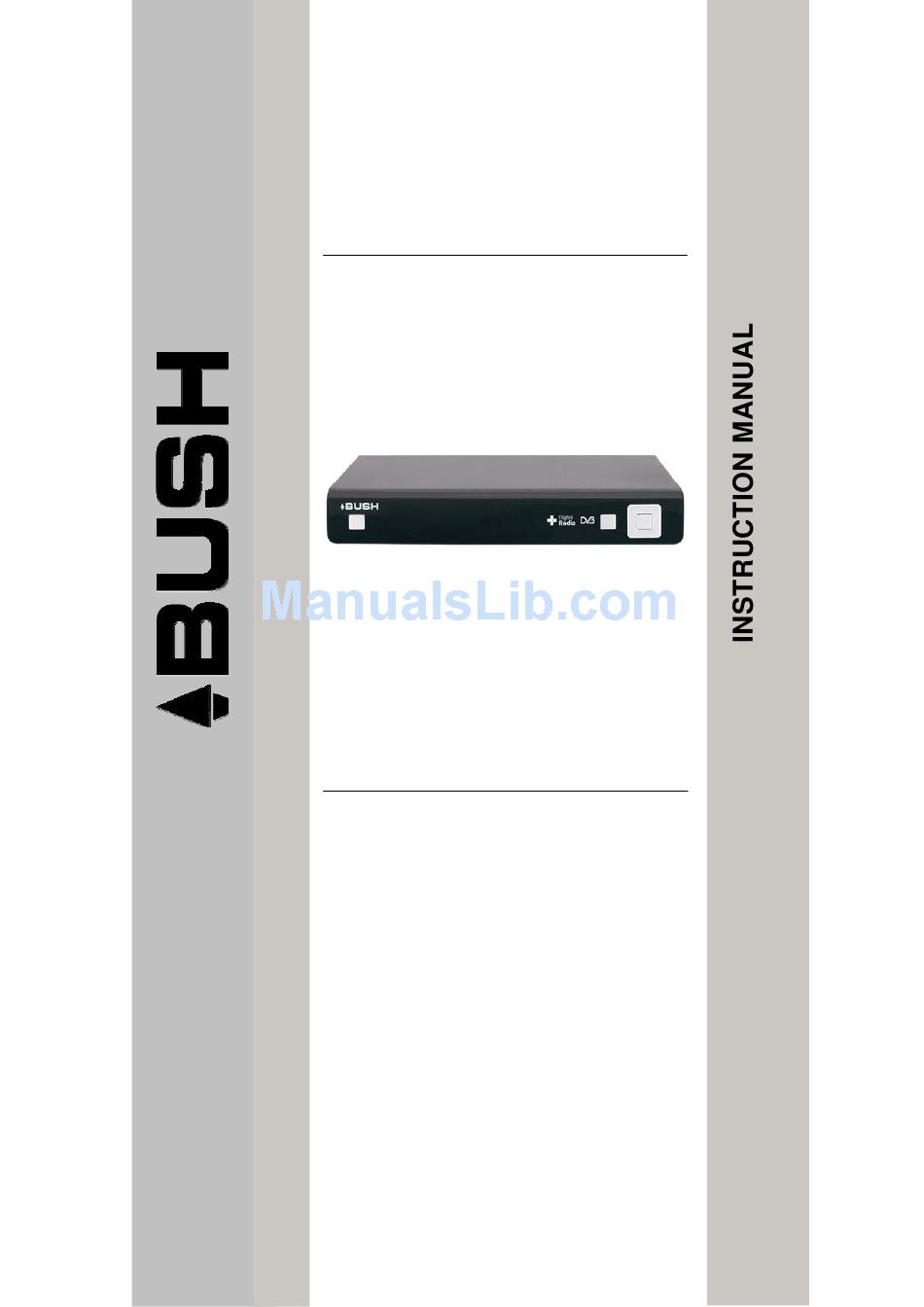

- Page 1 High Definition Digital Set Top Box with DAB+ Receiver DFTA52DAB The Gold Technical Support Line: 1902 215 259 (Charges will apply at $2.95 per minute)
-
Page 2: Introduction
Introduction Thank you for buying this Bush product, which is designed to give you many years of trouble-free service. You may already be familiar with using a similar unit, but please take time to read these instructions. They are designed to familiarise you with the unit’s many features and to ensure you get the very best from your purchase. -
Page 3: Table Of Contents
Table of Contents Introduction……………………………………………… Table of Contents………………………………………… Safety Instructions……………………………………… About the Set Top Box………………………………… Front Panel and Rear Panel…………………………… Front Panel …………………………………………… Rear Panel…………………………………………… Remote Control…………………………………………… Installing the Batteries…………………………………… Connecting to Equipments……………………………… 9-11 First Time Installation…………………………………… Basic Operation of DVB………………………………… 13-14 DVB Main Menu…………………………………………... -
Page 4: Table Of Contents
Table of Contents User Preferences for DVB….…………………………… Volume Bar Time Out...……………………………… Parental Control……………………………………… 22-23 DAB Main Menu………………………………………… Operation of DAB………………………………………. 25-26 Operatoin of FM………………………………………… Trouble Shooting………………………………………… Technical Specification………………………………… Warranty……………………………………………………... -
Page 5: Safety Instructions
• Place this Set Top Box on a reliable flat surface before setting it up • Do not place it on soft furnishings • If any of the following situations arise, contact the Bush Service and Warranty technicians: - If the Set Top Box has been exposed to any liquids or moisture - If the Set Top Box has been damaged in any way - If the Set Top Box is not working as per the instructions in this instruction manual. -
Page 6: About The Set Top Box
About the Set-Top-Box This High Definition Digital Set Top Box with DAB+ Set Top Box allows you to access all High Definition Digital TV channels and DAB+ Digital Radio stations. Its digital reception covers VHF & UHF bands. Digital TV eliminates noise and interference and offers high quality video and audio. -
Page 7: Front Panel And Rear Panel
Front Panel and Back Panel Front Panel 1. POWER Button: Press the Power Button to switch the unit on or off. 2. MENU Button: Press the Menu Button to enter the Main Menu. 3. OK Button: Press the OK button to confirm and menu or setting selections. 4. -
Page 8: Remote Control
Remote Control Power Button: Press the Power Button to switch the TV on or off. Numeric Buttons: Press the Numeric Buttons to select a channel or select a page in the Teletext. INFO Button: Press the INFO Button to view the program information of what you are watching. -
Page 9: Installing The Batteries
Installing the Batteries Remove the battery cover from the remote control and put two AAA size batteries inside the compartment. The diagram below shows the correct way to install the batteries. Caution: 1. Keep the batteries out of the reach of children. 2. -
Page 10: Connecting To Equipments
Connecting to Equipments How to get good reception • You do not need to change or replace your existing TV Antenna to receive digital reception. However if your antenna is not in good condition it is recommended that you consider replacing it to ensure uninterrupted digital television viewing. - Page 11 Connecting to Equipments Connect your Set Top Box via Component (YPbPr Output and Audio Output) Connect your Set Top Box via VGA Output and Audio Output...
- Page 12 Connecting to Equipments Connect your Set Top Box via HDMI Output Connect your Set Top Box via Optical/Mixed Audio L/R Output...
-
Page 13: First Time Installation
First Time Installation Note: Be sure to turn on the main power at the front of your Set Top Box before operating. After all the connections have been made, turn on your TV. Make sure that the Set Top Box is connected to the main power and switched on. -
Page 14: Basic Operation Of Dvb
Basic Operations of DVB Changing Channels 1. Press the NUMERIC Buttons (0~9) on the remote control to select the channel number you wish to watch. 2. Press the ▲, ▼ Buttons on the remote control or the front panel to scroll through the available channels. 3. -
Page 15: Basic Operation Of Dvb
Basic Operations of DVB To view the program information 1. Press the INFO Button to view the detailed information of current program. 2. Press the INFO/ EXIT to exit this information menu. Subtitles Press the SUB Button to turn on or off the subtitles. Teletext Menu 1. -
Page 16: Dvb Main Menu
DVB Main Menu Set Top Box Menu Tree This section guides you through all of the options in the Main Menu. The Main Menu is divided into 3 sections. Main Menu 1. Press the MENU Button to bring up the Main Menu or return to previous Menu. 2. -
Page 17: Program Edit
Program Edit TV Program Edit 1. Press the MENU Button and then select the Setting Sub-Menu and select Program Edit. 2. Press the ▲▼ Buttons to scroll through the options. 3. Press the RED Button to add a program to your favorites list. The FAV icon will appear next to the program. -
Page 18: Live Tv & Electronic Program Guide
Live TV & Electronic Program Guide (EPG) Live TV 1. Press the Menu Button to select the Live TV Menu and then select Channel list and TV option. 2. Press the ▲▼ Buttons to select the program you like. 3. Press the EXIT Button to exit all menus. EPG (Electronic Program Guide) 1. -
Page 19: Setting For Dvb
Setting for DVB Installation Auto Scan 1. Press the MENU Button to select the Main Menu and then select Settings, Installation and then DVB. 2. Press the RED Button select and begin the Auto Scan for all new channels. 3. Press the EXIT Button if you wish to stop the Auto Scan. -
Page 20: System Setup For Dvb
System Setup of DVB A/V Output Settings 1. Press the Menu Button to enter the Main Menu and then select the Setting, System Setup and finally A/V Output Setting. 2. Press the ▲▼ Buttons to scroll through and select the required options of; Video Resolution, Display Aspect Ratio, Aspect Ratio, Conversion, Audio SPDIF, TTX Type and AV Settings. -
Page 21: Timer Setup (Tv/Radio Timer)
System Setup of DVB TV/Radio Timer 1. Press the Menu Button to enter the Main Menu and then select the Setting, System Setup, TV/Radio and Timer List. 2. Press the ▲▼ Buttons to select the program. 3. Press the GREEN Button to mark the program, a check icon “√” will appear. Press the GREEN Button again to cancel this operation, the icon will disappear. -
Page 22: Factory Default
System Setup & User Preferences of DVB Factory Default 1. Press the Menu Button to enter the Main Menu and then select the Setting, System Setup and then Factory Default. 2. Press the OK Button and enter the correct the PIN code and press the OK Button again to confirm your selection, the factory default data will be loaded and begin to reset your Set Top Box Settings. -
Page 23: User Preferences For Dvb
User Preferences of DVB Volume Bar Time Out 1. Press the Menu Button to enter the Main Menu and then select the Setting, User Preferences and then Volume Bar Time Out. 2. Press the ▲▼ Buttons to select the Volume Bar Time Out option. Press the OK Button to enter the submenu. 3. -
Page 24: Parental Control
User Preferences of DVB 4. System Setup Menu In the parental control menu you are able to lock/unlock the System Setup Menu 5. User Preferences Menu In the parental control menu you are able to lock/unlock the User Preference Menu. 6. -
Page 25: Dab Main Menu
DAB+ Main Menu DAB+ Menu Tree This section guides you through all of the options in the DAB+ Main Menu. The Main Menu is divided into 3 sections. DAB+ Main Menu 1. Press the MENU Button to bring up the Main Menu or return to previous Menu. 2. -
Page 26: Operation Of Dab
Operations of DAB+ Select DAB+ Function 1. Press the TV/DAB Button to switch to DAB+ Mode. 2. Press the OK Button to enter the DAB+ mode. Press the ▲▼ Buttons to select the station you desire. Channel Scan Auto Scan 1. -
Page 27: Operation Of Dab
Operations of DAB+ Viewing Station List 1. Press the Menu Button to enter the Main Menu and then select the Live TV, Channel list and then Radio. 2. Press the ▲▼ Buttons to select the program you desired. 3. Press the EXIT Button to exit all menus. Program List 1. -
Page 28: Operatoin Of Fm
Operations of FM Select FM Function 1. Press the TV/DAB Button to select the FM option. 2. Press the OK Button to enter FM mode. Press the ▲▼ Buttons to manual tune frequency to obtain the optimum reception. 3. Press the ◀▶ Buttons to auto search station, and the strongest singal will automatically playback if found. -
Page 29: Troubleshooting
If you have any issues or queries about the functions of this Set Top Box, please check the below table as we have provided you with FAQs to assist with any issues. If this table is not of assistance, please contact the Bush warranty line. Problem... -
Page 30: Technical Specification
Technical specifications Tuner Frequency Range VHF: 51MHz to 400MHz UHF: 448MHz to 858MHz Input Impedance 75Ohms unbalanced Signal Input Level -78~-25dbm Bandwidth 7MHz Demodulation Demodulator COFDM OFDM Modulation 2K, 8K FFT, SFN and MFN Packed Carries 2K/8K Guard Interval 1/4, 1/8, 1/16, 1/32 Connectors RF IN IEC 169-2 female connector... -
Page 31: Warranty
● The manufacturer disclaims any liability for incidental or consequential damaged This warranty is in addition to, and does not diminish, your statutory or legal rights. PO BOX 6287 Silverwater NSW 1811 www.bushaustralia.com.au Bush Warranty: 1800 509 394 Australia Bush Warranty: 0800 450 259 New Zealand... - Page 33 PO BOX 6287 Silverwater NSW 1811 www.bushaustralia.com.au rev.1 30-June-2010...
