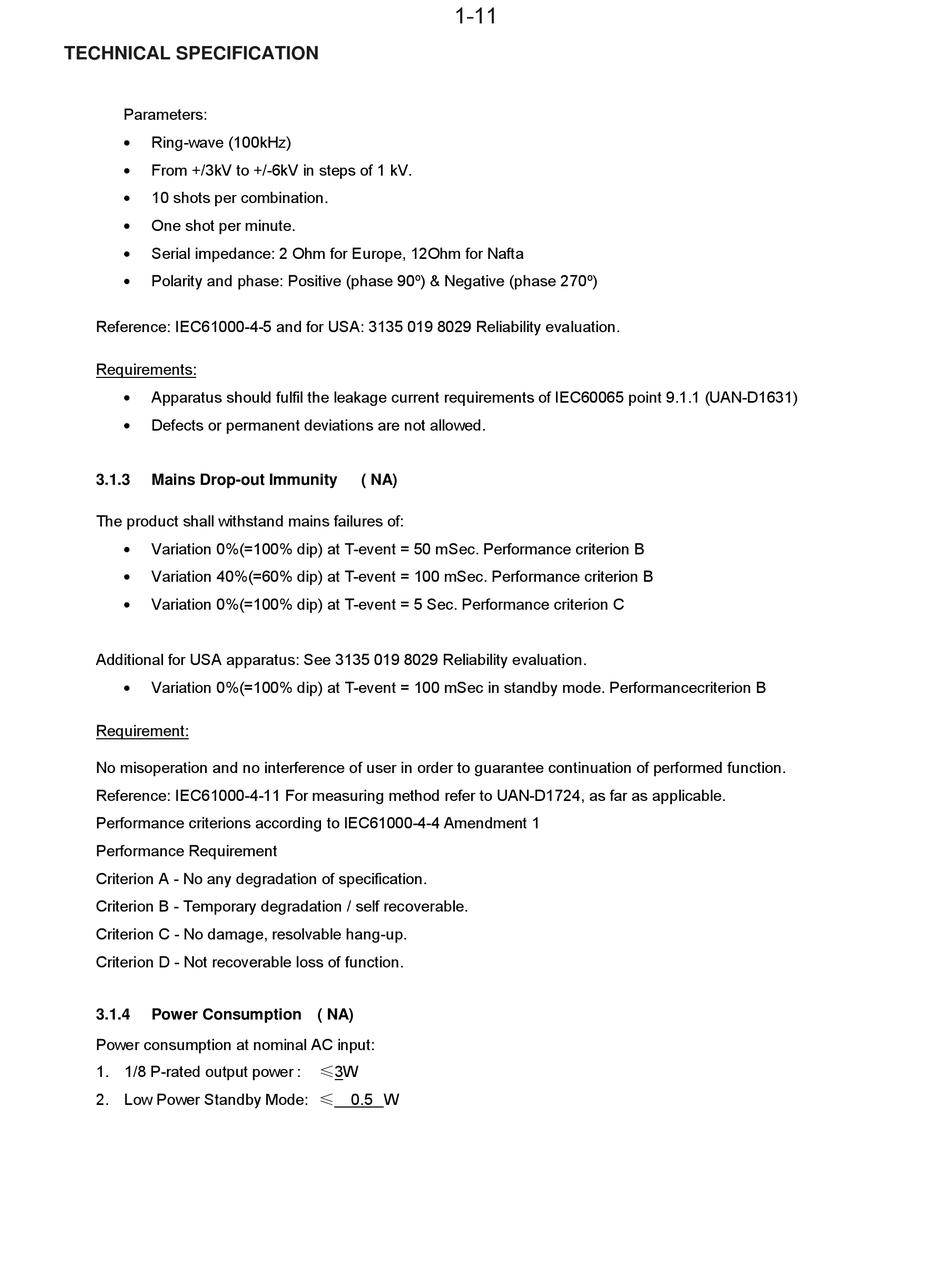

TECHNICAL SPECIFICATION
Parameters:

Ring-wave (100kHz)

From +/3kV to +/-6kV in steps of 1 kV.

10 shots per combination.

One shot per minute.

Serial impedance: 2 Ohm for Europe, 12Ohm for Nafta

Polarity and phase: Positive (phase 90º) & Negative (phase 270º)
Reference: IEC61000-4-5 and for USA: 3135 019 8029 Reliability evaluation.
Requirements:

Apparatus should fulfil the leakage current requirements of IEC60065 point 9.1.1 (UAN-D1631)

Defects or permanent deviations are not allowed.
3.1.3 Mains Drop-out Immunity
The product shall withstand mains failures of:

Variation 0%(=100% dip) at T-event = 50 mSec. Performance criterion B

Variation 40%(=60% dip) at T-event = 100 mSec. Performance criterion B

Variation 0%(=100% dip) at T-event = 5 Sec. Performance criterion C
Additional for USA apparatus: See 3135 019 8029 Reliability evaluation.

Variation 0%(=100% dip) at T-event = 100 mSec in standby mode. Performancecriterion B
Requirement:
No misoperation and no interference of user in order to guarantee continuation of performed function.
Reference: IEC61000-4-11 For measuring method refer to UAN-D1724, as far as applicable.
Performance criterions according to IEC61000-4-4 Amendment 1
Performance Requirement
Criterion A - No any degradation of specification.
Criterion B - Temporary degradation / self recoverable.
Criterion C - No damage, resolvable hang-up.
Criterion D - Not recoverable loss of function.
3.1.4 Power Consumption ( NA)
Power consumption at nominal AC input:
1. 1/8 P-rated output power :
2. Low Power Standby Mode: ≤
1-11
( NA)
≤3W
0.5 W
