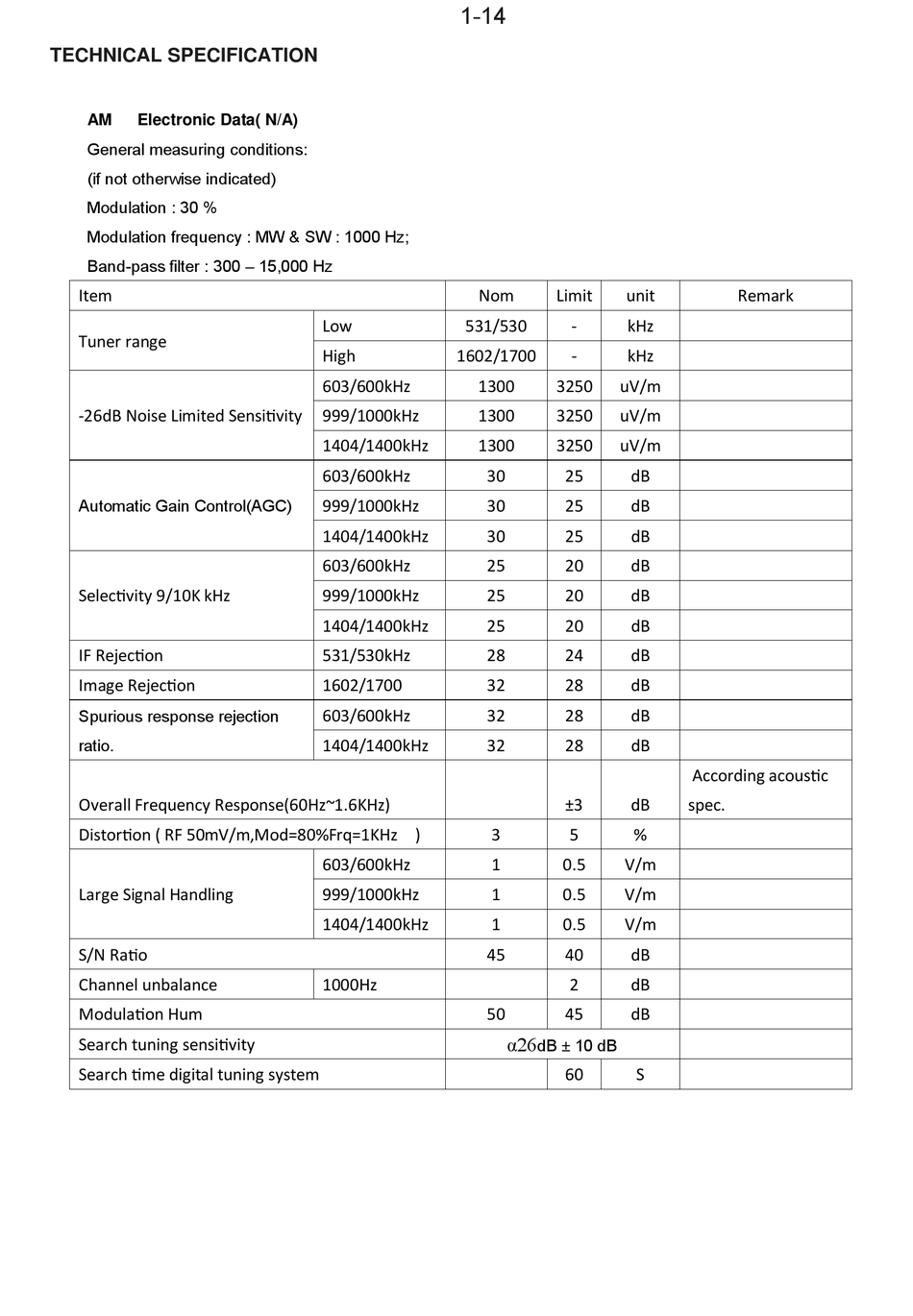

TECHNICAL SPECIFICATION
AM Electronic Data( N/A)
General measuring conditions:
(if not otherwise indicated)
Modulation : 30 %
Modulation frequency : MW & SW : 1000 Hz;
Band-pass filter : 300 – 15,000 Hz
Item
Tuner range
-26dB Noise Limited Sensitivity
Automatic Gain Control(AGC)
Selectivity 9/10K kHz
IF Rejection
Image Rejection
Spurious response rejection
ratio.
Overall Frequency Response(60Hz~1.6KHz)
Distortion ( RF 50mV/m,Mod=80%Frq=1KHz )
Large Signal Handling
S/N Ratio
Channel unbalance
Modulation Hum
Search tuning sensitivity
Search time digital tuning system
1-14
Nom
Low 531/530
High 1602/1700
603/600kHz 1300
999/1000kHz 1300
1404/1400kHz 1300
603/600kHz 30
999/1000kHz 30
1404/1400kHz 30
603/600kHz 25
999/1000kHz 25
1404/1400kHz 25
531/530kHz 28
1602/1700 32
603/600kHz 32
1404/1400kHz 32
3
603/600kHz 1
999/1000kHz 1
1404/1400kHz 1
45
1000Hz
50
Limit unit
- kHz
- kHz
3250 uV/m
3250 uV/m
3250 uV/m
25 dB
25 dB
25 dB
20 dB
20 dB
20 dB
24 dB
28 dB
28 dB
28 dB
±3 dB
5 %
0.5 V/m
0.5 V/m
0.5 V/m
40 dB
2 dB
45 dB
α
dB ± 10 dB
60 S
Remark
According acoustic
spec.
