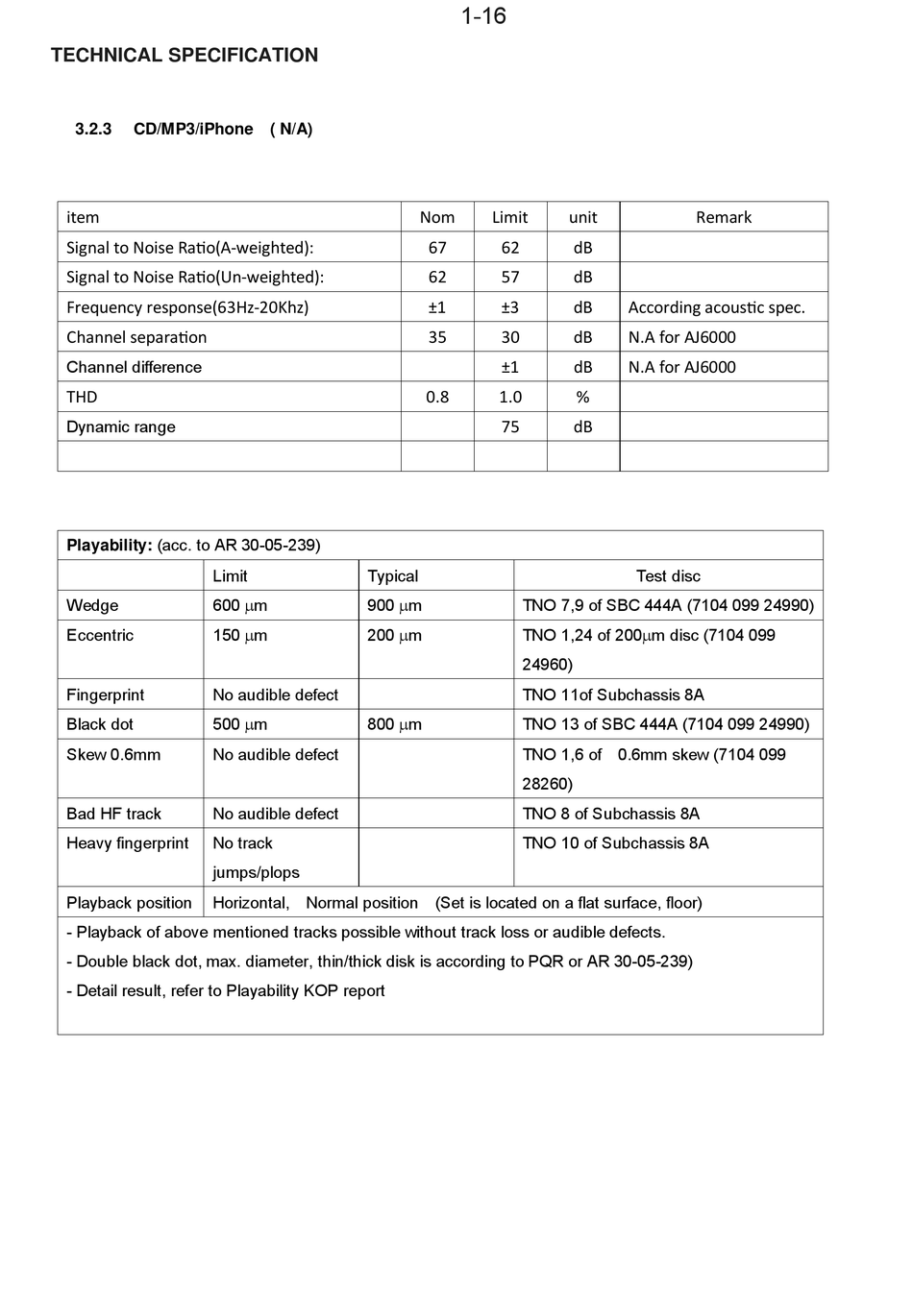

TECHNICAL SPECIFICATION
3.2.3 CD/MP3/iPhone ( N/A)
item
Signal to Noise Ratio(A-weighted):
Signal to Noise Ratio(Un-weighted):
Frequency response(63Hz-20Khz)
Channel separation
Channel difference
THD
Dynamic range
Playability: (acc. to AR 30-05-239)
Limit
600 m
Wedge
150 m
Eccentric
Fingerprint No audible defect
500 m
Black dot
Skew 0.6mm No audible defect
Bad HF track No audible defect
Heavy fingerprint No track
jumps/plops
Playback position Horizontal, Normal position (Set is located on a flat surface, floor)
- Playback of above mentioned tracks possible without track loss or audible defects.
- Double black dot, max. diameter, thin/thick disk is according to PQR or AR 30-05-239)
- Detail result, refer to Playability KOP report
1-16
Nom Limit
67 62
62 57
±1 ±3
35 30
±1
0.8 1.0
75
Typical
900 m
TNO 7,9 of SBC 444A (7104 099 24990)
200 m
TNO 1,24 of 200m disc (7104 099
24960)
TNO 11of Subchassis 8A
800 m
TNO 13 of SBC 444A (7104 099 24990)
TNO 1,6 of 0.6mm skew (7104 099
28260)
TNO 8 of Subchassis 8A
TNO 10 of Subchassis 8A
unit Remark
dB
dB
dB According acoustic spec.
dB N.A for AJ6000
dB N.A for AJ6000
%
dB
Test disc
