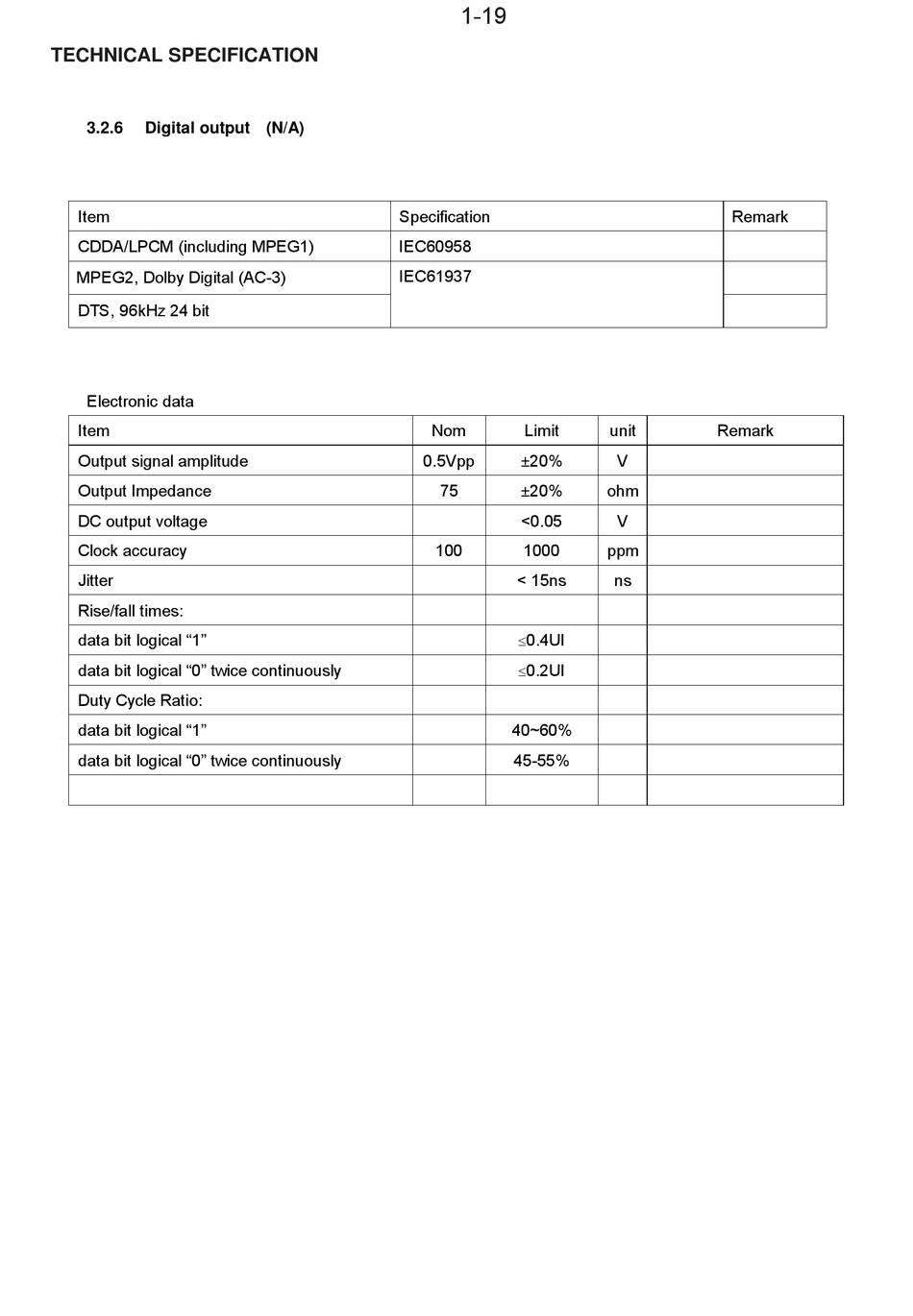

TECHNICAL SPECIFICATION
3.2.6 Digital output (N/A)
Item
CDDA/LPCM (including MPEG1)
MPEG2, Dolby Digital (AC-3)
DTS, 96kHz 24 bit
Electronic data
Item
Output signal amplitude
Output Impedance
DC output voltage
Clock accuracy
Jitter
Rise/fall times:
data bit logical "1"
data bit logical "0" twice continuously
Duty Cycle Ratio:
data bit logical "1"
data bit logical "0" twice continuously
1-19
Specification
IEC60958
IEC61937
Nom Limit
0.5Vpp ±20%
75 ±20%
<0.05
100 1000
< 15ns
 0.4UI
 0.2UI
40~60%
45-55%
Remark
unit Remark
V
ohm
V
ppm
ns
