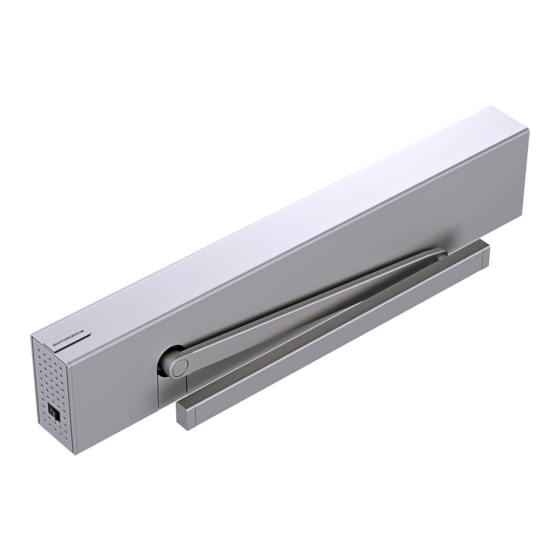

Dorma ED100 Service Manual

Low energy / full energy swing door operators
Hide thumbs Also See for ED100:
Table of Contents

Advertisement

Quick Links

ED100 / ED250
—
Low Energy / Full Energy Swing Door Operators
Service manual

Advertisement

Table of Contents
loading

Related Manuals for Dorma ED100

Summary of Contents for Dorma ED100

  • Page 1 ED100 / ED250 — Low Energy / Full Energy Swing Door Operators Service manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS — ED100 / ED250 Service Manual Document information Operator system Safety Door signage – power operated pedestrian doors Door signage – low energy doors Maintenance Safety checks and inspection Operator environment and cleaning Maintenance Cover removal – accessing user interface User interface Internal program switches –...

  • Page 3: Ed100 / Ed250 Service Manual

    Manual overview This manual is designed to provide service information regarding ED100 / ED250 swing door operator systems. These systems are used exclusively for opening and closing interior swing doors with the following door maximum weights: ED100: 220 lb [100 kg] ƒ...

  • Page 4: Operator System

    Axle connection on both sides 13. Track and arm Drive system (motor/gear/spring) Spring tension adjustment – closing force 14. Complete cover Slot for DORMA upgrade cards Internal program switches (2) User interface with information display DORMA AUTOMATICES, Inc. 924 Sherwood Drive...

  • Page 5: Safety

    — Safety This document contains important instructions for safe Residual hazards operation of the ED100 / ED250. After installation, hazards such as minor crushing, Door signage information impact with limited force, and risk to unsupervised children may exist depending on structural design...

  • Page 6: Door Signage - Power Operated Pedestrian Doors

    SERVICE MANUAL — Door signage – power operated pedestrian doors ED100 / ED250 is supplied with door sign decals to alert and instruct pedestrian traffic in operation and function of door. Method of activation determines combination of decals required. Not all decals will be used in every application.
  • Page 7 ED100 / ED250 SERVICE MANUAL — One-way traffic application Two-way traffic application 58” ± 5” 58” ± 5” One-way pair traffic application 58” ± 5” DORMA AUTOMATICES, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211 Subject to change without notice DL3463-050 08/2016...

  • Page 8: Door Signage - Low Energy Doors

    SERVICE MANUAL — 14 Door signage – low energy doors ED100 / ED250 is supplied with door signs to alert and instruct pedestrian traffic in operation and function of the door. For low energy applications, signs are specified in ANSI A156.19, paragraph 6.

  • Page 9: Maintenance

    Label outlines safety checks that should be performed daily condition. The appropriate be in good condition. signage should be present. low energy swinging door controlled by ED100 / ED250 door operator. 7. Have door inspected by an 6. Have door inspected by an AAADM certified inspector...

  • Page 10: Operator Environment And Cleaning

    This can be done by setting Power switch Yellow on end of operator to OFF position (green LED goes out), and / or by setting 115 VAC ED100 / ED250 Power switch branch circuit disconnect to OFF position. Green 3.1 External surfaces of ED100 / ED250 operator system...

  • Page 11: Maintenance

    ANSI/BHMA A156.19-2013 – ANSI standard for power assist and low energy power operated doors Maintenance Cover Inspection by Dorma service should include, as a minimum: 2.1 Track (slide channel) Check for wear. ƒ Check for wear or damage at moving joints.

  • Page 12: Cover Removal - Accessing User Interface

    ED100 / ED250 SERVICE MANUAL — D. Cover removal – accessing user interface Cover removal Basic cover – single operator Cover and cover end caps must be removed to access user interface (Section 07). Types of covers: Single door: basic or professional extended cover Double door: professional or Vario cover To be compliant with UL 325 and CSA C22.2 No.
  • Page 13 Section 19. Green Yellow LED: Maintenance interval indicator. When ƒ illuminated, it is an indication operator system has to be serviced. Maintenance interval is adjustable by DORMA service. Green LED: ON – Indicates internal 24VDC power on. ƒ...
  • Page 14 ED100 / ED250 SERVICE MANUAL — Internal program switches – single door Operator can be set to one of four door control modes using two internal program switches on end of operator. Door will open automatically when night bank Set both switches to "O"...
  • Page 15 Devices must be connected to their respective sockets prior to Electric shock hazard! 115VAC branch circuit powering operator. disconnect for the ED100 / ED250 must be OFF while making these wiring connections! Use documentation provided with each device to determine wiring interface to connection board.
  • Page 16 ED100 / ED250 SERVICE MANUAL — 11. Measure and record reveal depth and door width 1.1 Measure and record reveal depth. Reference Parameter Description Measurement Parameter value paragraph Reveal depth Door width 1.2 Convert measurement into parameter rd value and enter above.
  • Page 17 ED100 / ED250 SERVICE MANUAL — 12. Set spring tension Set spring tension When system is delivered, spring tension is relaxed. Spring has to be pretensioned – a minimum of ten revolutions are required to operate system. System checks spring tension adjustment during learning cycle.
  • Page 18 ED100 / ED250 SERVICE MANUAL — 13 Performing learning cycle If door stops and displays small, rotating “o” and an Learning cycle must be performed while motor is “F”, this is an indication spring tension is too low. cold! Door must not be moved manually or held open STEP 5 If spring tension is too low, turn off power and push or let door close.
  • Page 19 ED100 / ED250 SERVICE MANUAL — 14. Door measurements – Power operated pedestrian door ANSI / BHMA A156.10 – Standard for Power Operated Pedestrian Doors The following table references portions of content from ANSI / BHMA A156.10. Refer to the standard, available through BHMA, for additional information.
  • Page 20 ED100 / ED250 SERVICE MANUAL — 15 Door measurements – Power assist and low energy power operated doors ANSI / BHMA A156.19 – Standard for Power Assist and Low Energy Power Operated Doors The following table references portions of content from ANSI / BHMA A156.19. Refer to the standard, available through BHMA, for additional information.
  • Page 21 ED100 / ED250 SERVICE MANUAL — Closing time Doors shall close from 90° Sc – closing speed automatic mode to 10° in 3 seconds or Factory setting: 25° / sec. longer as required in Table I Adjustment range: Doors shall close from 10°...
  • Page 22 Set both internal program switches to OFF position: "O" and "O". ED100 / ED250 serial number can be found on the information label on the drive unit gearbox cover. ED100 / ED250 serial numbers – firmware versions Version 1.7 –...

  • Page 23: List Of Parameters

    ED100 / ED250 SERVICE MANUAL — 18 Parameterization / service List of parameters List of parameters Reference: Display Description Reference: Display Description number-display number-display Configuration parameters Unlocking during business hours Installation type Status relay function– terminal block X7 Reveal depth...

  • Page 24: Parameter Detail

    ED100 / ED250 SERVICE MANUAL — Parameter detail Unit Parameters / Display Value range factory setting Explanation = bold Installation type 0 – 2 ■ Frame or wall-mounting on swing (hinge) side with track (slide channel), pull version (v1.9). ■ Standard track can be used up to a reveal depth of + 1 3/16"...
  • Page 25 ED100 / ED250 SERVICE MANUAL — Parameter detail Unit Parameters / Display Value range factory setting Explanation = bold Driving parameters Opening speed – ED 100 Degrees / ■ Opening speed refers to automatic mode, this speed can be Automatic mode 8 –...
  • Page 26 ED100 / ED250 SERVICE MANUAL — Parameter detail Unit Parameters / Display Value range factory setting Explanation = bold ■ Parameter is ST. 11. Safety sensor 0 – 6 test ■ Test off; safety sensors are not tested. ■ This is used with IRS-2 infrared safety sensor.
  • Page 27 0 – 1 Test off ■ Parameter is "TS". ■ If using Dorma emergency escape lock SVP-2000 DCW, or M-SVP 2000 DCW, V1.5 or later, a SVP-PR 12 (Power Reserve) module can be used but must be tested on a regular basis.
  • Page 28 ED100 / ED250 SERVICE MANUAL — Parameter detail Unit Parameters / Display Value range factory setting Explanation = bold 0 = off ■ Following activation of the parameter, automatic opening of 0 – 1 door is started when it is manually moved out of the “closed”...
  • Page 29 12 months (v1.7). (yellow LED) ■ Any values other than this must be made with the DORMA hand-held terminal (also see service LED function). 1 – 2 ■ The SL parameter is used to determine what data will be deleted during Factory settings process.
  • Page 30 ED100 / ED250 SERVICE MANUAL — Parameter detail Unit Parameters / Display Value range factory setting Explanation = bold 1 – 5 Degrees ■ Adjustment of door activation angle for Power Assist function (hF). 35. Power assist function ■ Higher hA settings result in better spring force compensation for activation angle easier manual opening.
  • Page 31 Upgrade card provides operator with a DCW bus connection. 3 upgrade card removed, function no longer available 45. Configuration of 0 – 1 Interface is programmed for communication with DORMA hand- COM1 interface held terminal. (upright connector) DORMA TMS software DORMA AUTOMATICES, Inc. 924 Sherwood Drive...
  • Page 32 ED100 / ED250 SERVICE MANUAL — Parameter detail Unit Parameters / Display Value range factory setting Explanation = bold 5 – 40 Degrees ■ Backcheck is angle from which door will be decelerated during manual opening cycles. (v1.9) ■ Backcheck level is automatically optimized during manual door opening cycles.
  • Page 33 ƒ > 8s Fact-Setup Reset system by pressing Reset button on user interface > 3 seconds (cover must be removed to access user User interface display, or the Dorma hand-held terminal, can interface) (v1.8 firmware). display: Power reset ƒ ƒ...

  • Page 34: Error Message Memory, Led Status And Error "E_ " Codes

    Maintenance interval indicator. When illuminated, it is an Latest error message is always stored in error message memory indication that operator system should be serviced. "E0". Maintenance interval is adjustable by DORMA service. As soon as another error occurs, or after existing "E0" error Red LED ƒ...
  • Page 35 ED100 / ED250 SERVICE MANUAL — Troubleshooting chart – Information messages Display Meaning / cause Troubleshooting Display None Obstruction ■ Check door movement while system is de-energized and remove cause of anything obstructing ease of movement. Door is obstructed by an obstacle and door ■...
  • Page 36 ED100 / ED250 SERVICE MANUAL — Troubleshooting chart – Information messages Display Meaning / cause Troubleshooting Display None Braking circuit test ■ Braking circuit test is influenced by system tolerances and by environmental conditions; for these System could not successfully perform...

  • Page 37: Troubleshooting Charts

    ED100 / ED250 SERVICE MANUAL — Troubleshooting chart – Information messages Display Meaning / cause Troubleshooting Display Flashing System error 1 (second shutdown option) seven In order to deactivate the operator safely at times E 71 If test fails permanently, control unit must be replaced.
  • Page 38 ED100 / ED250 SERVICE MANUAL — Troubleshooting chart Display Malfunction Meaning / cause Troubleshooting Display Program switch type parameter PS Adjust parameter PS for installed program Internal / external program switches are not is set incorrectly. switch type. working, or are working Internal program switch’s cable(s)
  • Page 39 — 20 Operational topics Low energy and full energy modes Manual locking of door ED100 and ED250 operator systems may be used in low When door is manually locked, operator program switches energy mode and full energy mode applications. must be set to OFF position in...
  • Page 40 Using ED100 / ED250 operator system as a hold-open device Installation of Fire Protection upgrade card enables operator to be used as a hold-open system.
  • Page 41 ED100 / ED250 SERVICE MANUAL — 21 Quick start guide STEP The operator must be completely installed and the door must be IMPORTANT: closed. The arm must be installed according to the installation direc- Verify the no power closing speed and jumper tions.
  • Page 42 DORMA AUTOMATICS, INC. 924 SHERWOOD DRIVE LAKE BLUFF, IL 60044 TOLL-FREE: 877-367-6211 FAX: 847-249-3999 WWW.DORMA.COM...
