ELPRO EL-MX-B004 Owner's Manual

Hdmi (hdbaset) matrix switcher series
Hide thumbs

Advertisement

Quick Links

Download this manual

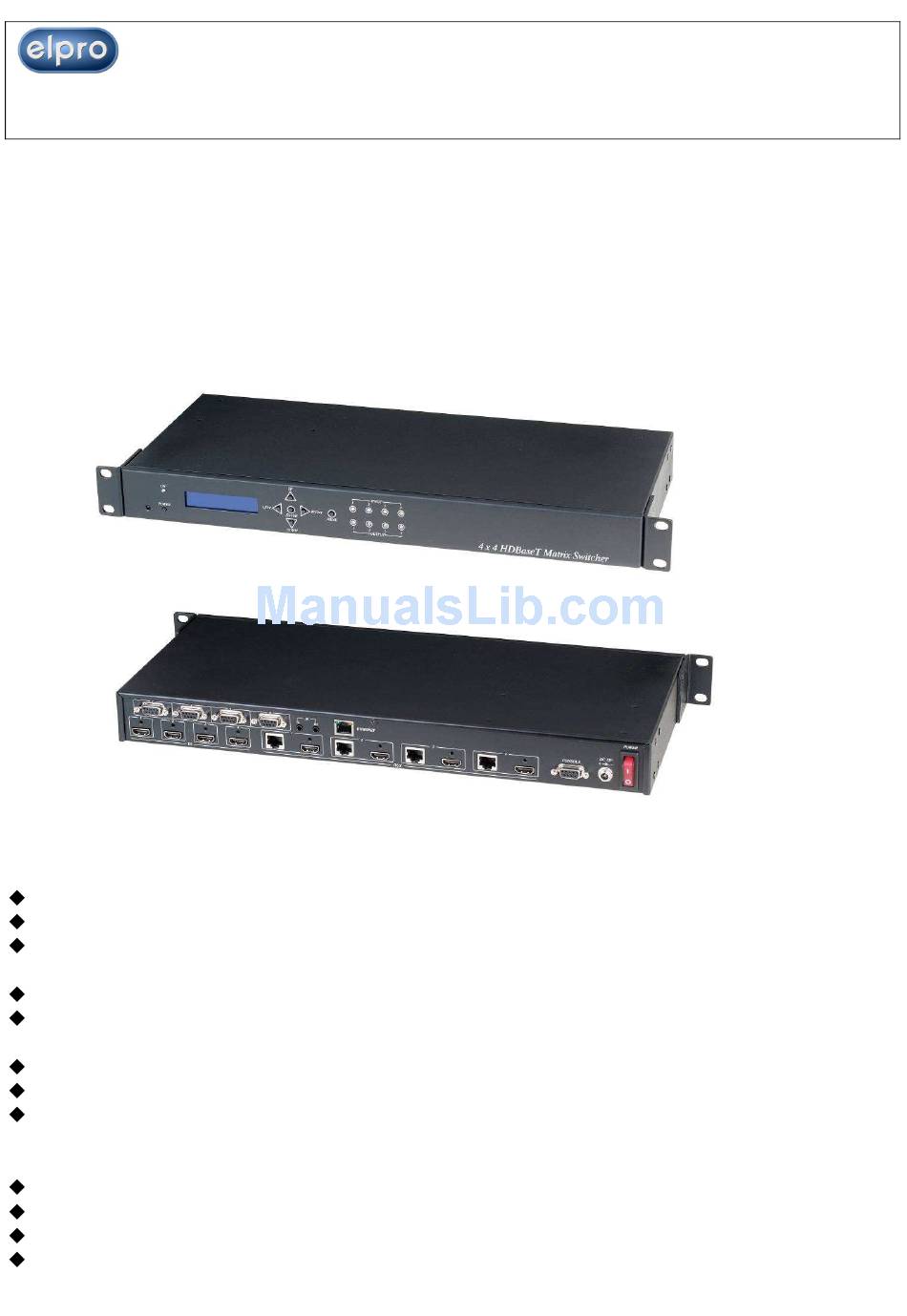

ITEM NO.: EL-MX-B004 4 x 4 HDMI + HDBaseT Matrix Switcher
With the latest and reliable HDBaseT technology this matrix extends HDMI sources up to
100M at 1080p or 1920x1200. HDMI outputs are provided as well.
It provides 3D support, and is 1 RU Rack mountable for professional installations.
In addition, the EL-MX-B004 can be controlled by GUI Ethernet, Android and iOS App
Control, IR remote control, RS-232, Telnet and by the front panel
EL-MX-B004 4 x 4 HDMI (HDBaseT) Matrix Switcher
4 x HDMI inputs, 4 x HDMI Outputs Matrix switcher
Dual Output: local HDMI port and remote RJ45 HDBaseT™
Works with HE02ER, HE02R receiver at each monitor up to 100 meters over
CAT5e/6.
Works with HE02EIR receiver at each monitor up to 70 meters over CAT6a cable.
Three control option: Front panel button, IR remote control, RS232 through remote
PC.
Support local/remote IR control to select input/output.
Built in RS232 console port to select input/output.
Built 1 in 4 out IR distributor function, allow the EL-MX-B004 control each
monitor and also the IR remote control can be used to select the input
source from the monitor side.
Built in Ethernet GUI Control, Android and iOS App Control.
Uncompressed high definition video 1080p@60Hz 12 bit and 3D capable
HDMI 1.4 video features supported, HDCP compliant.
Built in 4 channel IR and RS232 extender (work with Receiver: HE02EIR, HE02ER)
HDMI (HDBaseT) Matrix Switcher Series
February 3rd., 2016 Firm. Version 1.18
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EL-MX-B004 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ELPRO EL-MX-B004

Summary of Contents for ELPRO EL-MX-B004

  • Page 1 100M at 1080p or 1920x1200. HDMI outputs are provided as well. It provides 3D support, and is 1 RU Rack mountable for professional installations. In addition, the EL-MX-B004 can be controlled by GUI Ethernet, Android and iOS App Control, IR remote control, RS-232, Telnet and by the front panel...
  • Page 2 Input/Output status could be displayed at front panel LCM & LED. Optional Model: RC04 : 4 x 4 Keypad remote control (select EL-MX-B004 input/output) Optional CAT5E/CAT6 Receiver Model: HE02ER: 100m HDMI Receiver HE02R : 100m HDMI, bidirectional IR and RS232 Receiver...
  • Page 3 2.0 EL-MX-B004 Connection View: IR01 IR Remote Control BD PLAYER RS232 Control IR Receiver Cable IR Emitter Cable (IR-CR01) (IR-CT01) ETHERNET IR TX IR RX RJ45 RS232 *4 IR Receiver CONSOLE RS232 2 3 4 HDMI HDBaseT HDMI HDBaseT HDMI...
  • Page 4 3.0 Keypad and Leds 3.1 Back Panel Switch: POWER Light on Power on Light off Power off 3.2 Front LED Indication: BLUE Power on Standby LED off Power Off INPUT 1, 2, 3, 4 BLUE Presence signal indication LED off No signal incoming OUTPUT 1, 2, 3, 4 BLUE...

  • Page 5: Hdmi Matrix

    3.3 LCM Panel Function: Power on Main Screen When the power is on and the main screen appears 4 X 4 HDMI MATRIX Channel Setting on Main Screen The Matrix will jump to channel setting screen after 10 seconds, press the MENU key to enter the main 1 2 3 4 1 2 3 4...
  • Page 6 4.0 LCM Main MENU Function Operation: 4.1 SWITCH： ： ： ： (Default: 1 2 3 4) OUTPUT 1 2 3 4 INPUT 1 2 3 4 This function is used to switch the input/output port. Enter the SWITCH menu. Press the ENTER key, then the LCM second line INPUT will flash.

  • Page 7: Matrix Mode

    FIX MODE is one to one transmission, RS-232 port 1 only work with HDBaseT port 1, RS-232 port 2 only work with HDBaseT port 2, and so on… MODE MATRIX MODE EL-MX-B004 RS232 Cable HE02R - 1 Projector RS232 - 1...
  • Page 8 4.3 IR TX (From matrix to remote locations) : (Default IR TX: O O O O) This function setup the IR signal whether from MATRIX, by IR Rx input jack, is sent to HDBaseT ports. Setting O the transmission is enabled, setting X transmission is off. This is the typical application when the user wants to control from the matrix side the remote destination like a TV.
  • Page 9 4.4 IR RX： ： ： ： (From remote locations to matrix) (Default IR RX: O O O O) This function setup the IR signal whether from HDBaseT location is sent to MATRIX to control local device through the IR Tx output jack. Setting O the transmission is enabled, setting X transmission is off.
  • Page 10 4.5 HDBaseT IR ID： ： ： ： (Default IR ID: 0 1 2 3) HDB....T 1 2 3 4 T 1 2 3 4 T 1 2 3 4 T 1 2 3 4 IR ID IR ID 0 0 0 0 1 1 1 1 2 2 2 2 3 3 3 3 IR ID IR ID...
  • Page 11 4.6 MATRIX IR ID： ： ： ： (Default IR ID: 4) MATRIX IR ID 4 This function must be set to match the Matrix remote control IR01 with the matrix itself. Conflicts with other devices remote control is therefore avoided. After entering MATRIX IR ID menu, press ENTER, the LCM LINE 1 number will flash.
  • Page 12 4.7 Ethernet * IP Address Subnet Mask Gateway DHCP Client Media Type MAC Filter IP Address: (Default: 192.168.0.200) IP Address 192.168. 0.200 This function can be setup MATRIX host intranet ”IP Address”, press the ENTER, the left-most number of second row will flash, then press the UP or DOWN button to change the numbers, , press LEFT or RIGHT to move to another location, the move to a position number will flash, press ENTER to complete the setting.
  • Page 13 DHCP Client: (Default Disable) DHCP Client Disable When DHCP Clients setup at “Enable”, the MATRIX host will automatically get IP Address, Subnet Mask, Gateway, if setup at “Disable”, the MATRIX Host IP Address need go through “ ETHERNET” menu to set IP Address, Subnet Mask, Gateway, to press the ENTER, the second row will flash, then press the UP or DOWN to select DISABLE, ENABLE, then press ENTER to complete the setting.

  • Page 14: Edid Mode

    4.8.2 COPY MODE： ： ： ： To fully support the TV resolution and audio mode, the matrix provides “copy mode” to copy TV EDID for input source reference. When use the copy mode, is recommended to copy the lowest resolution TV EDID. Otherwise it may cause no picture display if the TV resolution is not able to support higher resolution.
  • Page 15 HDMI – IN4 Player - 4 All EDID 4.9 VERSION : Display EL-MX-B004 Matrix firmware version 4.10 KEYLOCK : Panel button/IR remote lock function is to avoid any wrong button press. Under keylock mode press “POWER + MENU” to unlock 4.11 SCENE:...
  • Page 16 5.0 Remote Control Function ( IR01): 5.1 To command the matrix locally, setup the remote control IR01 ID with the same code of the Matrix (see 4.6). The default code is 4. (Power+4) 5.2 To command from remote HDBaseT output which input port must be routed on the output, setup the remote control IR01 according to chapter 4.5 -Power+0 enable to work on Output 1...
  • Page 17 Press 1 to 4 to select the source input, press 0 to turn off the output. * Under using quick key operation, LCM screen will jump to the output / input setting page; it won’t be allowed the use of the front panel button to operate the EL-MX-B004 Matrix.
  • Page 18 6.0 RS232 Computer Local Control Function： ： ： ： (CONSOLE) 6.1 For RS232 Connect the RS232 console port to the COM port of the host by an F/M RS232 straight cable (pin 2 to pin 2; pin 3 to pin 3, pin 5 to pin 5). The Matrix communication format is 9600, 8, N, 1 (9600 bps, 8 data bits, no parity check, 1 stop bit) 6.2 For Ethernet TCP/IP (Winsock)
  • Page 19 △ [n] SAVE Save setting to #n △ [n] LOAD Load setting from #n KEY△ [y] Panel button& IR remote control Lock/Unlock DHCP△ [y] DHCP client on/off IP_ADDRESS△ [x.x.x.x] Set Matrix IP address SUBNET_MASK△ [x.x.x.x] Set Matrix subnet mask GATEWAY△ [x.x.x.x] Set Matrix gateway MEDIA_TYPE△...
  • Page 20 7.0 RS-232 Extender function： ： ： ： (Default: FIX MODE) *Connect the 4 RS232 Ports with PC by an F/M RS232 straight cable (pin 2 to pin 2; pin 3 to pin 3, pin 5 to pin 5). * Transmission baud rate up to 115200 bps. 8.0 Remote side IR Extender Function: Tx Function: Receiving IR signal via the 4 sets HDBaseT ports, it sends out the IR signal by Tx jack...
  • Page 21 8. Brown DATA3 - Caution: 1. First time to use EL-MX-B004 remote control or change new batteries must set up IR ID. 2. The wiring must away from any equipment with electromagnetic wave, i.e.: microwave, mobile phone, radio equipment, high voltage, Fluorescent light fixtures, power lines, etc.
  • Page 22 EL-MX-B004-2 You must connect the LAN RJ45 Port of the HS04M-2 to your Network and run the software. This software recognizes the module mounted inside the EL-MX-B004. The following window is opened:...

  • Page 23: Switch Setting

    Once the IP address is set, set SubNet Mask and Gateway: 2. Type IP Address on the web page of your Browser and you could link to the Web GUI of the EL-MX-B004 3. Web UI Operation : SWITCH SETTING: : Control MATRIX power on and standby.
  • Page 24 Advanced: IP address : Change IP address Subnet mask : Change Subnet mask Gateway IP : Change Gateway IP : Change 10 / 100 / Auto detect Media Type : When setup at Enable, the MATRIX host will automatic get DHCP Client IP Address、...
  • Page 25 MAC Filter: MAC Filter can be setup as authorized MAC Address (max 10) to link the MATRIX host After fill the 10 MAC Address, select Enable and press Apply to complete the setting. Click on Back to jump to Advanced page. MEMORY: Save : Save 10 set of channel settings, automatically back to main screen after save Load : Reload (Recall) 1 of the channel settings...
  • Page 26 11. Android APP Function: APP name: Matrix Controller System Requirement Android 4.0 and up Size: 1.2M Language: English, Traditional Chinese, Simplified Chinese Google Play Download Link https://play.google.com/store/apps/details?id=sct.com.matrixcontroller Google Play Download QR code System Setting Connect mobile phone to Wi-Fi and set the IP/ subnet mask same with matrix network segment Default IP address of 10 by 10 matrix is 192.168.0.10 Default IP address of 4 by 4 matrix is 192.168.0.200 Default subnet mask is 255.255.255.0...
  • Page 27 Main Page: When first time enter the APP will see the main page Bottom left「+」to add matrix Bottom right「Info」to show information Scan Device Touch「+」button at main screen to enter「Scan Device」page Touch bottom left「Scan Device」to start scan Touch bottom right pen icon to input the IP address manually Add Matrix After scanning it will show all matrixes in the list Touch the IP in list to enter「Add Device」page...
  • Page 28 Enter the name of matrix then touch「Add Device」to finish setting Notice：Name should be unique, not allow duplicate It will show「+」icon in front of the IP address when finished Return to main screen you will see the matrix which just add...

  • Page 29: Modify Device

    Modify Device Press the matrix name to show pop-up dialog Touch「Modification」to enter modification page. Yellow block shows matrix name and icon Green block shows name and icon of output devices Brown block shows name and icon of input devices...
  • Page 30 Touch yellow block to modify matrix name and icon Input the name and select the icon you prefer then touch「Save」to finish Return to Modification page you will see the matrix have been changed Touch green block to modify output name and icon Input the name and select the icon you prefer then touch「Save」to finish...
  • Page 31 Return to Modification page you will see the output have been changed Touch brown block to modify input name and icon Input the name and select the icon you prefer then touch「Save」to finish Return to Modification page you will see the input have been changed...
  • Page 32 Channel Switching mode (load scene, input selection, output selection) Click device name in list to enter load scene page Slide right from load scene page to enter input selection mode (as before) Slide left from load scene page to enter output selection mode (support multiple selection)
  • Page 33 Load scene Modify scene name Press scene column to show pop-up dialog to modify scene name After modification touch 「Save」to save scene name It will return to Load Scene page automatically. Notice：Name should be unique, not allow duplicate or empty Read scene status Touch top right 「Read」to renew the scene status...
  • Page 34 It will show pop-up message 「Reading…」 After reading it will refresh scene status Touch the column name to show pop-up dialog Touch 「Yes」to apply scene...
  • Page 35 Input Selection Mode Top right「Refresh」to renew the status of matrix Below「Refresh」button to power on/off the matrix The block under device are Output 1~ Output 10 (4 by 4 matrix only shows Output 1~Output 4) Left side shows output device name Right sideshows current input device name Bottom left「Save Scene」to save the scenes Touch output block to enter Channel Selection page...
  • Page 36 Output Selection Mode Top right 「Refresh」to renew the status of matrix Below「Refresh」button to power on/off the matrix The blocks under device are Input 1~ Input 10 (4 by 4 matrix only shows Input 1~Input 4) Left side shows input device name Right side shows current output numbers of devices Bottom left「Save Scene」to save the scenes Bottom right「Video off」to turn off video output...
  • Page 37 Save Scene In Input or Output Selection page touch bottom left「Save Scene」to enter Save Scene page Touch the Scene column to show pop-up dialog Touch 「Save」to save current channels setting for all output It will return to Save Scene page automatically.
  • Page 38 Delete Matrix Press the block of matrix in Controller page to show pop-up dialog then touch「Delete」 Touch「Delete」to delete the matrix...
  • Page 39 9. iOS APP Function: APP name: Matrix Controller System Requirement iOS 7.1 and up Size: 2.3M Language: English, Traditional Chinese, Simplified Chinese iTunes Download Link https://itunes.apple.com/us/app/matrix-control/id904487754?l=zh&ls=1&mt=8 iTunes Download QR code System Setting Connect mobile phone to Wi-Fi and set the IP/ subnet mask same with matrix network segment Default IP address of 10 by 10 matrix is 192.168.0.10 Default IP address of 4 by 4 matrix is 192.168.0.200 Default subnet mask is 255.255.255.0...
  • Page 40 Main Page: When first time enter the APP will see the main page Bottom left「+」to add matrix Bottom right「Info」to show information Scan Device Touch「+」button at main screen to enter「Scan Device」page Touch bottom left「Scan Device」to start scan Touch bottom right pen icon to input the IP address manually Add Matrix After scanning it will show all matrixes in the list Touch the IP in list to enter「Add Device」page...
  • Page 41 Enter the name of matrix then touch「Add Device」to finish setting Notice：Name should be unique, not allow duplicate It will show「+」icon in front of the IP address when finished Return to main screen you will see the matrix which just add...
  • Page 42 Modify Device Touch the gear icon to enter Modification page Yellow block shows matrix name and icon Green block shows name and icon of output devices Brown block shows name and icon of input devices Touch yellow block to modify matrix name and icon Input the name and select the icon you prefer then touch「Save」to finish...
  • Page 43 Return to Modification page you will see the matrix have been changed Touch green block to modify output name and icon Input the name and select the icon you prefer then touch「Save」to finish Return to Modification page you will see the output have been changed...
  • Page 44 Touch brown block to modify input name and icon Input the name and select the icon you prefer then touch「Save」to finish Return to Modification page you will see the input have been changed...
  • Page 45 Channel Switching mode (load scene, input selection, output selection) Click device name in list to enter load scene page Slide right from load scene page to enter input selection mode (as before) Slide left from load scene page to enter output selection mode (support multiple selection)
  • Page 46 Load scene Modify scene name Touch the gear icon to enter modify scene name After modification touch 「Save」to save scene name It will return to Load Scene page automatically. Notice：Name should be unique, not allow duplicate or empty Read scene status Touch top right 「Read」to renew the scene status...
  • Page 47 It will show pop-up message 「Reading…」 After reading it will refresh scene status Touch the column name to show pop-up dialog Touch 「Yes」to apply scene...
  • Page 48 Input Selection Mode Top right「Refresh」to renew the status of matrix Below「Refresh」button to power on/off the matrix The block under device are Output 1~ Output 10 (4 by 4 matrix only shows Output 1~Output 4) Left side shows output device name Right sideshows current input device name Bottom left「Save Scene」to save the scenes Touch output block to enter Channel Selection page...
  • Page 49 Output Selection Mode Top right 「Refresh」to renew the status of matrix Below「Refresh」button to power on/off the matrix The blocks under device are Input 1~ Input 10 (4 by 4 matrix only shows Input 1~Input 4) Left side shows input device name Right side shows current output numbers of devices Bottom left「Save Scene」to save the scenes Bottom right「Video off」to turn off video output...
  • Page 50 Save Scene In Input or Output Selection page touch bottom left 「 Save Scene」 to enter Save Scene page Touch the Scene column to show pop-up dialog Touch 「Save」to save current channels setting for all output It will return to Save Scene page automatically.
  • Page 51 Delete Matrix Touch top right「Edit」button to enter delete mode Touch 「-」button in the left of matrix Touch「Delete」to delete the matrix Touch top right 「Done」to exit...
  • Page 52 EL-MX-B004 Standard Package Include: EL-MX-B004 Matrix x 1 pcs IR01 IR Remote Control x 1 pcs IR Emitter Cable x 1 pcs IR Receiver Cable x 1 pcs Power Adapter x 1 pcs CD Software x 1 pcs EL-MX-B004K Package Includes:...

  • Page 53: Specification

    Operation: 0 to 55˚C, Storage: -20 TO 85˚C, Humidity: up to 95% Dimensions 49 x 92.3 x 25 Weight Rev. B5 Elpro Video Labs srl Str. della Pronda 45B 10142 Torino - Italy Tel. +39 011 770 1583 www.elprovideolabs.com info@elprovideolabs.com...
