Temperature Management
24091002
Stand: Sep-11
Operating Instructions

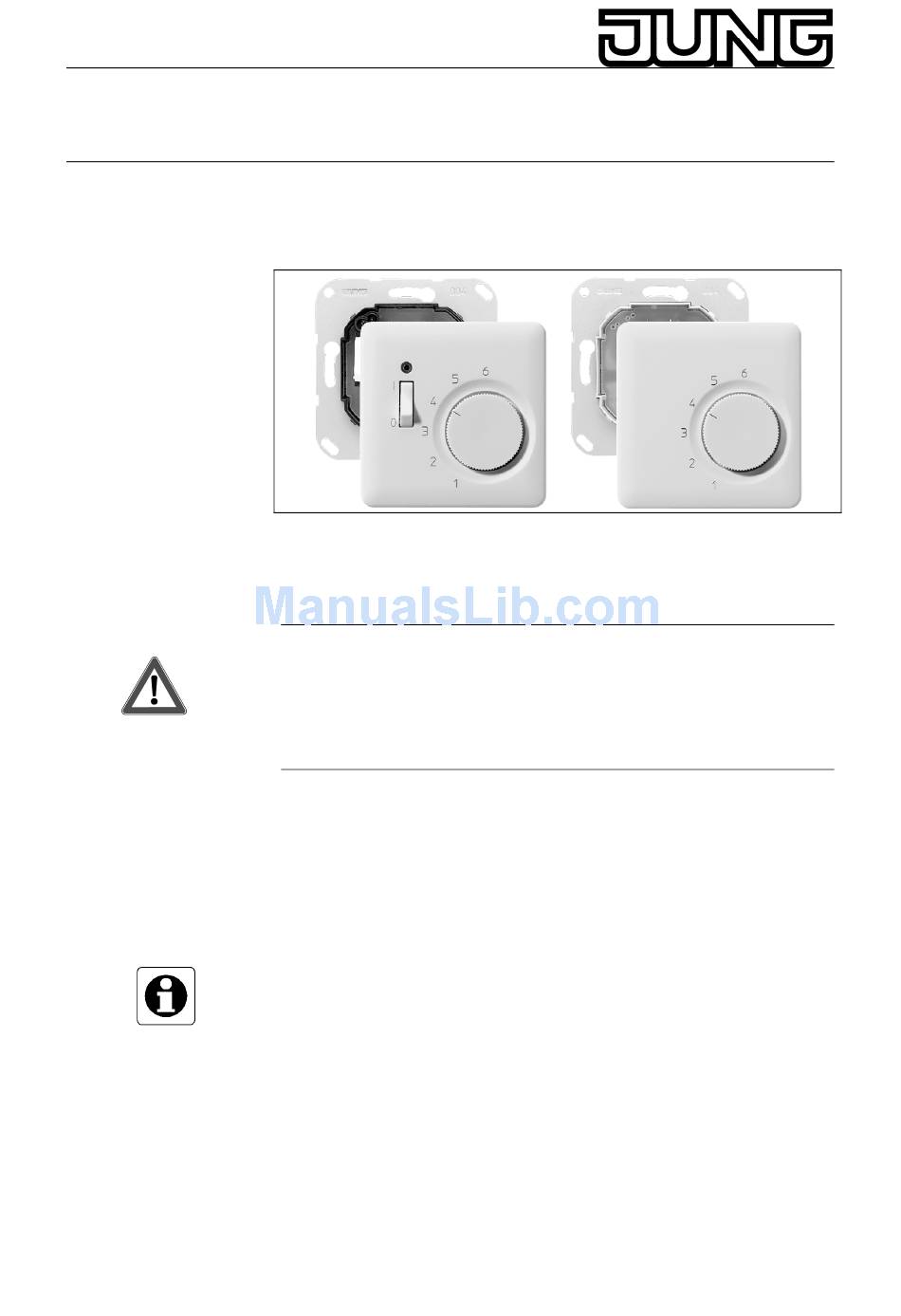

Room temperature controller
1. Area of application
The room temperature controller is used to regulate the temperature in
closed rooms such as flats, schools, function suites, workshops, etc.
Safety instructions
Electrical equipment may only be installed and fitted by qualified
electricians while observing the current accident prevention
regulations. A relative air humidity of max. 95% may not be
exceeded. Avoid any moisture condensation. Non-observance of the
safety warnings or installation instructions may damage the device,
cause a fire or other hazards.
2. Installation
Notes:
•
Mount the room temperature controller on an internal wall opposite
the heat source if possible.
•
Do not mount the room temperature controller on outside walls.
•
Avoid draughts from windows and doors.
•
Ensure that the normal air circulation in the room reaches the
controller without any obstacles.
•
External heat sources influence the accuracy of the controller.
Avoid direct sunlight and do not place heat-emitting devices in the
vicinity of the room temperature controller (heaters, lamps, etc.).
•
Dimmers also generate heat. If a controller is installed in a common
switch frame with a dimmer, the distance between them should be
as great as possible. When arranging them vertically, the controller
must be installed underneath the dimmer.
Mounting height: approx. 1.5 m above the floor.
Mounted in a switch box in accordance with DIN 49 073.
Room temperature controller
Ref.-no.: TR..231.., TR..241..,
TR..236.., TR..246..
