Jung 2178TS Operating Instructions Manual

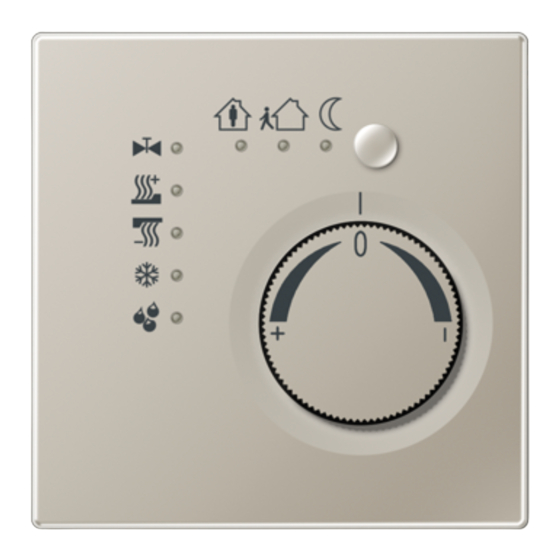

Room temperature controller with push-button interface 4-gang
Hide thumbs Also See for 2178TS:
Table of Contents

Advertisement

Quick Links

Download this manual

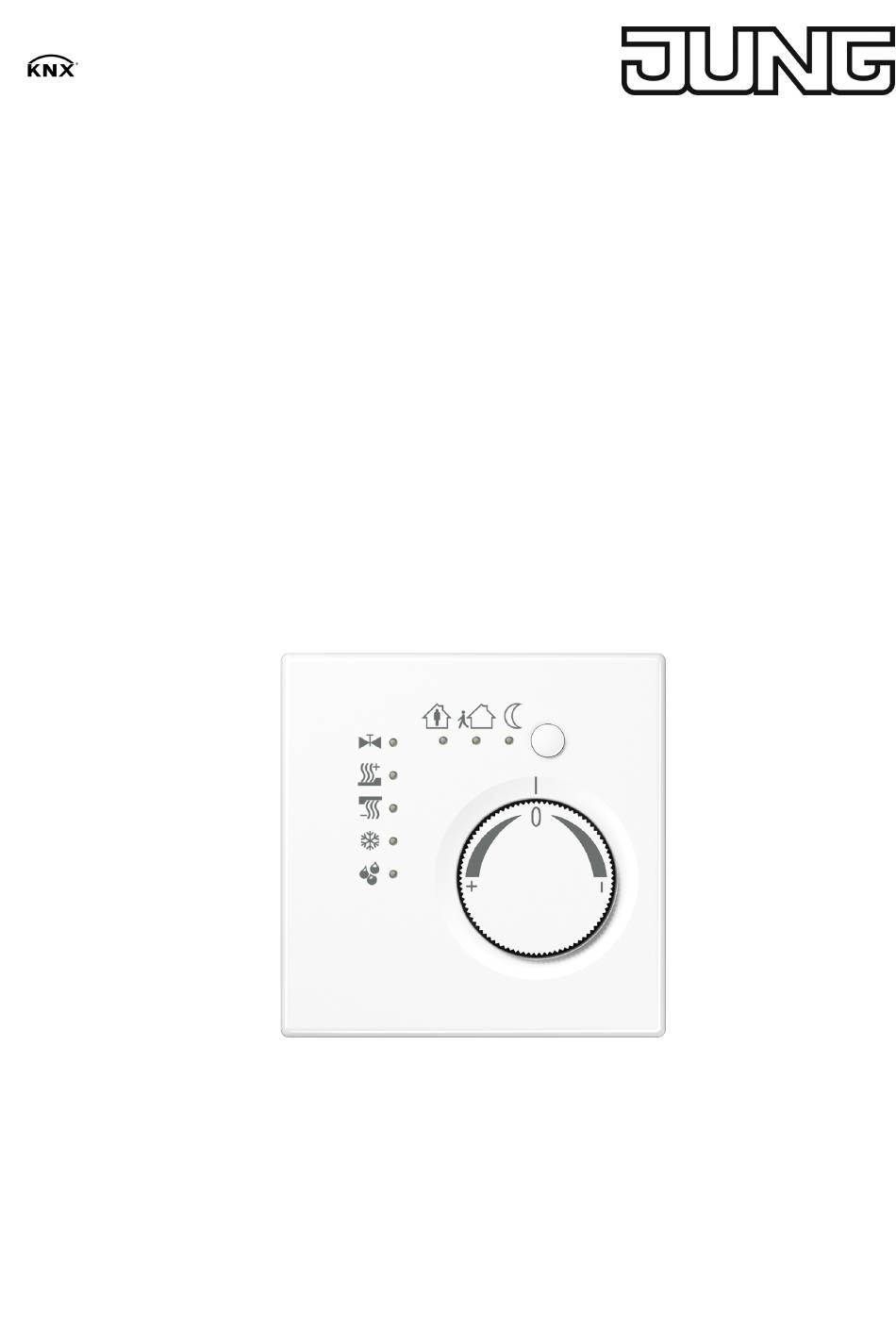

Operating instructions
Room temperature controller with push-button interface 4-gang
Art. no. ..2178TS
ALBRECHT JUNG GMBH & CO. KG
Volmestraße 1
58579 Schalksmühle
GERMANY
Telefon: +49 2355 806-0
Telefax: +49 2355 806-204
kundencenter@jung.de
21.04.2023
32561933 J:0082561933
www.jung.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2178TS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jung 2178TS

Summary of Contents for Jung 2178TS

  • Page 1 Operating instructions Room temperature controller with push-button interface 4-gang Art. no. ..2178TS ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de 21.04.2023 32561933 J:0082561933 www.jung.de...

  • Page 2: Table Of Contents

    Room temperature controller with push-button interface 4-gang Table of contents Safety instructions ...................... 3 Device components...................... 3 Function .......................... 4 Operation .......................... 5 Information for electrically skilled persons ................ 6 Mounting and electrical connection................  6 Commissioning ......................  9 Appendix ........................... 9 Technical data...................... 9 Accessories...................... 9 Warranty ......................

  • Page 3: Safety Instructions

    Room temperature controller with push-button interface 4-gang Safety instructions Electrical devices may be mounted and connected only by electrically skilled persons. Serious injuries, fire or property damage are possible. Please read and follow the manual fully. Danger of electric shock at the KNX installation. Do not connect any external voltage to the inputs.

  • Page 4: Function

    Room temperature controller with push-button interface 4-gang Function System information This device is a product of the KNX system and complies with the KNX directives. Detailed technical knowledge obtained in KNX training courses is a prerequisite for proper understanding. The function of the device depends on the software. Detailed information on the soft- ware version and the respective scope of functions as well as the software itself can be obtained from the manufacturer´s product database.

  • Page 5: Operation

    Room temperature controller with push-button interface 4-gang Operation Operating modes and Status LED Each heater requires a certain time to bring a cooled room to the desired temperat- ure. For this reason, in the event of brief absence, the room temperature can be lowered only slightly, e.g.

  • Page 6: Information For Electrically Skilled Persons

    Room temperature controller with push-button interface 4-gang The controller is in night or frost/heat protection operating mode. ￭ Press the presence button (1) (see Fig. 1). The status LED 02 or 0¾ light up. Comfort mode is extended by the programmed time. Once the programmed time expires, the original operating mode night or frost/ heat protection is restored.
  • Page 7 Room temperature controller with push-button interface 4-gang Mounting and connecting the device Image 2: Device components Connection terminal insert Design frame Electronics cover Retaining screw Programming LED Programming button ￭ Separate the connection terminal insert (4) and the electronics cover (6) (see figure 2).
  • Page 8 Room temperature controller with push-button interface 4-gang Image 4: Connection of binary inputs Image 5: Connection of binary outputs Optional: Route an external temperature sensor in an empty pipe and guide the sensor head out at the measurement location. Select the installation location for the temperature sensor so that it can measure the temperature without any influence from sources of interference.

  • Page 9: Commissioning

    Room temperature controller with push-button interface 4-gang Commissioning Loading the address and the application software Pull off the adjustment dial (2) (see figure 2). ￭ Press the programming button (9). The programming LED (8) is illuminated. ￭ Assign a physical address. The programming LED (8) goes out.

  • Page 10: Warranty

    Room temperature controller with push-button interface 4-gang Warranty The warranty is provided by the specialist trade in accordance with statutory require- ments. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...
